FT44
The FT44 truss line features larger and wider box truss segments, which are usually used for bigger structures. Its loading charts are certified by TÜV SÜD and the maximum span of a truss beam is certified up to 16m. This truss is a great solution for roof systems and show grids, where longer beam spans are requested.
Key features and benefits:
- 400 mm (15.75 in) square truss
- Certified 50 x 2 mm (1.97 x 0.08 in) tube
- Available in various lengths up to 5 m / 16.40 ft
- Certified spans up to 16 m / 52.49 ft
- Interior & exterior applications

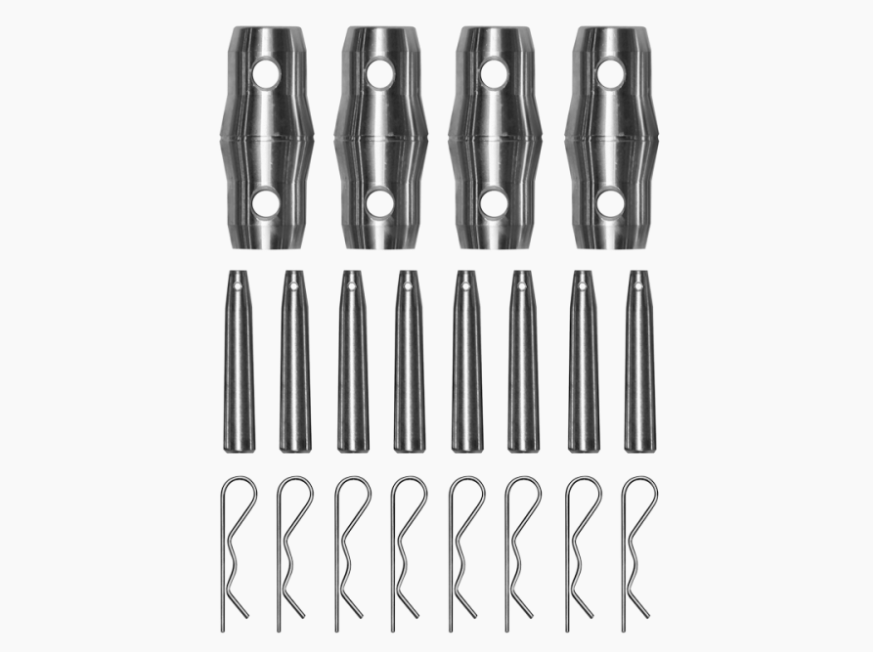

- Connection kit supplied with straights and corners
- Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
- Claw clamp 50 for in pipe welding on request
- Snap clamp compatible (8102-8105)
- Stack clamps for easy stacking (8106-8107)
- Quicklock connection system for quick and easy assembly
- Powder coat colour finish available on request
Specifications
- TUBES: 50 x 2 mm (1.97 x 0.08 in)
- BRACES: 25 x 3 mm (0.98 x 0.12 in)
- ALLOY: EN AW-6082 T6
FT44-C19

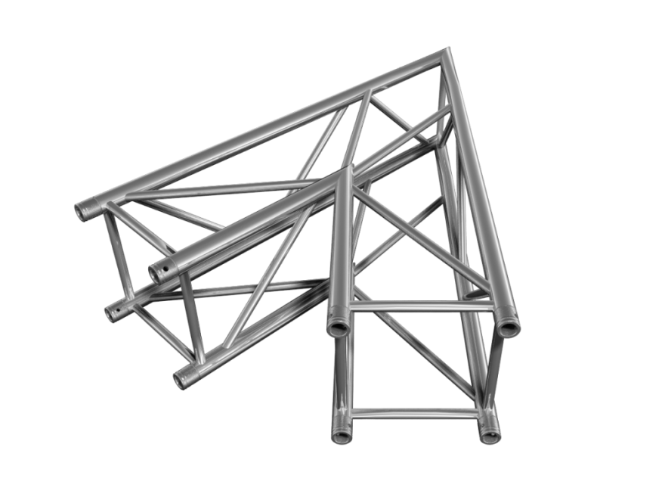

Two way corner with 45° angle in box truss FT44. Size 1 x 1 m. One connection kit included with the product.
Specifications
- 11.9 kg
- 2-way 45° corner
- 1.5 m
- 1 connection kit included
