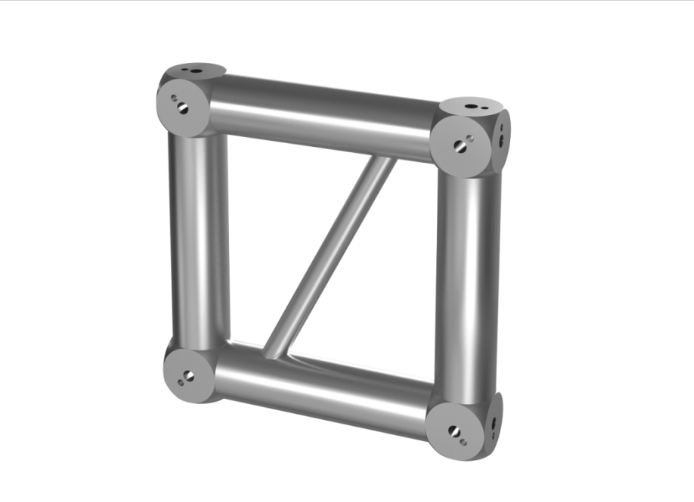

HT34
The HT34 truss line is the heavy duty version of our standard 290 mm (11.42 in) truss. Good loading characteristics and relatively small dimensions of this product line mean it can be used for creating simple support beams, large grids, roof systems, trade booths and much more. Tested and certified by TÜV SÜD.
Key features and benefits:
- 290 mm (11.42 in) square truss
- Certified 50 x 3 mm (1.97 in x 0.12 in) tube
- Available in various lengths up to 5 m / 16.40 ft
- Certified spans up to 12 m / 39.37 ft
- Interior & exterior applications
- Connection kit supplied with straights and corners
- Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
- Snap clamp compatible (8102-8105)
- Stack clamps for easy stacking (8106-8107)
- Quicklock connection system for quick and easy assembly
- Powder coat colour finish available on request
Specifications
- TUBES: 50 x 3 mm (1.97 x 0.12 in)
- BRACES: 20 x 2 mm (0.79 x 0.08 in)
- ALLOY: EN AW-6082 T6
HT34-32F
Frame adapter for connecting the FT32 or HT32 ladder trusses to HT34. There are two ways for connection of FT32 / HT32. It enables to create truss networks or support grids by combination of two truss lines HT34 and FT32 / HT32. No need for clamps or additional accessories. One connection set included.
Specifications
- 3.2 kg
- Frame HT32+FT32
