2x2 and 2x3 acoustically treated booths to be used as a Control Room for Mixing and Mastering.

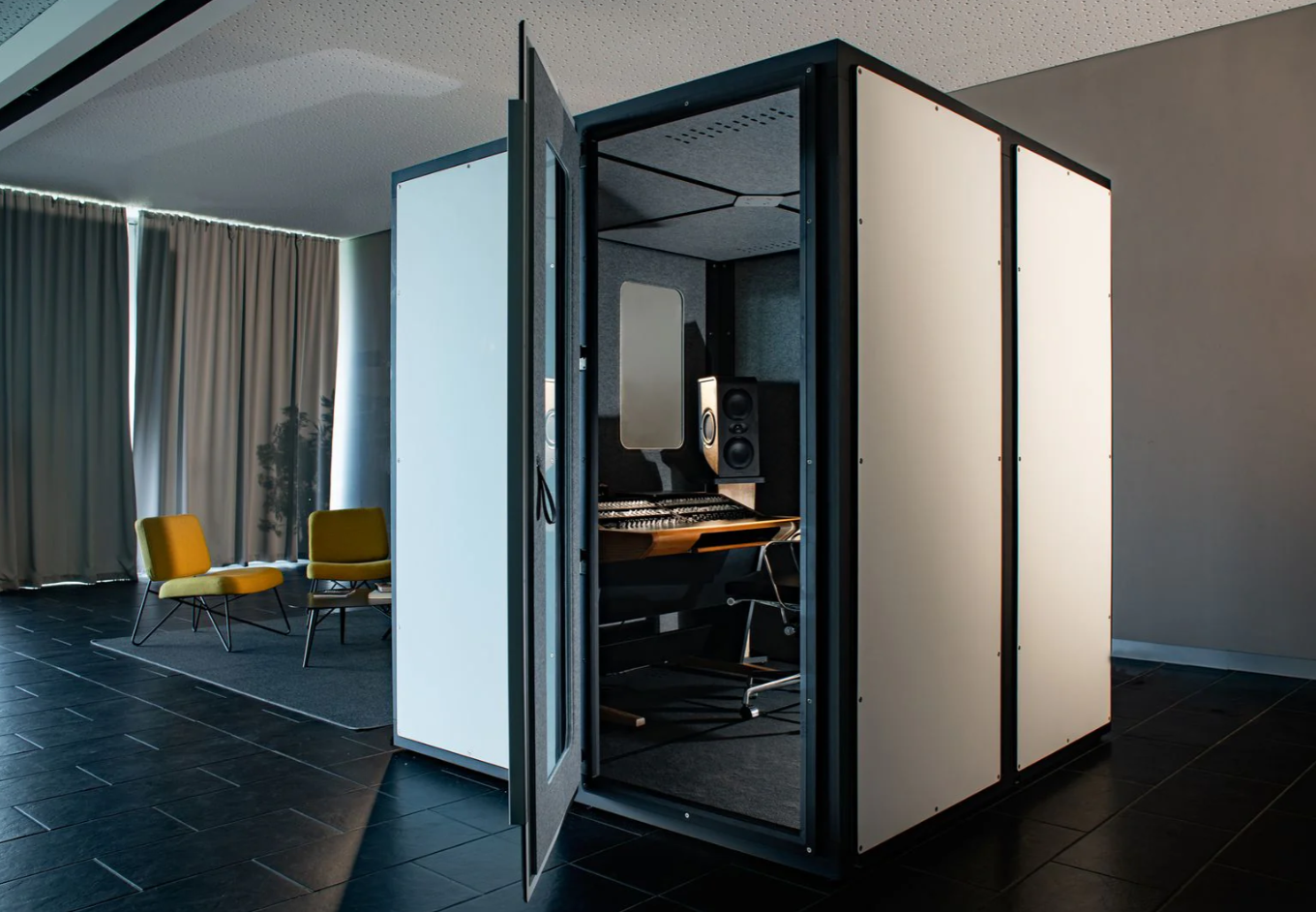

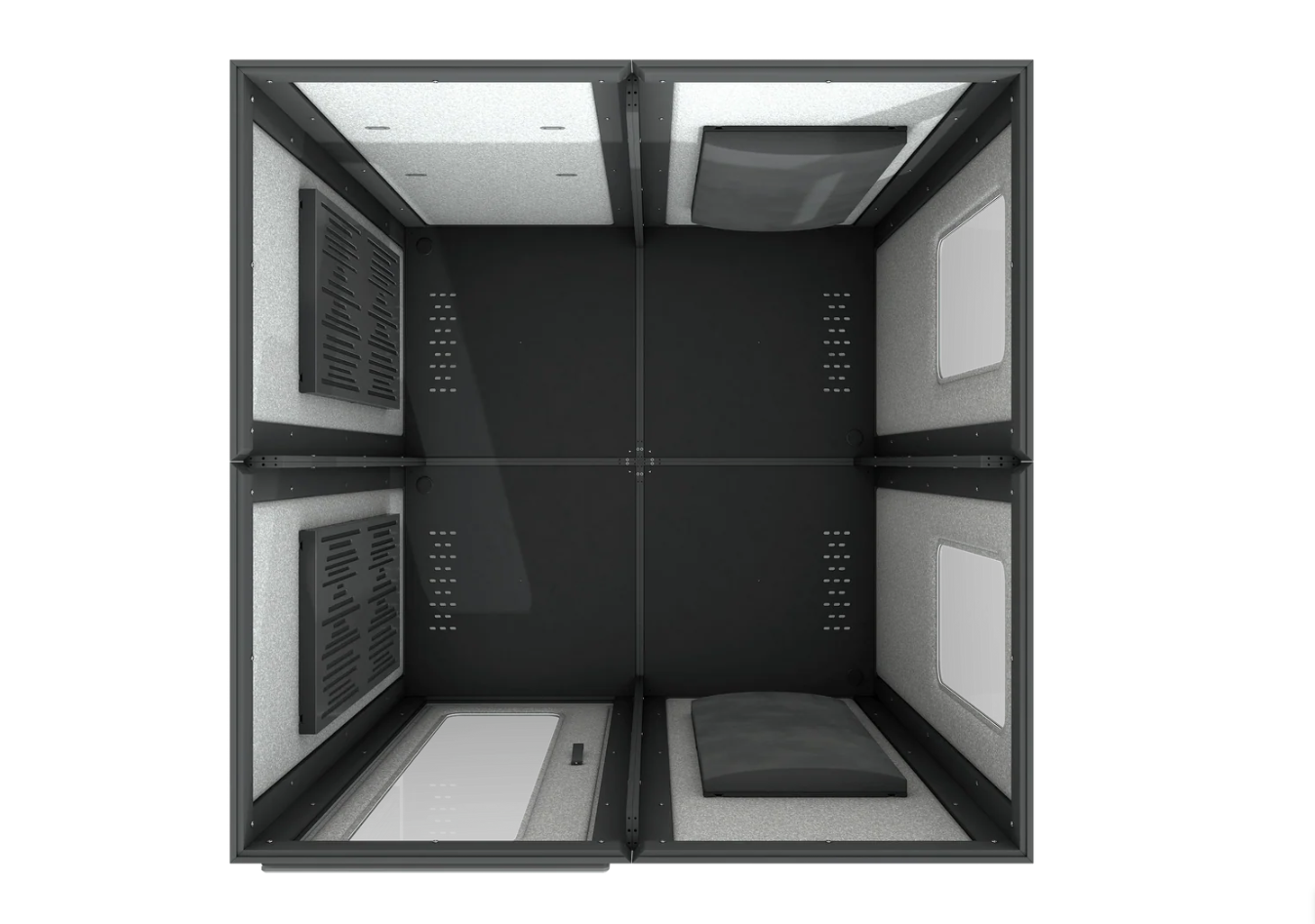

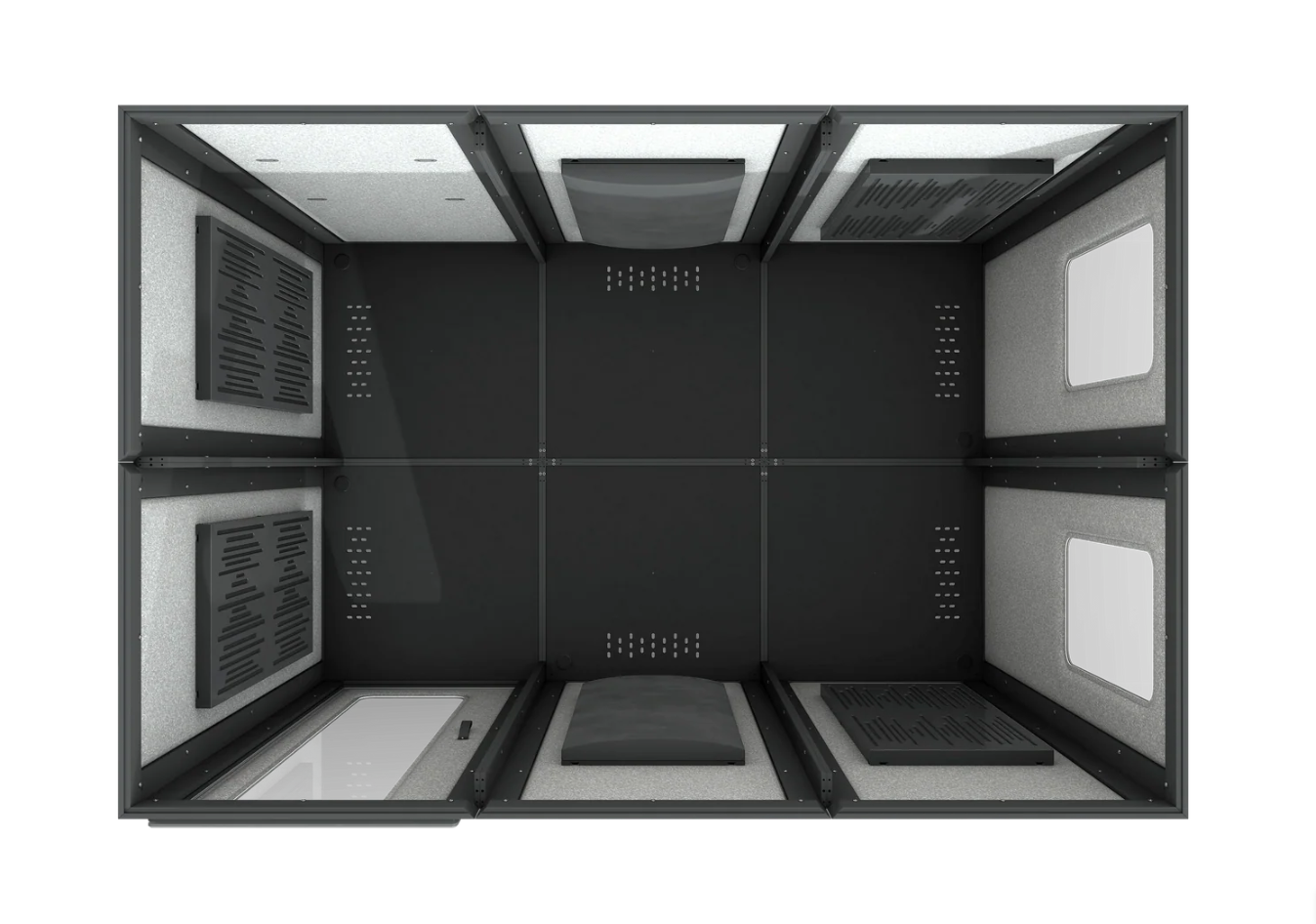

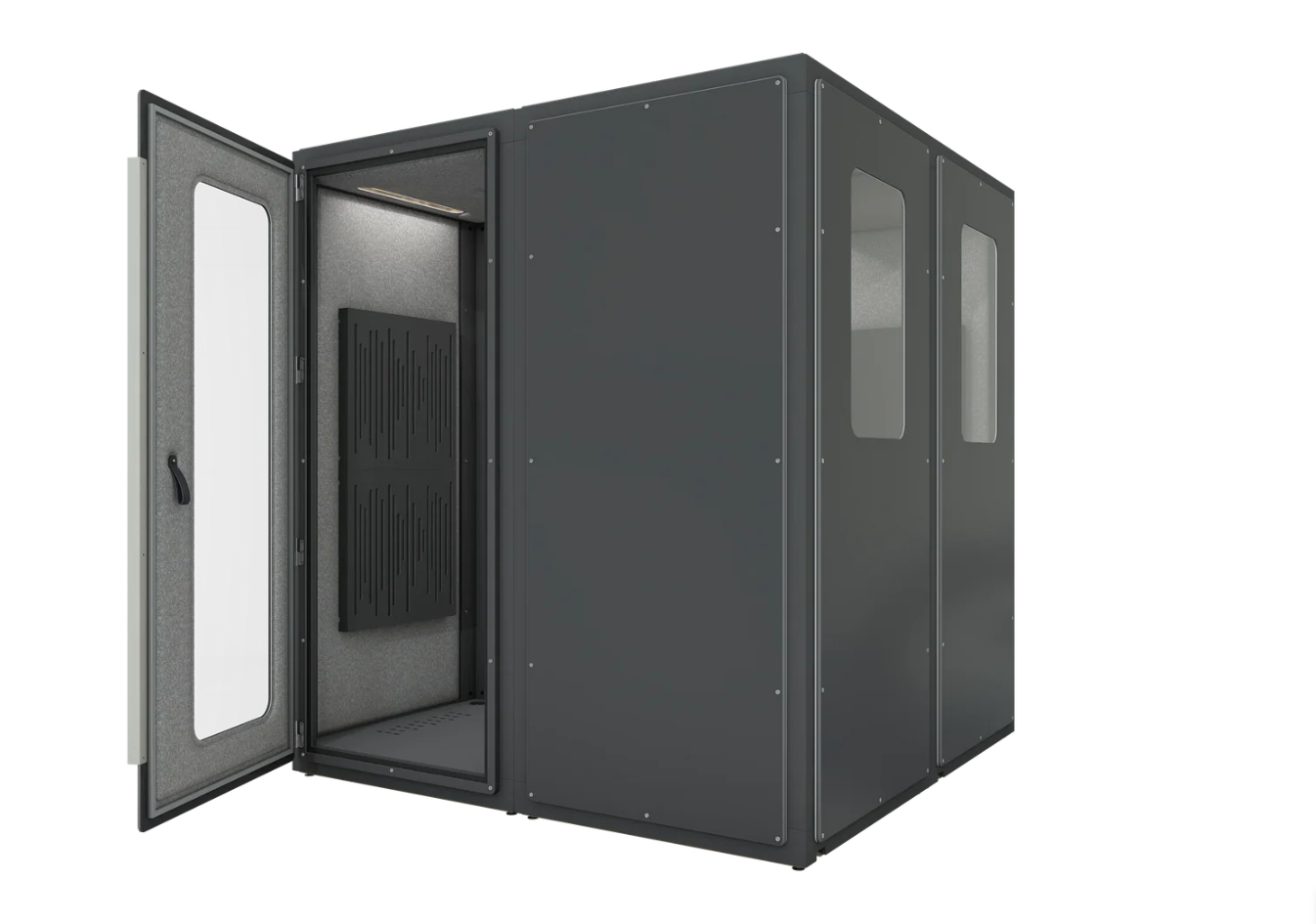

VicBooth Ultra Control Room is an acoustically treated booth to be used as a Studio for Mixing and Mastering, to improve first reflections, stereo image definition, sound source localisation and minimize Comb-filter effects. It features an acoustic kit including 4 Cinema Round Premium + 4 VicPatterns Ultra Wavewood.

VicBooth Ultra is a versatile and modular sound insulation pod made for the Professional Production environment, specially developed for the music sector, where performers often need to find an isolated space to be able to produce their work. It is perfect for music professionals who need great acoustic results, sound insulation and versatility.

Product Info

• Raw Materials: Coated Steel, Laminated Glass, Fabric, High-Pressure Laminate (HPL), MDF, Needled Pile Carpet, VicPET Wool, ViCycle
• Fire Rating: Not available
• Functions: Sound Insulation

Dimensions:

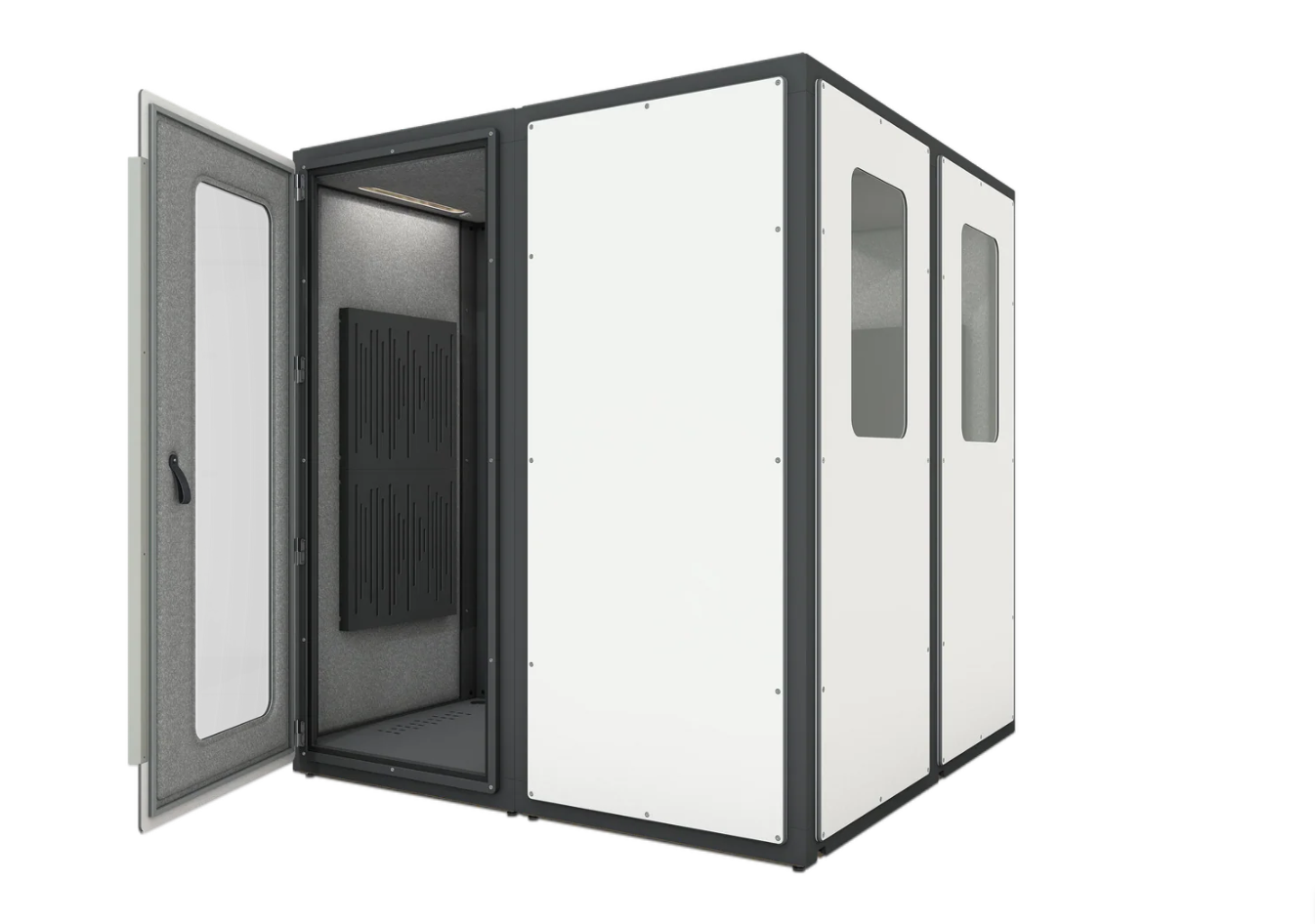

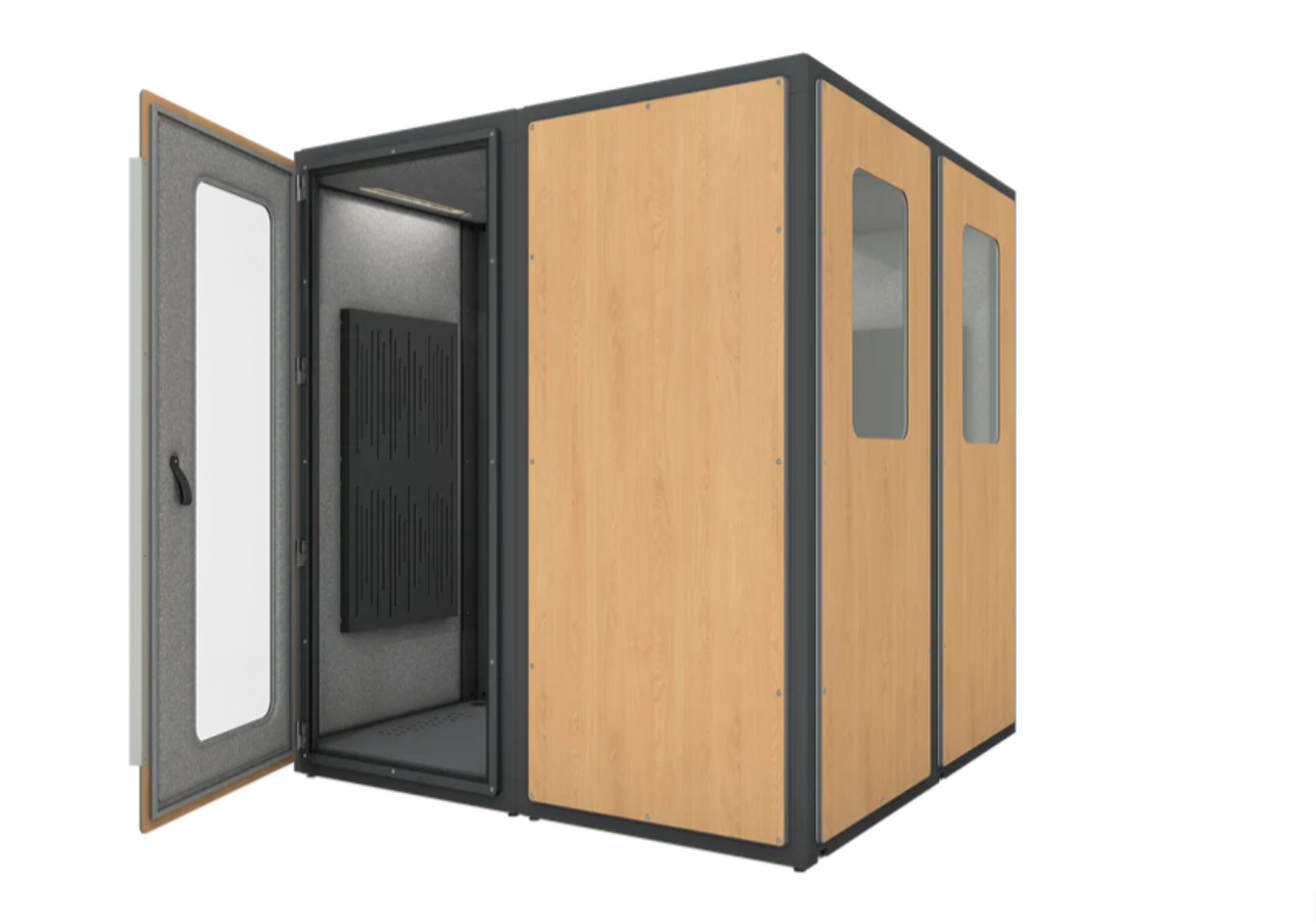

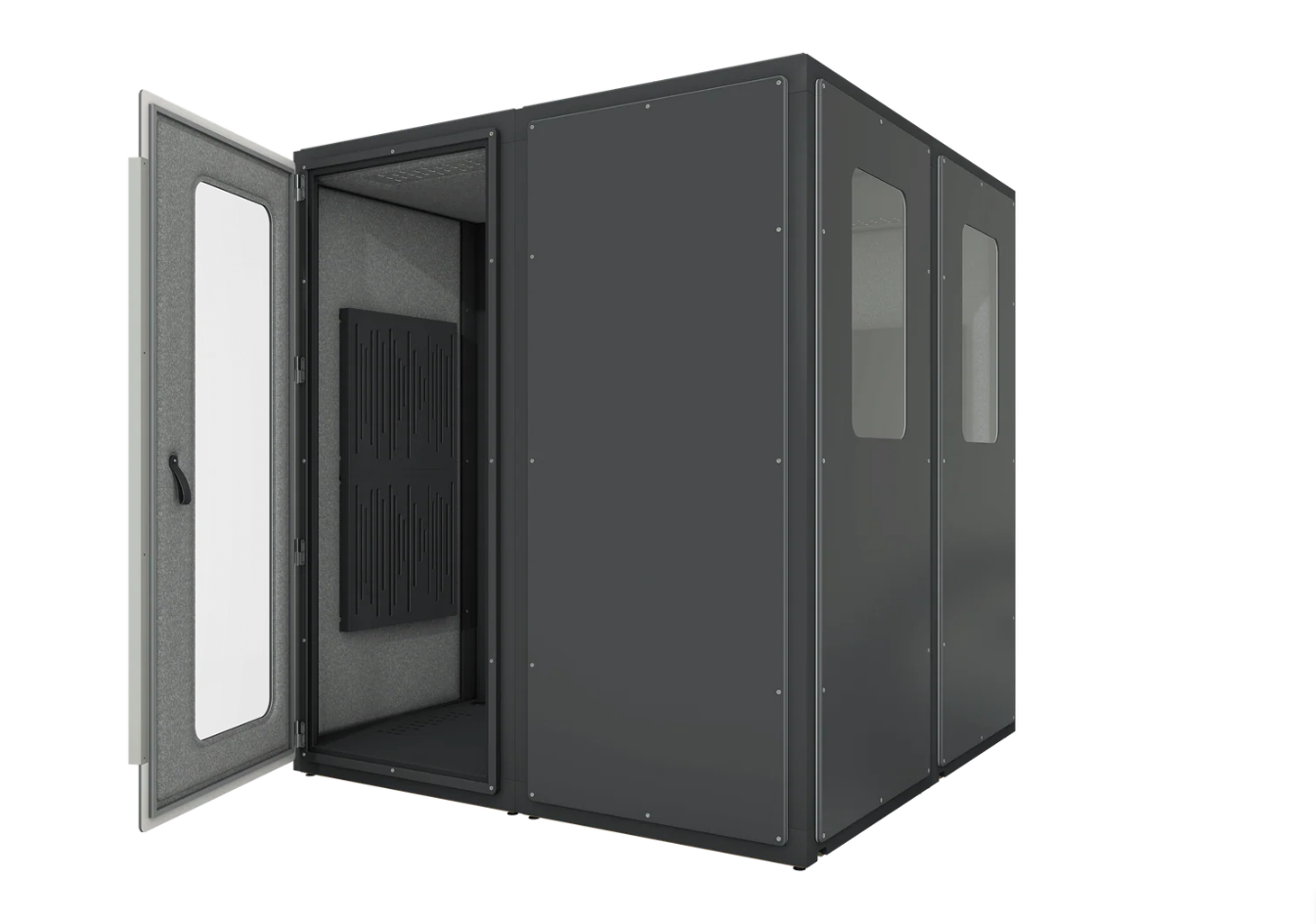

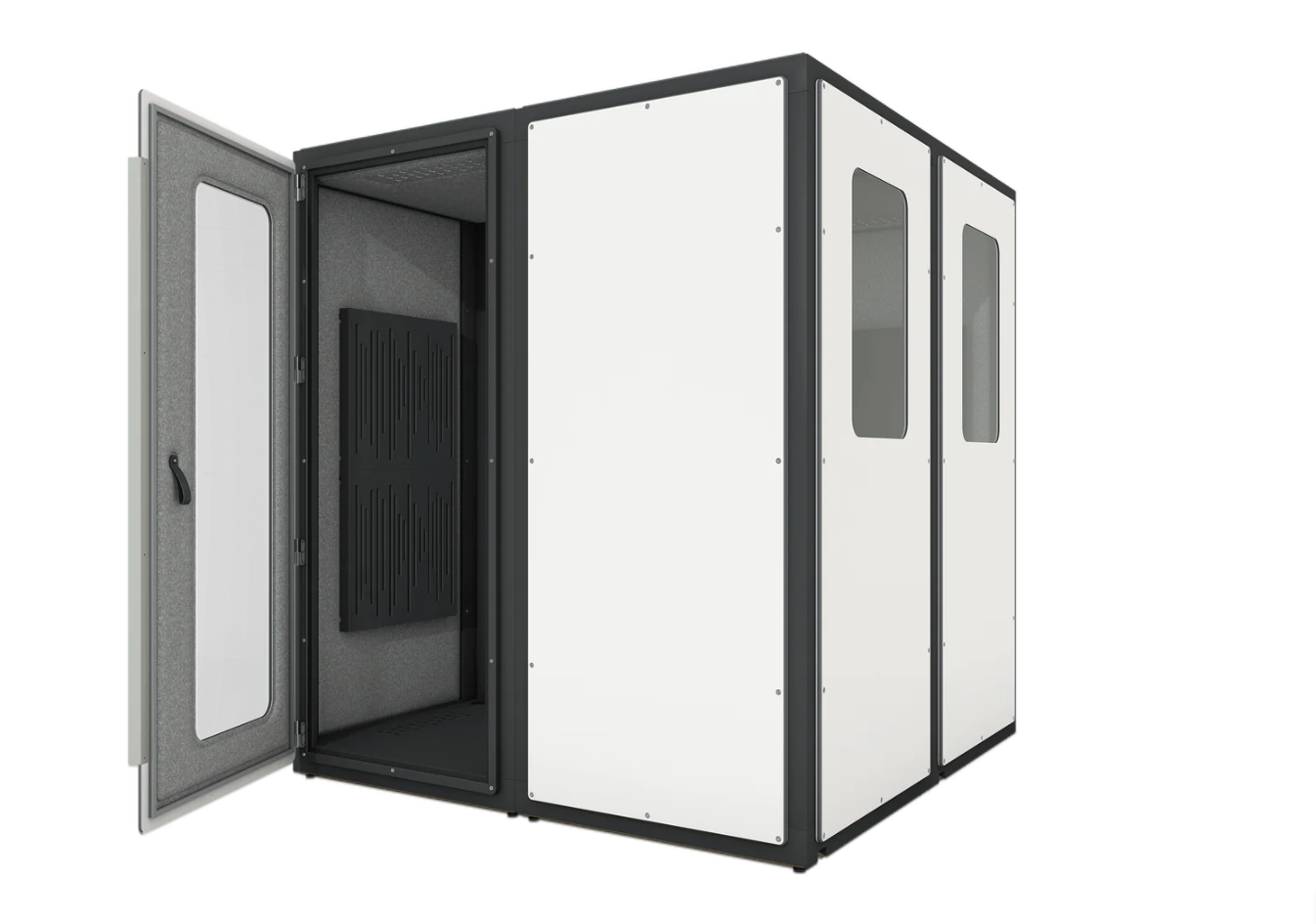

• 2x2 - Ext. 2076x2030x2230mm / 81.73"x79.92"x87.80"; Int. 1968x1968x2008mm / 77.48"x77.48"x79.02"

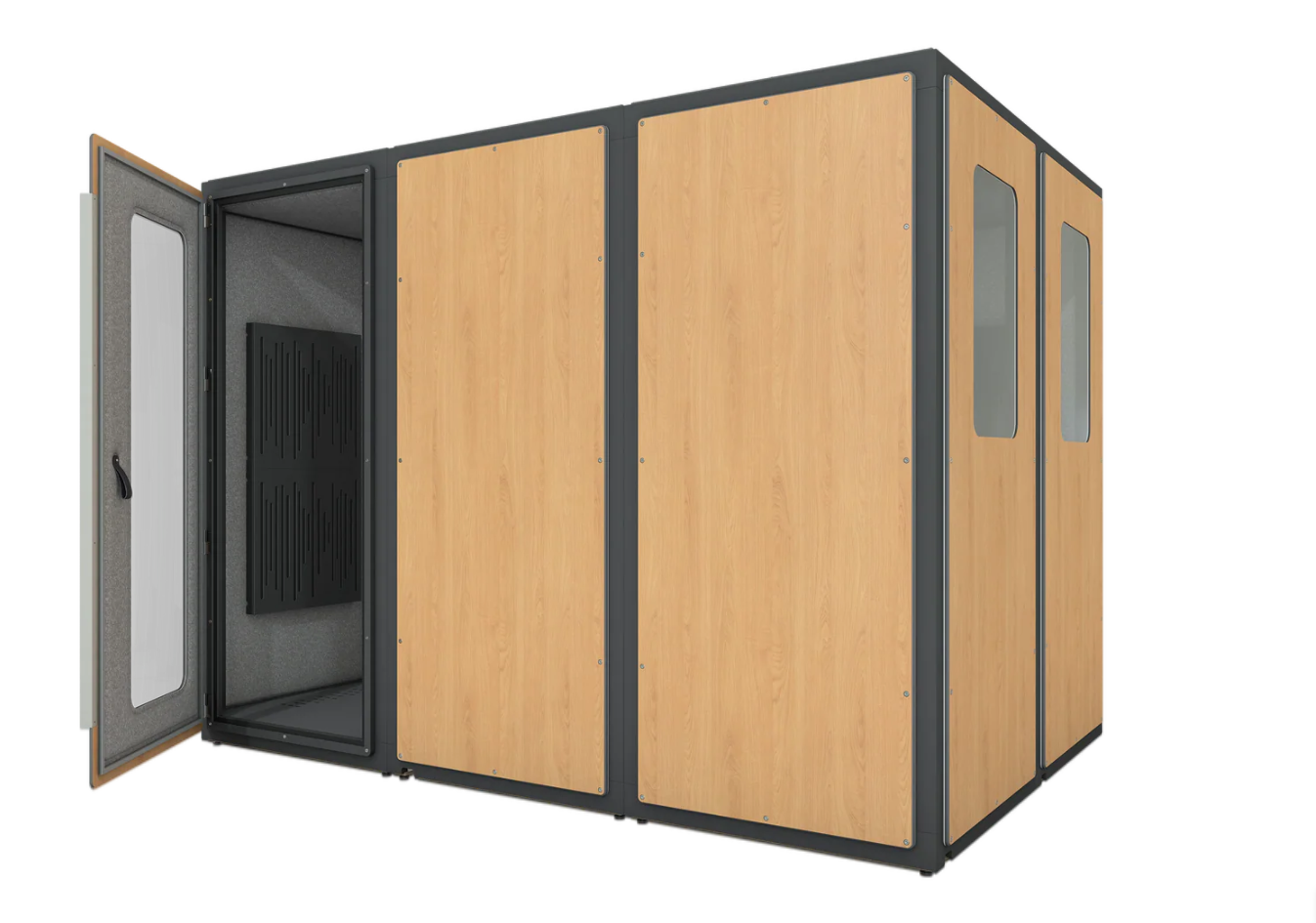

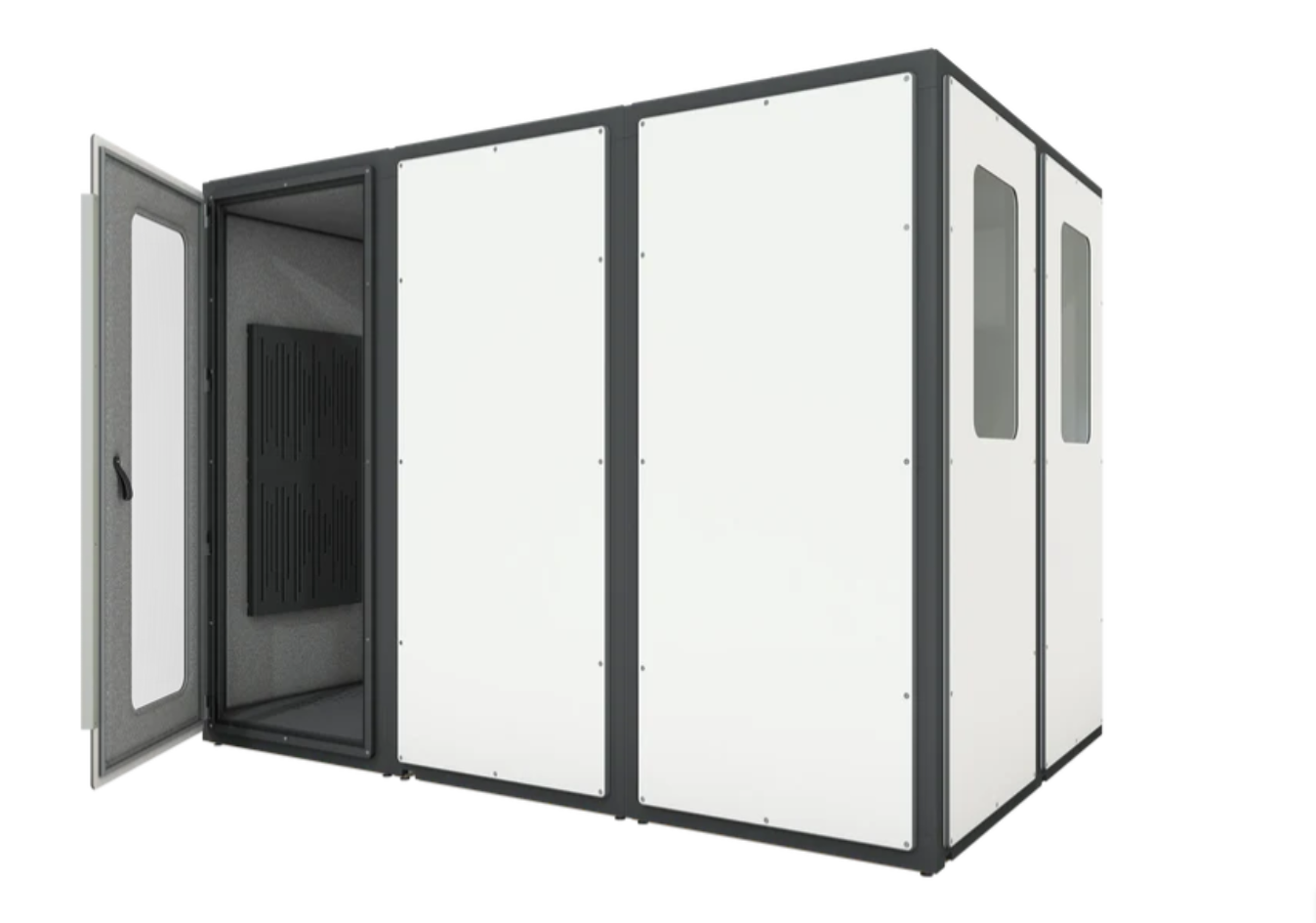

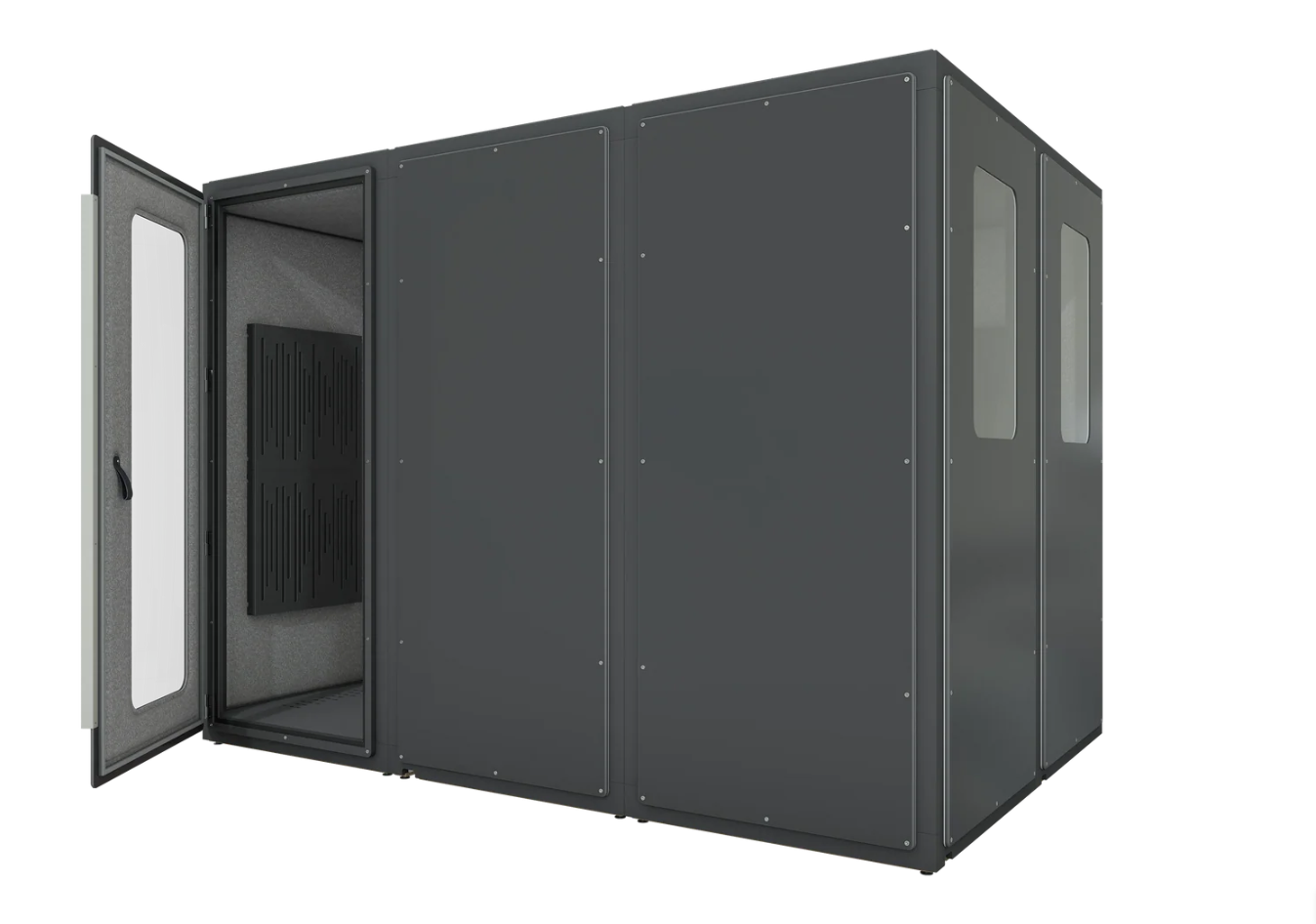

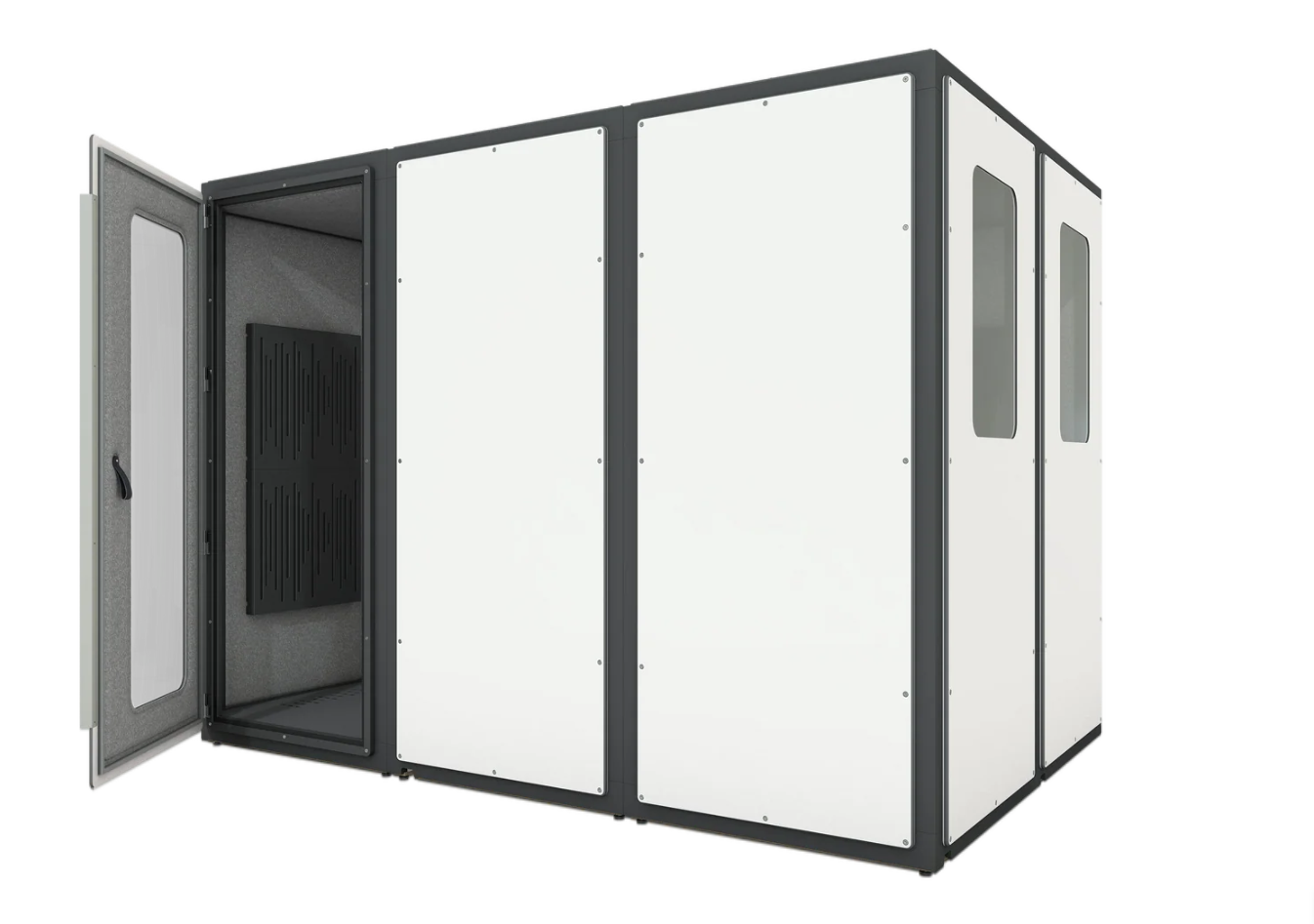

• 2x3 - Ext. 2076x3030x2230mm / 81.73"x119.29"x87.80"; Int. 1968x2968x2008mm / 77.48"x116.85"x79.02"

Technical Details

• Lightning and Ventilation activated by motion detector
• Lighting: 4x 12W LED (, 4000°K (Natural White)
• Ventilation: 4x Ø14cm fans (109.55 CFM)
• Ventilation Fan Noise Levels
  / 100% speed: 49 dB(A)
  / 50% speed: 33 dB(A)
  / 20% speed: <30 dB(A)
• Notes: Ventilation noise values are based on measurements conducted on a VicBooth 1×1 configuration equipped with one integrated light and ventilation unit. Measurements were performed in a controlled environment following standard acoustic procedures. Results are provided as reference values and may vary depending on booth size, configuration and number of ventilation units.

Acoustic Performance

• NIC: 30 dB
• Noise Isolation Class Value calculated according to ASTM E413 in measurements taken according to ASTM E596. Data shown is based on VicBooth 1x1 measurements in controlled conditions. Other sizes share the same construction; performance may vary with size, configuration, and installation.
