Isolated steel floor batten system.
ViCork Lat is an isolated steel floor batten system for the support of floating floors and sprung-floor applications.
This product can support a variety of formwork and it’s extremely quick to install. The pads within the ViCork Lat can be changed to meet project specific natural frequency and damping requirements.
Technical Information
- Density: 710 kg/m3
- Color: Black
- Temperature Range: Constant (- 10 / + 100oC)
- Tensile Strength: > 0.4 MPa (ASTM F152)
- Elongation at Break*: > 40% (ASTM F152)
- Compression set 50% / 23o / 70h*: < 10% (DIN 53572)
- Compressibility at 2.8 MPa*: 40 - 60% (ASTM F36)
- Recovery at 2.8 MPa*: > 90% (ASTM F36)
- Shore hardness: 35-45 A ( ASTM D2240)
* with respect to a flat-shaped material specimen.
Installation - Required information to determine ViCork LAT mesh:
- Weight of the floating floor to be supported;
- The imposed dead and live loads on the floating floor;
- The required system natural frequency or sound insulation performance criteria.
Product Info

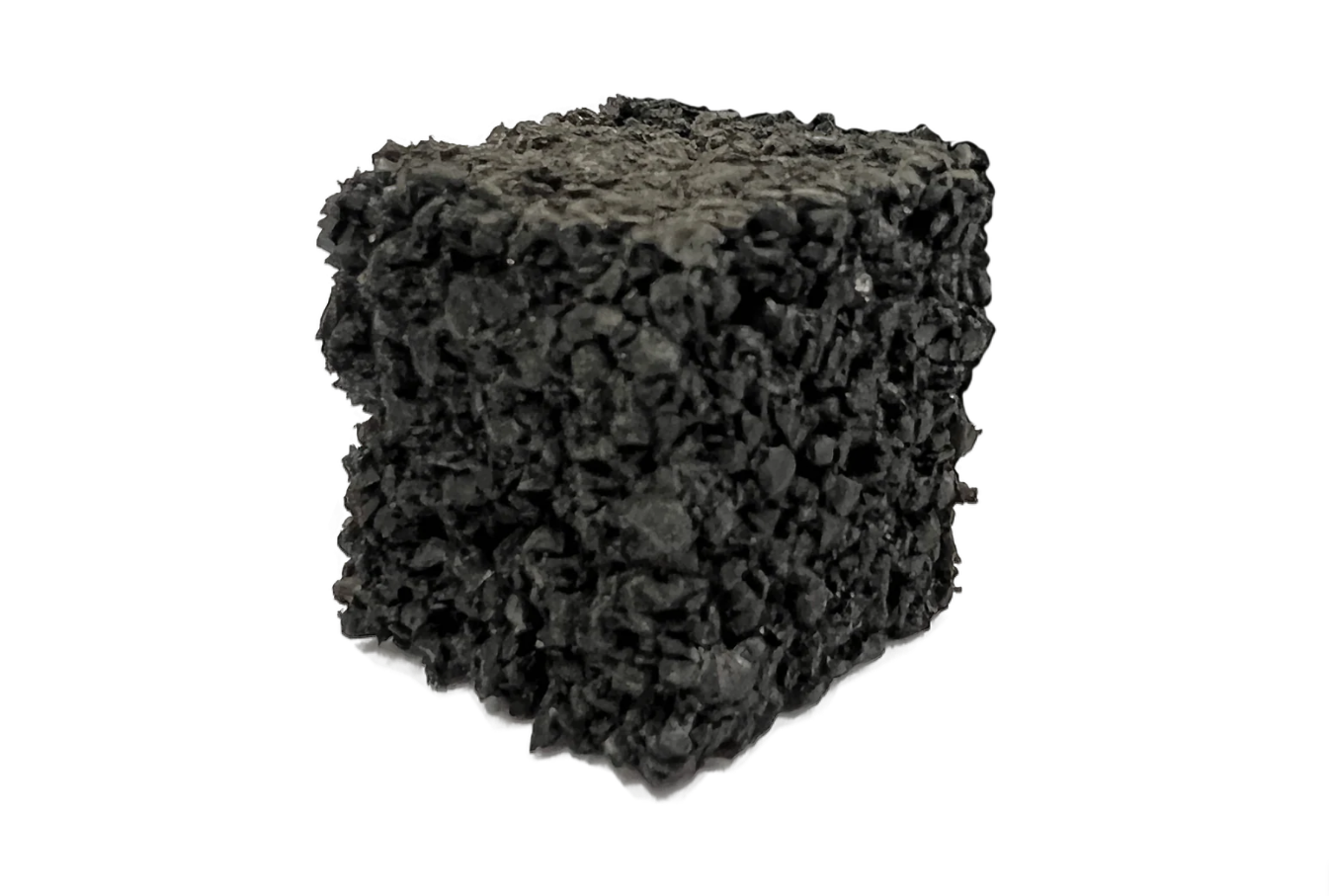

- Dimensions: 30x30x30mm / 1.2''x1.2''x1.2'' (LxHxW, unit)
- Raw Materials: Resin Bonded Rubber
- Fire Rating: Not available
- Functions: Insulation
Packaging Information
- Quantity: 3 units /box
- Box Dimensions: Variable
- Gross Weight: Variable
Installation and Accessories
- Placement: Floor
