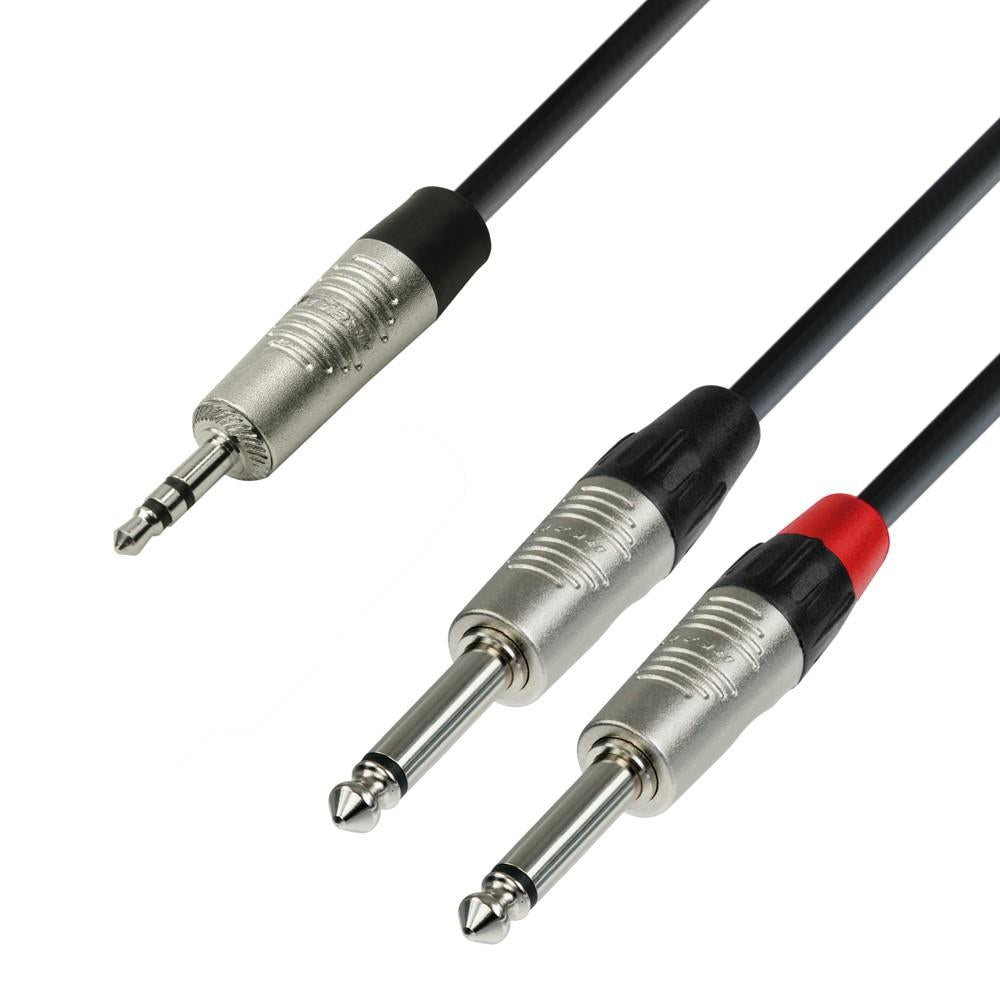

Adam Hall Cables 4 Star Series - Audio Cable 3.5 mm Jack stereo to 2 x 6.3 mm Jack mono 1.5 m

Counterpart to the K4YVPP, but with one 3.5 mm stereo TRS plug and two 6.3 mm mono TRS plugs – and thus ideal for connecting MP3 players or other, external sound sourced to the line inputs of a mixing desk.

Specifications:

• Type: Microphone Cable
• Color: black
• Overall diameter: 4.3 mm +/- 0.1mm
• Conductor area: 0,22 mm²
• AWG (American Wire Gauge): 24
• Conductor material: bare copper, OFC
• Composition of conductor: 28 x 0,10 mm
• Screen material: copper wire screen
• Screen: spiral wound
• Conductor resistance: 80 Ohm / km
• Capacity: < 90 pF/m
• Overall jacket material: PVC mat

Plugs:

• Model name: RTP3C
• Manufacturer: Rean
• Product type: Jack
• Type: 3,5 mm
• Number of poles: 3
• Gender: male
• Cable diameter: 2 - 4 mm
• Colour marking: -
• Contact surface: Nickel
• Connection type: Solder contact
• Colour: Silver
• Housing: Zinc casting
• Clamping sleeve: POM
• Dimensions (L x Ø ): 50,0 x 11,0 mm

• Model name: RP2C
• Manufacturer: Rean
• Product type: Jack
• Type: 6,3 mm
• Number of poles: 2
• Gender: male
• Cable diameter: 4 - 7 mm
• Colour marking: -
• Contact surface: Nickel
• Connection type: Solder contact
• Colour: Silver
• Housing: Zinc casting
• Clamping sleeve: POM
• Dimensions (L x Ø ): 85.0 x 15 mm
