Compact 48 channel, 44 bus 96kHz digital mixer with RackUltra FX for live sound, AV, and installation.

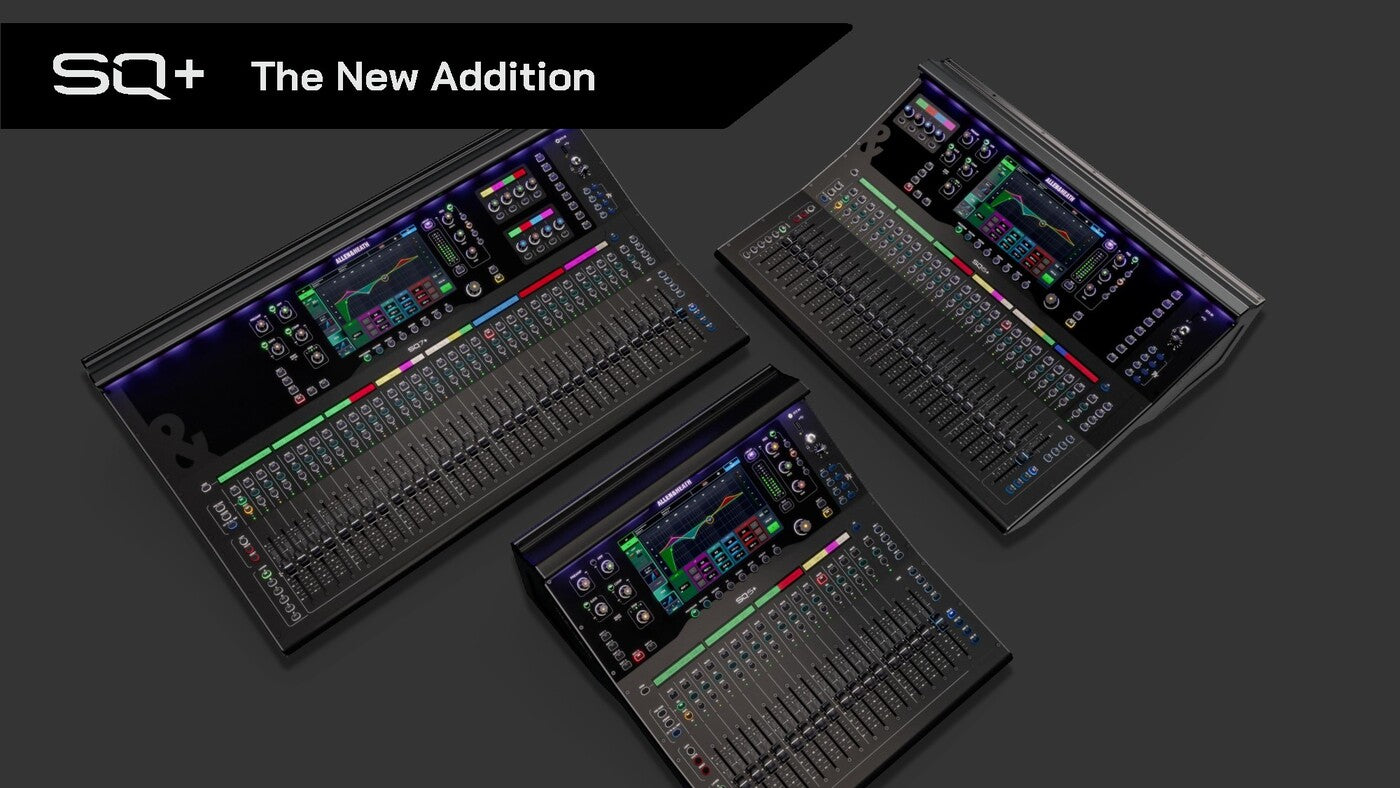

SQ. Plus More

Everything that made SQ the standard in compact mixing - the 96kHz XCVI core, ultra-low latency, class-leading audio quality, RackExtra FX, and DEEP Processing - now with flagship-tier RackUltra FX, more power per channel, and a transformed interface.

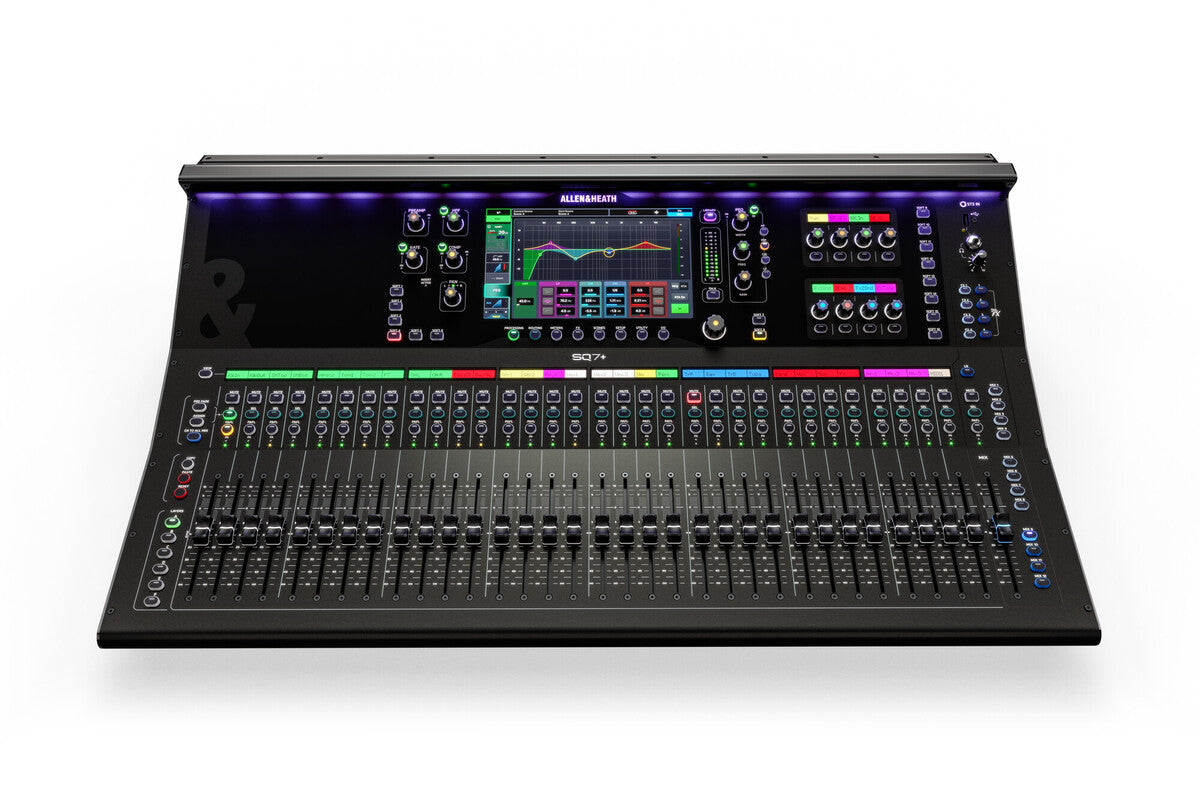

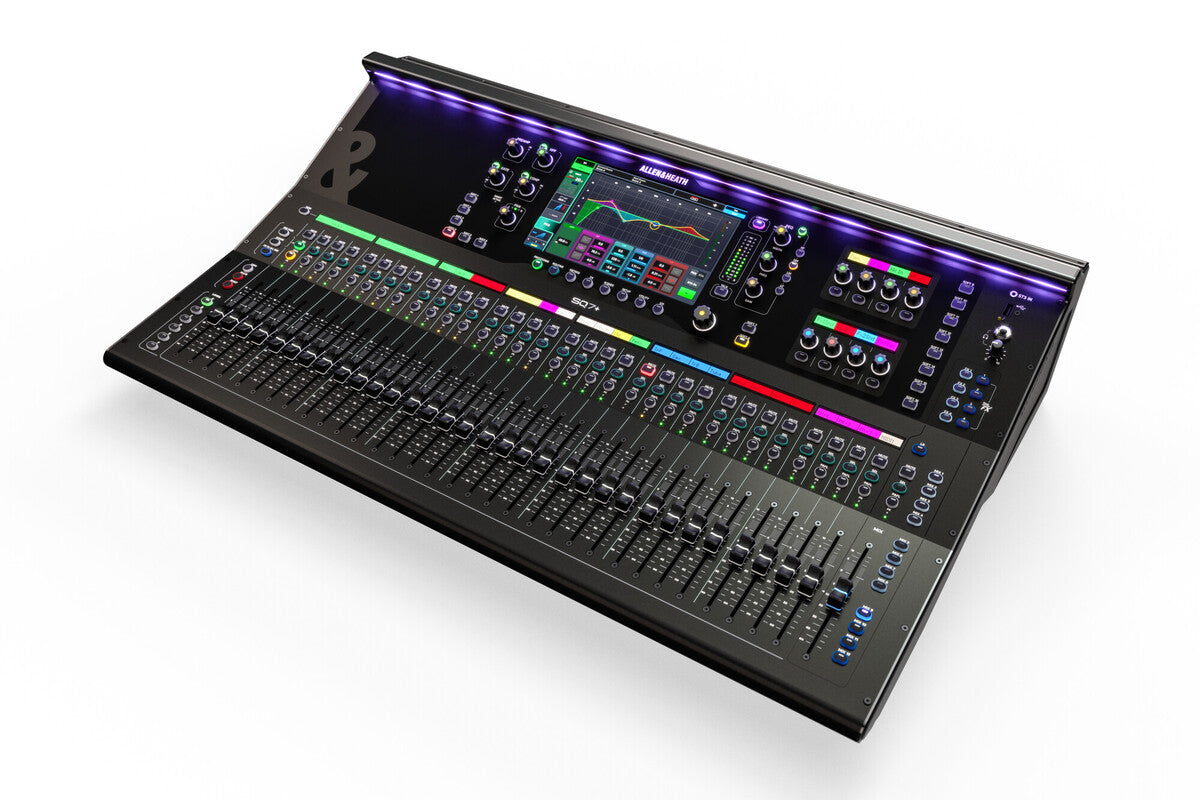

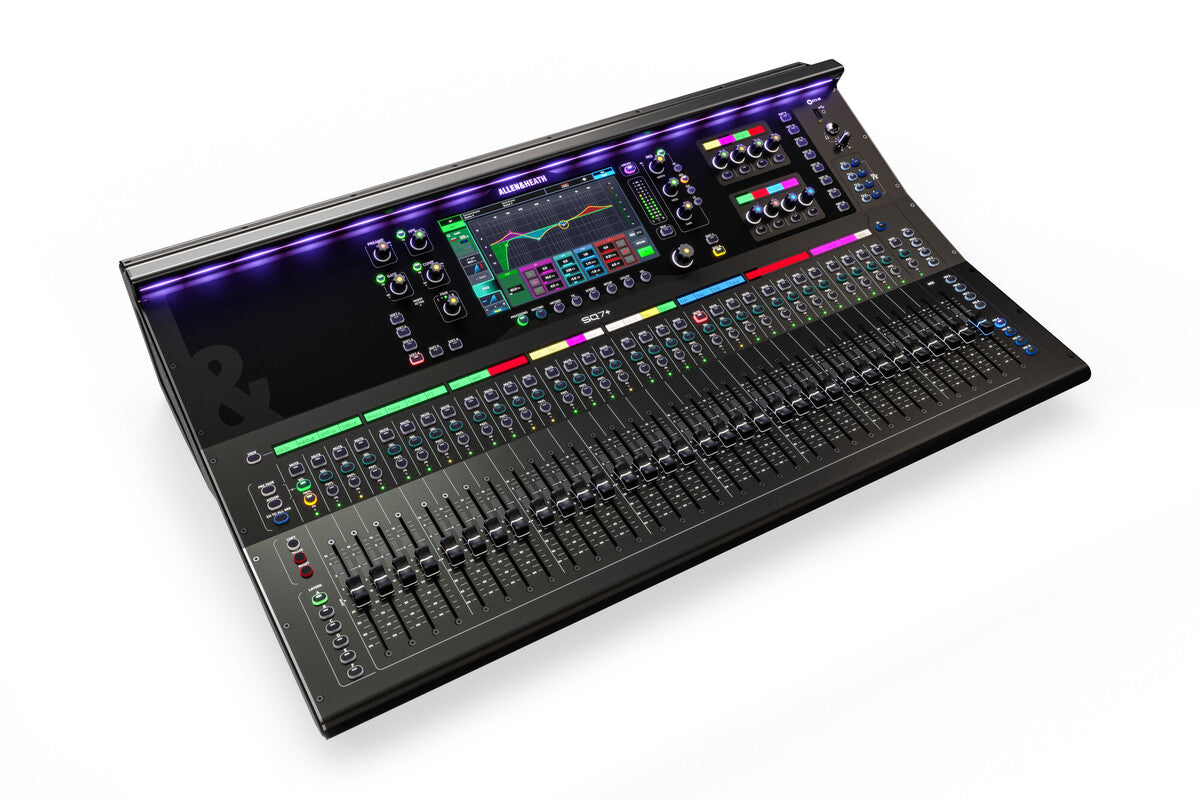

SQ7+

The SQ7+ is the largest mixer in the range, built for engineers who need the ultimate in hands-on control. 33 motorised faders, 16 assignable SoftKeys and 8 SoftRotaries put your entire show within reach, all backed by the same 96kHz XCVI core and 4 built-in RackUltra FX engines that power every SQ+ model.

Mixing Has Never Been Easier

A Bigger, Bolder Interface

SQ+ is centred around a responsive 9” touchscreen with an all-new dark GUI that is fast to navigate and easy to read in any mixing environment. Framed by high-grip illuminated encoders, it delivers an intuitive blend of visual feedback and hands-on control.

Drag-and-Drop Layout

Channels and mixes can be dragged and dropped to any strip, with custom naming and colour coding on the displays, letting you build a mixing environment that works for you.

At-a-Glance Metering

Each strip features our patented Chromatic channel metering system, giving you at-a-glance level indication down to -72dB thanks to LEDs with variable brightness and colour.

Accelerate Your Workflow

All SQ+ mixers feature assignable SoftKeys for quick access to the functions you use the most. The SQ6+ and SQ7+ also include assignable SoftRotaries for even more custom control.

World Class Processing & FX:

All the Tools for the Perfect Mix

Every input channel comes equipped with HPF, a super-fast gate with sidechain and filter, a freely assignable insert point, a musical 4-band parametric equaliser with RTA, and Peak/RMS compressor for control and shaping of levels and transients. Mixes include both a parametric and 28 band graphic EQ along with compressor as standard, all ready to switch in when required.

DEEP Processing: Latency Free Emulations

SQ+ supports the latest generation of DEEP processing add-ons - models of classic analogue hardware embedded directly into your channel and mix strips, adding no latency, and available on every channel simultaneously.

Two FX Suites. Twelve FX Engines

SQ+ is equipped with 8 RackExtra FX engines, each with its own dedicated stereo return, giving you access to the acclaimed RackExtra FX suite, featuring emulations of legendary reverbs, gated reverbs, delays, modulators and more.

Four built-in RackUltra FX engines take SQ+ further, each with dedicated stereo sends and returns. First developed for the flagship dLive system, and proven on international tours, the RackUltra FX suite of add-ons brings premium reverbs, vocal tuning and pitch processors, distortion, saturation, and more to SQ+. The 4 engines can also run RackExtra FX for maximum flexibility.

Recording & Playback

Record. Stream. Mix

SQ+'s built-in USB audio interface enables easy multitrack recording, backing-track playback, livestreaming, and virtual soundcheck at up to 32×32 channels at both 96kHz and 48kHz. Class compliant and compatible with Mac and Windows with ASIO and WDM drivers available. You can also map faders, rotaries, channel keys and SoftKeys to control your favourite DAW using the Allen & Heath MIDI Control app.

Capture. Playback. Virtual Soundcheck

The integrated SQ-Drive makes it quick and easy to capture or playback 16 channels (96kHz), 32 channels (48kHz), or a simple stereo mix, direct to a USB drive. No need for a laptop or DAW - just press record.

Connectivity & Expansion

SQ+ is designed to sit at the centre of whatever system you're building, and to grow with it.

Everything I/O

The 128×128 Intelligent SLink port opens up the entire Allen & Heath Everything I/O ecosystem, connecting seamlessly to a wide range of remote stage boxes, expanders, and other Allen & Heath consoles.

Audio Networking

A dedicated I/O expansion slot supports optional cards for Dante, MADI, Waves and additional SLink connections, making SQ+ a natural fit for complex multi-format installs, FOH/monitor splits and broadcast setups.

AMM

SQ+’s advanced Automatic Mic Mixers make it a natural choice for mixing conferences, panel discussions, and broadcast applications. Two independent 24 channel AMM’s can run simultaneously for two separate zones or combine into a single 48 channel AMM for larger events.

Apps

SQ+ MixPad

SQ+ MixPad gives you the freedom to mix from anywhere in the venue, even if that’s not physically close to the mixer’s location. The app is available for free on iOS, Android, Windows and macOS platforms.

SQ+4You

SQ+4You is a free personal mixing app to accompany SQ+ series mixers, allowing up to 8 performers to control their own monitor mixes from their Android or iOS devices and freeing the audio engineer to focus on the front-of-house sound.

Built for the Real World

The live environment is unforgiving, so SQ+ is built to take it. A robust all-metal chassis provides the strength and rigidity to handle the rigours of touring and installation alike, while the new carbon-on-graphite finish with black and white knobs and fader caps gives it a sharp, contemporary look that holds up under real-world use. Every SQ+ comes backed by a 2-year manufacturer's warranty as standard.

SQ7+ Features:

• Audio and Processing:

  • 96kHz XCVI Core

  • 48x Inputs to Mix

  • 12x Stereo Aux/Group Mixes + LR

  • 6x Mono/Linkable Matrix

  • Full Channel and Mix processing (HPF, PEQ/GEQ, Comp, Gate)

  • DEEP Processing ready

  • 8x Rack Extra FX Engines with dedicated send and return channels

  • 4x RackUltra FX Engines with dedicated send and return channels NEW

• Digital I/O:

  • 128x128 Intelligent SLink Port for Everything I/O expansion and connection to other A&H consoles

  • 1x I/O Port for option cards (SLink, Dante, Waves and MADI cards available)

  • USB-A: Data transfer and stereo/multichannel audio record/playback

    • 16 Channels @ 96kHz

    • 32 Channels @ 48kHz

  • USB-B: Audio interface for multichannel record/playback

    • 32x32 @ 96kHz

    • 32x32 @ 48kHz

  • 1x AES3 Stereo Digital Output Socket

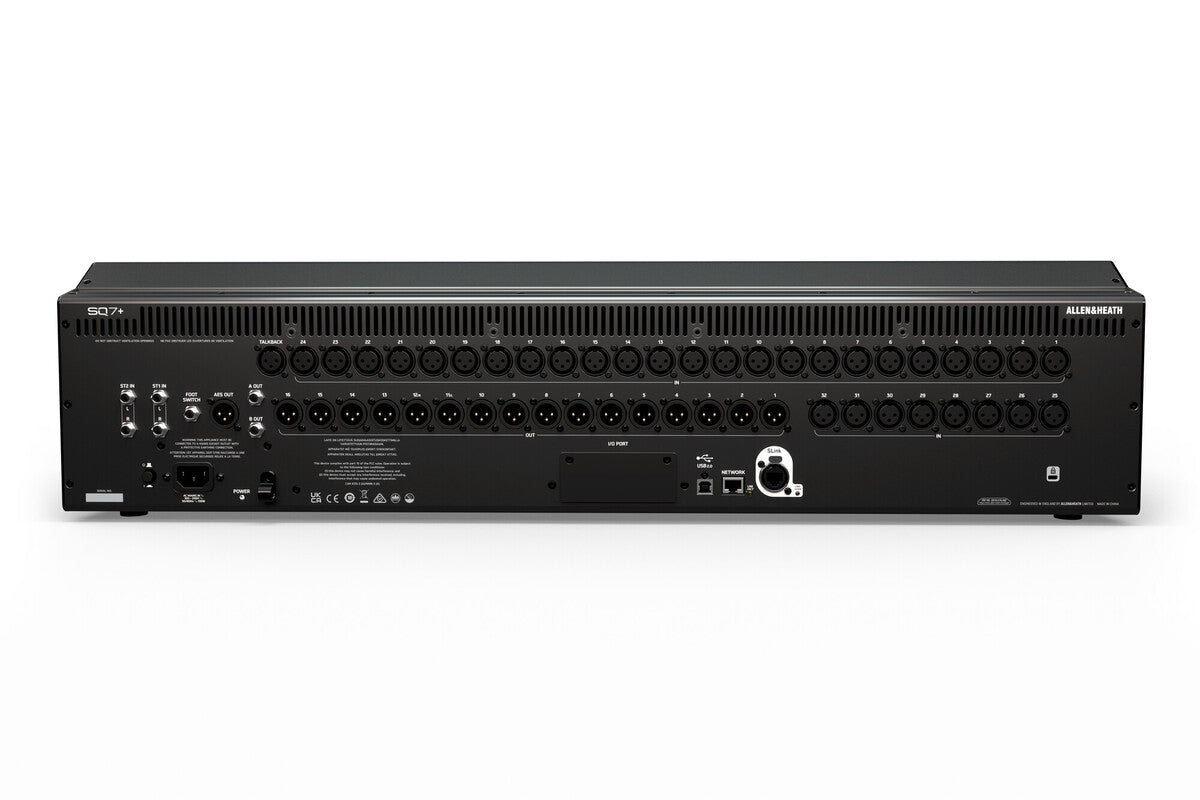

• Analogue I/O:

  • 32x XLR Mic/Line Input Sockets

  • 16x XLR Output Sockets

  • 3x Stereo Line Input Sockets (4x TRS ¼” sockets, 1x 3.5mm TRS socket)

  • 1x XLR Talkback Socket

  • 2x TRS Output Sockets

  • Stereo Headphone Output

• Control:

  • 33x 100mm Motorised Faders

  • 16x SoftKeys

  • 8x SoftRotaries

  • 6x Channel Strip Layers

  • 9” Touchscreen with dark GUI NEW

  • Configurable single/dual Footswitch Connection

  • Remote control via free apps – Windows/MacOS/iOS/Android
