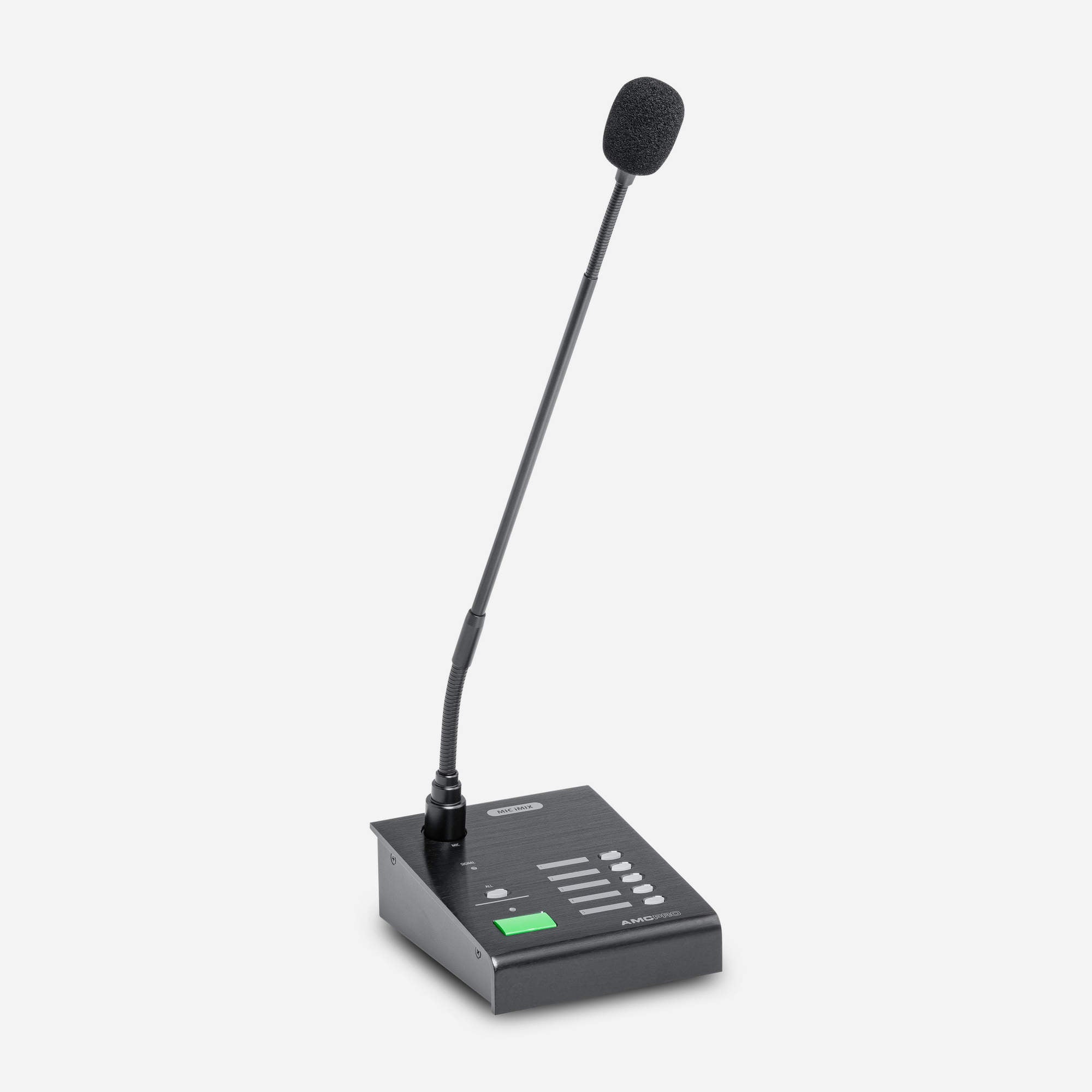

Five-zone paging microphone console with intuitive control buttons for iMIX 5.
By pressing selected zone dedicated button or "All Zones" button announcements to the chosen zone or all zones simultaneously will be enabled. You can start speaking immediately or play a chime first. Chime options can be selected via DIP switches. A local audio source can be connected through the TRS 3,5mm jack input. iMIX 5 can support 1 paging microphone console per device.
Type: Condenser microphone
Polar pattern: Cardiod
Frequency response: -3 dB, 150 Hz - 22 kHz

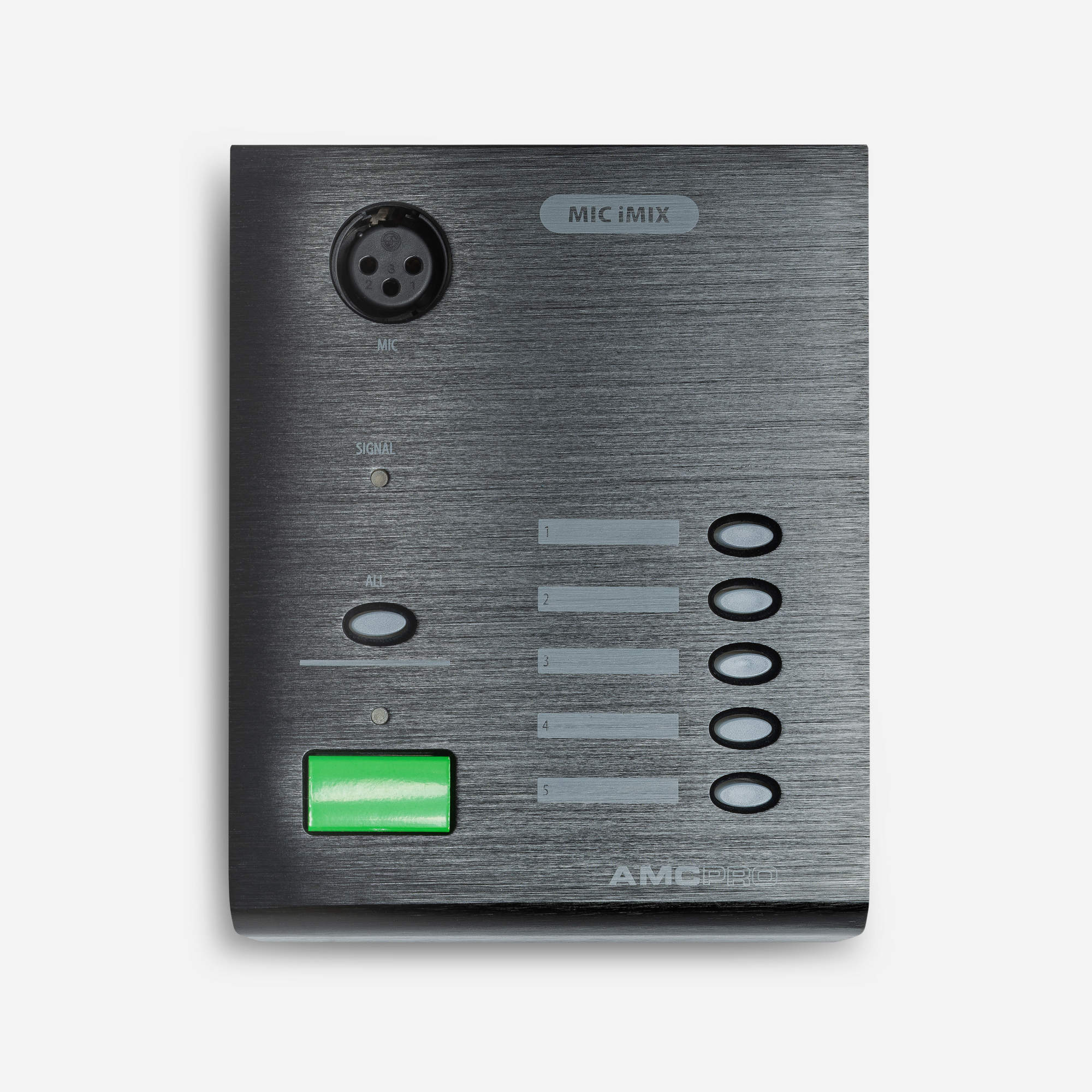

Controls: Illuminated zone select buttons, Talk button
Inputs: MIC: XLR 600 , Aux: 3,5mm TRS 50k Ω
Output level: 10 dBV, 600 Ω
S/N ratio: -60 dB
Connectors: RJ45, 24 VDC power jack, 3.5 mm stereo TRS, XLR
Max. connection length500 m
Power supply24 Vdc, 500 mA
Dimensions460 mm x 140 mm x 115 mm
Weight670 g
