Audio-Technica ES925 "Gooseneck" mikrofons (bez barošanas moduļa)

Gallery
Apraksts

Apraksts

The ES925 is a modular microphone system designed for professional sound reinforcement and other commercial sound applications. It includes a condenser microphone element, gooseneck, and a choice of different power modules, along with windscreen, clamp and shockmount.

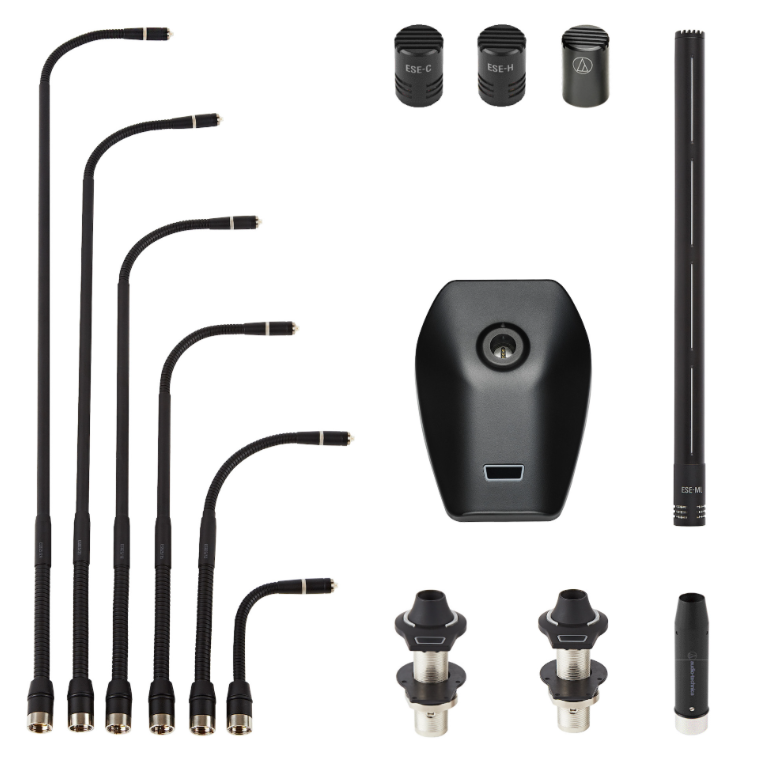

All elements are interchangeable with other ES modular microphone components within the range, allowing you to select power module types (XLR, FM3, FM5, DS5), gooseneck lengths (6", 12", 15", 18", 21", 24"), and microphone polar patterns (line + gradient, hypercardioid, cardioid, omnidirectional), to create a product tailored to your exact specifications

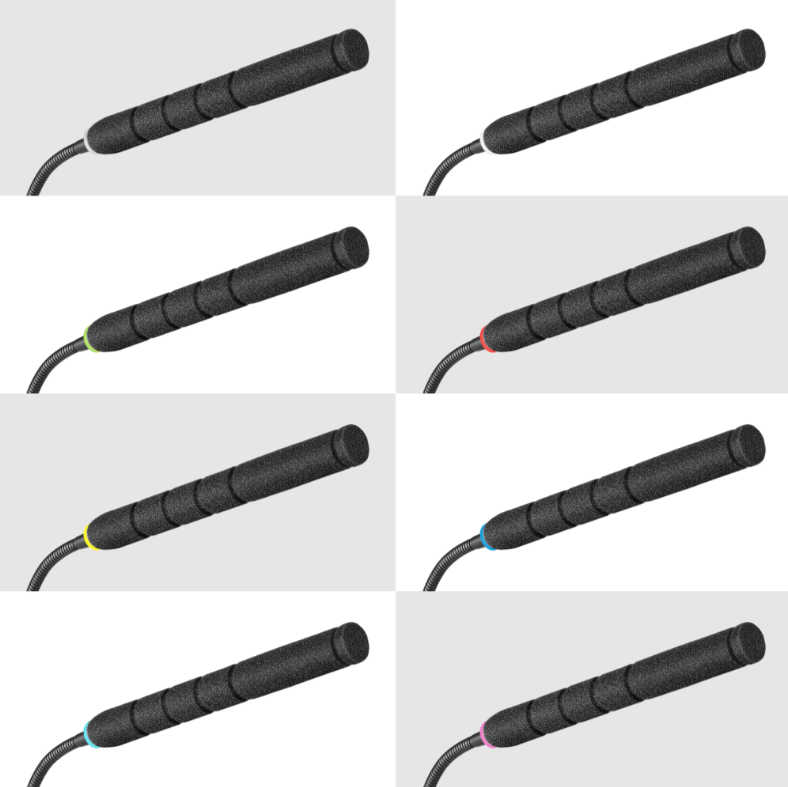

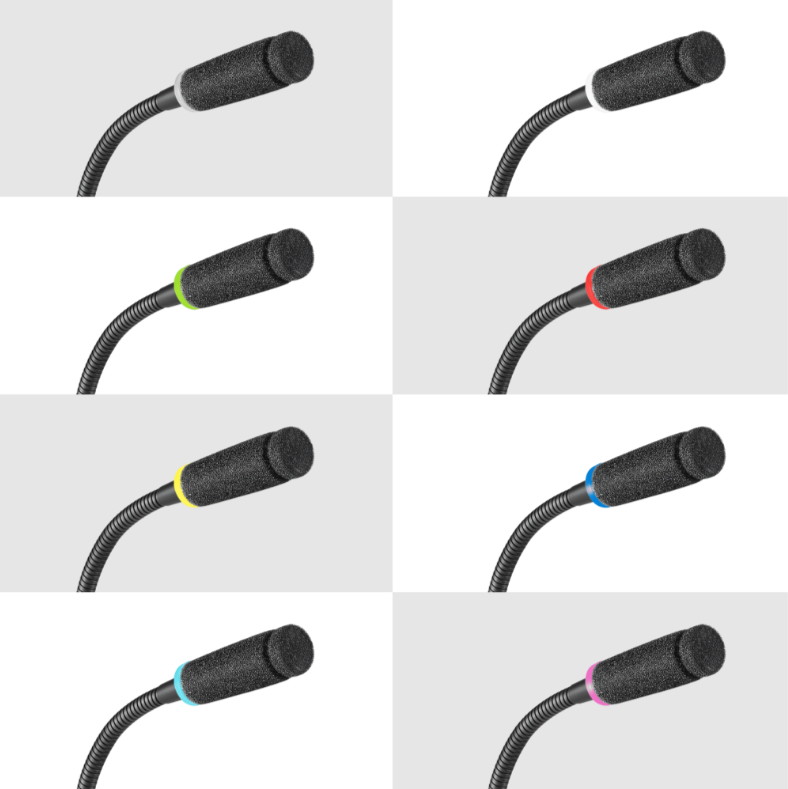

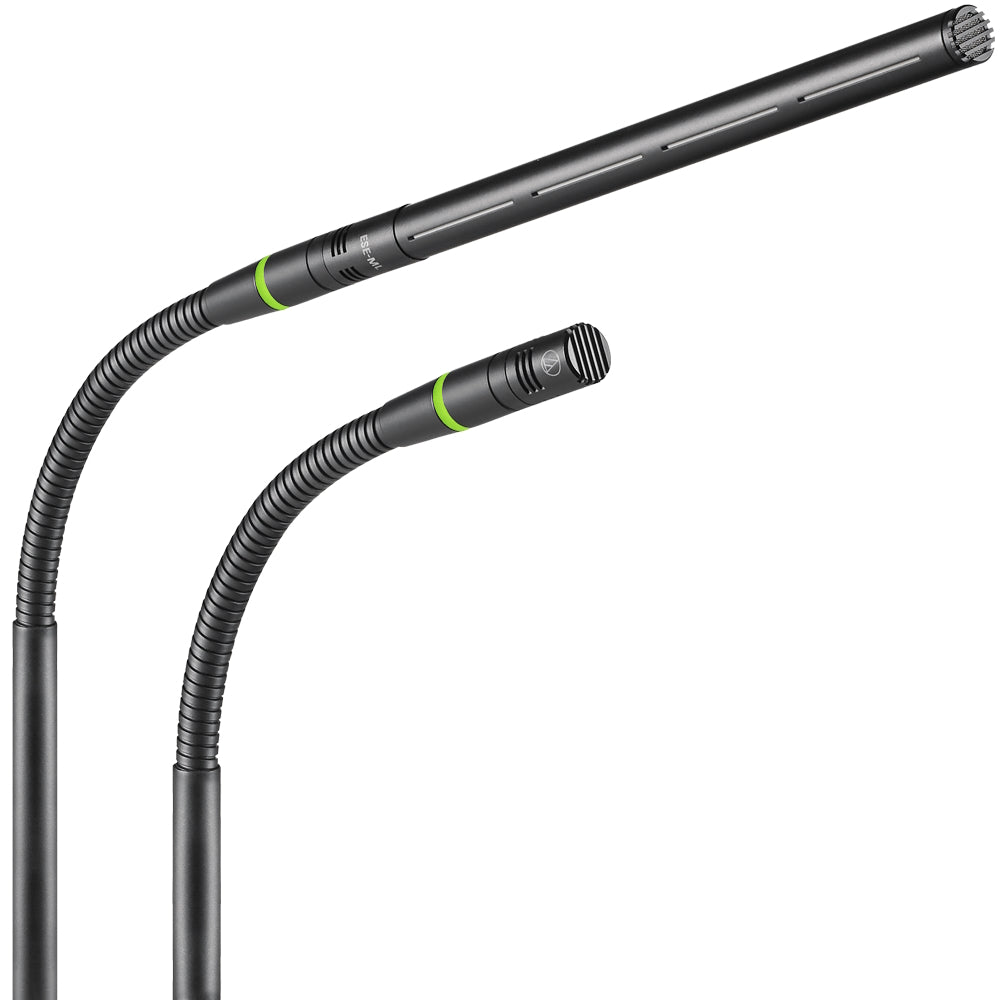

The ES925 microphone’s low profile element attaches to the small diameter gooseneck, which offers highly flexible positioning with an unobtrusive appearance. An essential foam windscreen protects against plosives, and the choices of power module offer a solution for any installation

The low profile element housing of the XLR power module features a highly visible, single state RGB LED status indicator that functions seamlessly with ATUC series products and the AT8699R desk stand. It plugs into any standard XLRF-type connector or mounts to 5/8"-27 stands using the optional quick mount stand adapter

The 3-pin flush mount power module is equipped with a capacitive touch switch that enables local muting of the microphone

The 5-pin flush mount power module is equipped with a touch sensitive capacitive type user switch for remote switching options

The desk stand power module features heavy die cast construction and no slip bottom pads to minimize coupling of surface vibration to the microphone. It is equipped with a touch sensitive capacitive type user switch with local and remote switching options. Locally, it can be set to any one of three operating modes: “touch on / touch off,” “touch to talk” and “touch to mute"

To provide enhanced control in conference and boardroom installations, the desk stand power module and 5 pin flush mount power module can use the unit’s external contact closure allow you to trigger an external device, such as a camera or the lighting, from the switch

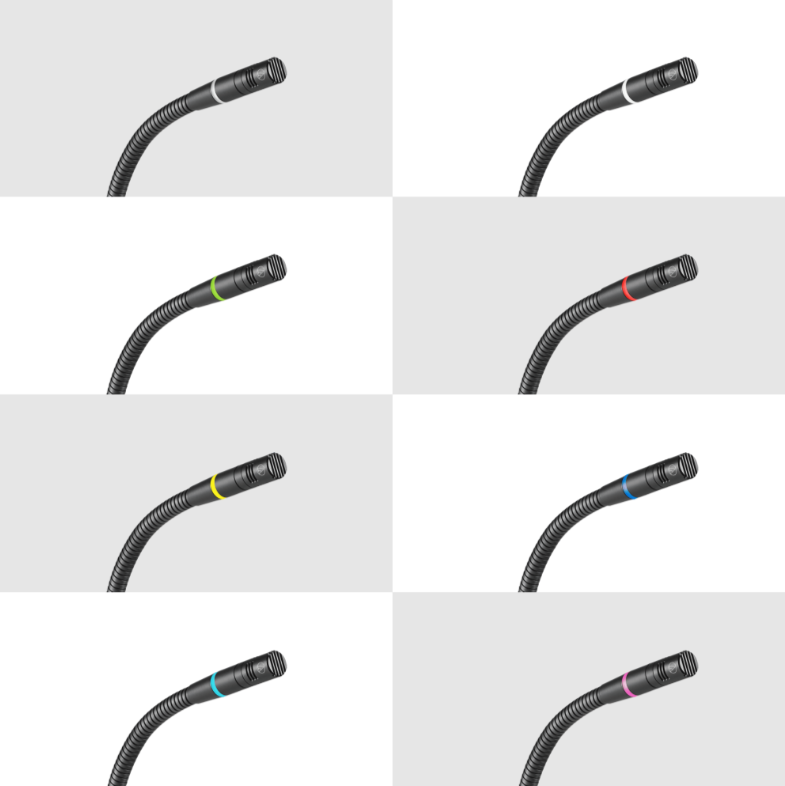

All power module solutions are equipped with Audio-Technica’s proprietary RFI shielding technology that provides unsurpassed immunity from radio frequency interference, and the desk stand and flush mount options feature a highly visible, two state RGB LED status indicator in both the power module and the microphone element housing

The flush mounted options mount neatly in tabletops and come with isolators that provide mechanical dampening of the mounting surface, while the desk stand is equipped with a proprietary filter from Audio-Technica, which provides steep low frequency attenuation to improve sound pickup without affecting vocal reproduction quality

Each element is designed to work harmoniously with other ES925 modular microphone components, allowing you to customise your solution with confidence

Power Modules

3-pin XLR (XLR)
3-pin flush mount (FM3)
5-pin flush mount (FM5)
5-pin desk stand (DS5)

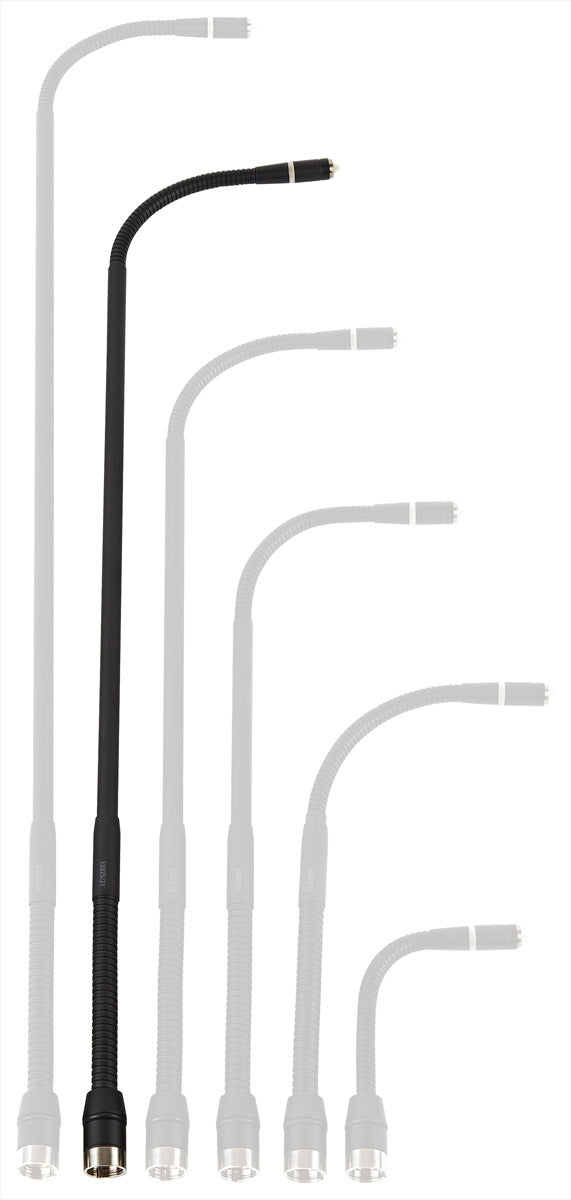

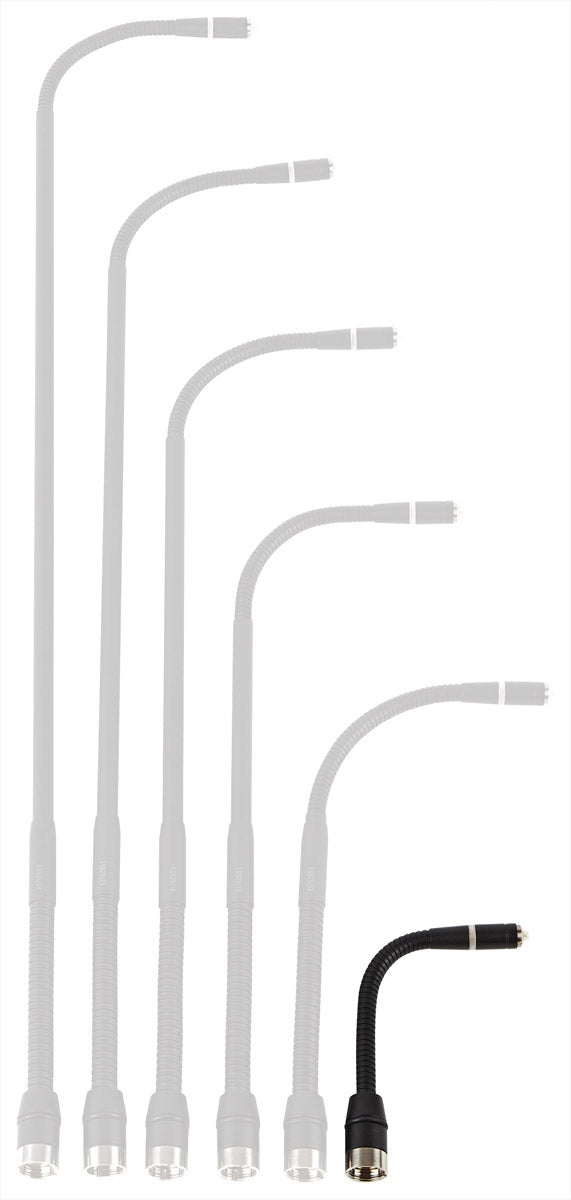

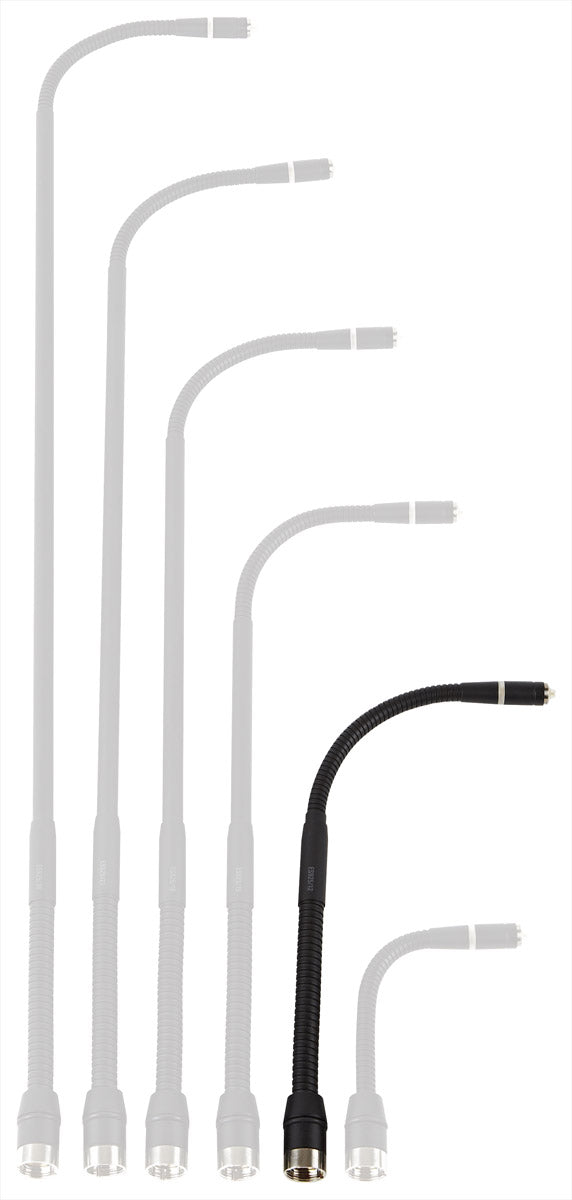

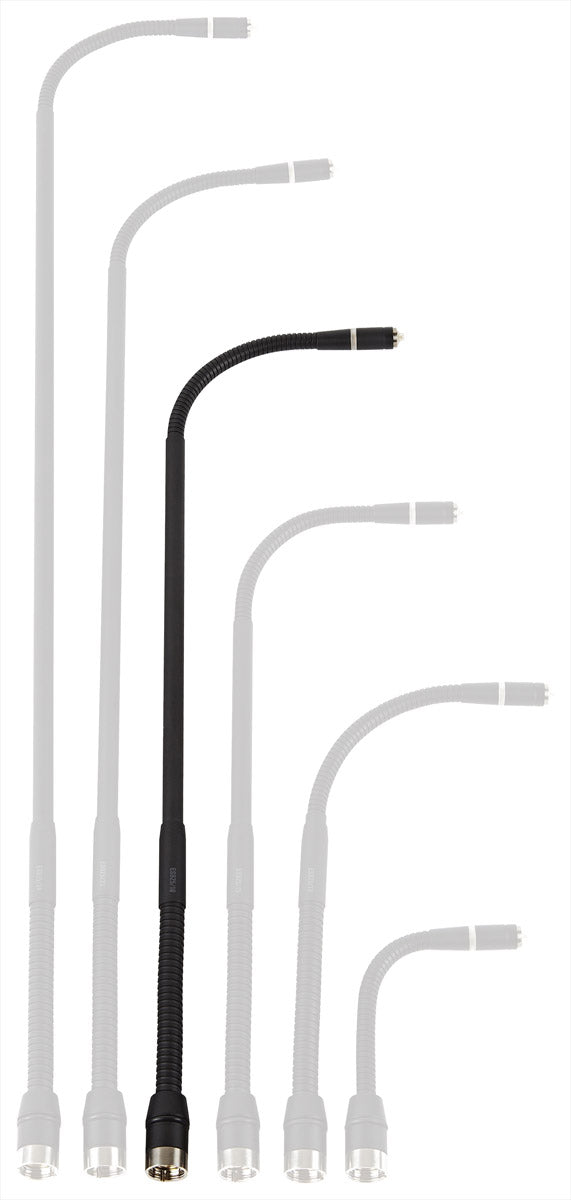

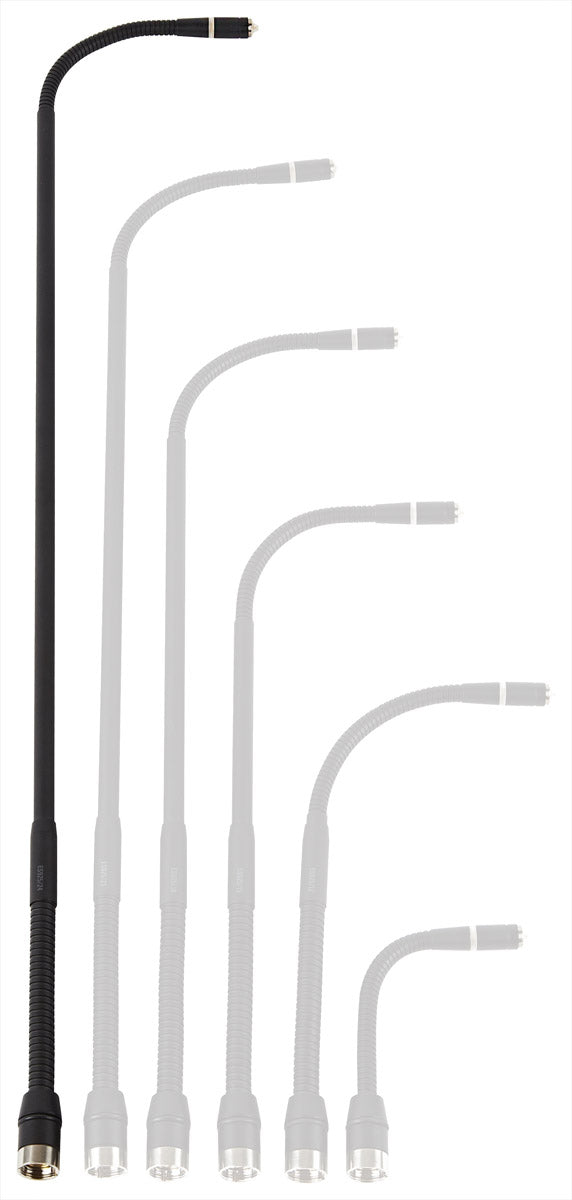

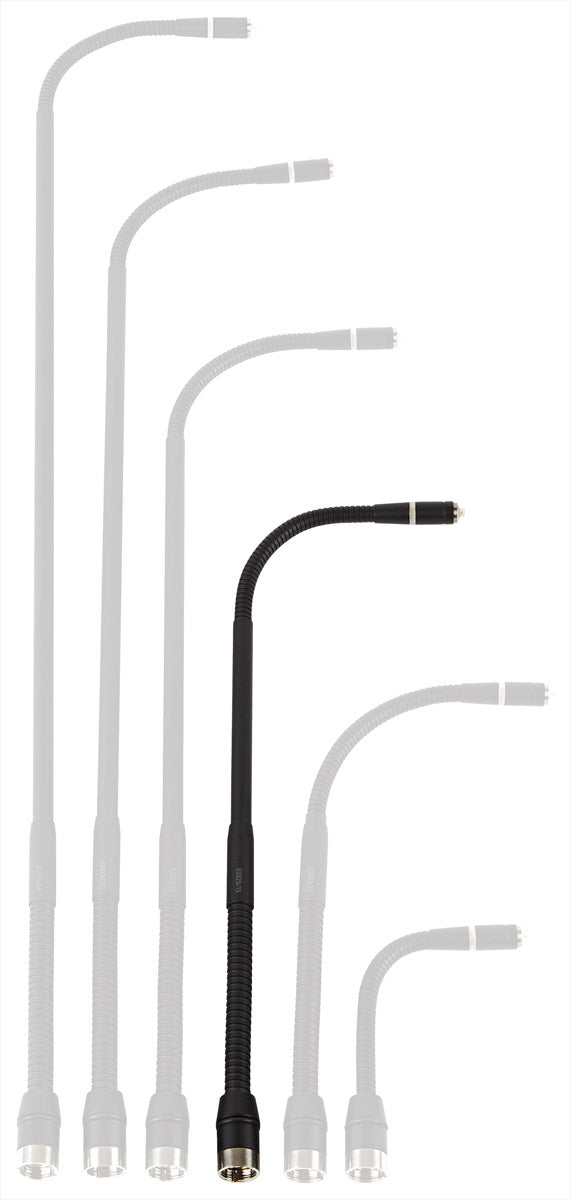

Gooseneck Lengths

4.85", 9.08", 12.08", 15.08", 18.08", 21.08”
Optional Microphone Polar Patterns;
ESE-MLa MicroLine® Line + Gradient (90° acceptance angle)
ESE-Ha Hypercardioid (100° acceptance angle)
ESE-Ca Cardioid (120° acceptance angle)
ESE-Oa Omnidirectional (360° acceptance angle)

Features

Modular microphone system includes a microphone element, gooseneck and power module each interchangeable with components from other ES Modular Microphones
Designed for professional sound reinforcement and other commercial sound applications
Interchangeable condenser microphone elements provide full-range, natural sound
Available interchangeable elements permit angle of acceptance from 90° to 360°
Small-diameter gooseneck design permits highly flexible positioning
Superior off-axis rejection for maximum gain before feedback for line + gradient element
Proprietary RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
Available in six lengths

Features XLR Power Module:

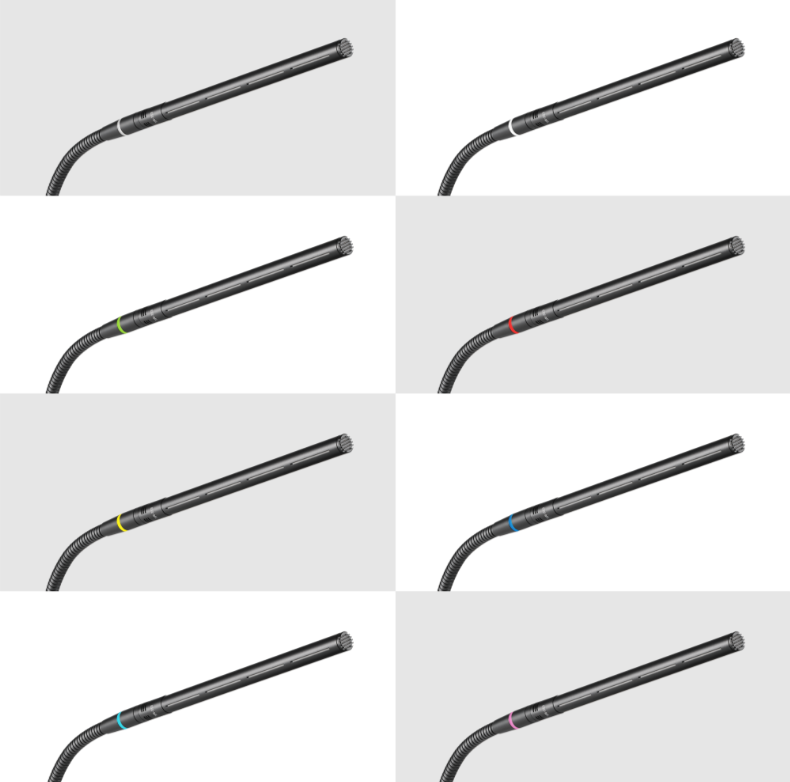

Element housing features a highly visible, single-state RGB LED status indicator that functions seamlessly with ATUC series products and AT8699R desk stand
XLR: Power module plugs into any standard XLRF-type connector or mounts to 5/8"-27 stands using optional quick-mount stand adapter

Features FM3 Power Module:

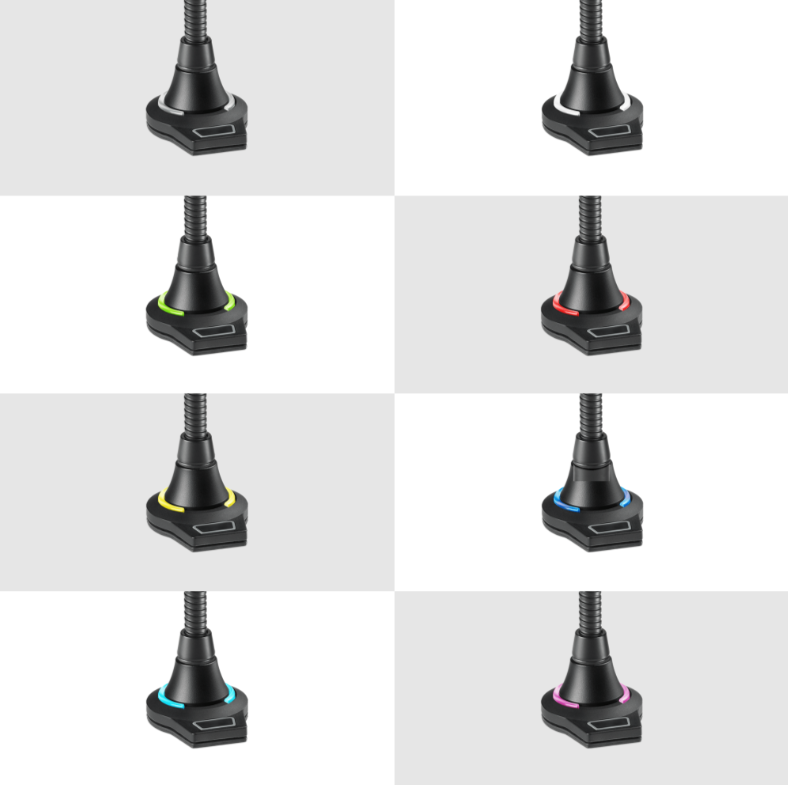

Flush-mount power module and element housing both feature a highly visible, two-state RGB LED status indicator
Power module with 3-pin XLR output mounts unobtrusively in tabletops
Capacitive touch switch enables local muting of the microphone

Features FM5 Power Module:

Flush-mount power module and element housing both feature a highly visible, two-state RGB LED status indicator
Logic I/O capability permits control of remote devices from the power modules touch-sensitive capacitive-type user switch
Power module with 5-pin XLR output mounts unobtrusively in tabletops

Features DS5 Desk stand:

Desk stand and element housing both feature a highly visible, two-state RGB LED status indicator
Logic I/O capability permits control of remote devices from the desk stands touch-sensitive capacitive-type user switch
Heavy die-cast construction and no-slip bottom pads minimize coupling of surface vibration to the microphone
Local/remote switching operation enables independent microphone audio and control output
Integral low-cut filter provides steep low-frequency attenuation to improve sound pickup without affecting voice quality

Specifications

Element	Fixed-charge back plate, permanently polarized condenser
Frequency Response	30-20,000 Hz
Open Circuit Sensitivity	-40 dB (10.0 mV) re 1V at 1 Pa
Maximum Input Sound Level	140 dB SPL
Dynamic Range	112 dB
Signal-to-Noise Ratio	66 dB
Phantom Power Requirements	FM3, FM5, DS5: 22-52V DC XLR: 11-52V DC
Switches	FM3: LED Color x 2: mic on, mic off FM5: LED Color: mic on, mic off DS5: Activation: on/off; LED Color: mic on, mic off; Switch function: touch on/off, momentary on, momentary off; Control: local, remote, LED remote; Flat, roll-off XLR: LED Color
Current Consumption	DS5: 7.6 mA FM3, FM5: 8 mA XLR: 6.7 mA
Weight	ES925C6/FM5: 109 g (3.8 oz) ES925C12/FM5: 133 g (4.7 oz) ES925C15/FM5: 138 g (4.9 oz) ES925C18/FM5: 143 g (5.0 oz) ES925C21/FM5: 148 g (5.2 oz) ES925C24/FM5: 153 g (5.4 oz) ES925C6/FM3: 110 g (3.9 oz) ES925C12/FM3: 134 g (4.7 oz) ES925C15/FM3: 139 g (4.9 oz) ES925C18/FM3: 144 g (5.1 oz) ES925C21/FM3: 149 g (5.3 oz) ES925C24/FM3: 154 g (5.4 oz) ES925C6/DS5: 674 g (23.8 oz) ES925C12/DS5: 698 g (24.6 oz) ES925C15/DS5: 703 g (24.8 oz) ES925C18/DS5: 708 g (25.0 oz) ES925C21/DS5: 713 g (25.2 oz) ES925C24/DS5: 718 g (25.3 oz) ES925C6/XLR: 102.0 g (3.6 oz) ES925C12/XLR: 126.0 g (4.5 oz) ES925C15/XLR: 131.0 g (4.6 oz) ES925C18/XLR: 136.0 g (4.8 oz) ES925C21/XLR: 141.0 g (5.0 oz) ES925C24/XLR: 146.0 g (5.2 oz)

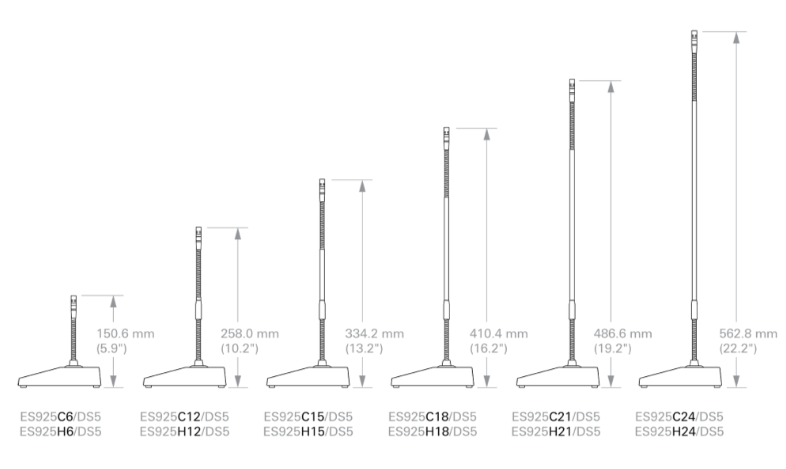

Dimensions	ES925C6/FM5: 38.0 mm (1.50") W x 48.0 mm (1.89") D x 207.6 mm (8.17") H ES925C12/FM5: 38.0 mm (1.50") W x 48.0 mm (1.89") D x 315.0 mm (12.40") H ES925C15/FM5: 38.0 mm (1.50") W x 48.0 mm (1.89") D x 391.2 mm (15.40") H ES925C18/FM5: 467.4 mm (18.4“) W x 38 mm (1.5“) D x 48 mm (1.9“) H ES925C6/FM3: 38.0 mm (1.50") W x 48.0 mm (1.89") D x 207.6 mm (8.17") H ES925C12/FM3: 38.0 mm (1.50") W x 48.0 mm (1.89") D x 315.0 mm (12.40") H ES925C15/FM3: 38.0 mm (1.50") W x 48.0 mm (1.89") D x 391.2 mm (15.40") H ES925C18/FM3: 467.4 mm (18.4“) W x 38 mm (1.5“) D x 48 mm (1.9“) H ES925C6/DS5: 97.0 mm (3.82") W x 130.0 mm (5.12") D x 150.6 mm (5.93") H ES925C12/DS5: 97.0 mm (3.82") W x 130.0 mm (5.12") D x 258.0 mm (10.16") H ES925C15/DS5: 97.0 mm (3.82") W x 130.0 mm (5.12") D x 334.2 mm (13.16") H ES925C18/DS5: 410.4 mm (16.2“) W x 97 mm (3.8“) D x 130 mm (5.1“) H ES925C6/XLR: 20.2 mm (0.80") diameter, 197.4 mm (7.77") height ES925C12/XLR: 20.2 mm (0.80") diameter, 304.8 mm (12.00") height ES925C15/XLR: 20.2 mm (0.80") diameter, 381.0 mm (15.00") height ES925C18/XLR: 457.2 mm (18“) diamete x 20.2 mm (0.8“) x 20.2 mm (0.8“)height
Output Connector	FM5: Integral 5-pin XLRM-type XLR, FM3: Integral 3-pin XLRM-type DS5: TB5M-type
Optional Interchangeable Elements	ESE-Ca cardioid (120°), ESE-Ha hypercardioid (100°), ESE-MLa line + gradient (90°), ESE-Oa omnidirectional (360°)
Accessories Included	FM3, FM5: One pair of isolators; nut; Set screw (M2×4 mm (0.2“)) 2 pcs., Hex wrench (0.89 mm (0.04“) DS5: 7.6 m (24.9') microphone cable (TA5F, unterminated); Set screw (M2×4 mm (0.2“)) 2 pcs., Hex wrench (0.89 mm (0.04“) XLR: Set screw (M2×4 mm (0.2“)) 2 pcs., Hex wrench (0.89 mm (0.04“)
Audio-Technica Case Style	FM3, FM5, DS5: M44 XLR: M43
