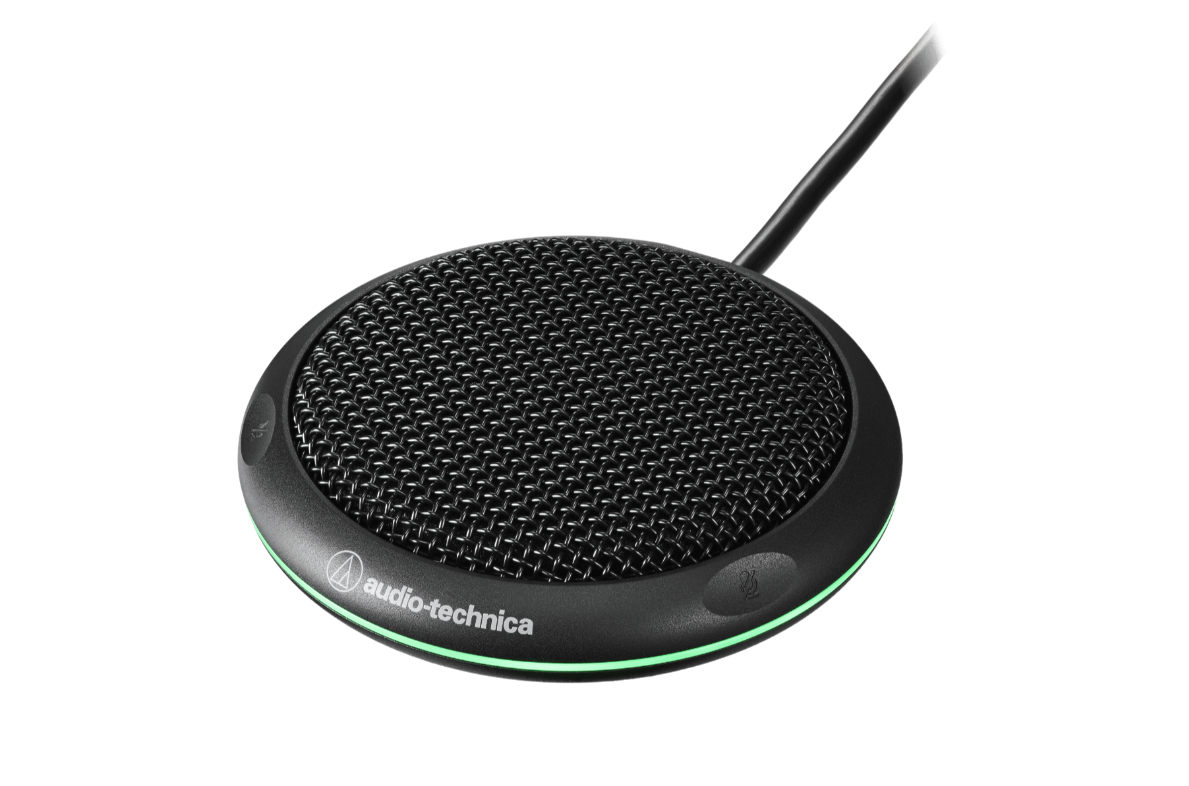

The tabletop ES964 boundary microphone array is the ideal, cost-effective solution for small meeting spaces, combining clear, natural sound with convenient touch controls.

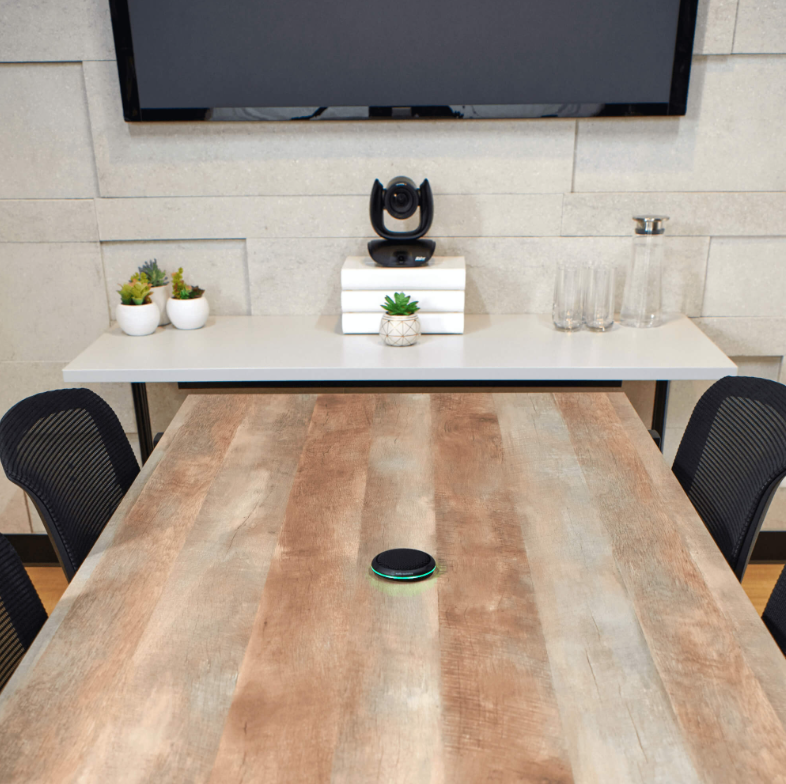

The ES964 is a compact boundary microphone array that is simple to install and provides clear audio for multi-person conference environments. This microphone is designed for small-group online conferences, and for businesses that are considering installation or expansion of shared or permanent conference spaces. With its low-profile design, the microphone takes up minimal space on a tabletop, but still captures clear, natural sound for online calls.
Features
- Hypercardioid and cardioid polar patterns can be formed 360 degrees around the microphone when used with the ATDM Series Digital SmartMixer® or compatible mixers
- Multiple and simultaneous pickup patterns can be made to suit the seating positions of conference participants

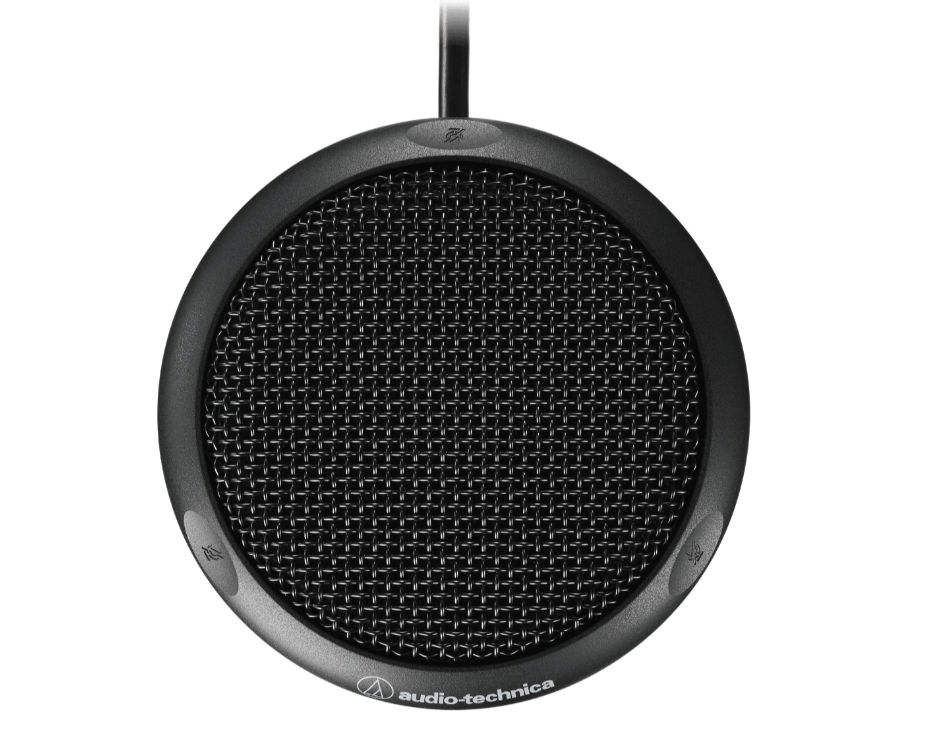

- Easily control the microphone from any position via three MUTE touch controls
- Create an optimal audio environment for calls via touch controls for talking, muting, or localizing sound or changing the LED colors
- Microphone ON/OFF status is indicated by seven LED colors that can be changed to match your branding or call environment
- LED ring visible from any direction
- Compatible with 20 to 52 V DC phantom power supplies
- Proprietary shielding technology that protects the audio signals from radio frequency interference (RFI)
- Low-profile, space-saving design: 88 mm (3.5″) diameter, 22 mm (0.87″) height
- Fixable to the table with a dedicated 20 mm (0.79″) jig in a 30 mm (1.2″) diameter hole, or with general-purpose M3 screws

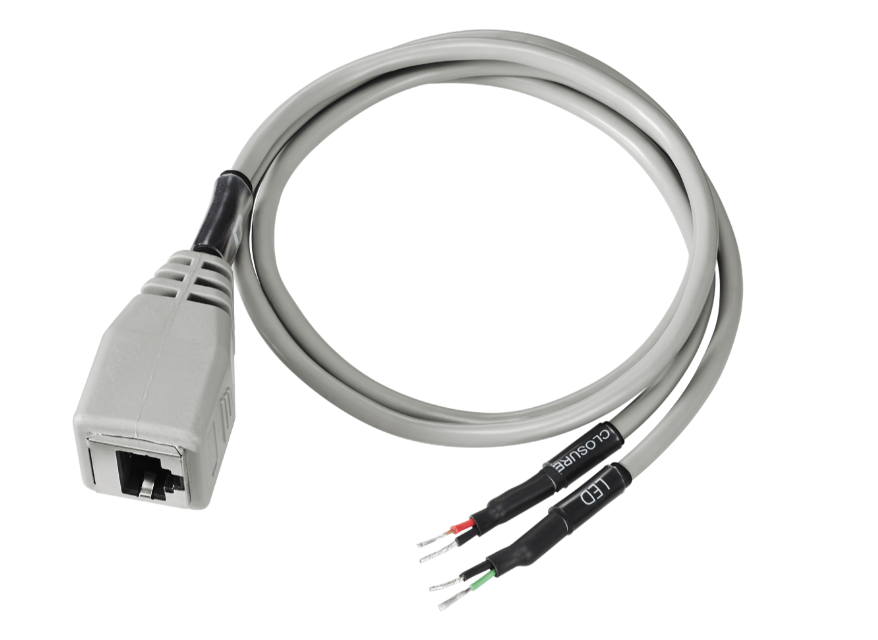

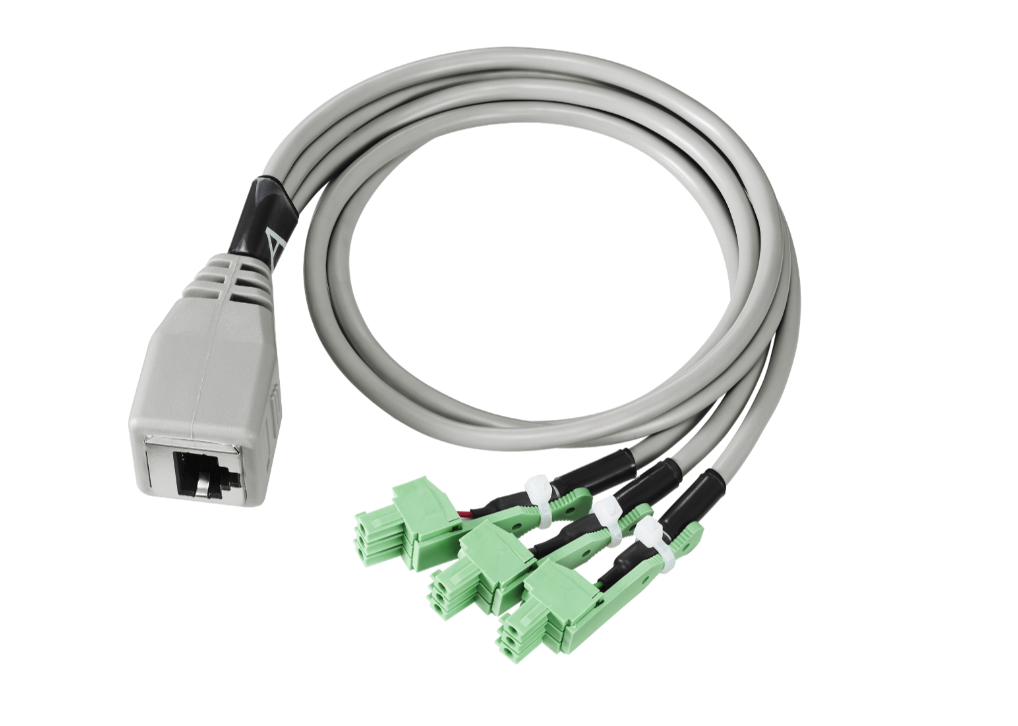

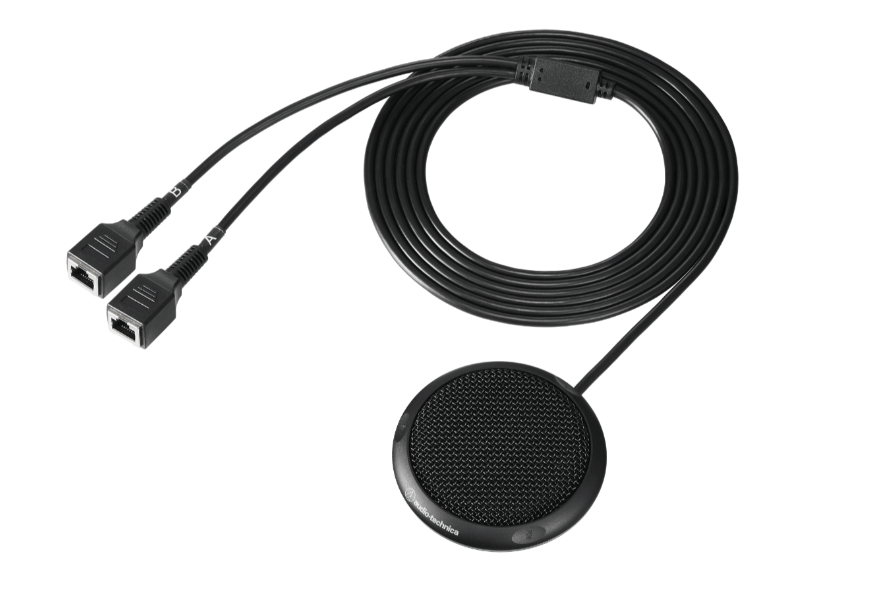

- Includes cables (RJ45 breakout cables x 2) necessary for connecting to a mixer; two standard RJ45 cables are required separately for transporting audio and control signals
Specifications
| Microphone | |
|---|---|
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Adjustable: Cardioid (Wide)/Hypercardioid (Normal) |
| Frequency Response | 20 to 15,000 Hz |
| Open Circuit Sensitivity | Wide: -33dBV (22.4mV) (0dB=1V/Pa, 1kHz) Normal: -35dBV (17.8mV) (0dB=1V/Pa, 1kHz) |
| Impedance | 100 ohms |
| Maximum Input Sound Level | Wide/Normal: 136.5dB SPL (1kHz THD1%) |
| Signal-to-Noise Ratio | Wide: 68.5dB (1kHz at 1Pa, A characteristic) Normal: 67.5dB (1kHz at 1Pa, A characteristic) |
| Phantom Power Requirements | DC 20 to 52V, 19.8mA (total for all channels) |

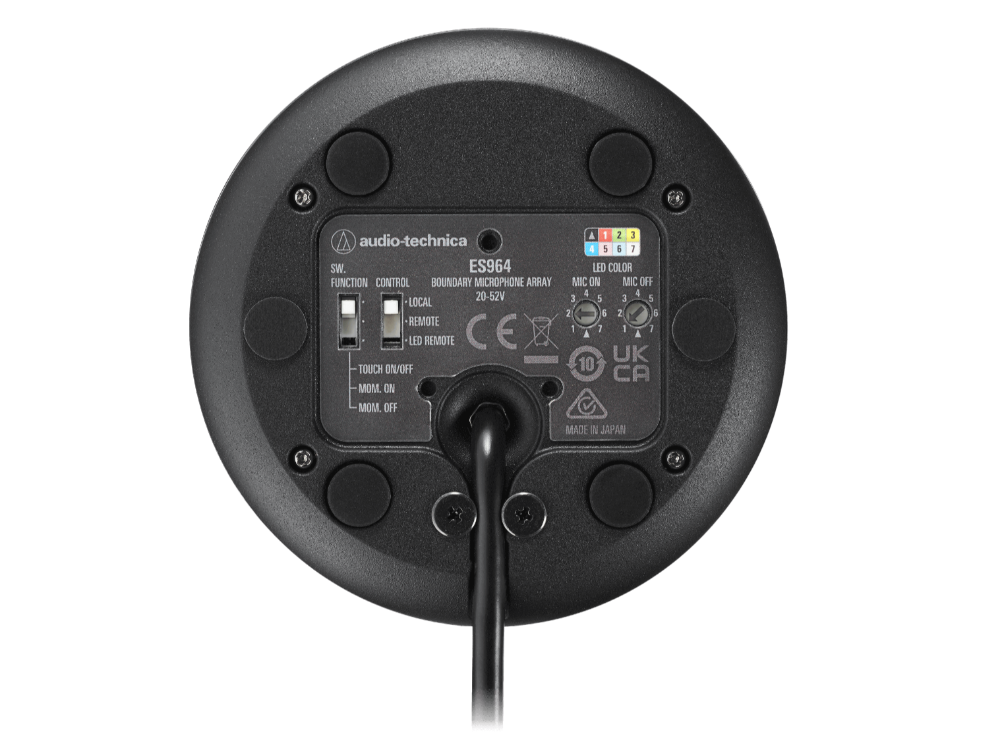

| Switches | SW.FUNCTION: TOUCH ON/OFF, MOM.ON, MOM.OFF CONTROL: LOCAL, REMOTE, LED REMOTE |
| Weight (microphone) | 364g (12.8 oz) |
| Dimensions (microphone) | Maximum body diameter: 88 mm (3.5”) Height: 22 mm (0.9”) |
| Output Connector | Euroblock connector |
| Contact Closure | Closure input voltage: -0.5 to 5.5V Maximum allowable power: 200 mW On-resistance: 100 ohms |
| LED Control | Active High (+5V DC) TTL compatible Active low voltage: 1.2 V or lower Maximum allowable input voltage: -0.5 to 5.5V Maximum allowable power: 200 mW |

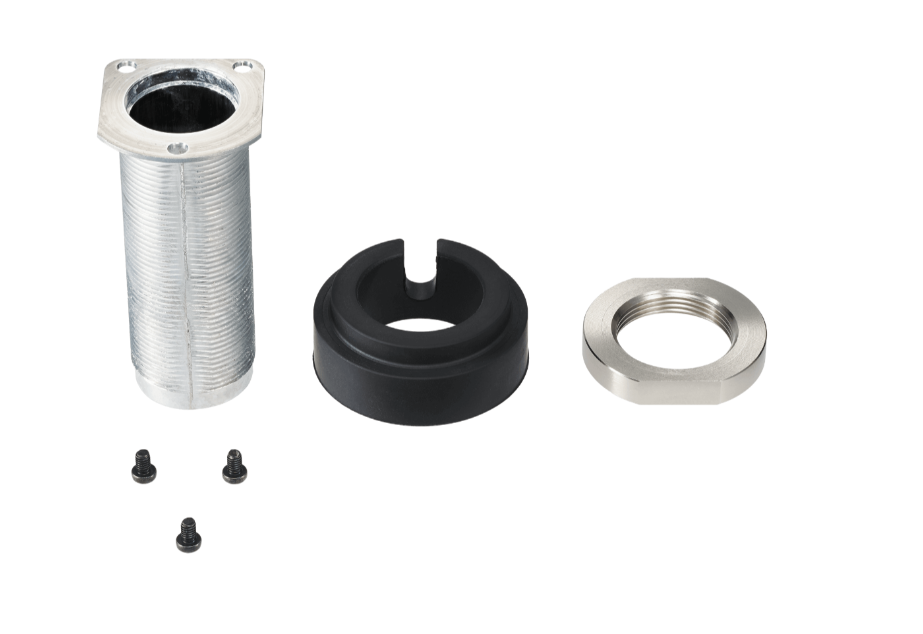

| Accessories Included | ・RJ45 breakout cable × 2 ・Table mount adapter ・Retaining nut ・Isolator ・Table mount adapter mounting screw × 3 |
| Notes | 1 Pascal = 10 dynes/cm2 = 10 microbars = 94dB SPL For product improvement, the product is subject to modification without notice |
