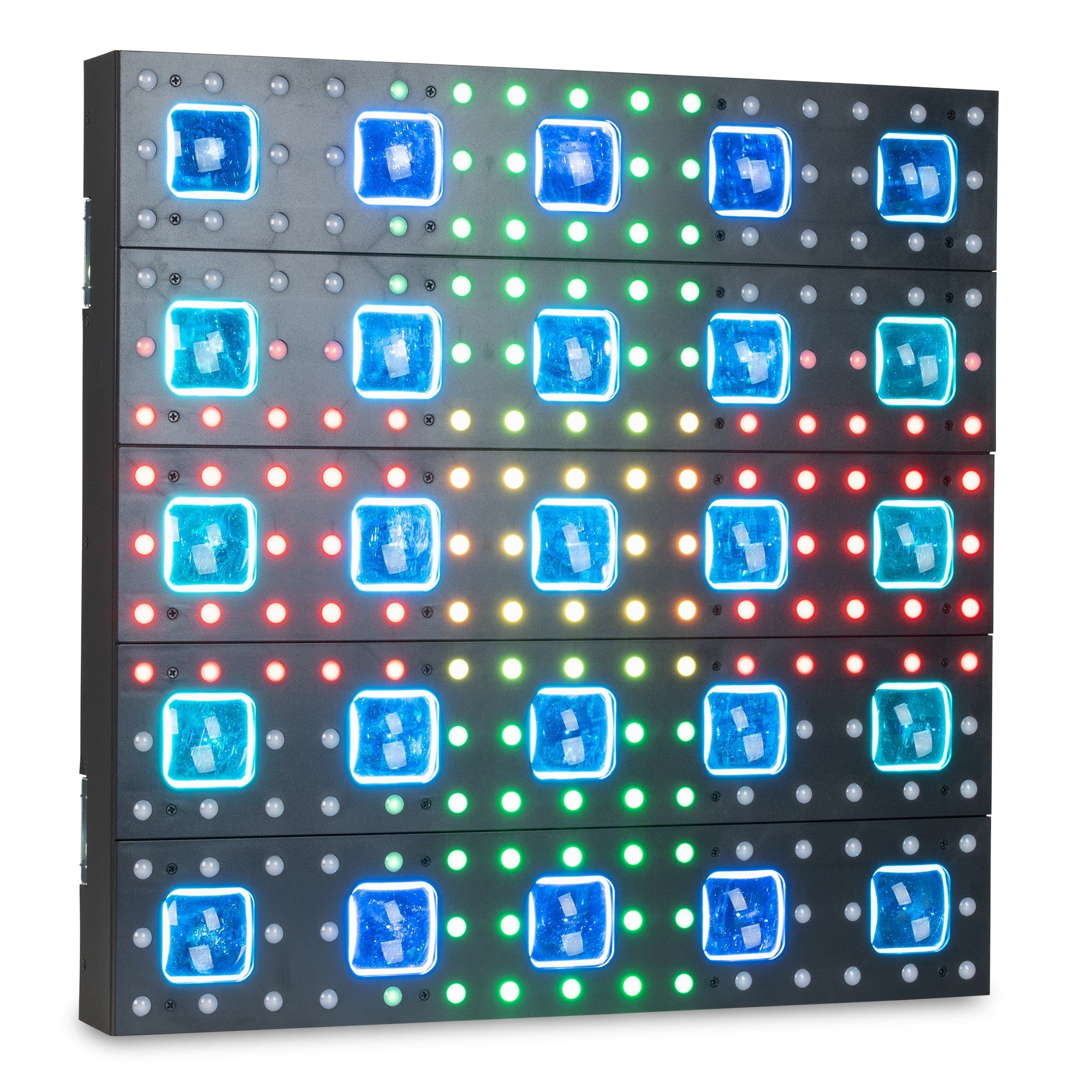

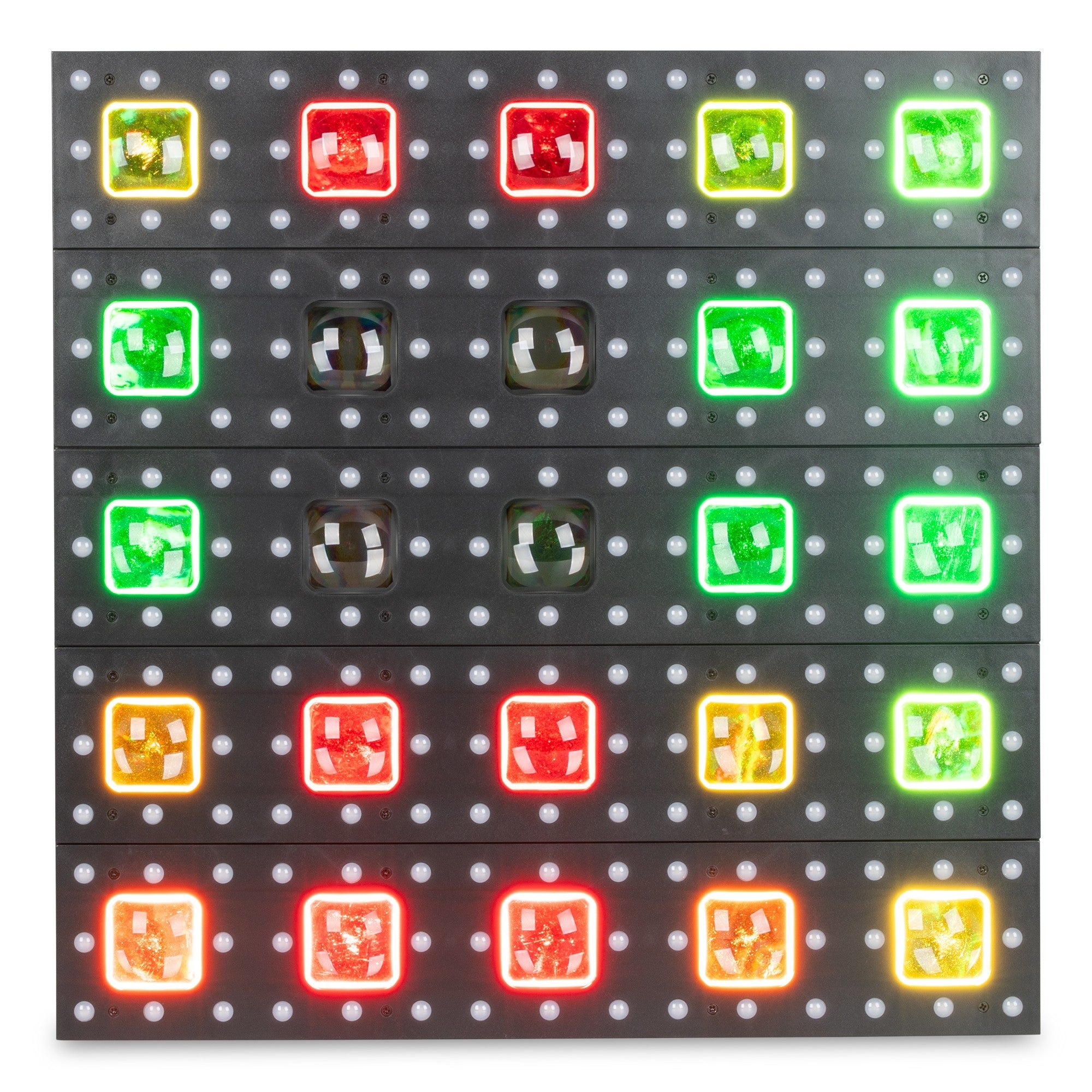

BeamZ LCBP450 is a Hybrid LED Panel with 25x10W RGBW and 200x RGB SMD LEDs

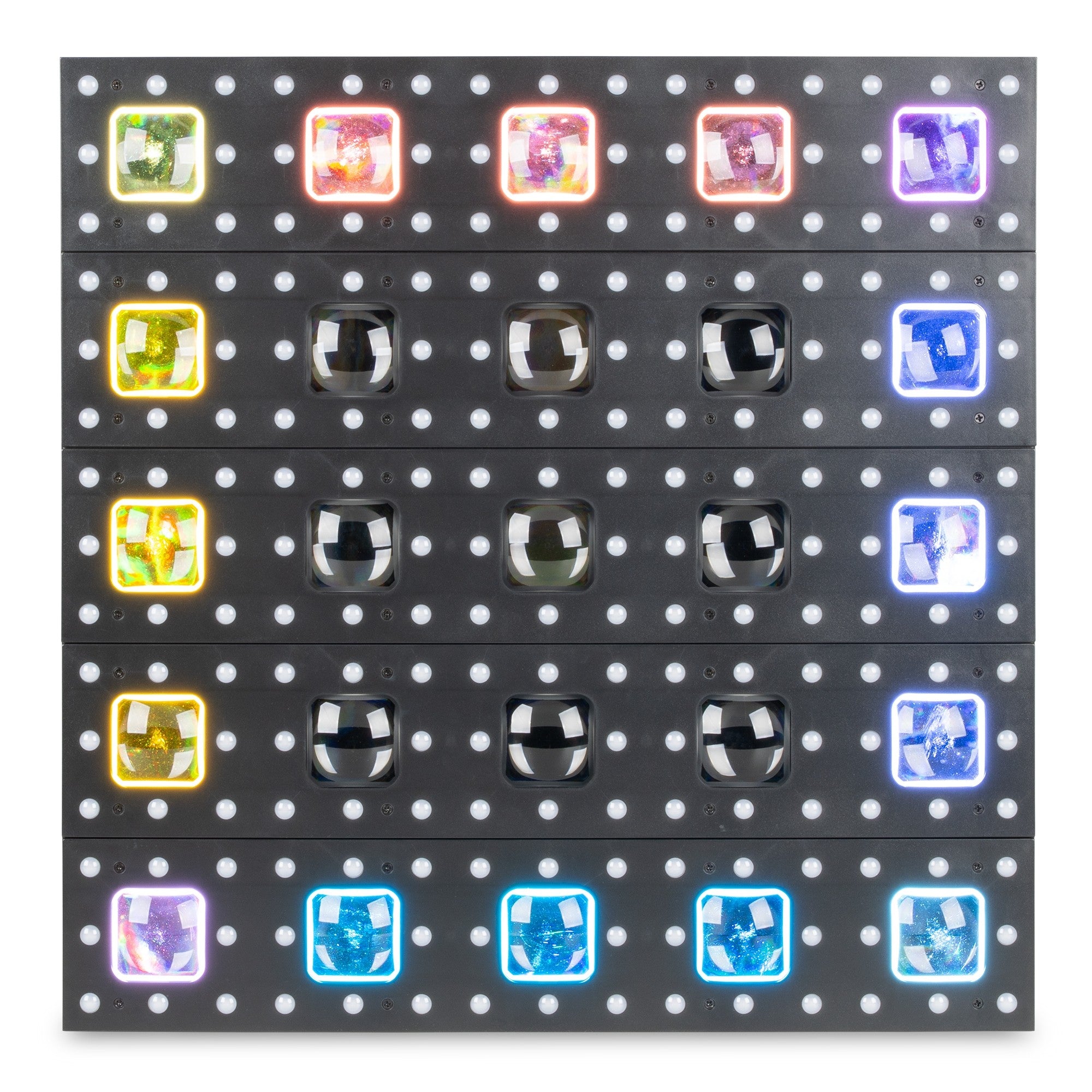

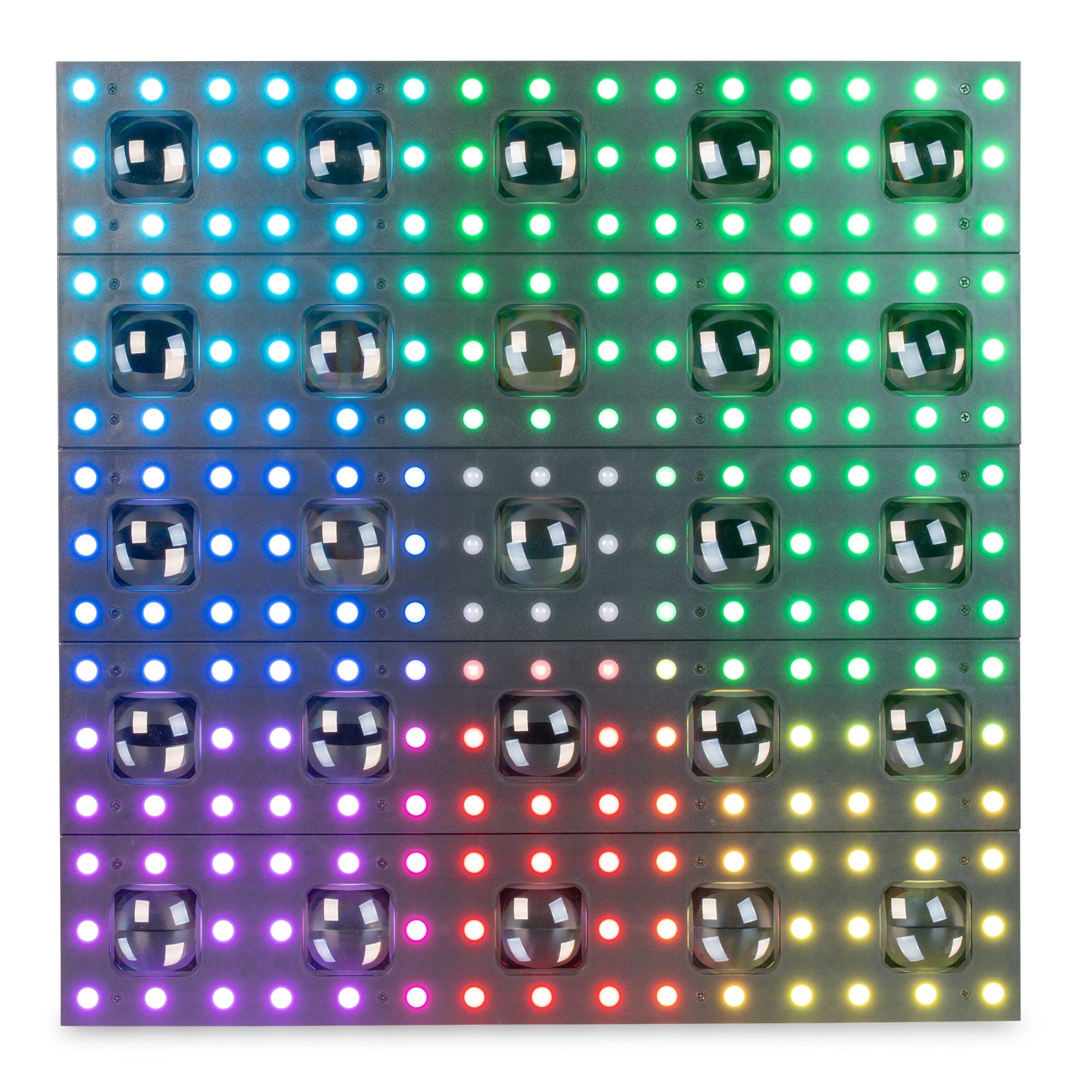

The LCBP450 is an impressive hybrid LED panel featuring 25 powerful 10W RGBW LEDs behind precision lenses and 200x RGB SMD LEDs for a stunning backlight effect.
With customizable patterns and dynamic chase effects, this fixture creates a visual spectacle for any event. In stand-alone mode, you can choose from pre-programmed shows that run automatically or react to sound. Additionally, the RGB mode allows you to create your own colour combinations for background lighting. The built-in power connector output makes it easy to link multiple units together in series, simplifying setup and optimizing cable management.
Features
- Multifunctional Hybrid LED Panel

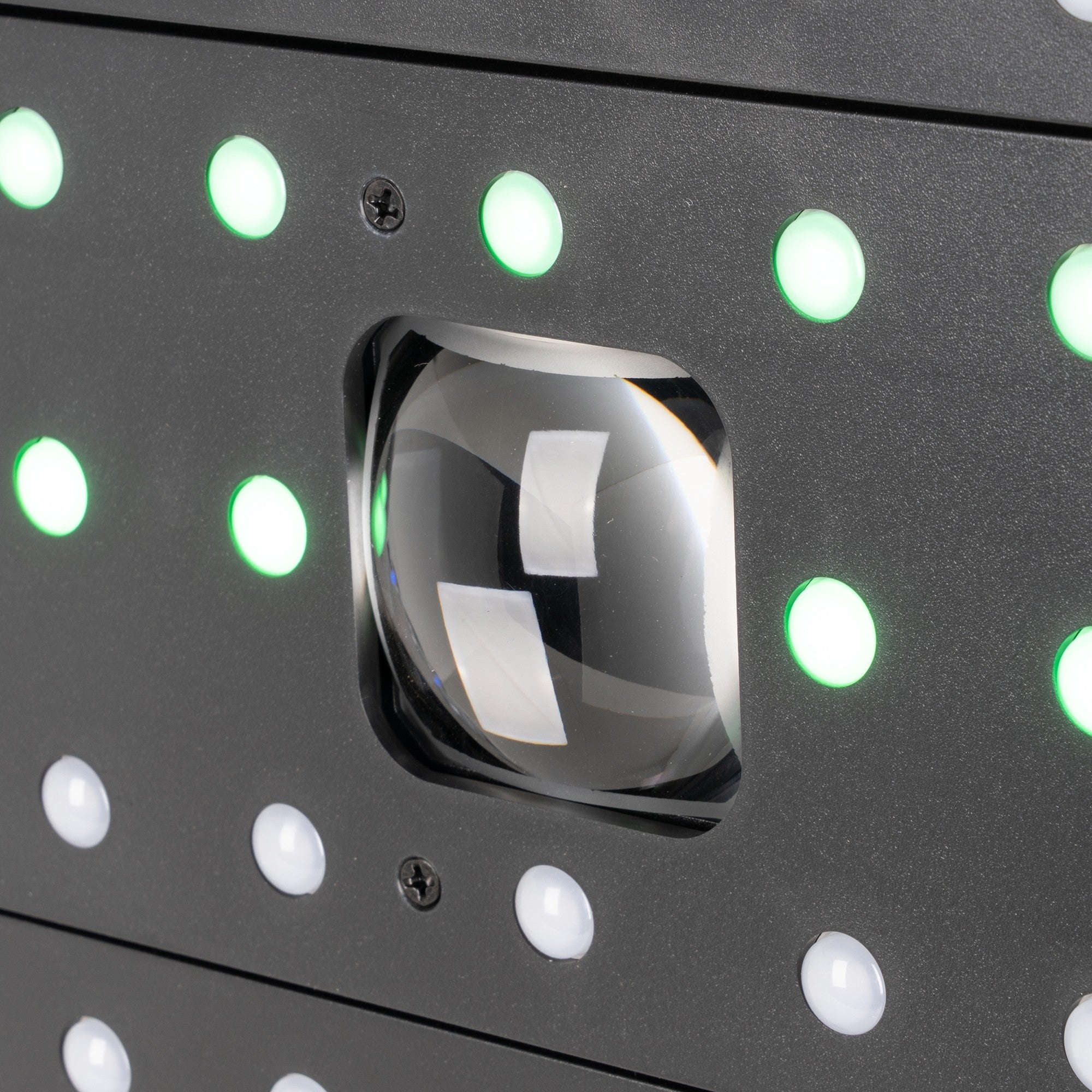

- 25x RGBW LEDs with lenses
- 200x RGB SMD LEDs
- RGB + WW colour mixing
- DMX512, stand alone and Master/slave Mode
- Also controllable with Madrix software through the RJ45 connection
- 30 Automatic programs with adjustable speed
- 30 Sound programs with adjustable speed
- Adjustable speed
- Fan cooled metal housing
- Various dimmer curves adjustable

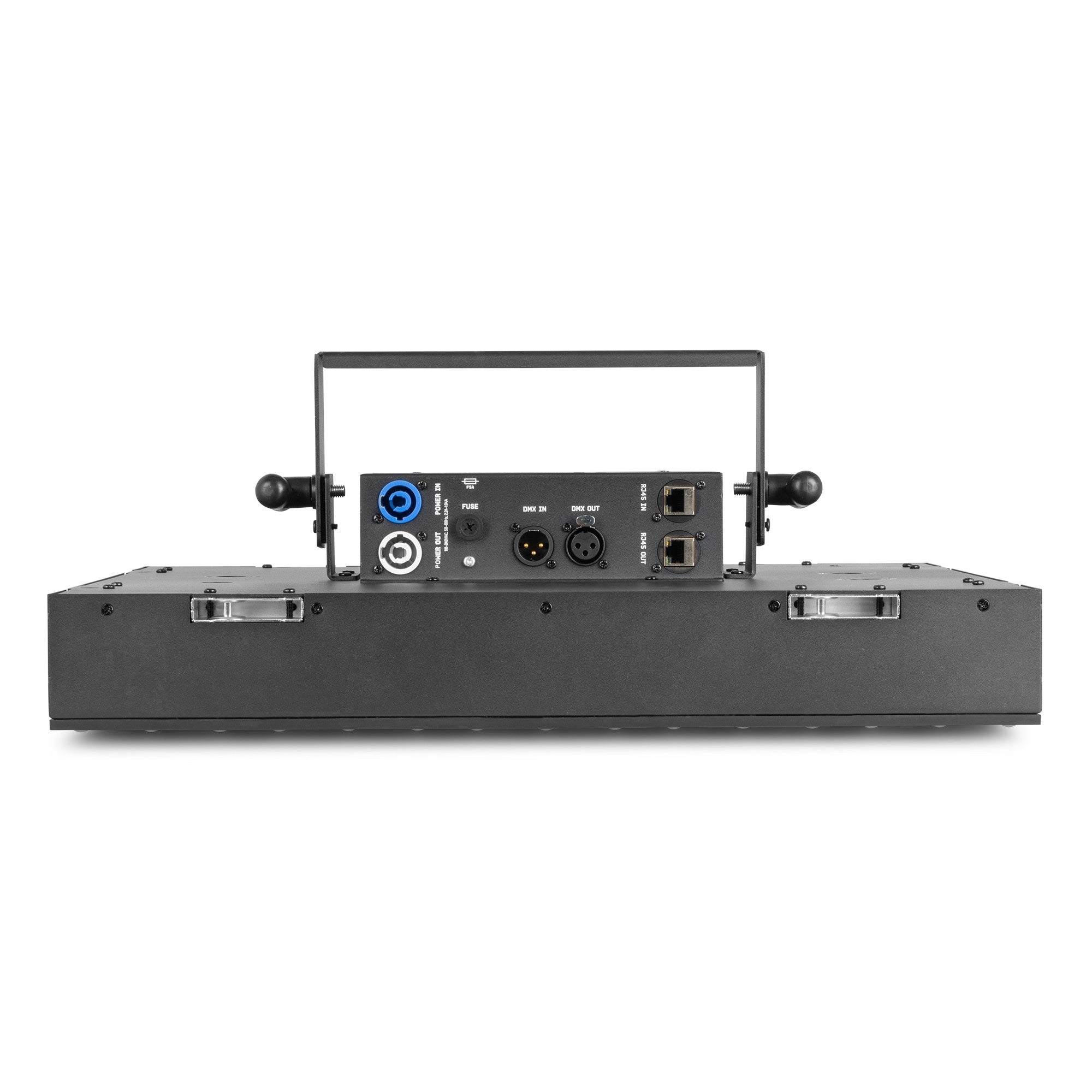

- P-Con Powerconnector in/output

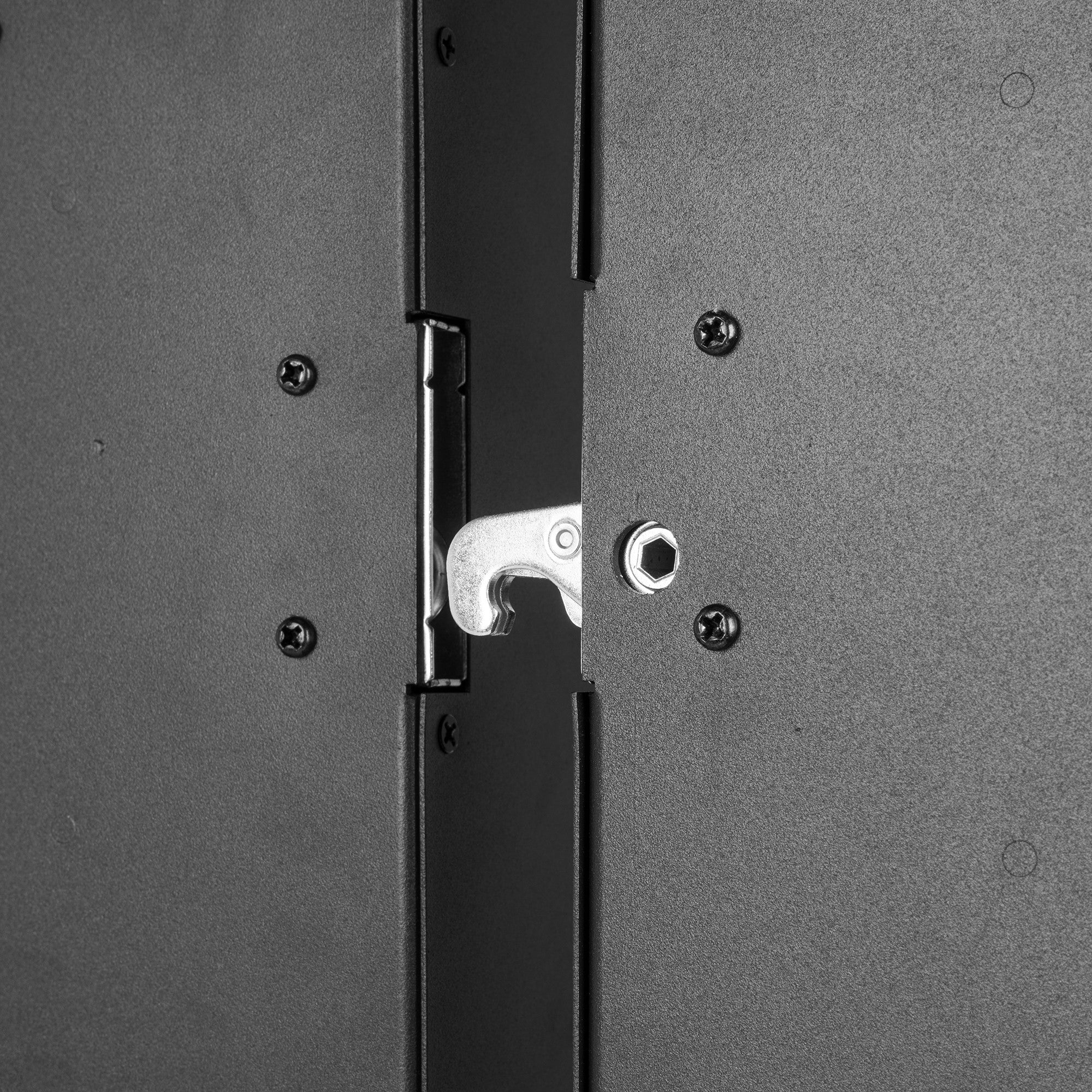

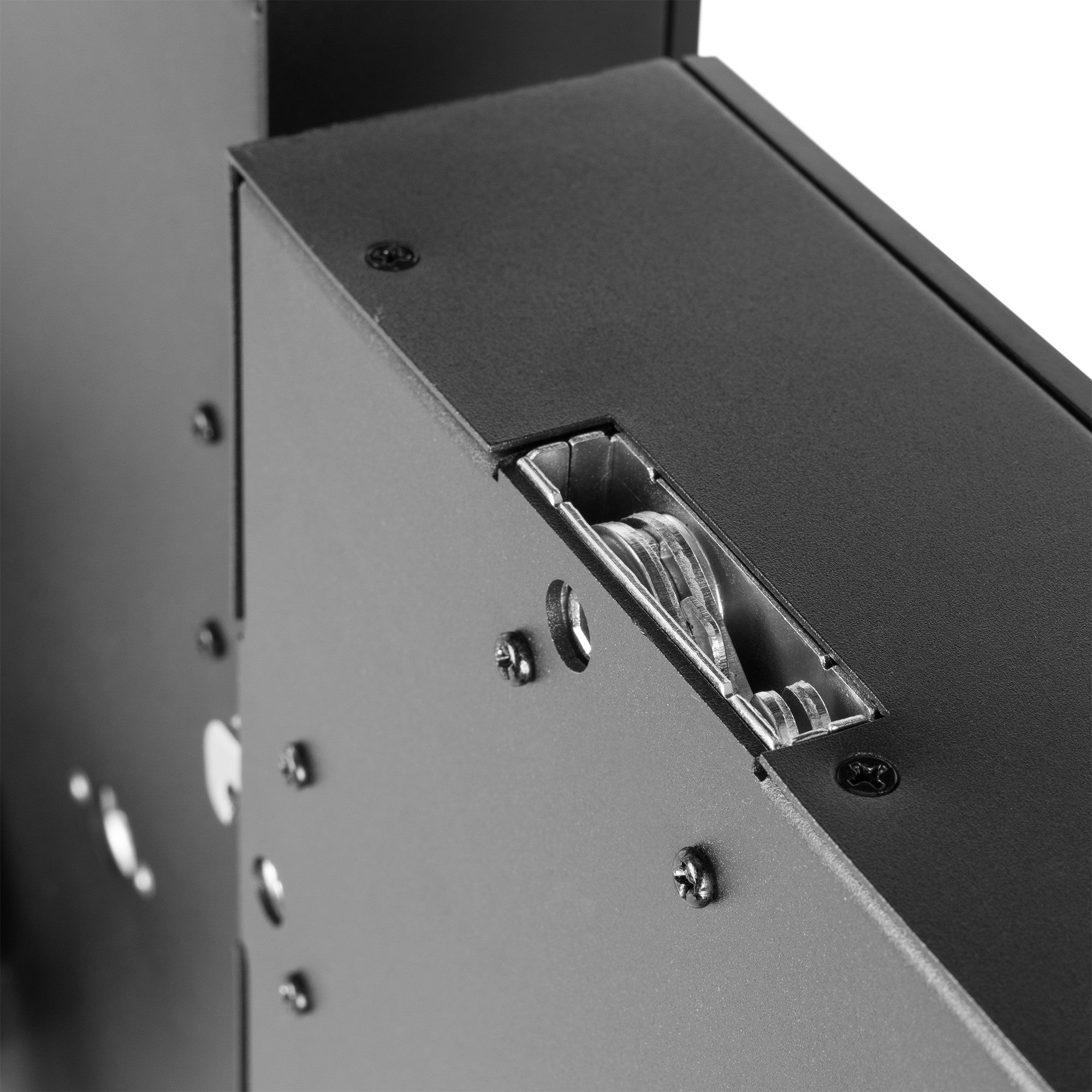

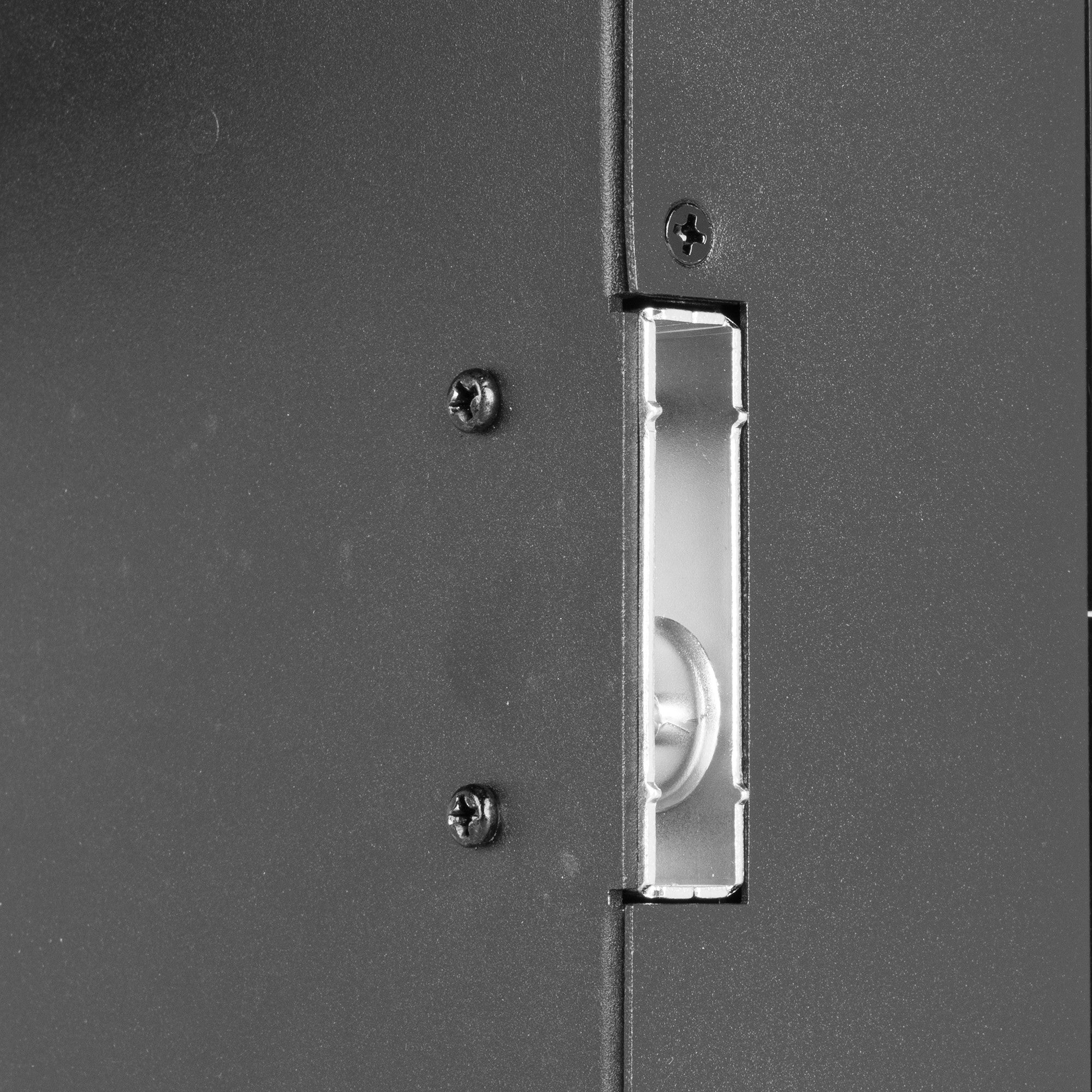

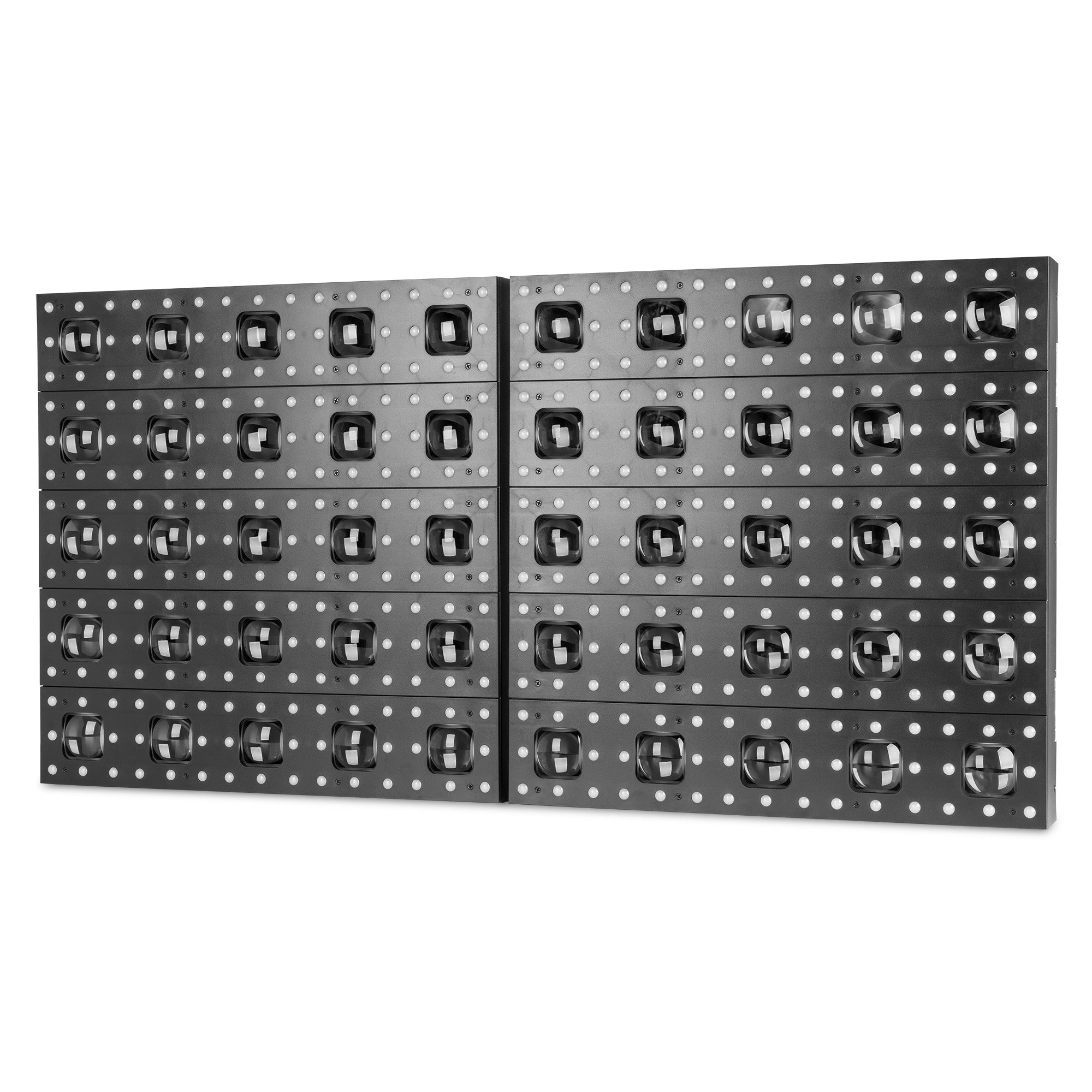

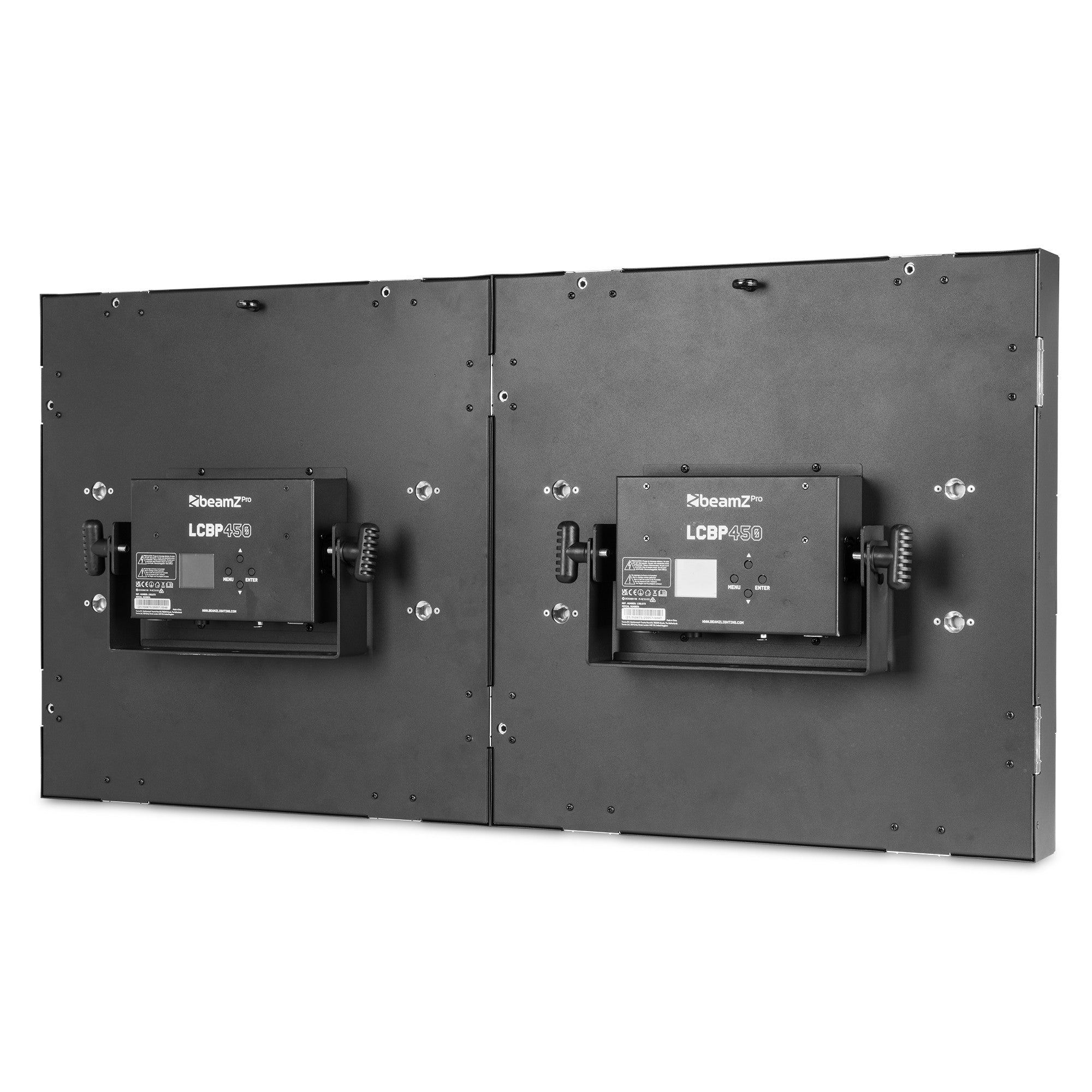

- Easy locking system to connect multiple devices
Specifications
| Brand | beamZ Pro |
|---|---|
| Product colour | Black |
| Light source | 3-in-1 LED, 4-in-1 LED |
| Colours | Red, Green, Blue, White |
| LED power | 10W |
| Quantity of LEDs | 25 |
| Quantity of backlight LEDs | 200 |
| Flash rate per second | 1 - 20Hz |
| DMX channels | 27, 175 |
| DMX connection | 3-pin XLR |
| Modes | Automatic programs, DMX, Master/Slave |
| IP rating | IP20 |
| Cooling | Temperature controlled fan |

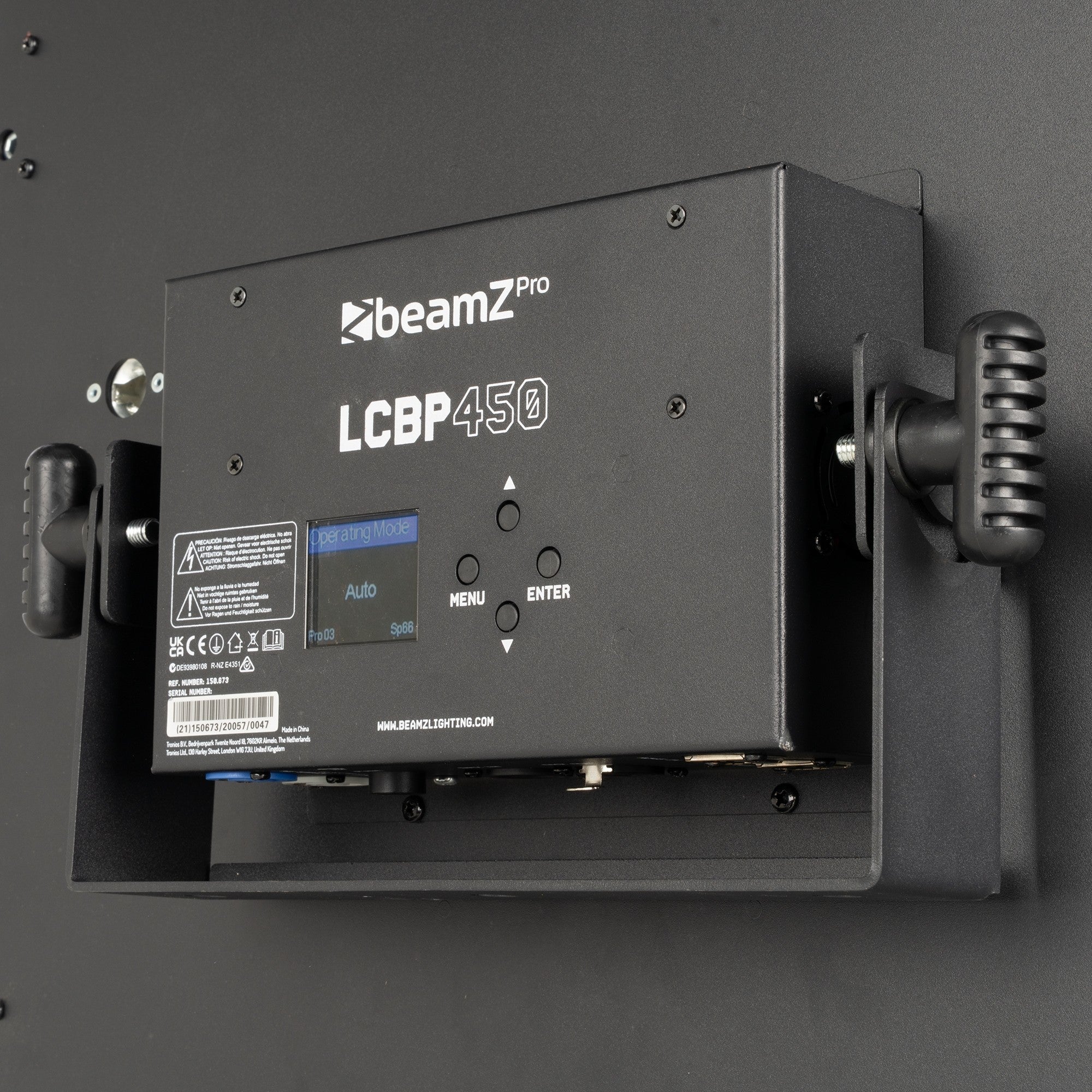

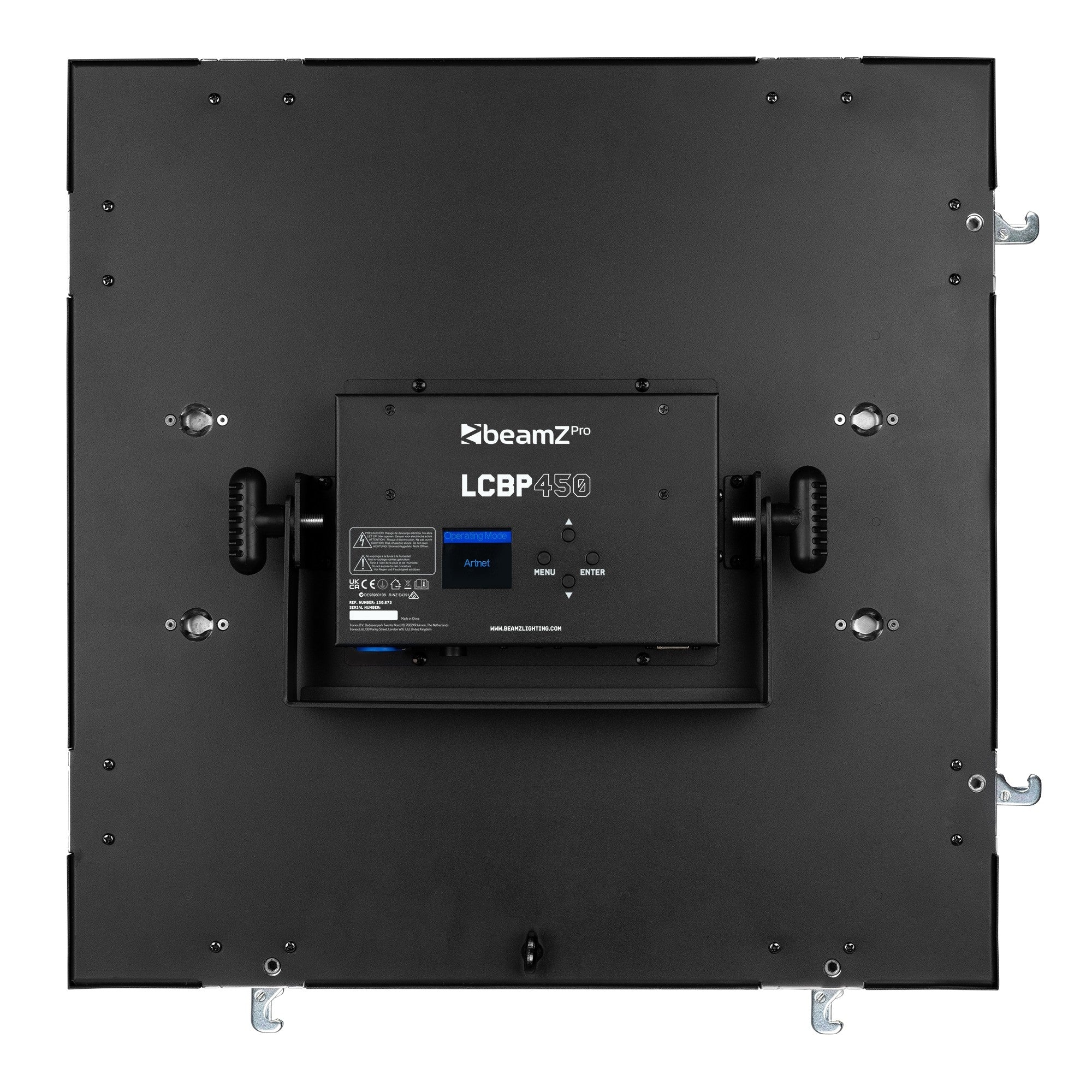

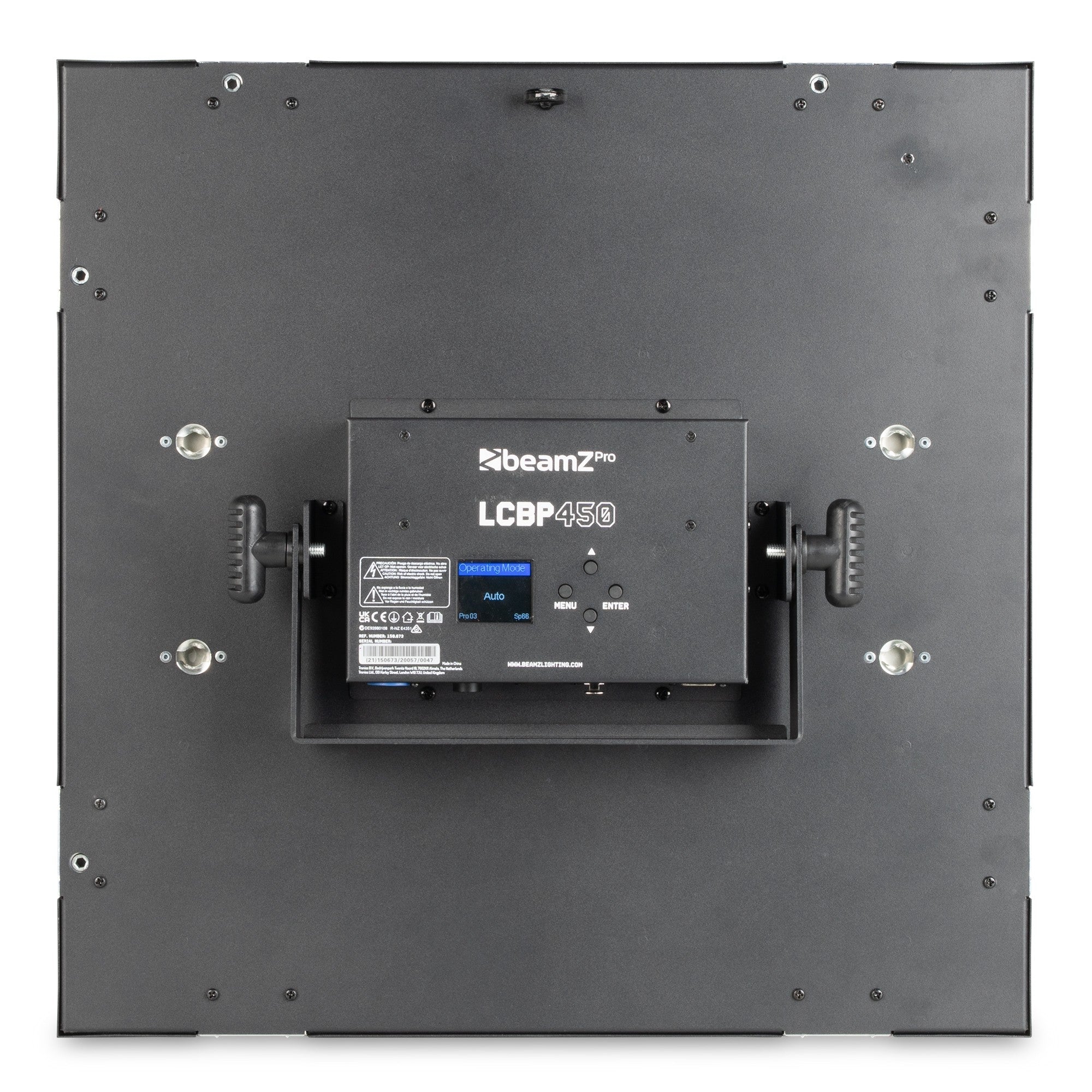

| Display | LCD |
| Power plug | P-Con |
| Power supply | 100-240VAC 50/60Hz |
| Dimensions (L x W x H) | 200 x 500 x 500mm |
| Weight (kg) | 8.8 |

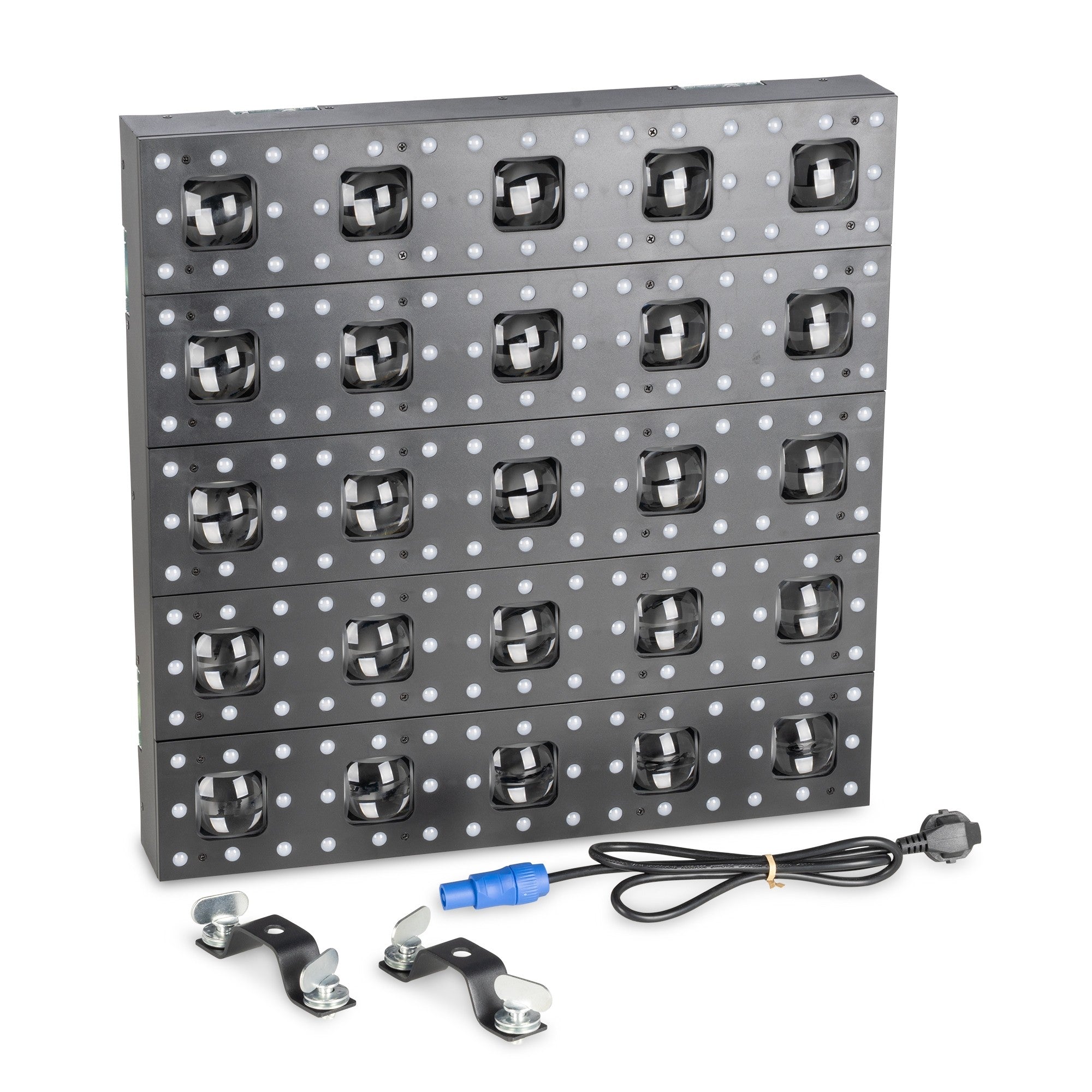

| Included accessories | Mounting bracket, Power cable |
