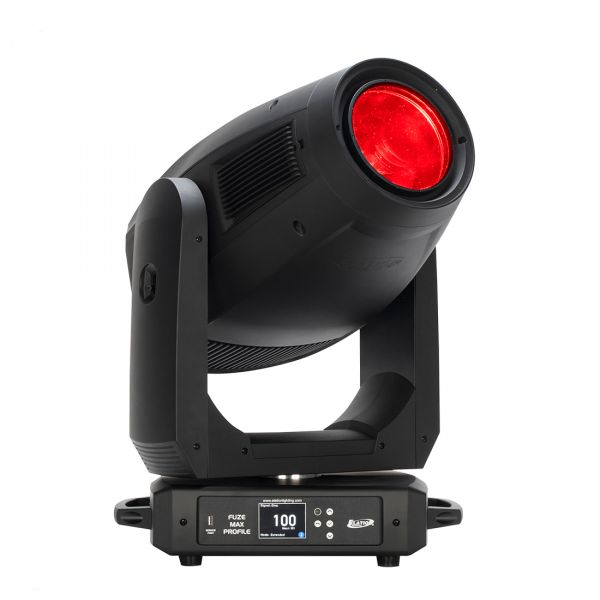

800W Full Spectrum RGBMA LED Framing Profile Fixture
FEATURES
Full Spectrum 800W RGBMA LED Engine
Precise dynamic whites from 2,400 - 8,500K
Instant color changes, Natural color transitions
Rich and intense primary colors
Rotating and Fixed Gobos plus Animation Wheel
Full Blackout Framing System
Iris, Prism, and Dual Frost
Wide Zoom Range from 7° to 53°
Large 140mm front aperture
SOURCE
800W 6,500K RGBMA LED Engine
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
21,000 Total Lumen Output
CRI 92
Zoom Range 7° - 53°
Beam Angle 6.6° - 50.3°
Field Angle 7.8° - 55°
COLOR
RGBMA Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book
EFFECTS
Motorized Zoom
4 Rotating Full Blackout Framing Blades, +/- 60° Index
Dual Variable Frost Filter (Medium/ Wash)
4 Facet Round, 4 Facet Linear Prism
Motorized Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Pan Angle: 540° / 630°
Tilt Angle: 250°
GOBOS
1x 6 Rotating / Indexing Interchangeable Glass Gobos
1x 7 Fixed Glass Gobo
Animation Wheel
CONTROL / CONNECTIONS
4 DMX Channel Modes (RGBMA 40/61) (CMY 38/57)
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM, Art-NET, sACN Protocol Support

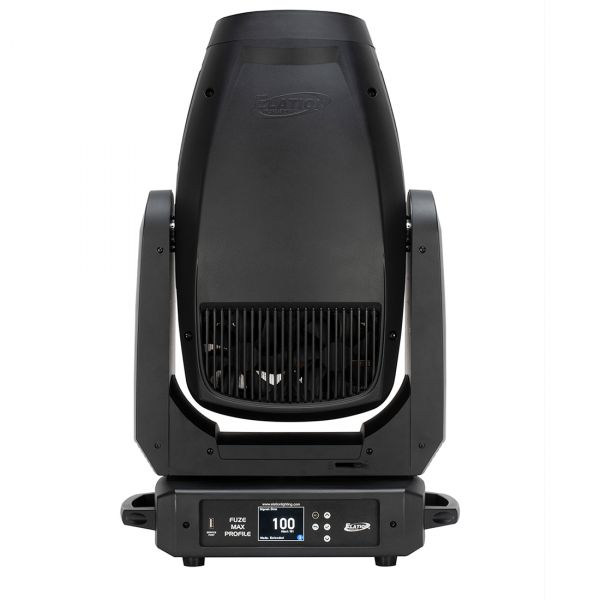

4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
16 Bit Resolution Adjustable Movement

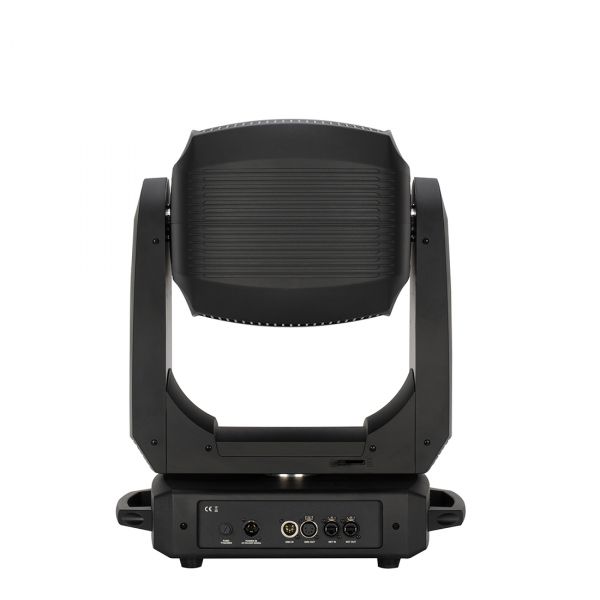

5pin DMX In/Out
Locking Ethernet In/Out
IP65 Locking Power Cable In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 462mm (18.19”)
Width: 540mm (21.26")
Vertical Height: 719mm (28.3")
Weight: 34.6kg (76.3 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
1126W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 3839.66
FIRMWARE UPDATES
Current firmware can be found here (login needed)
