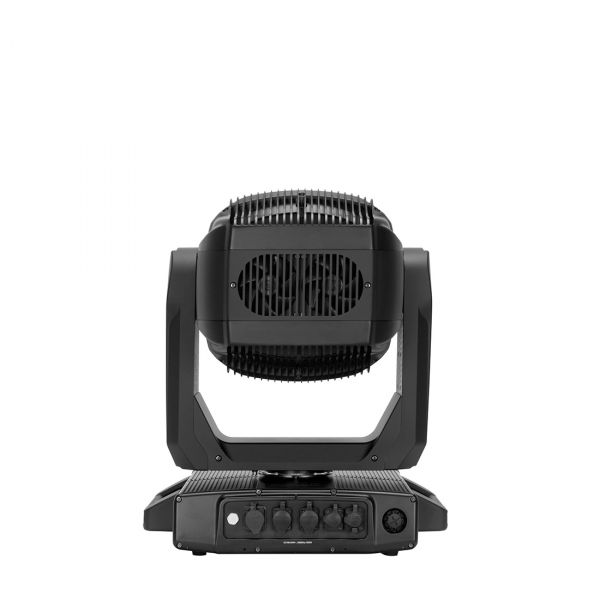

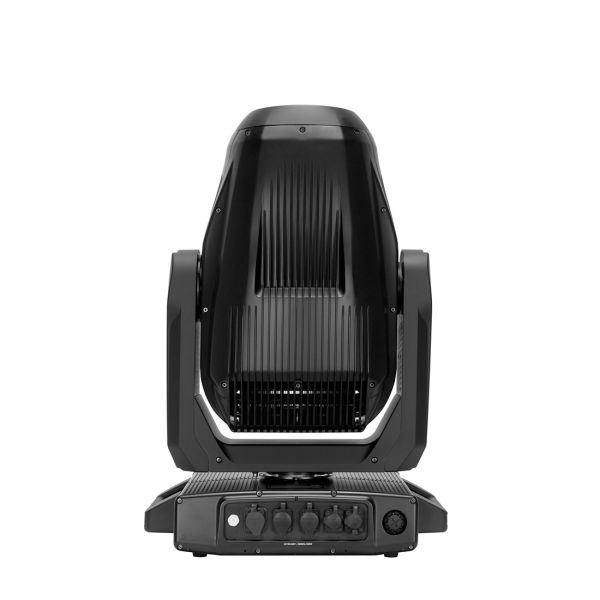

580W Peak Field LED Compact IP65 Framing Profile Fixture with CMY
FEATURES
IP65 Outdoor Rated
High Efficiency 580W 6,500K White LED Engine
Up to 33,500 Total Lumen Fixture Output
Peak Field engine for powerful projection at long distances
CMY Color Mixing and Variable CTO
5-Position Color Wheel with High CRI Filter
Complete FX System featuring Dual Rotating and Fixed Gobo Wheel, Animation, Iris, Dual Prism, Dual Frost
Indexable Full Blackout Framing System
Wide Zoom Range from 5.5° to 50°

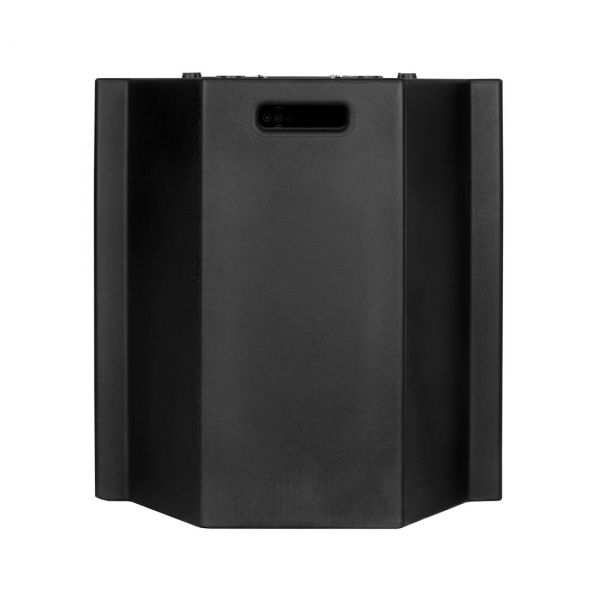

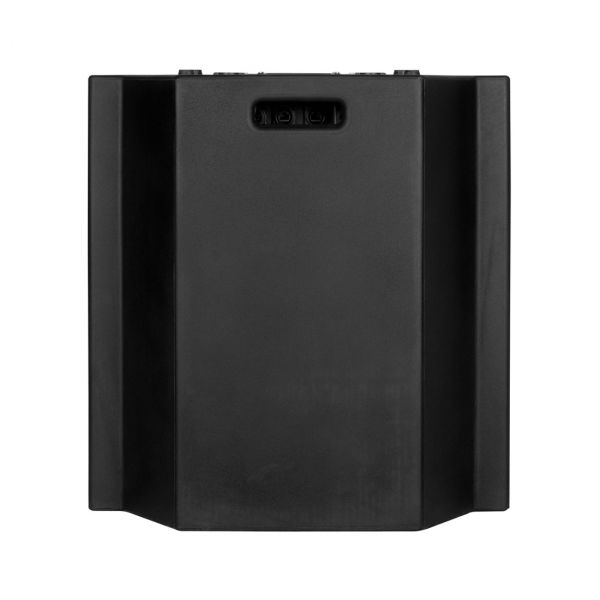

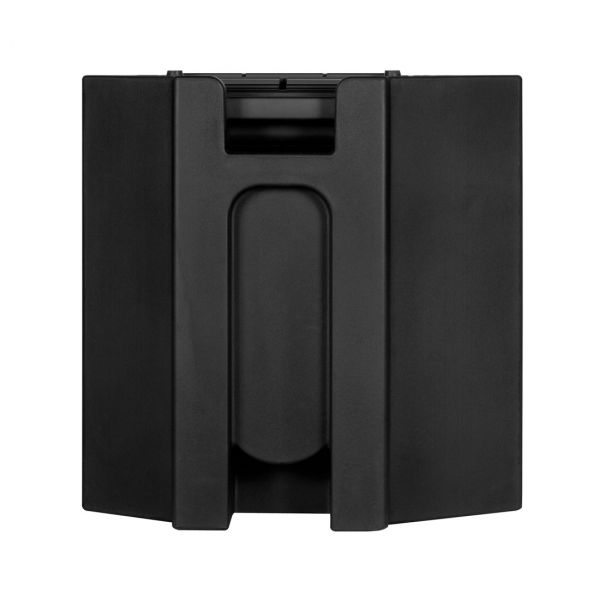

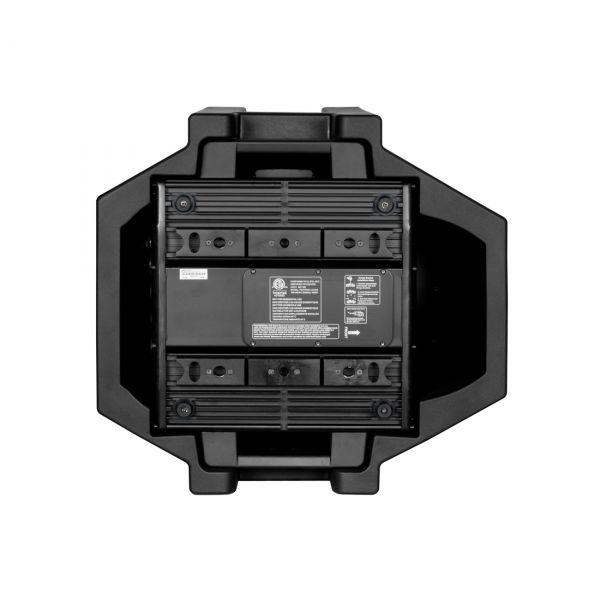

Polyurethane Foam Packaging Included
SPECIFICATIONS
SOURCE
580W 6,500K Bright White Peak Field LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
33,500 Total Lumen Fixture OutputCRI 71+ (85+ with HCRI Filter)
2.5:1 Hotspot Ratio
Zoom Range 5.5° - 50°
Beam Angle 6° - 36.7°
Field Angle 7.6° - 51.3°
EFFECTS
Motorized Zoom4 Rotating Full Blackout Framing Blades
+/-45° Framing Indexing
Full 360° Bi-Directional Animation Wheel
4-Facet and Linear Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Internal Color, Framing, Prism, and Frost Macros
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
DMX Controllable LED Refresh Rate
Pan Angle: 540°/630°
Tilt Angle: 250°
COLOR
CMY Color MixingLinear CTO Color Correction
5 Dichroic Colors including High CRI Filter
GOBOS
3 Gobo Wheels6 Rotating Gobo (Wheel #1)
7 Rotating Gobos (Wheel #2)
7 Static Gobos (Wheel #3)
CONTROL / CONNECTIONS
2 DMX Channel Modes (43/68 Ch.)16-bit Pan, Tilt and Dimming Control
Motorized Focus and Auto-Focus Presets
DMX, RDM, Art-NET, sACN Protocol Support
(6) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Hibernation Mode (Power Save)
IP65 Locking 5pin XLR Connector In/Out
IP65 Locking RJ45 Ethernet Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 468mm (18.4 in)Width: 370mm (14.57 in)
Height: 682mm (26.8 in)
Center-to-Center Spacing 626m (24.6in)
Weight: 40.8kg (89.9 lbs.)
ELECTRICAL
AC 100-240V 50/60HzMax Power Consumption 1000W
-20°C to 45°C (-4°F to 113°F)
BTU/hr (+/- 10%) 3239.5
INCLUDED ITEMS

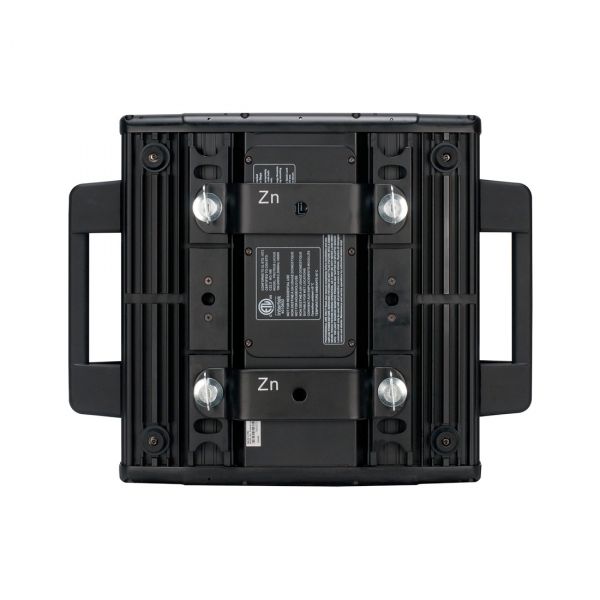

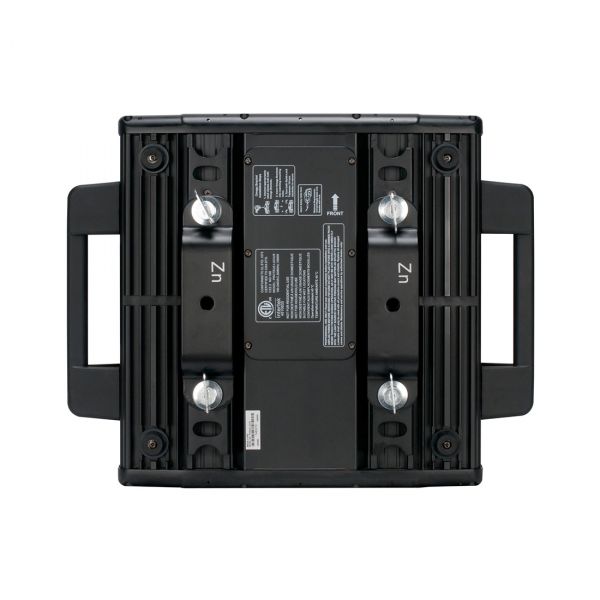

Omega Brackets (x2)IP65 Rated 5pin DMX Cable
IP65 Rated RJ45 DATA Cable (Fixture to Fixture Interconnect Use Only!)
IP65 Rated Twist-Lock Power Cable
