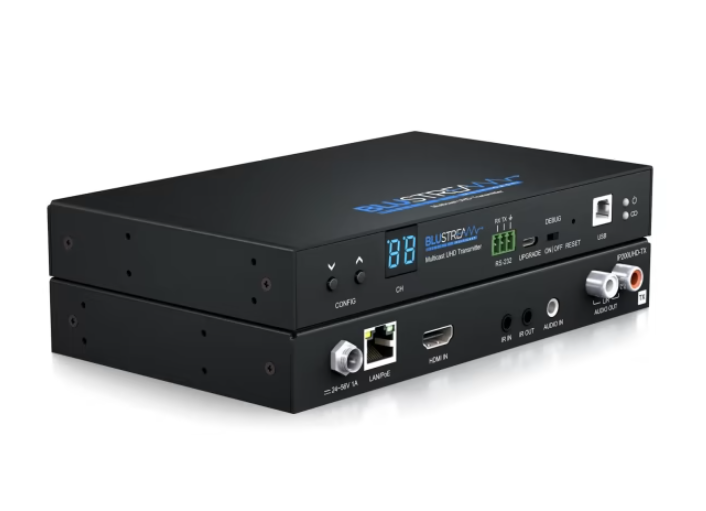

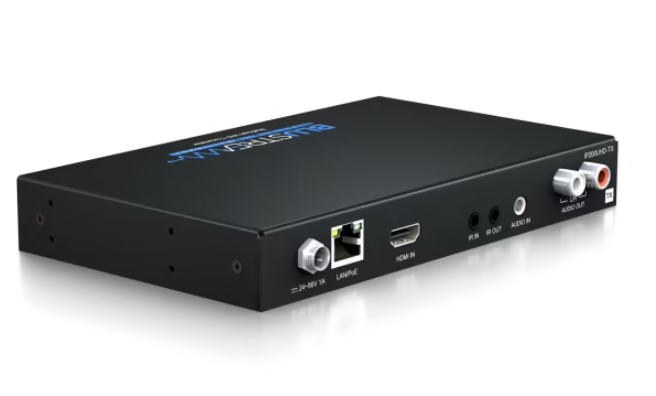

The IP200UHD-TX is an industry leading 4K HDCP 2.2 HDMI transmitter that, using visually lossless compression technology, delivers HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture.
• Advanced UHD video over 1Gb Network
• Virtually unlimited system size
• Extends HDMI up to a distance of 100m over a single CAT cable
• Supports up to 4K HDR UHD video sources (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmission
• Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
• PoE (Power over Ethernet) to power Blustream products from PoE switch
• HDCP 2.2 compliant with advanced EDID management
• Analogue L/R audio embedding
• Analogue L/R audio breakout
• Local 24-56V power supply (should Ethernet switch not support PoE) - sold separately
• Features 4 operational modes:
- Matrix distribution (requires 1GB network switch)
- Video wall (requires 1GB network switch)
- One-to-one HDMI extender (no network switch required)
- One-to-many HDMI extender (no network switch required)

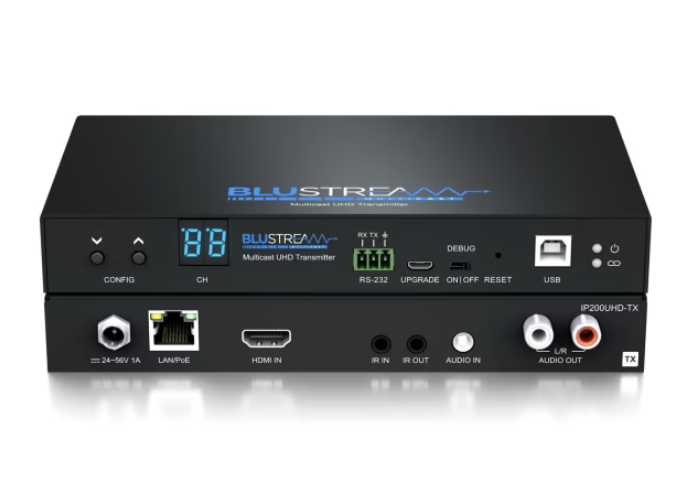

• Video Input: 1 x HDMI Type A, female
• Video Output: 1 x LAN RJ45 connector
• Latency: 1 Frame (16-33ms depending on frame rate)
• Audio Input: 1 x 3.5mm L/R Analogue audio
• Audio Output Connectors: 2 x RCA L/R Analogue audio
• Ethernet Port: 1 x LAN RJ45 connector
• RS-232 Serial Port: 1 x 3-Pin Phoenix connector
• USB / KVM Port: 1 x USB - Type B
• IR Input: 1 x 3.5mm stereo jack
• IR Output: 1 x 3.5mm mono jack
• PoE draw: 6.0W (typical), 7.2W (max load)
• Firmware Update: 1 x Micro-USB
• Mounting Kit Included
• Dimensions (W x D x H ): 190mm x 114mm x 25mm
• Shipping Weight: 0.8kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
