4K 60Hz 4:4:4 SDVoE Transceiver via 10Gb Managed Network

Key Features

• Advanced 18Gbps UHD Video over 10Gb network with uncompromised video quality and zero latency
• Supports video scaling and single-frame switching
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Support fixed signal routing function for IR, RS-232, CEC and USB
• USB end to end/point to point pass-through
• Analogue L/R audio embedding and audio breakout (balanced and unbalanced)
• Bi-directional 10/100/1000BaseT Ethernet pass-through
• Supports bi-directional 5V or 12V IR pass-through
• PoE (Power over Ethernet) to power Blustream products from PoE+ switch
• HDCP 2.2 compliant with advanced EDID management
• Local 12V 2.5A power supply (should Ethernet switch not support PoE+) (power supply sold seperately)
• Features 4 operational modes:
- Matrix distribution (requires 10Gb network switch)
- Video wall (requires 10Gb network switch)
- Multiview mode (requires 10Gb network switch)
- One-to-one HDMI extender (no network switch required)

Please note: the Blustream SDVoE system distributes HDMI video over 10Gb managed network hardware. It is advised that the products are connected on an independent network switch to prevent interference or drop in signal performance. Please take care to make sure that you have read and understood the instructions in the User Manual, and that you have set up the network switch correctly prior to connecting the SDVoE products.

Specifications

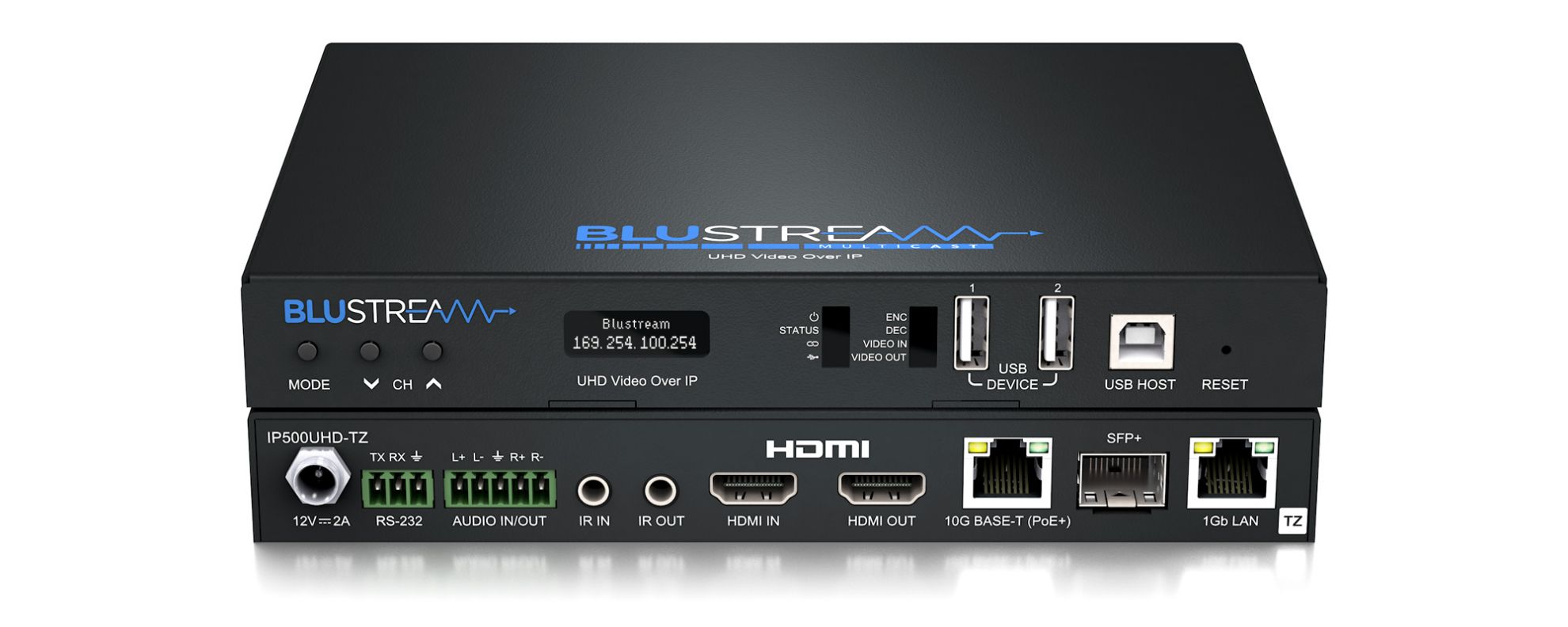

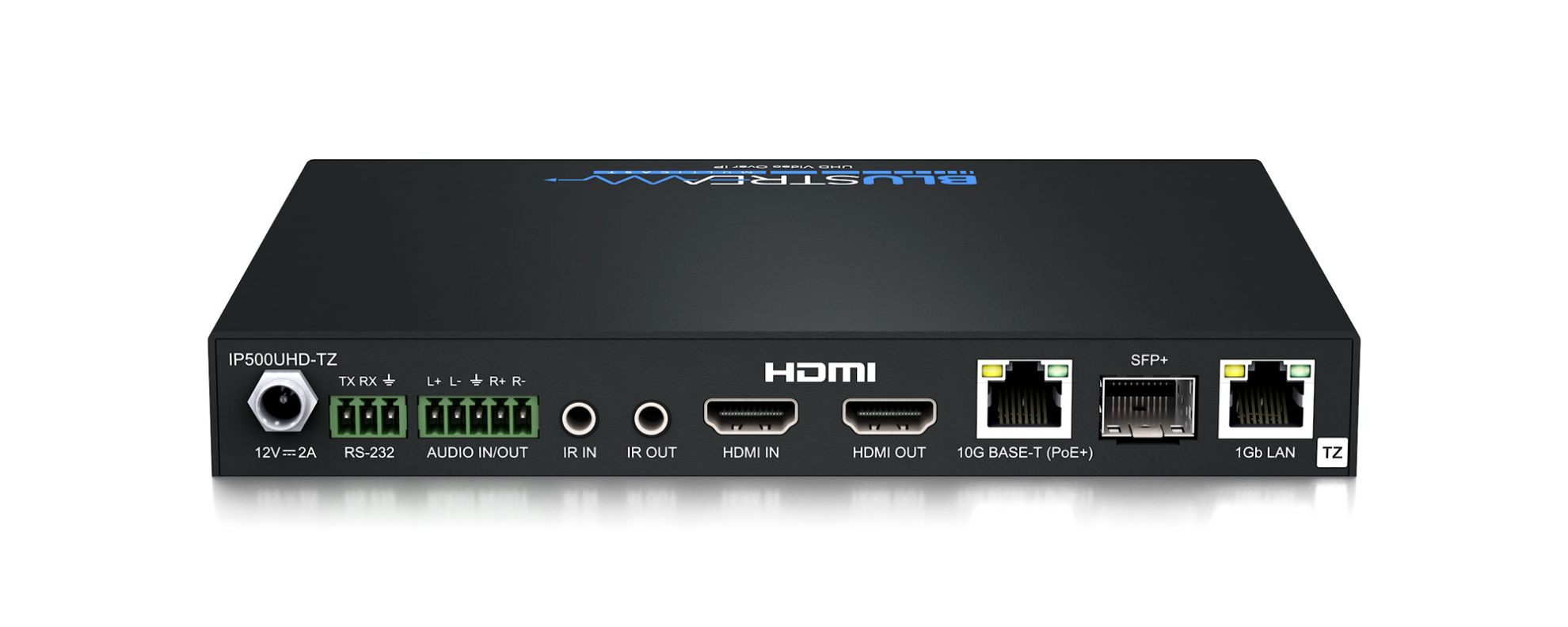

• Video input: 1 x HDMI Type A, female
• Video output: 1 x HDMI Type A, female
• Latency: 100 microseconds (0.1ms) with no video compression (<16ms with mild video compression - 10-18Gbps HDMI signals) No latency on HDMI Loop out when in Encoder / Transmitter mode
• Audio input/Output: 1 x 5-pin Phoenix connector
• Ethernet port: 1 x 10GBaseT RJ45 Video network, 1 x SFP+ module video network, 1 x 1Gb LAN RJ45 pass-through
• RS-232 serial port: 1 x 3-pin Phoenix connector
• USB/KVM Port: 1 x USB-Type B (host) , 2x USB-Type A (device)
• IR input: 1 x 3.5mm stereo jack
• IR output: 1 x 3.5mm mono jack
• PoE+ draw: 12.8W (typical), 13.5W (max load)
• Dimensions (WxDxH): 191mm x 153mm x 25mm
• Dimensions Including Connections (WxDxH): 191mm x 158mm x 25mm
• Shipping Weight: 1kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°C to 60°C)
