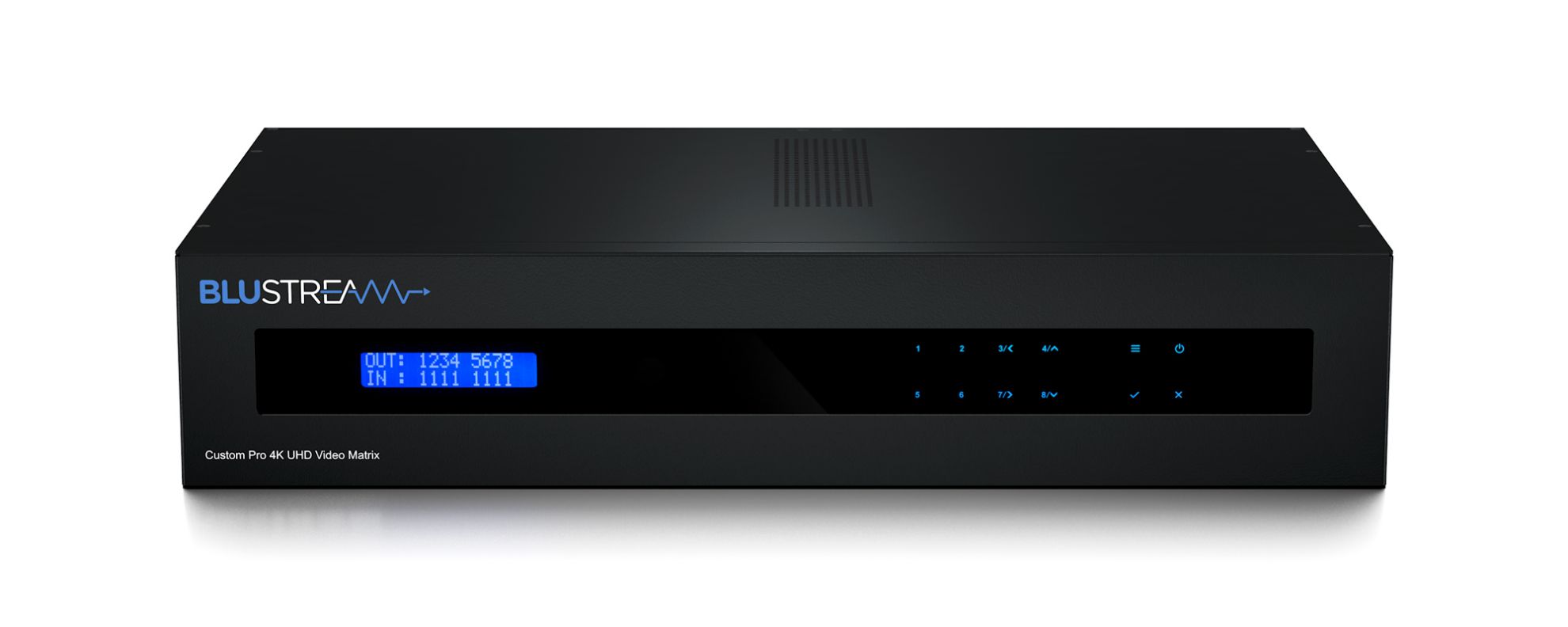

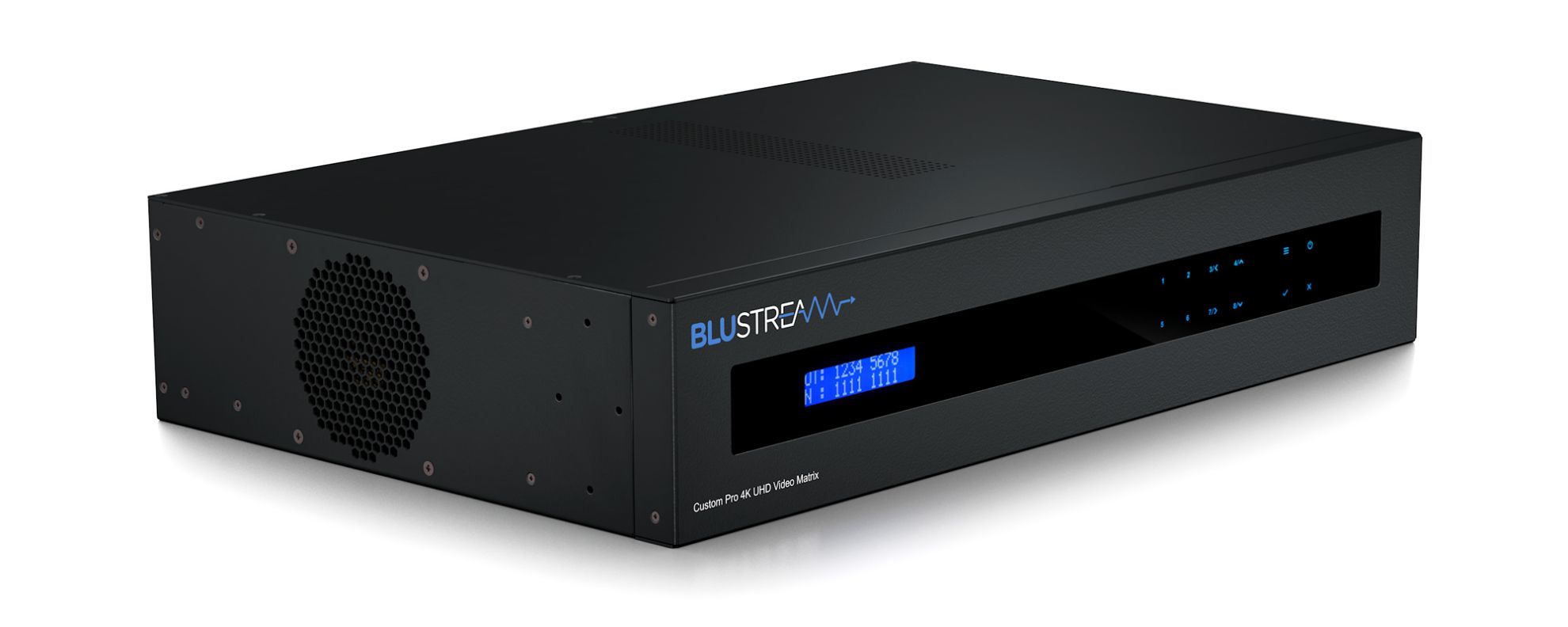

Custom Pro 8x8 HDMI Matrix
Custom Pro 8x8 HDMI Matrix delivers 4K 18Gbps HDR performance for the custom installation market.
The PRO88HDMI-V2 is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 matrix featuring Bi-directional IR and a web browser interface module for control and configuration of the matrix.
Key Features
• Features 8 x HDMI inputs which can be independently routed to 8 x HDMI outputs
• Supports 18 Gbps 4K UHD video including HDR, HDR10+
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Control via front panel, IR, RS-232 & TCP/IP
• 3rd Party drivers available for major control brands
• Advanced EDID management
• HDCP 2.2 compliant
Specifications

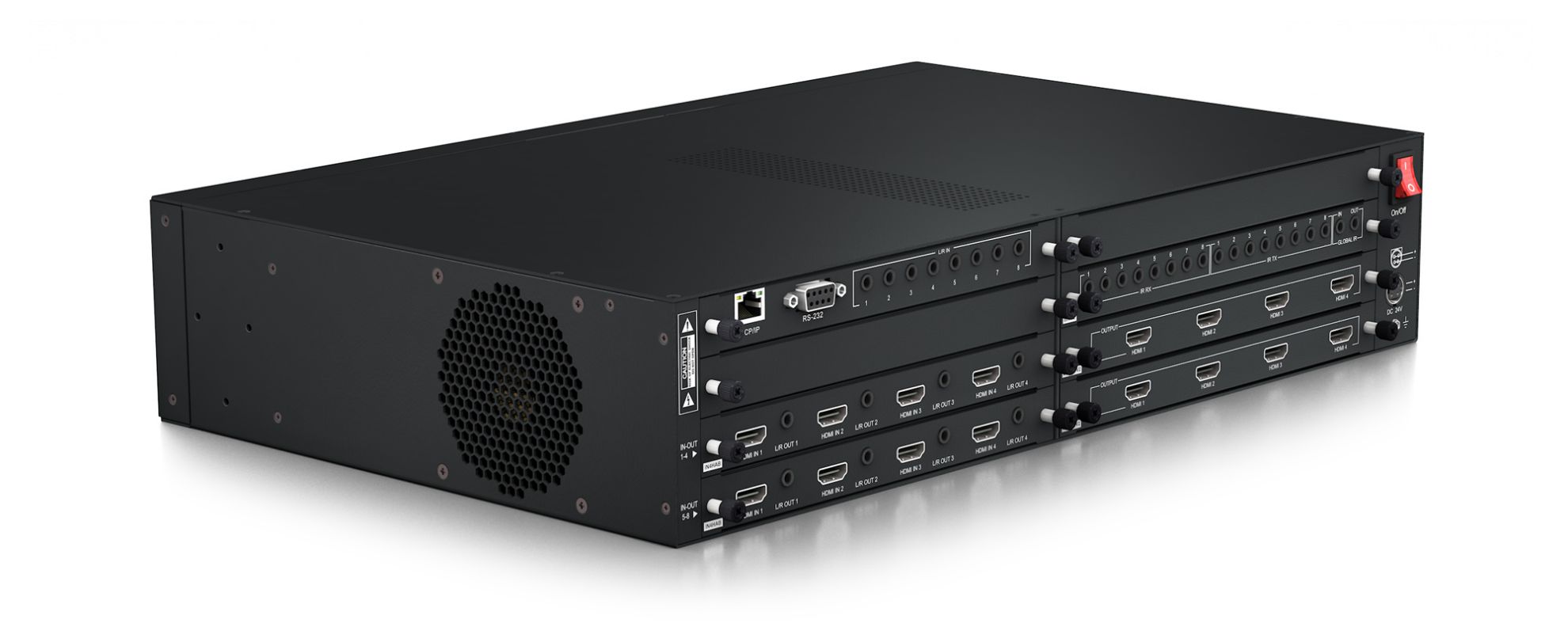

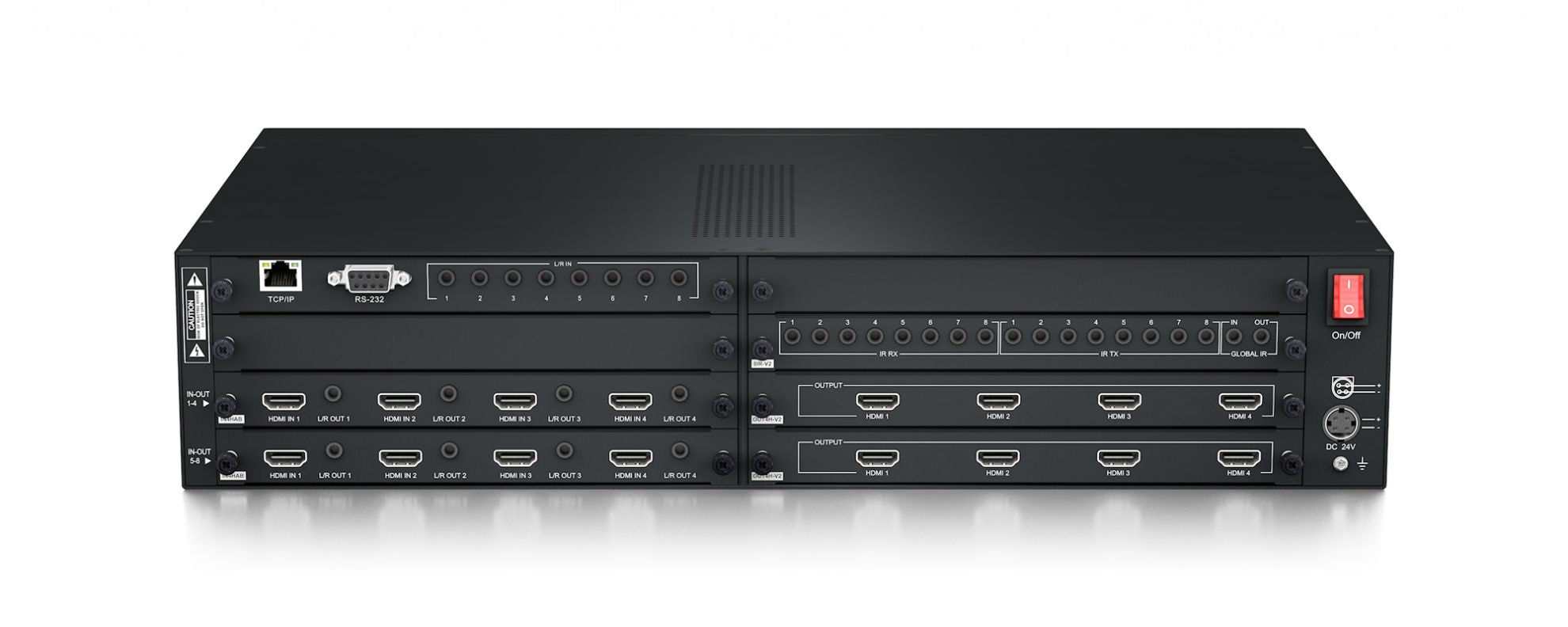

• Video Input Connectors: 8 x HDMI Type A, 19-pin female
• Video Output Connectors: 8 x HDMI Type A, 19-pin, female
• Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)
• TCP/IP Control: RJ45, female
• Ethernet / Network: RJ45, female
• RS-232 Serial Port: DB-9, female
• Rack-Mountable: 2U rack height, rack ears included
• Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet
• Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet
• Shipping Weight: 5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 24V/8A DC
