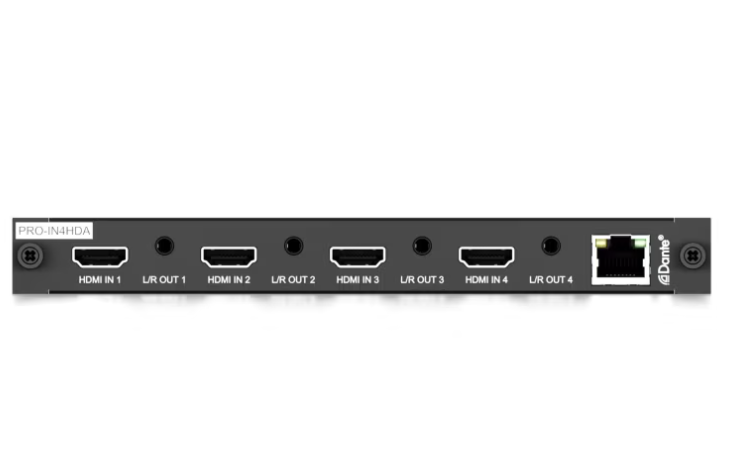

The PRO-IN4HDA board features 4x HDMI 2.0 inputs supporting 4K 60Hz 4:4:4 that can be independently routed to any HDMI/HDBaseT output board. Each HDMI input includes independent 2ch Dante audio breakout, fixed level 2ch analogue audio breakout, and 4x 2ch Dante audio inputs allowing audio embedding onto the HDMI source. The PRO-IN4HDA features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
• Video Input Connectors: 4x HDMI Type A, 19-pin, female
• Audio Output Connectors: 4x Analogue Left/Right audio (3.5mm stereo jack)
• Ethernet port: 1x LAN RJ45 connector (Dante Audio)
• Card Dimensions (W x H x D): 170mm x 22mm x 177mm
• Dimensions Including Connections (W x H x D): 190mm x 22mm x 188mm
• Shipping Weight: 0.5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°C to 60°C)
