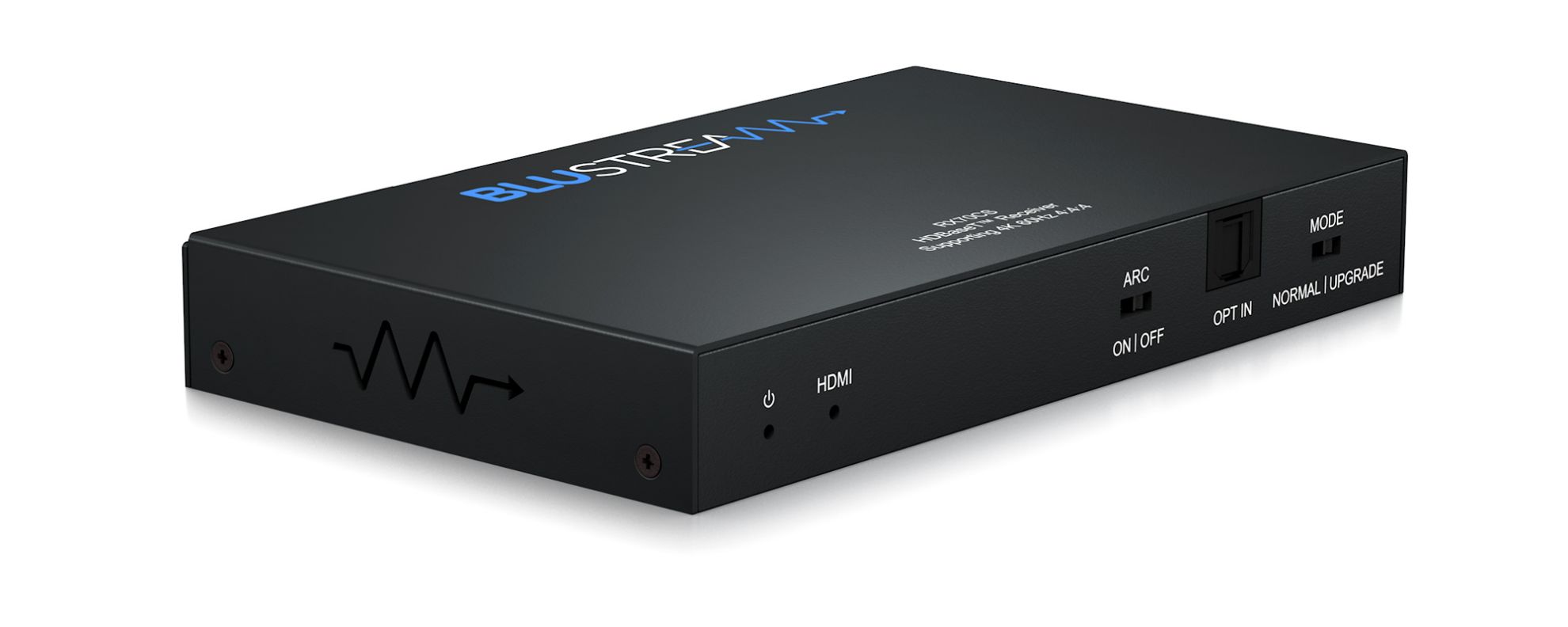

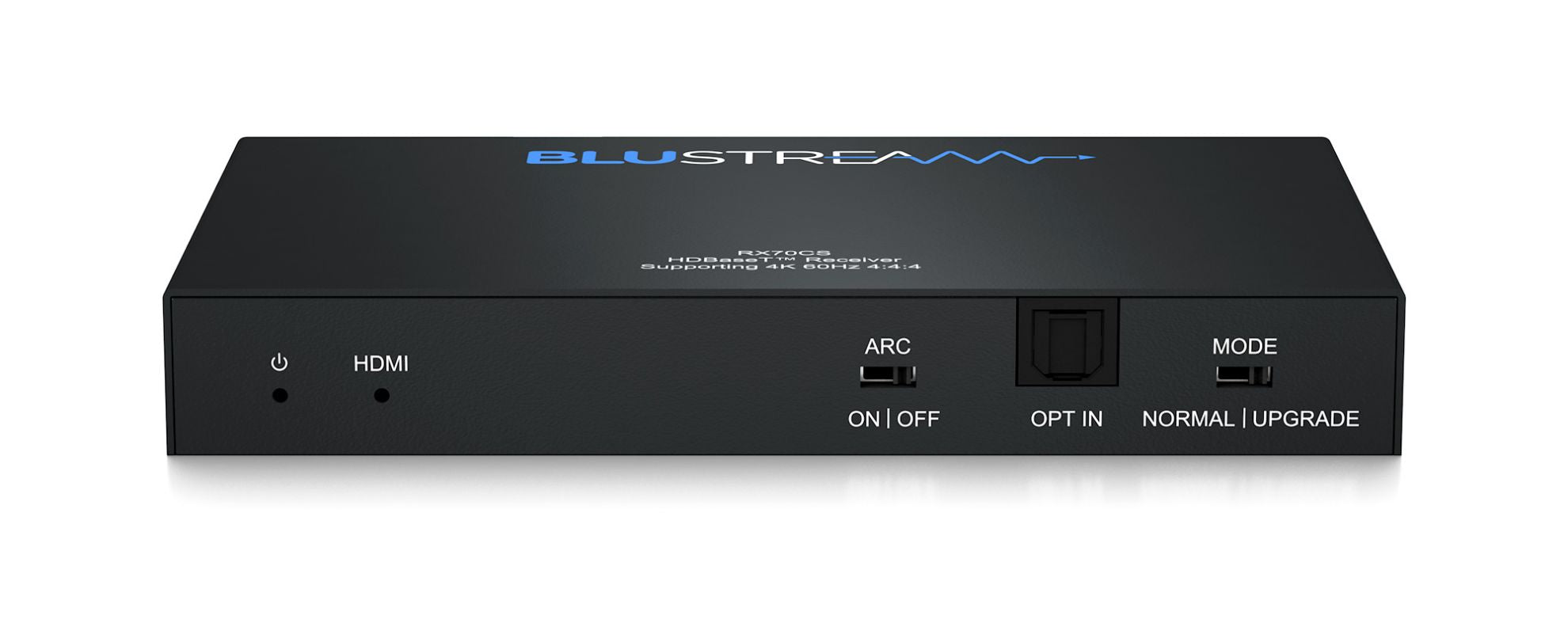

HDBaseT™ CSC Receiver - 70m
Key Features
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
• Extends HDMI 1080p up to a distance of 70m over a single CAT cable
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Automatic downscaling of up to 4K 60Hz 4:4:4 video input to 1080p
• Supports ARC (Audio Return Channel) from connected display via HDMI or Optical digital inputs (when used with compatible Blustream transmitter / matrix)*
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Bi-directional RS-232 pass-through
• Supports bi-directional IR pass-through to compatible HDBaseT™ device
• Supports bi-directional PoC to power RX70CS from compatible Blustream HDBaseT™ transmitter / matrix products or provide power to HDBaseT™ transmitter when RX70CS is powered with local power supply
• HDCP 2.2 support
• Recommended receiver for the Blustream AMF42AU, C6CS, C88CS, HMXL66ARC and HMXL88ARC matrix products
*Technical performance is subject to the features supported on the connected HDBaseT™ device.
Specifications

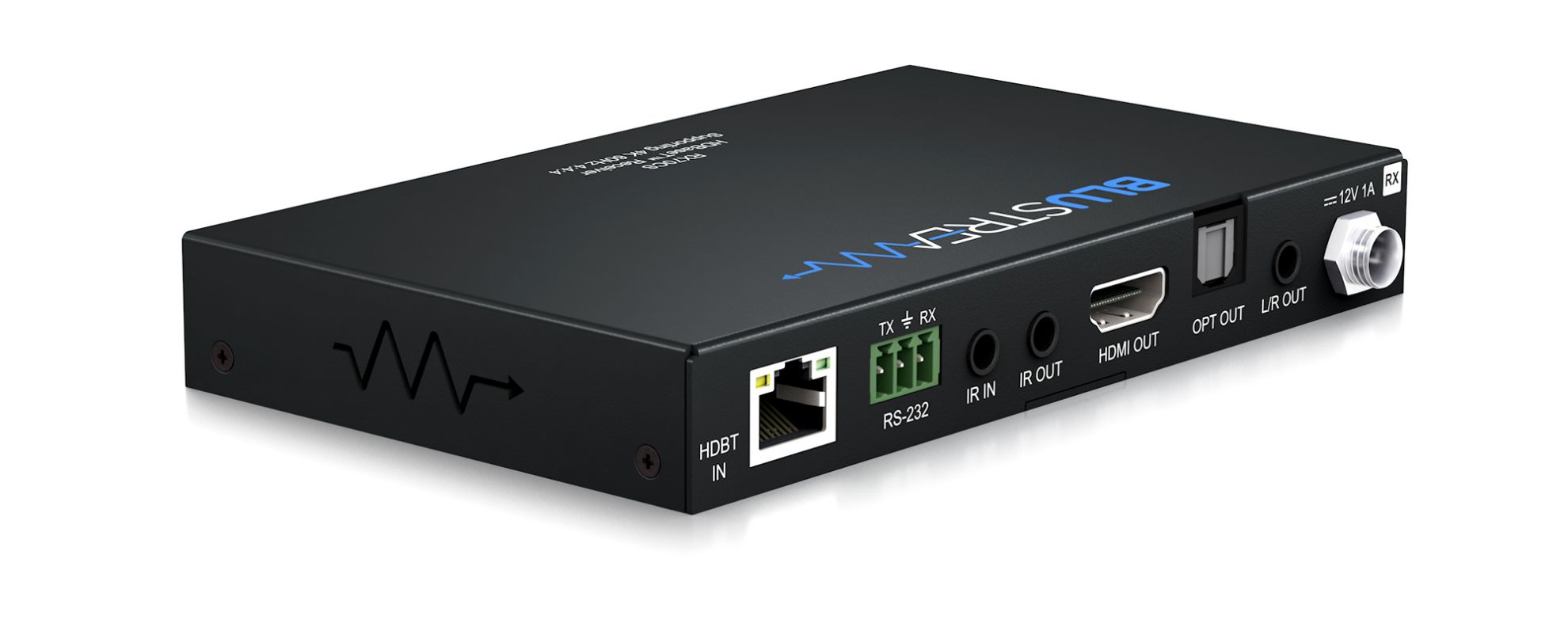

• Video Input Connectors: 1 x HDBaseT™ RJ45 connector
• Video Output Connectors: 1 x HDMI Type A, 19-pin, female
• Audio Input Connectors: 1 x Toslink (S/PDIF) - for Optical Audio Return only
• Audio Output Connectors: 1 x Toslink (S/PDIF), 1 x 3.5mm L/R Analogue audio - for audio breakout of HDBaseT™ input signal only
• RS-232 Serial Port: 1 x 3-pin Phoenix connector
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• Mounting Kit: Included
• Casing Dimensions (without connections) (W x D x H): 140mm x 84mm x 18mm
• Casing Dimensions (with connections) (W x D x H): 140mm x 98mm x 18mm
• Shipping Weight: 0.5kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature: -4°F to 140°F (-25°C to +70°C)
• Power Supply: 1 x 12V/1A DC, screw connector
