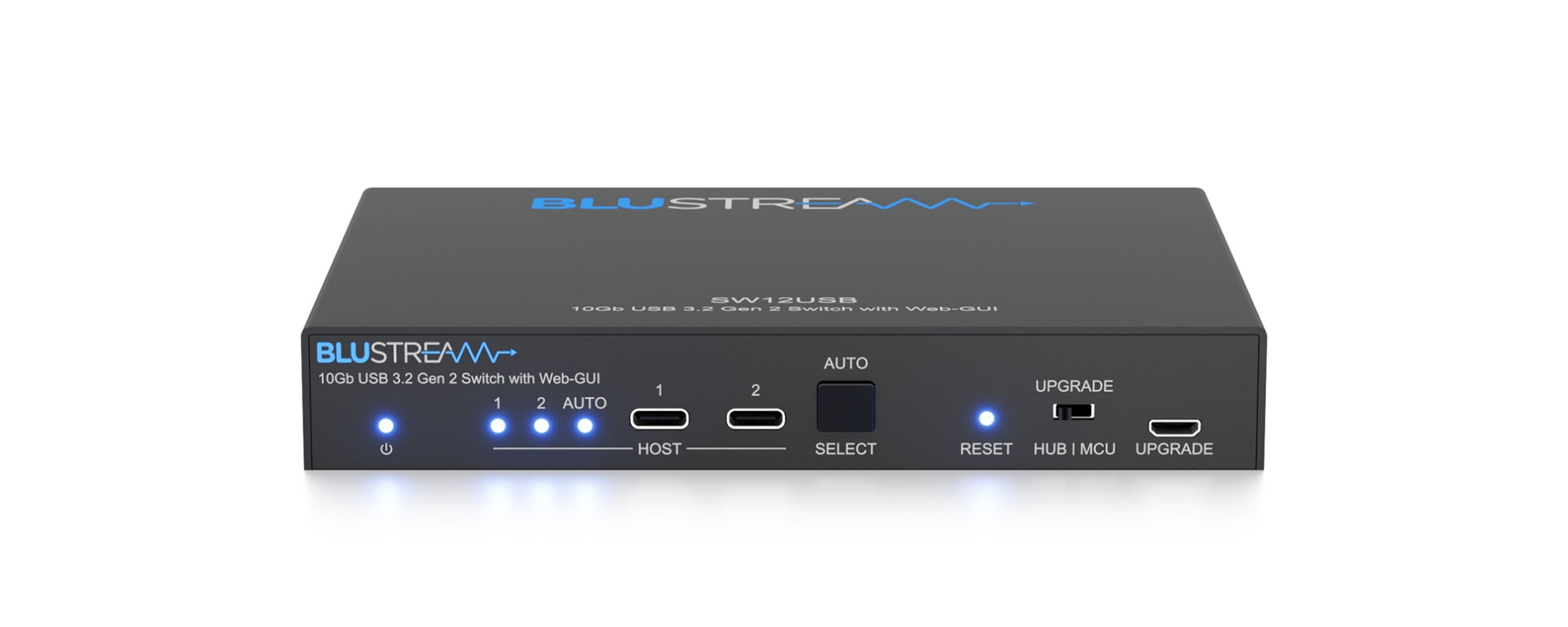

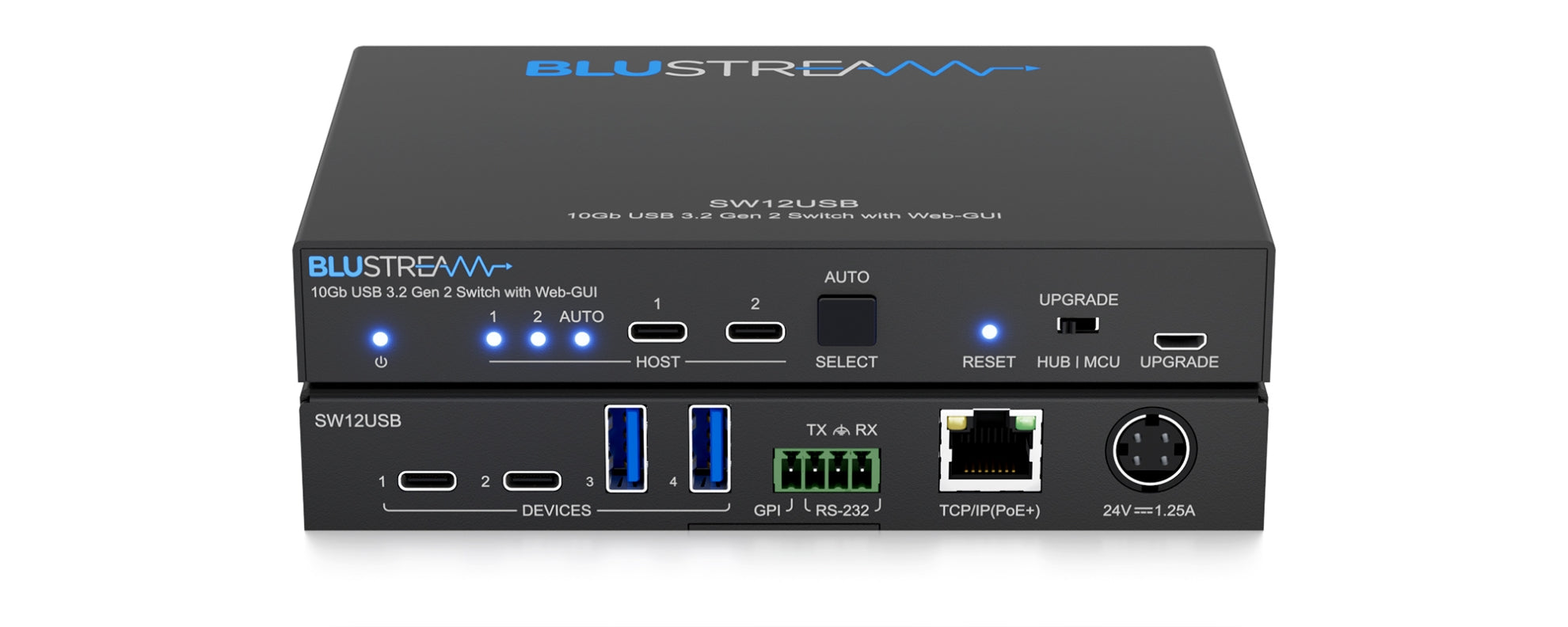

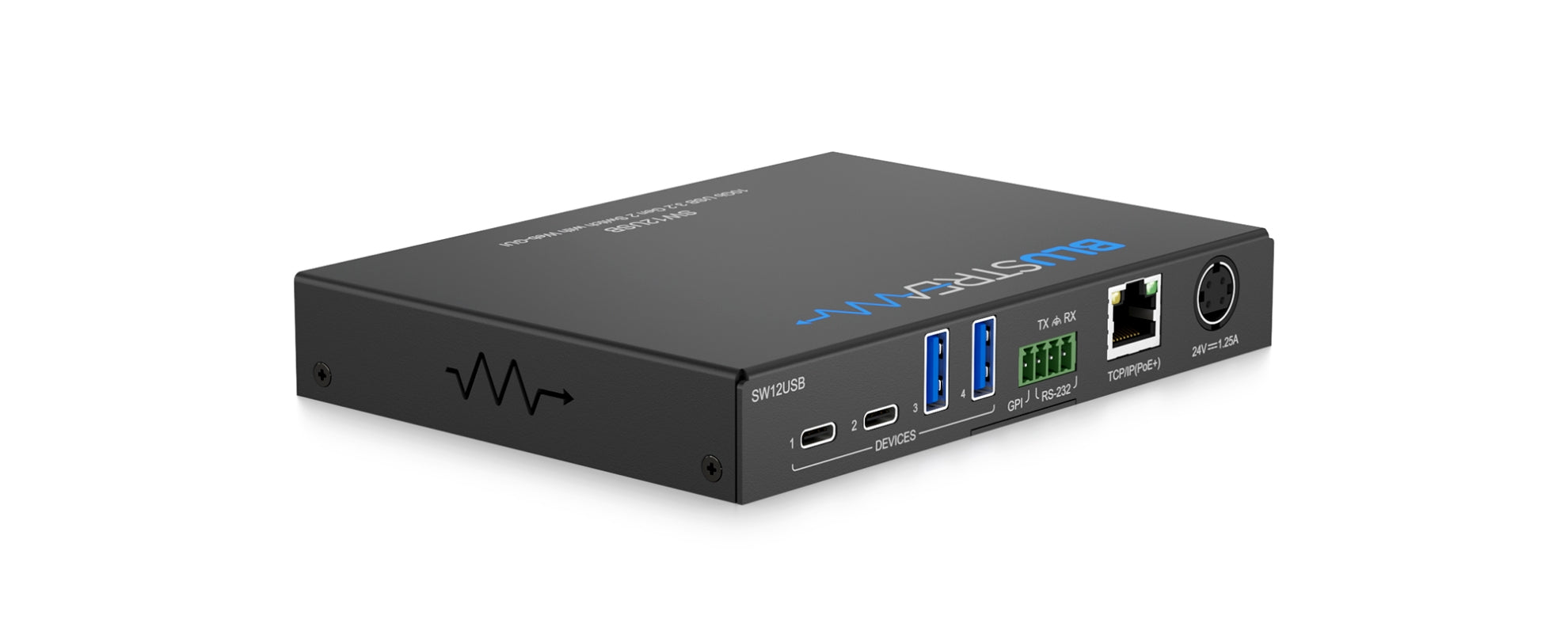

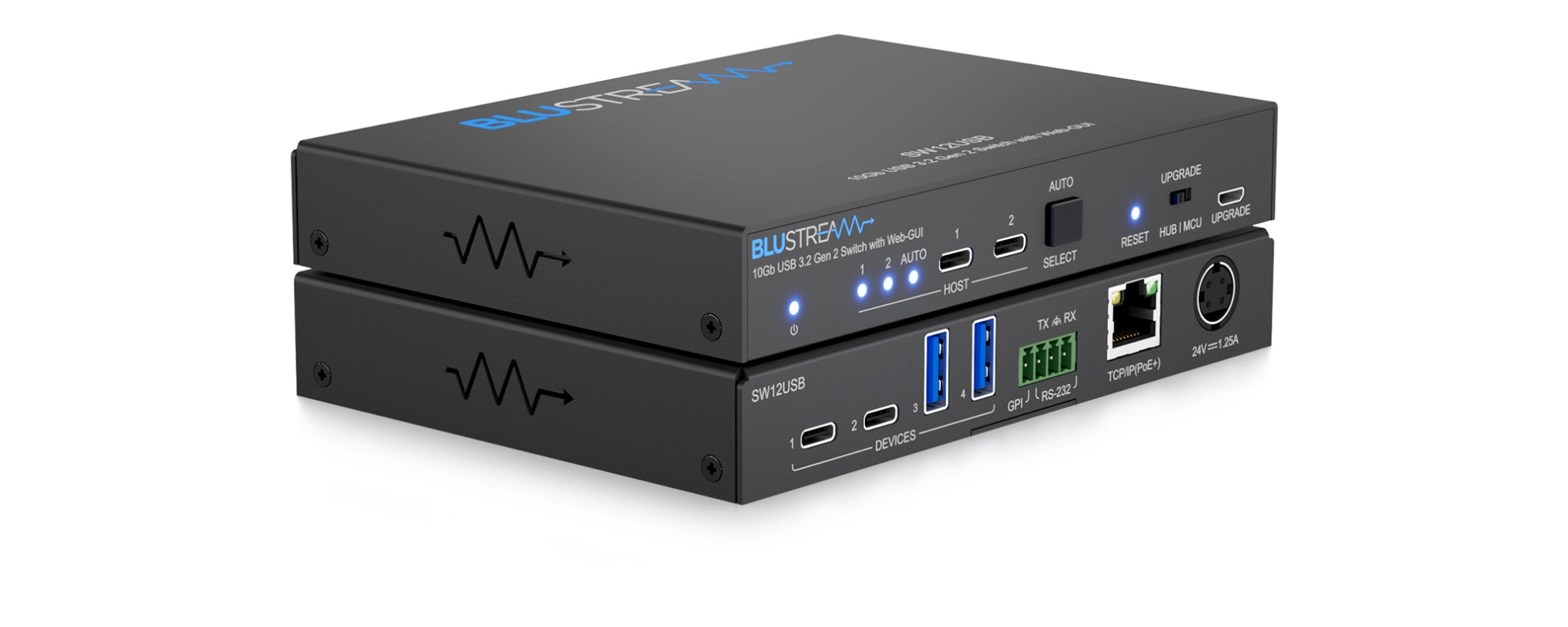

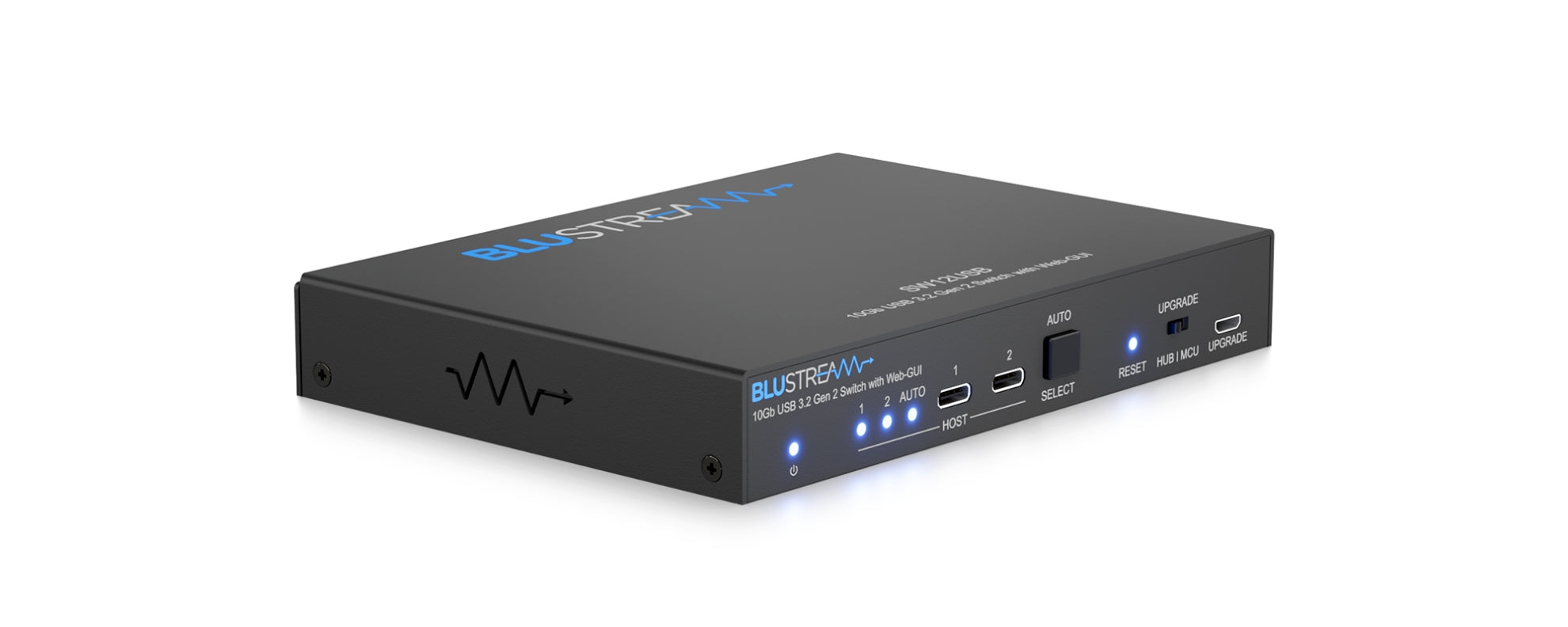

The SW12USB is a USB 3.2 Gen2 10Gb switcher, supporting 4 x USB devices that can be switched to 2 x USB-C host connections.
The SW12USB supports auto switching between host devices using signal sense, or manually controlled via the front-panel push buttons, Web-GUI, TCP/IP, or RS-232
Key features
• USB 3.2 Gen2 switch allowing up to 4 x USB peripheral devices to connect to 2 x USB hosts
• Features 2 x USB-C and 2 x USB-A device inputs and 2 x USB-C hosts
• USB 3.2 Gen2 connectivity with data transfer rate up to 10Gbps
• Backwards compatible with USB 2.0 and 1.1
• Auto or manual switching
• Plug-and-play with no drivers, downloads, or software required
• Features 1 x GPI port for integration with 3rd party products
• Features 802.3at PoE+ for powering of product from PoE+ network
• Local 24v power supply input for when network switch does not support PoE+
• Web interface module for control and configuration of SW12USB
• Control via front panel buttons, RS-232, or TCP/IP
Please note: this product is for USB 3.2 data transfer only, and does not support DP Alt Mode video pass-through
Specifications

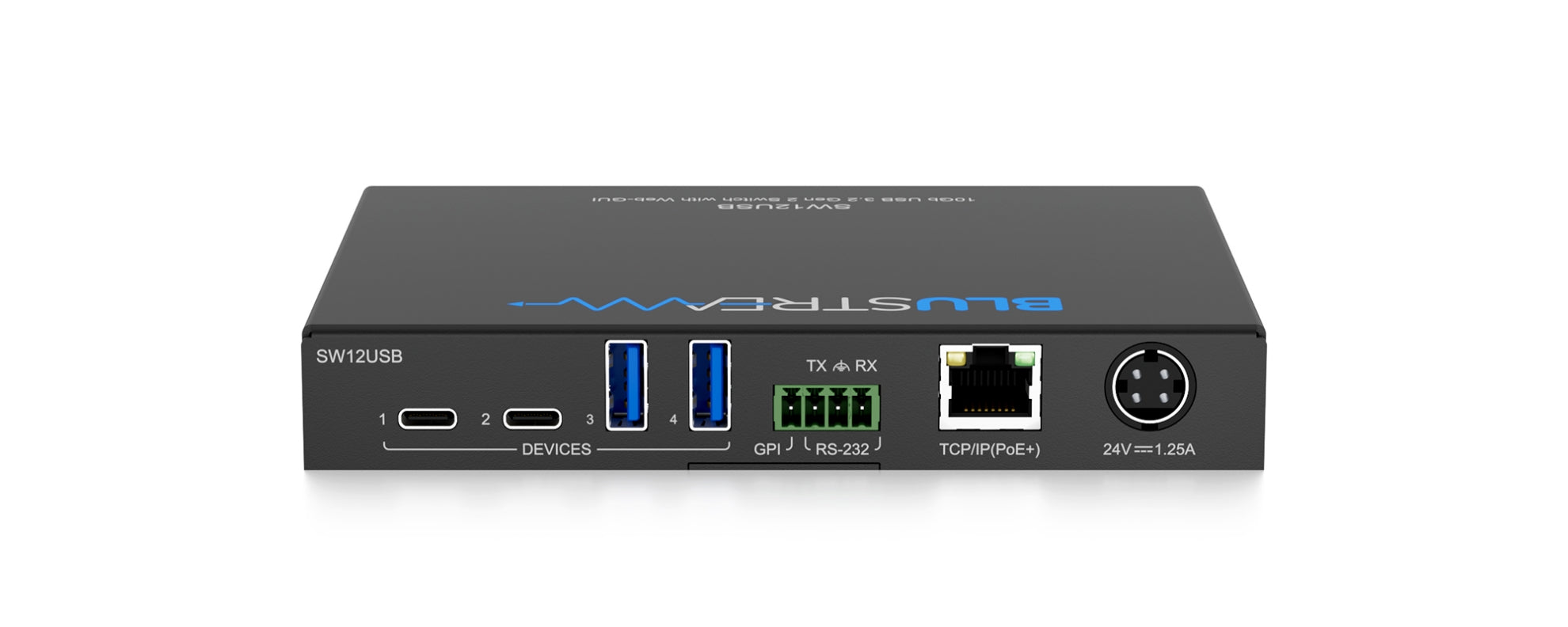

• USB Device: 2 x USB Type A female, 2 x USB Type C female
• USB Host: 2 x USB Type C female
• GPI / RS-232 Serial Port: 1 x 4-pin Phoenix connector
• TCP/IP Control: 1 x RJ45, female
• Firmware Upgrade: 1 x Micro-USB
• Dimensions (W x D x H): 150mm x 110mm x 23mm
• Shipping Weight: 0.6kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 24V/1.25A DC, 4-pin DIN connector
