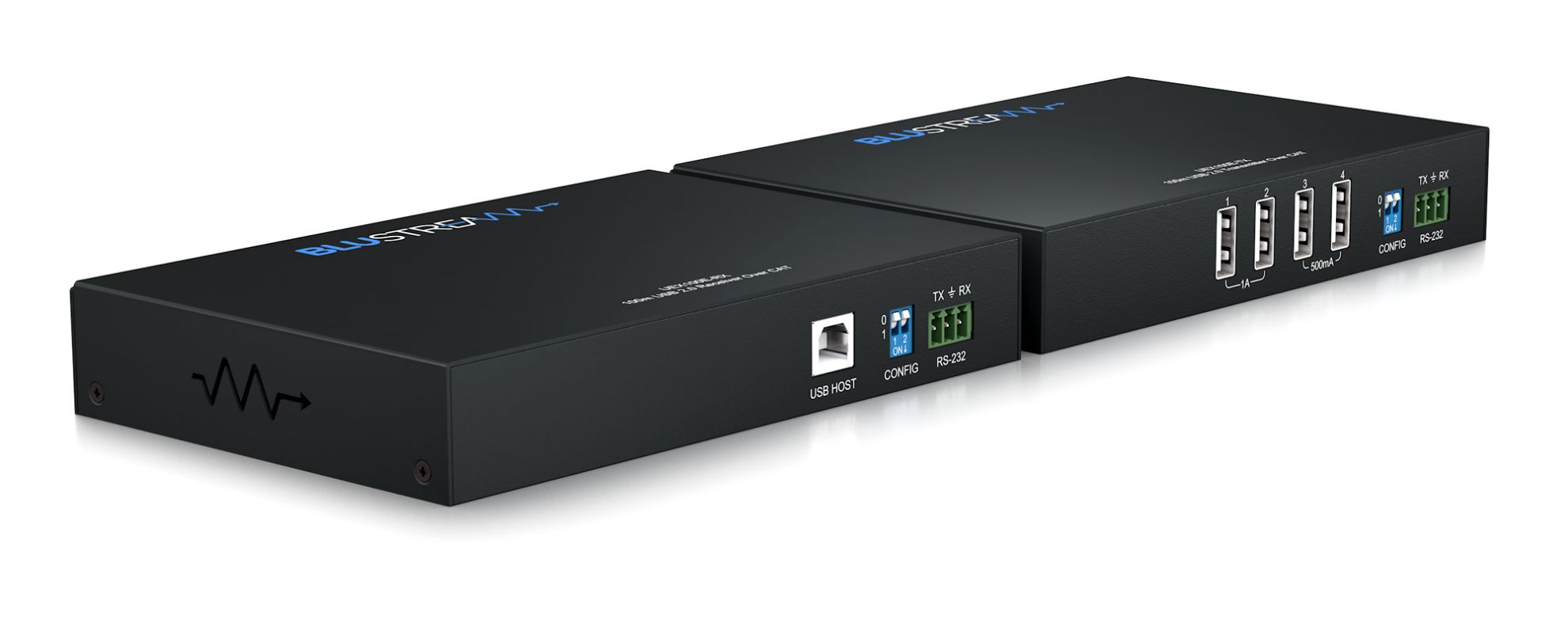

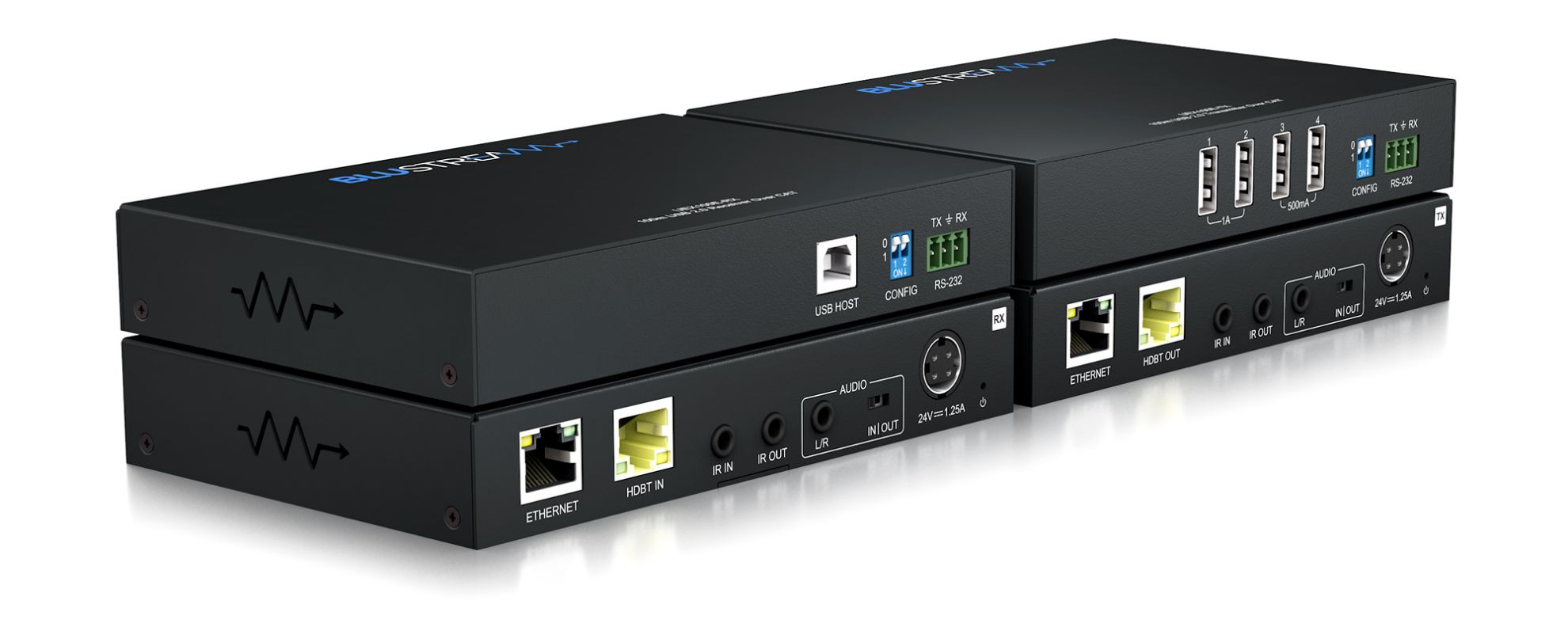

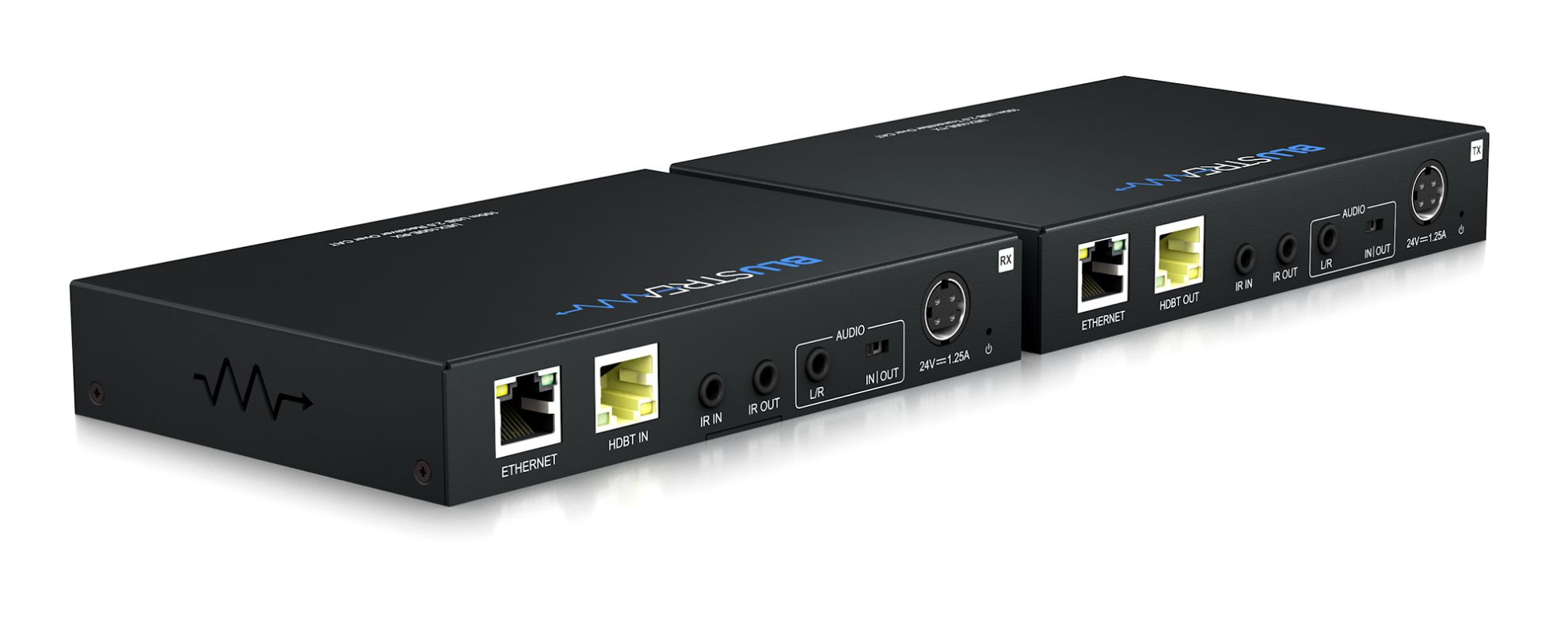

The UEX100E-KIT is a USB data extender kit utilising HDBaseT™ technology to extend USB 2.0 data, 2ch analogue audio, and control signals up to 100m / 330ft over a single CAT cable.

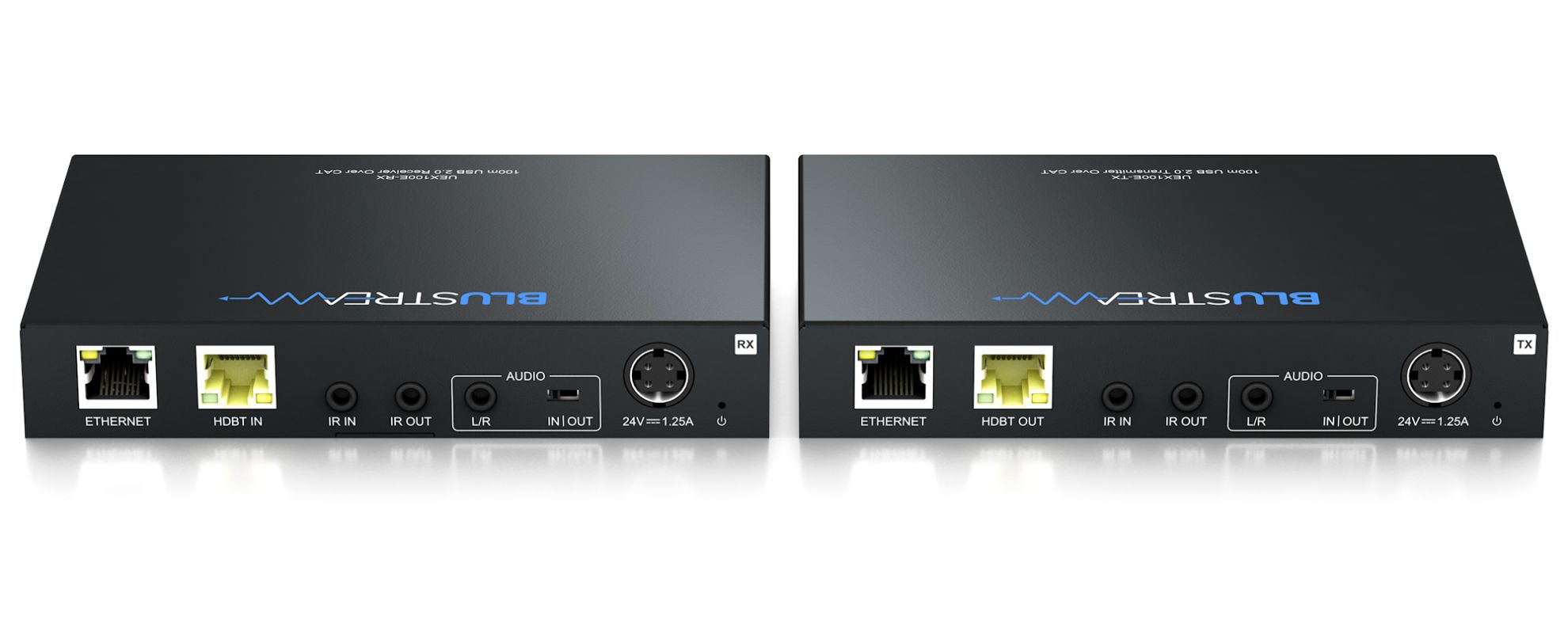

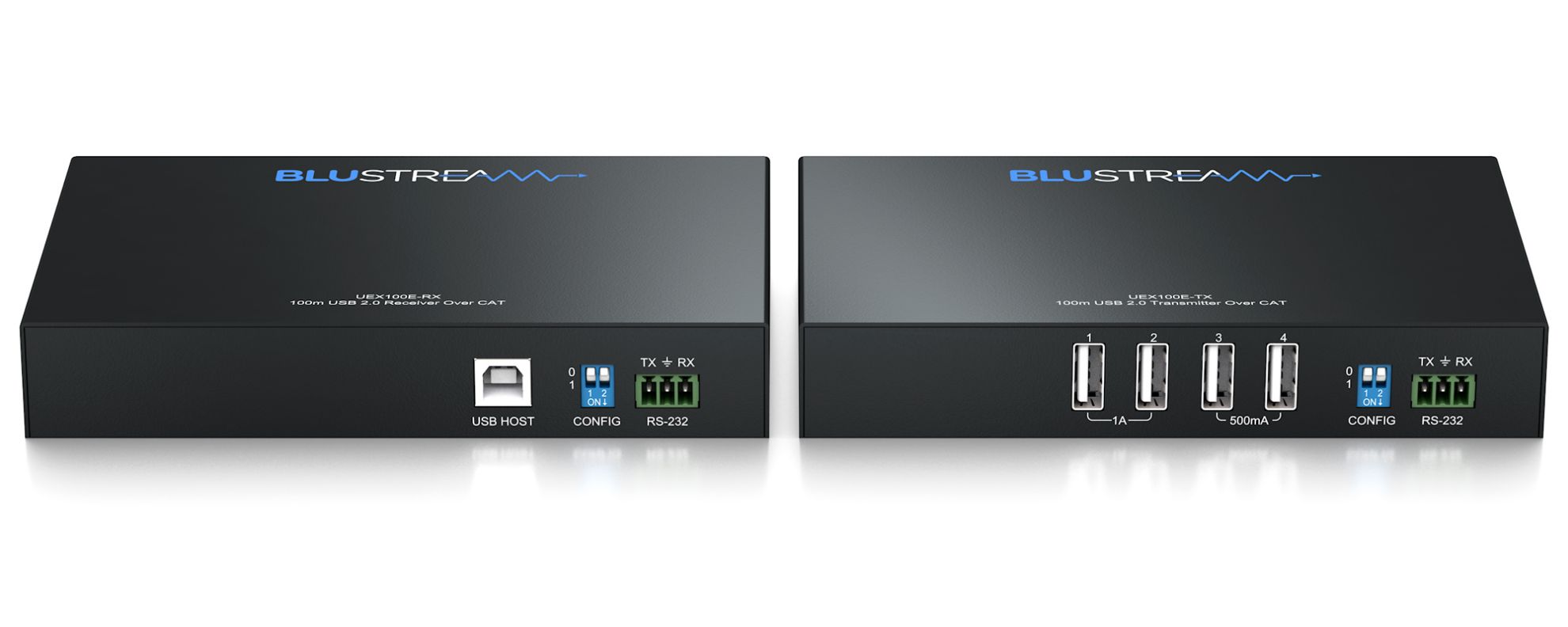

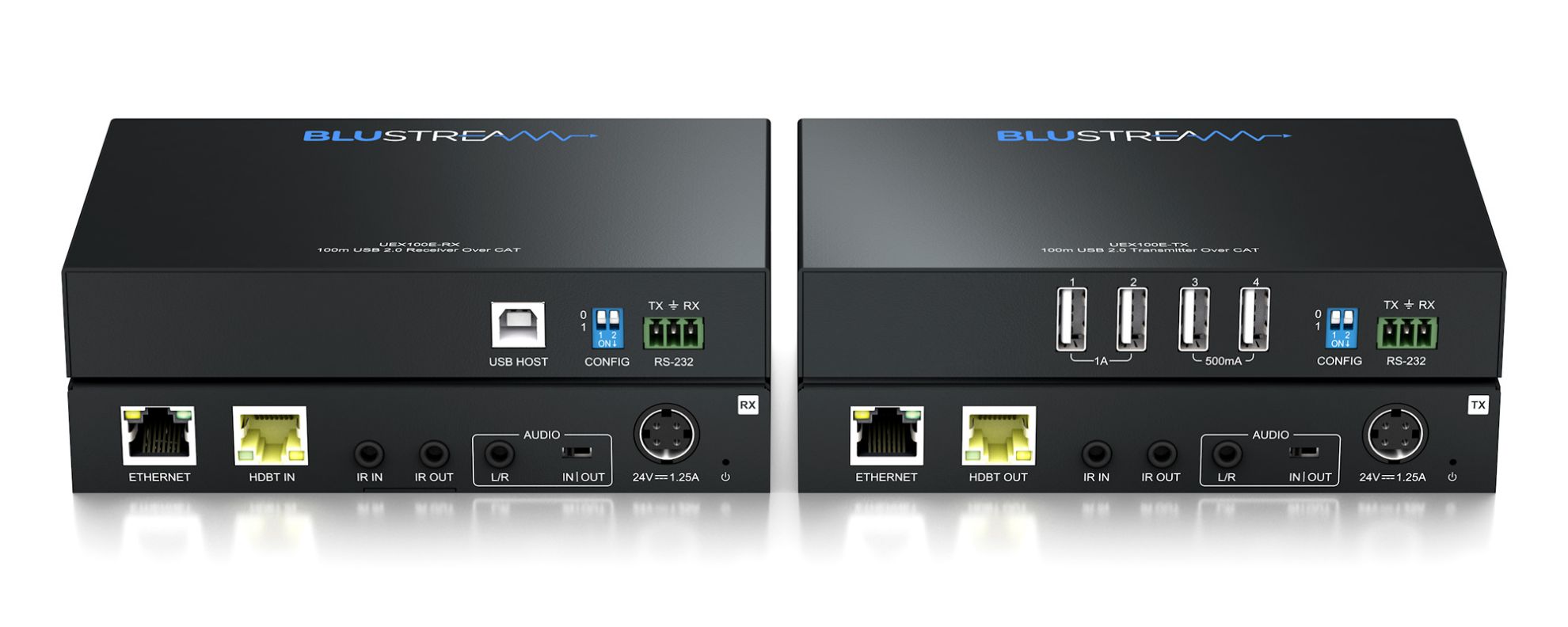

UEX100E-RX:
• HDBaseT Connector: 1 x RJ45 connector, female
• USB Port: 1 x USB-Type B
• Audio Input/Output Connector: 1x Analogue L/R audio (3.5mm stereo jack)
• Ethernet Port: 1 x RJ45 connector, female
• RS-232 Serial Port: 1 x 3-pin Phoenix connector
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• Config Switch: 2-pin DIP switch
UEX100E-TX:
• HDBaseT Connector: 1 x RJ45 connector, female
• USB Ports: 4 x USB-Type A
• Audio Input/Output Connector: 1x Analogue L/R audio (3.5mm stereo Jack)
• Ethernet Port: 1 x RJ45 connector, female
• RS-232 Serial Port: 1 x 3-pin Phoenix connector
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• Configuration Switch: 2-pin DIP switch
• USB Hops: 1 x USB hop / tier for this extender kit
• Power Supply: 24V/1.25A DC
• Product Dimensions (W x D x H ): 150mm x 100mm x 25mm (TX/RX)
• Shipping Weight: 1.6kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature: -4°F to 140°F (-25°C to +70°C)
