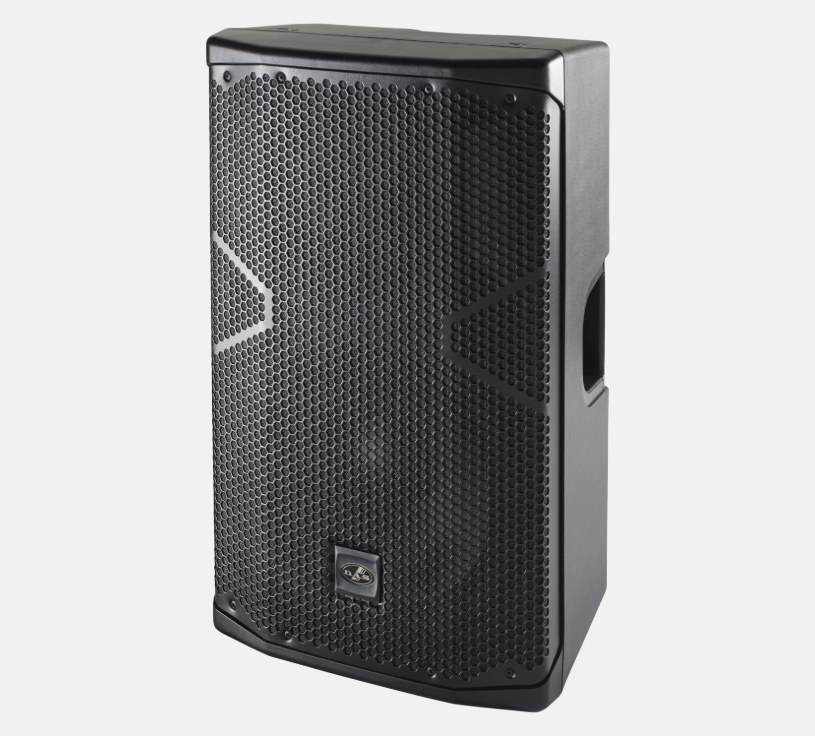

The ALTEA-712A is a high-powered model from DAS Audio’s ALTEA Series. It is equipped with a 1500 Wpeak Class D two-channel amplifier that provides extended bandwidth, wide dynamic range and exceptionally low distortion. Digital Finite Impulse Response (FIR) filters are used in the signal processing of the ALTEA 712A system.
Powered, 700 W, 12", 2 way full-range, polypropylene enclosure, 90x60 horn, LCD control+wireless, black
| Performance | |
| Frequency Range (-10 dB) | 60 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 90º |
| Vertical Coverage | 60º |
| Maximum Peak SPL at 1 m | 130 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 750 W |
| Nominal Amplifier Power (peak) | 1500 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| AUX Input | 1 x 3.5 mm Mini Jack |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| Control | DASlink™ DAScontrol™ |
| Current Draw 230 V / 115 V | 1.5 A/3.0 A |
| Enclosure | |
| Enclosure Construction | Polypropylene |
| Enclosure Geometry | Trapezoidal |
| Rigging | M8 Rigging Points |
| Color | Black |
| Dimensions ( H x W x D ) | 655 x 380 x 350 mm 25,8 x 15,0 x 13,8 in |
| Net Weight | 17,5 kg ( 38,6 lb ) |
| Components | |
| LF Driver | 12F4 |
| HF Driver | M-28 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 740 x 450 x 415 mm 29,1 x 17,7 x 16,3 in |
| Shipping Weight | 20,5 kg ( 45,2 lb ) |
