| Performance | |
| Frequency Range (-10 dB) | 45 Hz – 138 Hz |
| Maximum Peak SPL at 1 m | 134 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 600 W |
| Nominal Amplifier Power (peak) | 1200 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 1.95 V (+8 dBu) |

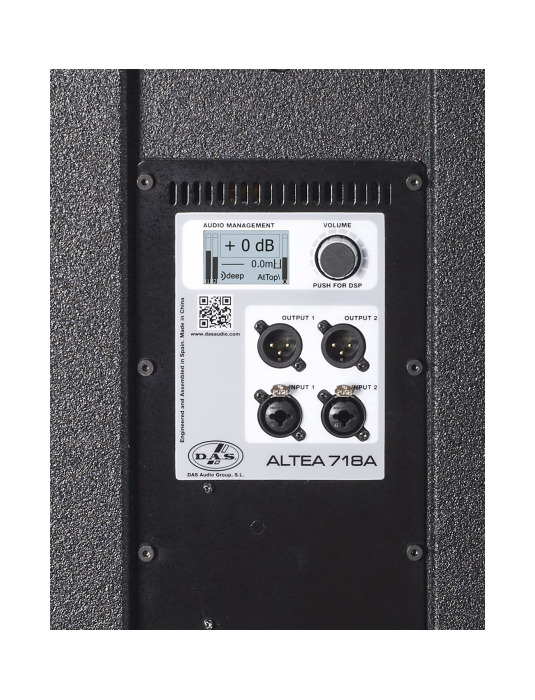

| Audio Signal Input Connector | 2 x Female XLR |
| Audio Signal Loop Thru Connector | 2 x Male XLR |
| Control | DAScontrol™ |
| Current Draw 230 V / 115 V | 1.4 A/2.8 A |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 720 x 545 x 650 mm 28,4 x 21,5 x 25,6 in |
| Net Weight | 42,0 kg ( 92,6 lb ) |
| Components | |
| LF Driver | 18FW4 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 820 x 600 x 700 mm 32,3 x 23,6 x 27,6 in |
| Shipping Weight | 46,5 kg ( 102,5 lb ) |
