| Performance | |
| Frequency Range (-10 dB) | 63 Hz – 18 kHz |
| Horizontal Coverage (-6 dB) | 60º |
| Vertical Coverage | 40º |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 800 W |
| Peak Power Handling | 3200 W |
| On-axis Sensitivity 1W/1 m | 106 dB |
| Maximum Peak SPL at 1 m | 141 dB |
| Recommended Amplifier | DX-100I-230 DX-100I-115 DX-80I-230 DX-80I-115 |
| Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
| Connectors | |

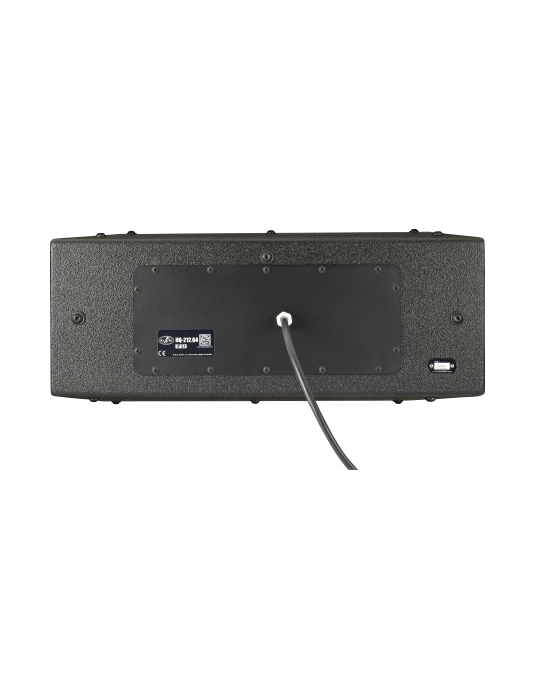

| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |

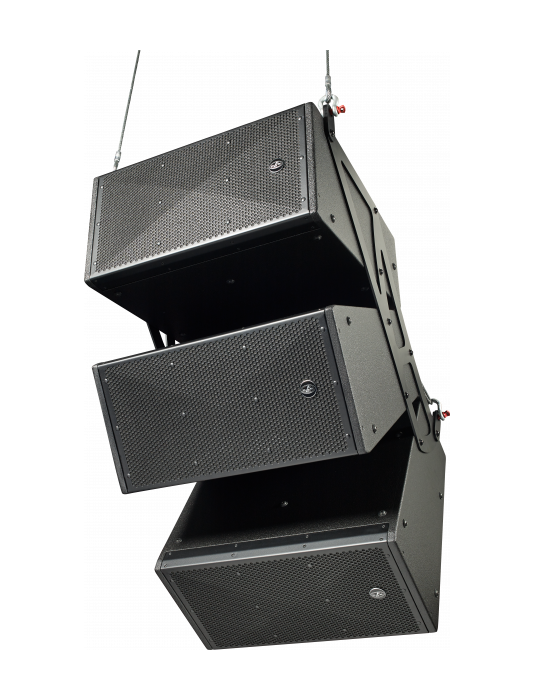

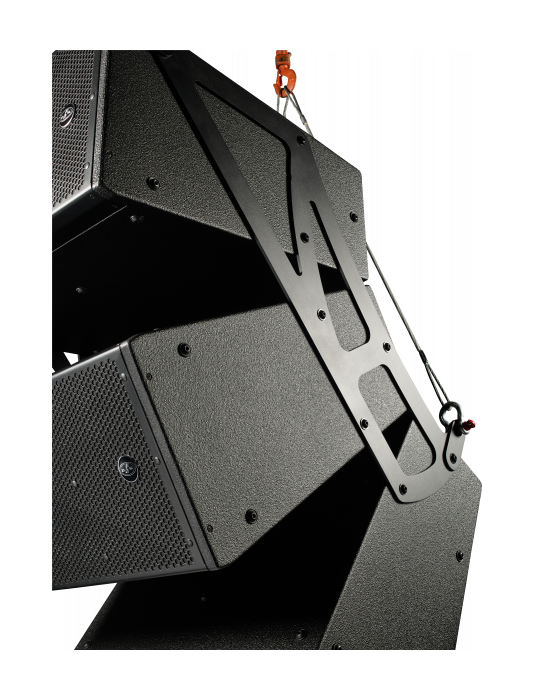

| Rigging | M10 Rigging Points |
| Finish | Fiberglass |
| Color | Black |
| Depth | 655 mm (25,7 in) |
| Dimensions ( H x W x D ) | 370 x 710 x 655 mm 14,6 x 28,0 x 25,7 in |
| Net Weight | 49,0 kg ( 85,9 lb ) |
| Components | |
| LF Driver | GM-12LQN4 |
| HF Driver | M-78N |
| Horn/Waveguide | BCH-6040-7037 |
| Shipping | |
| Shipping Weight | 51,5 kg ( 91,5 lb ) |

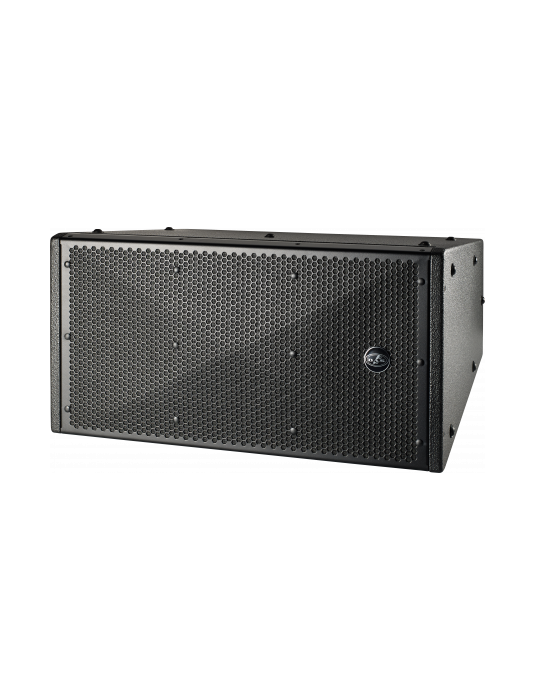

DAS Audio HQ-212.64-DX pasīvā skanda
Regular price
€6.069,00
