| Performance | |
| Frequency Range (-10 dB) | 55 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 60º |
| Vertical Coverage | 40º |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 400 W |
| Peak Power Handling | 1600 W |
| On-axis Sensitivity 1W/1 m | 99 dB SPL |
| Maximum Peak SPL at 1 m | 131 dB |
| Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604 |
| Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
| Connectors | |

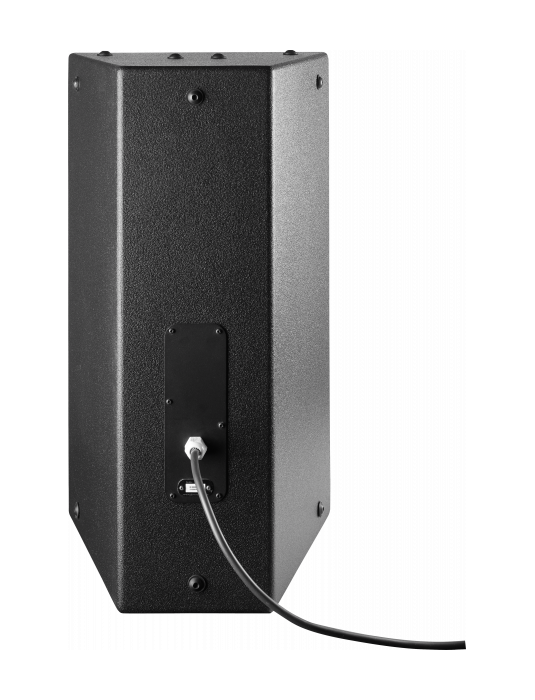

| Audio Input Connector | Covered Barrier Strip Terminals |
| Audio Output Connector | Covered Barrier Strip Terminals |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| IP Rating | IP56 |
| Depth | 460 mm (18,1 in) |
| Dimensions ( H x W x D ) | 775 x 465 x 460 mm 30,5 x 18,3 x 18,1 in |
| Net Weight | 36,0 kg ( 79,3 lb ) |
| Components | |
| LF Driver | 15AV |
| HF Driver | M-75 |
| Horn/Waveguide | BC-64AL |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 842 x 525 x 535 mm 33,1 x 20,7 x 21,1 in |
| Shipping Weight | 39,5 kg ( 87,0 lb ) |
