FEATURES

Extended color RGBMA LED Engine, 92 CRI
Two rotating Gobo Wheels plus Animation Wheel
Iris, Prism, and Frost
Wide Zoom Range from 7° to 42°

SOURCE

305W 6,500K RGBMA LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

10,100 Total Lumen Output
CRI 92

Zoom Range 7° - 42°
Beam Angle 7.5° - 39.9°
Field Angle 8.6° - 44.2°

EFFECTS

Motorized Zoom
Variable Frost Filter
4 Facet Prism
Motorized Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Pan Angle: 540° (630°)
Tilt Angle 270°

COLOR

RGBMA Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book

GOBOS

2x 6 Rotating / Indexing Interchangeable Glass Gobos
Animation Wheel

CONTROL / CONNECTIONS

4 DMX Channel Modes (RGBMA 31 / 41) (CMY 29 / 37)
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display

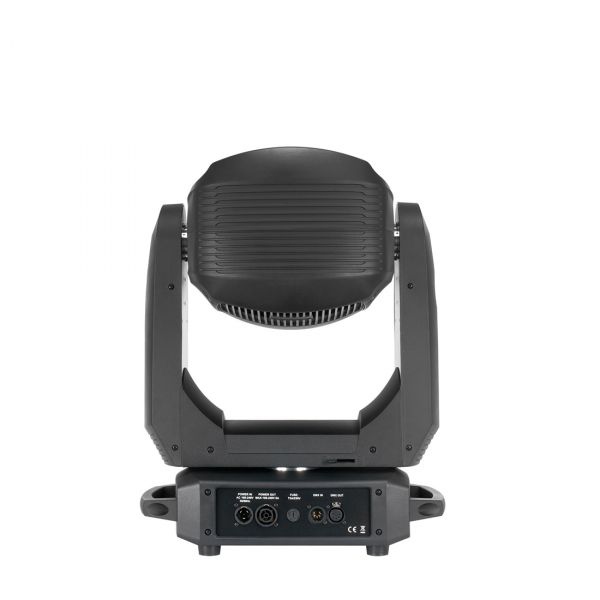

Locking 5pin XLR DMX In/Out
Locking Power In/Out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 407mm (16.0”)
Width: 256mm (10.1”)
Vertical Height: 698mm (27.4”)
Weight: 21kg (46.3 lbs.)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
466W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 1589.06
