FEATURES

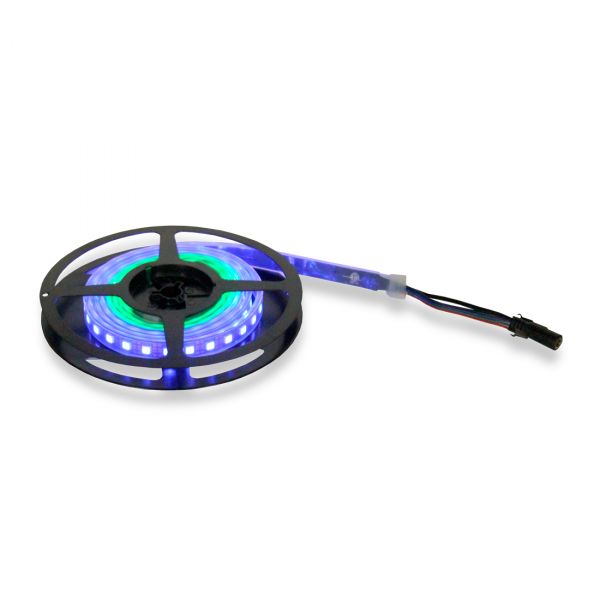

IP65 Outdoor Rated Flexible LED Pixel Tape
6.6 foot (2m) Roll
(144) RGB Tri-Color SMD LED Pixels
(432) Total DMX Channels
Pixels Spaced on 0.55” (14mm) Centers
Cut and Extend Every 2” (51mm)
120° Viewing Angle
Over 1 Billion Color Possibilities
PLEASE NOTE
LED tape is the replacement for FLEX PIXEL WP LED tape which is discontinued. Although FLEX PIXEL P40WP functions exactly the same, please note the color output is not guaranteed to exactly match the output of FLEX PIXEL WP. This should be taken into consideration when adding new tape to an existing installation.
6.6 foot (2m) Roll
(144) RGB Tri-Color SMD LED Pixels
(432) Total DMX Channels
Pixels Spaced on 0.55” (14mm) Centers
Cut and Extend Every 2” (51mm)
120° Viewing Angle
Over 1 Billion Color Possibilities
PLEASE NOTE
FLEX PIXEL P40WP
LED tape is the replacement for FLEX PIXEL WP LED tape which is discontinued. Although FLEX PIXEL P40WP functions exactly the same, please note the color output is not guaranteed to exactly match the output of FLEX PIXEL WP. This should be taken into consideration when adding new tape to an existing installation.
SOURCE
(144) RGB SMD LED Pixels
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
COLOR
Over 1 Billion Color Possibilities
CONTROL
(432) DMX Channels
ICS APA102 Protocol
ICS APA102 Protocol
SIZE / WEIGHT
Length: 6.6’ (2m) Roll
Width: 0.57” (14.5mm)
Vertical Height: 0.18” (4.5mm)
Weight: 0.66 lbs (0.3 kg)
Width: 0.57” (14.5mm)
Vertical Height: 0.18” (4.5mm)
Weight: 0.66 lbs (0.3 kg)
ELECTRICAL / THERMAL
DC 5V
29W Max Power Consumption
29W Max Power Consumption
