FEATURES

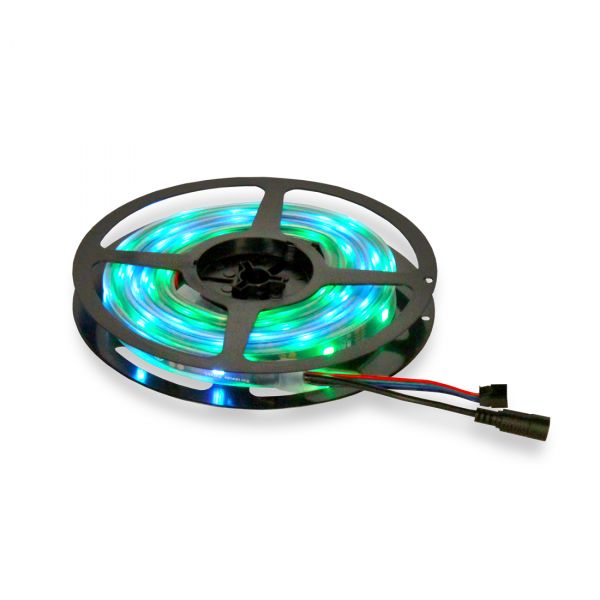

IP65 Outdoor Rated Flexible LED Pixel Tape
10 foot (3m) Roll
(72) RGB Tri-Color SMD LED Pixels
(216) Total DMX Channels
Pixels Spaced on 1.6” (40mm) Centers
Cut and Extend Every 4” (102mm)
120° Viewing Angle
Over 1 Billion Color Possibilities

PLEASE NOTE

FLEX PIXEL P40WP

LED tape is the replacement for FLEX PIXEL WP LED tape which is discontinued. Although FLEX PIXEL P40WP functions exactly the same, please note the color output is not guaranteed to exactly match the output of FLEX PIXEL WP. This should be taken into consideration when adding new tape to an existing installation.

SOURCE

(72) RGB SMD LED Pixels
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

COLOR

Over 1 Billion Color Possibilities

CONTROL

(216) DMX Channels
ICS APA102 Protocol
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 10.0' (3m)
Roll Width: 0.57” (14.5mm)
Vertical Height: 0.18” (4.5mm)
Weight: 0.66 lbs (0.3 kg)

ELECTRICAL / THERMAL

DC 5V
15W Max Power Consumption
