FEATURES
50W 3,000K >97CRI Warm White LED Engine
1,900+ Total Lumen Output
On Par with Tungsten Halogen Models
14° to 30° Wide Manual Zoom
Manual and DMX Control
Rotary Dimmer Dial
Smooth 16-bit Selectable Dimming Modes and Curves
LED Refresh Rate Adjustment
Flicker Free Operation for TV and FILM
RDM (Remote Device Management)

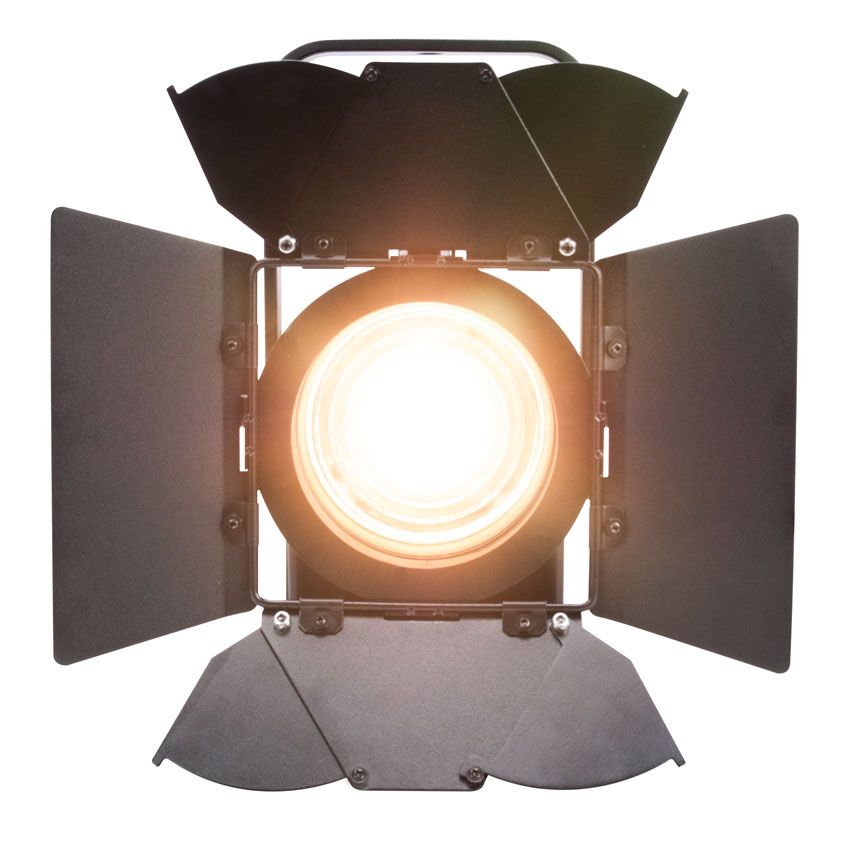

Gel Frame and Rotating Barn Doors (included)
3 Clamp Position Adjustable Mounting Yoke
SOURCE
50W 97CRI 3,000K Warm White LED
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
1,900+ Total Lumen Output
6,837 LUX 635 FC @2m (6.6’) (Min Zoom / Full ON)
1,791 LUX 166 FC @2m (6.6’) (Max Zoom / Full ON)
Zoom Range 14° - 30°
Beam Angle 14.2° - 29.7°
Field Angle 23.2° - 48°
EFFECTS
Manual Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
Warm White 3,000K
CONTROL / CONNECTIONS
Manual and DMX Controlled Dimmer and Shutter
Dimmer Rotary Dial
(5) DMX Channel Modes (1 / 2 / 3 / 4 / 5)

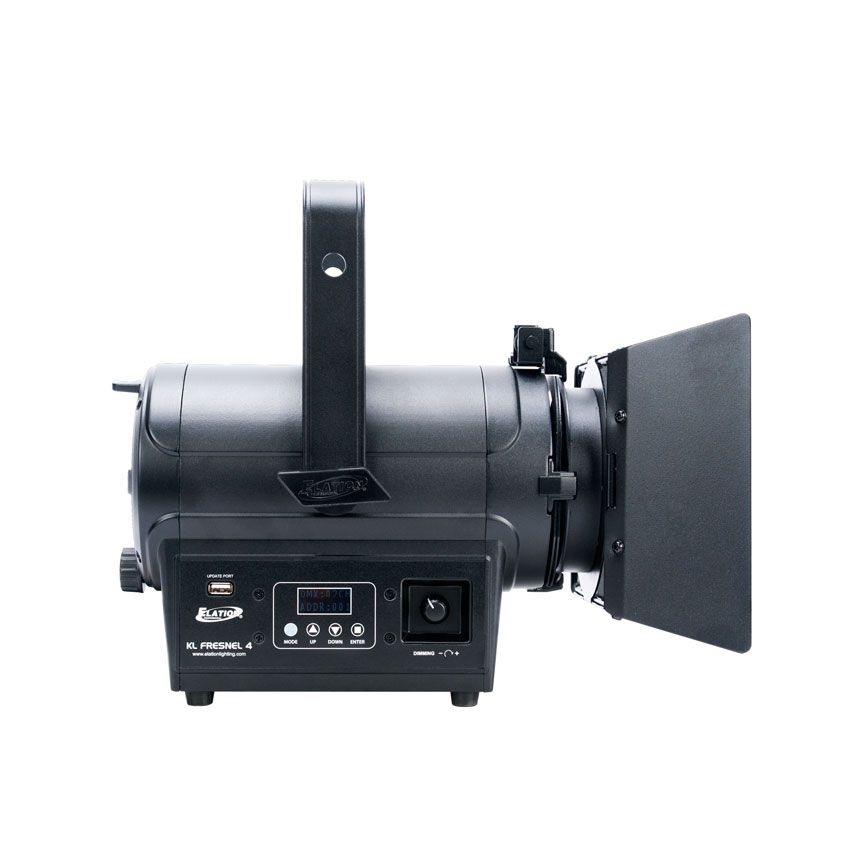

4 Button Control Panel LCD Menu Display
RDM (Remote Device Management)

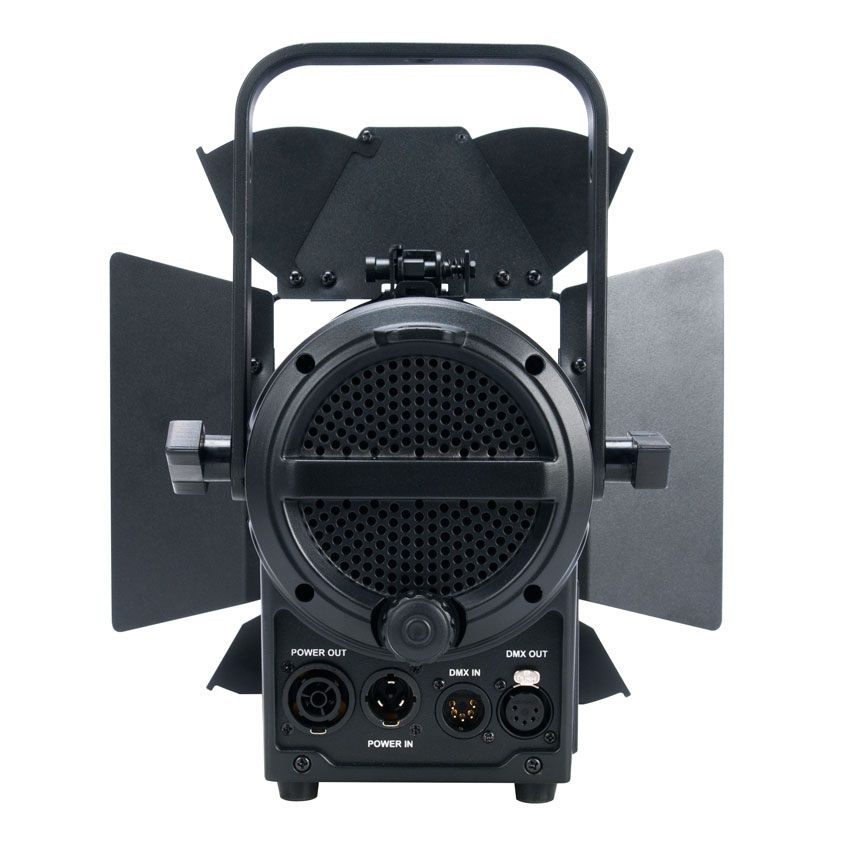

5pin DMX and IP65 locking power cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 345mm (13.6”)
Width: 201mm (7.9”)
Vertical Height: 289mm (11.4”)
Weight: 4.08 kg (9.0 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
50W Max Power Consumption
-15°C to 45°C (5°F to 113°F)
Power Linking: 12Pcs @ 110V / 27Pcs @ 240V
BTU/hr (+/- 10%) 157
INCLUDED ITEMS
Gel Frame and Rotating Barn Doors
FIRMWARE UPDATES
Current firmware can be found here (login required)
