FEATURES

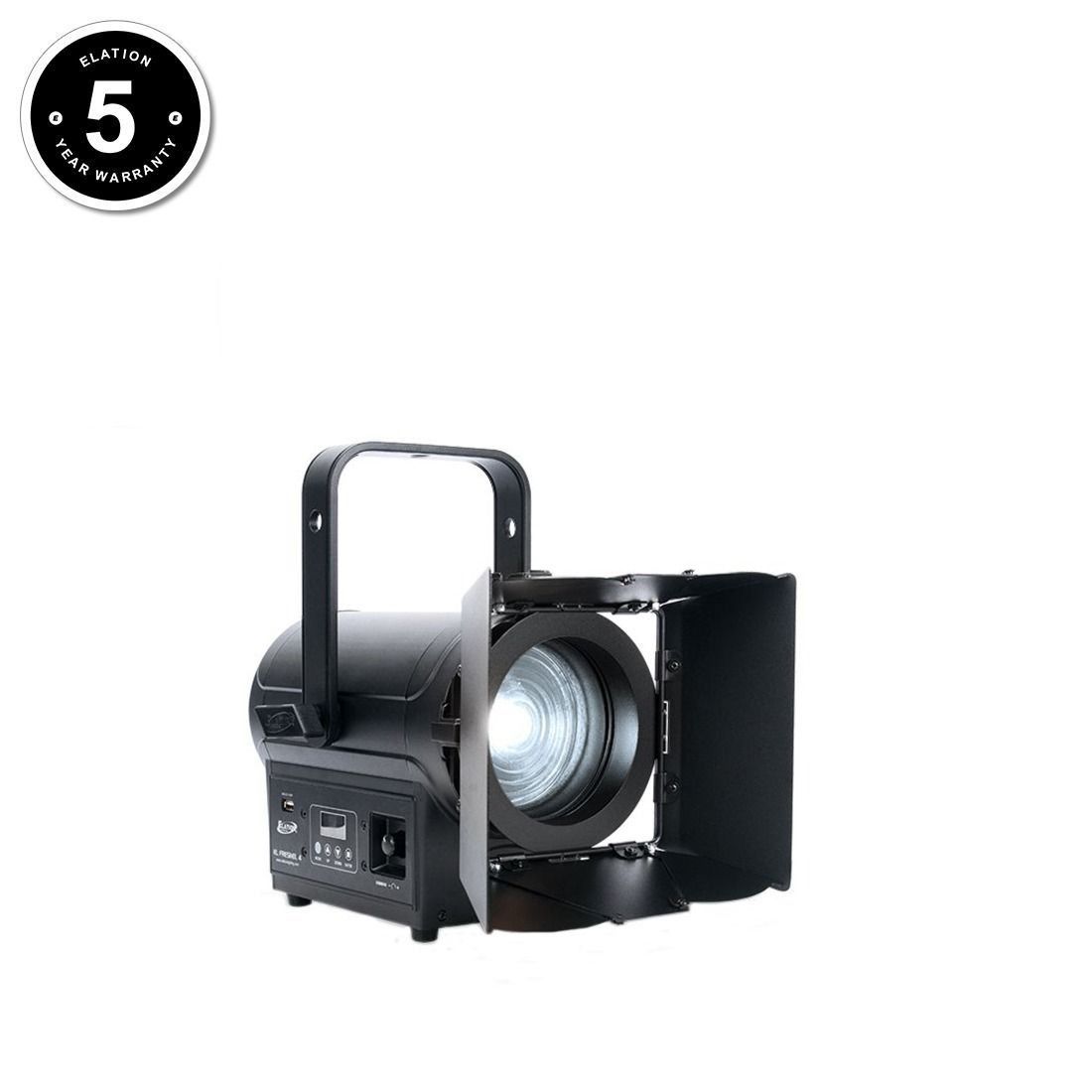

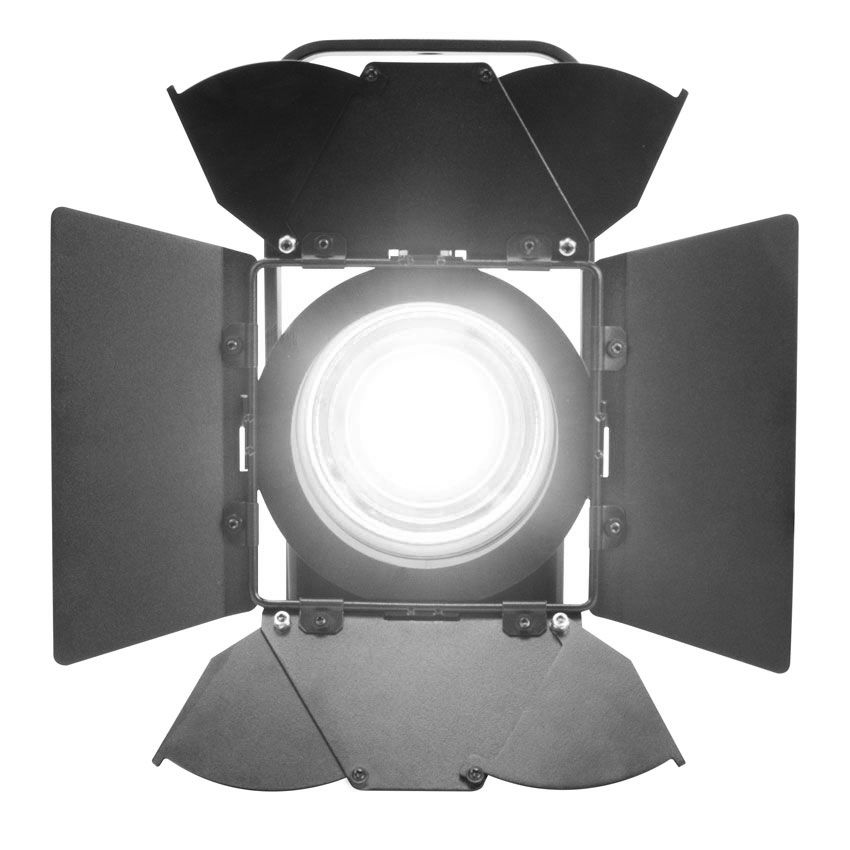

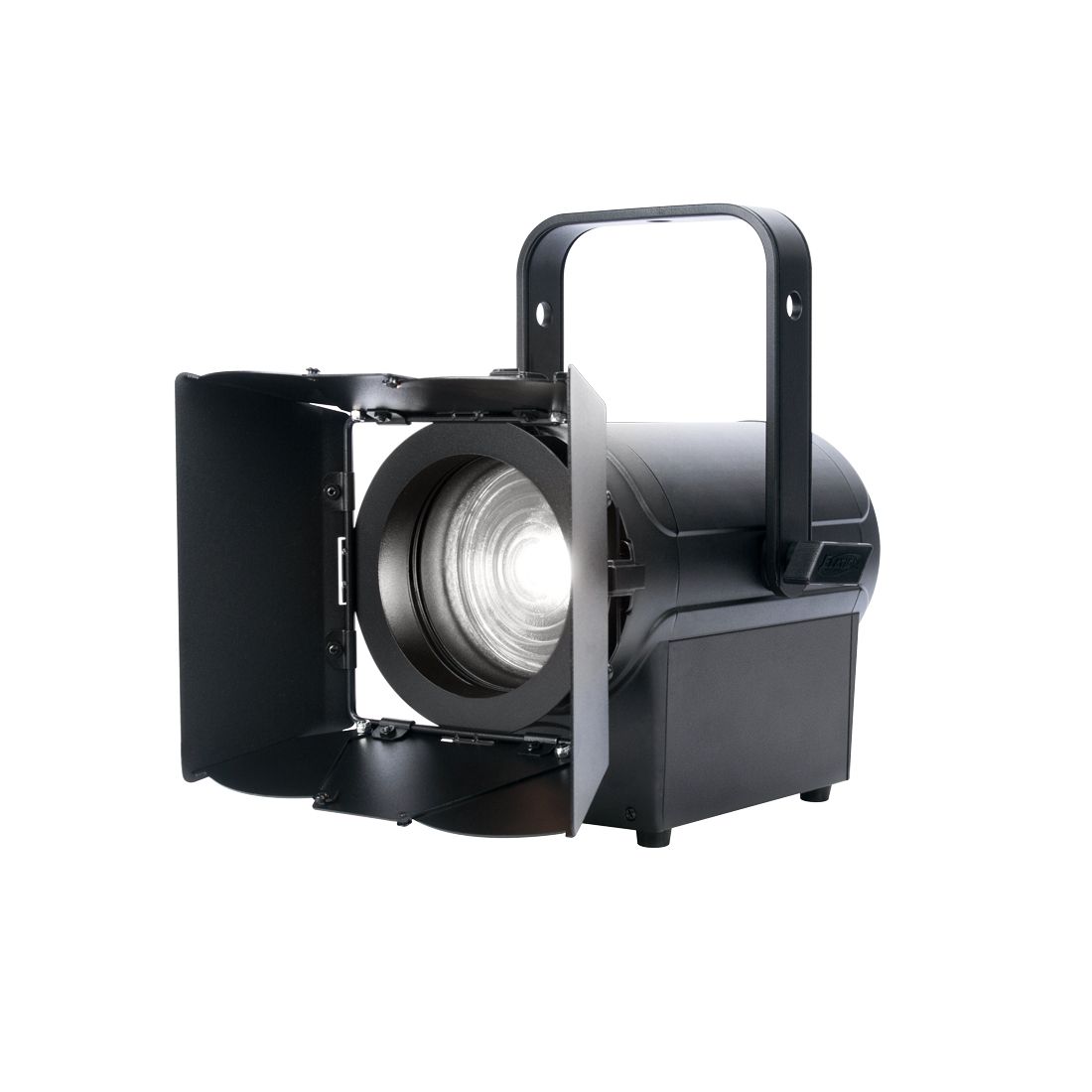

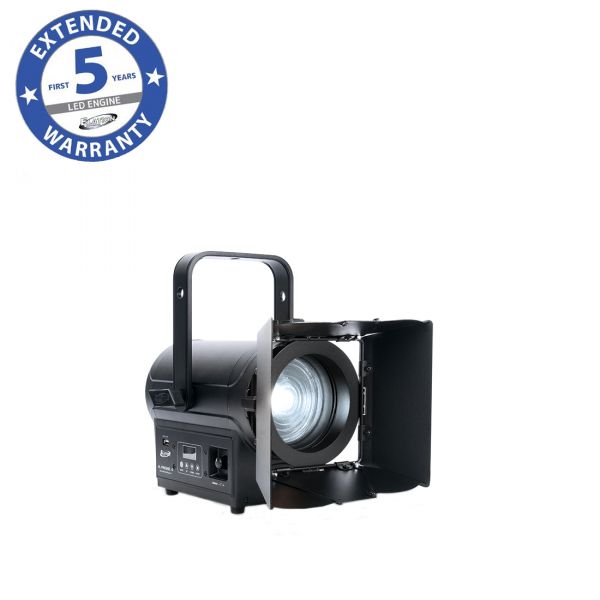

5,600K Cool White LED Fresnel Luminaire
50W Single Source LED
Manual and DMX Controlled Dimming
Quick Single Press Light Output for Focusing
14° - 33° Manual Zoom
Including 8-Leaf Barn Doors and Gel Frame Holder
Adjustable Refresh Frequency
Silent Operation
Variable Dimming Curves, Dim Modes and Dimming Delays
Flicker Free Operation for Broadcast TV and Film
RDM (Remote Device Management)
3 Clamp Position Adjustable Mounting Yoke

SOURCE

50W Cool White LED Engine 5,600K, 97CRI
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

2300+ Total Lumen Output
3,753 LUX 349 FC @ 3m (9.8’) (Min. Zoom)
814 LUX 76 FC @ 3m (9.8’) (Max. Zoom)

Zoom Range 14° - 33°
Beam Angle 14° - 32.9°
Field Angle 22.1° - 51.7°

EFFECTS

Manual Zoom
Electronic Shutter and Strobe
Variable 16-bit Dimming Modes and Curves

COLOR

5,600K Cool White LED

CONTROL / CONNECTIONS

Manual and DMX Controlled Dimmer and Shutter
Dimmer Rotary Dial
(5) DMX Channel Modes (1 / 2 / 3 / 4 / 5)

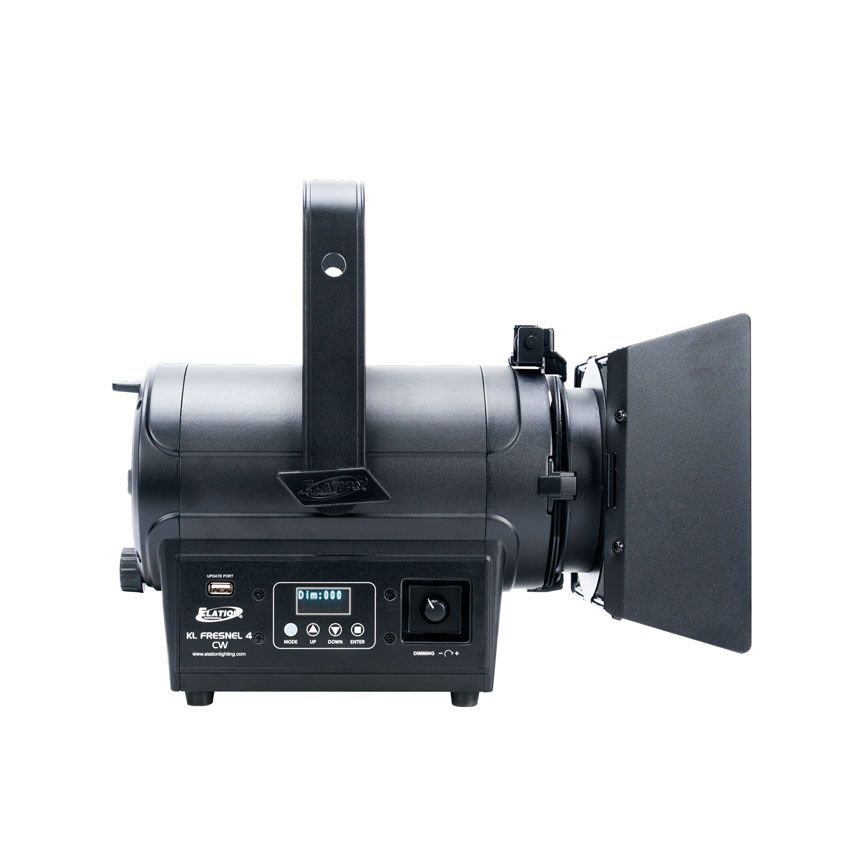

4 Button Control Panel LCD Menu Display
RDM (Remote Device Management)

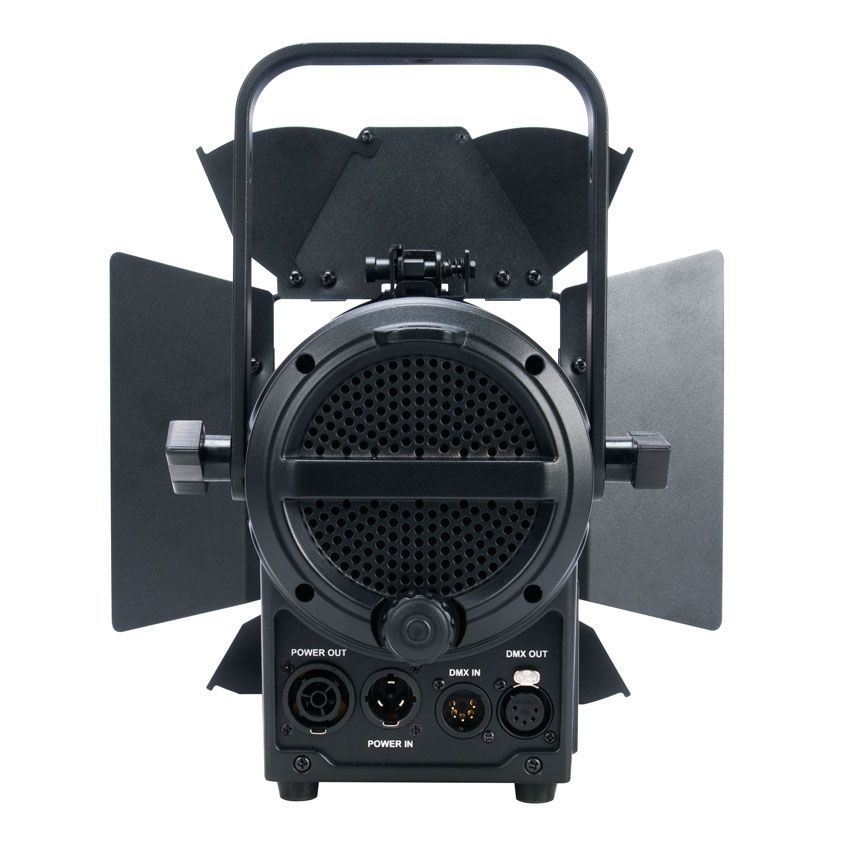

5pin DMX and IP65 Locking Cable In/Out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 251mm (9.9”)
Width: 201mm (7.9”)
Vertical Height: 289mm (11.4”)
Weight: 4.08 kg (9.0 lbs.)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
50W Max Power Consumption
-15°C to 45°C (5°F to 113°F)
Power Linking: 12Pcs @ 110V / 27Pcs @240V
BTU/hr (+/- 10%) 157

INCLUDED ITEMS

Gel Frame and Rotating Barn Doors

FIRMWARE UPDATES

Current firmware can be found here (login required)
