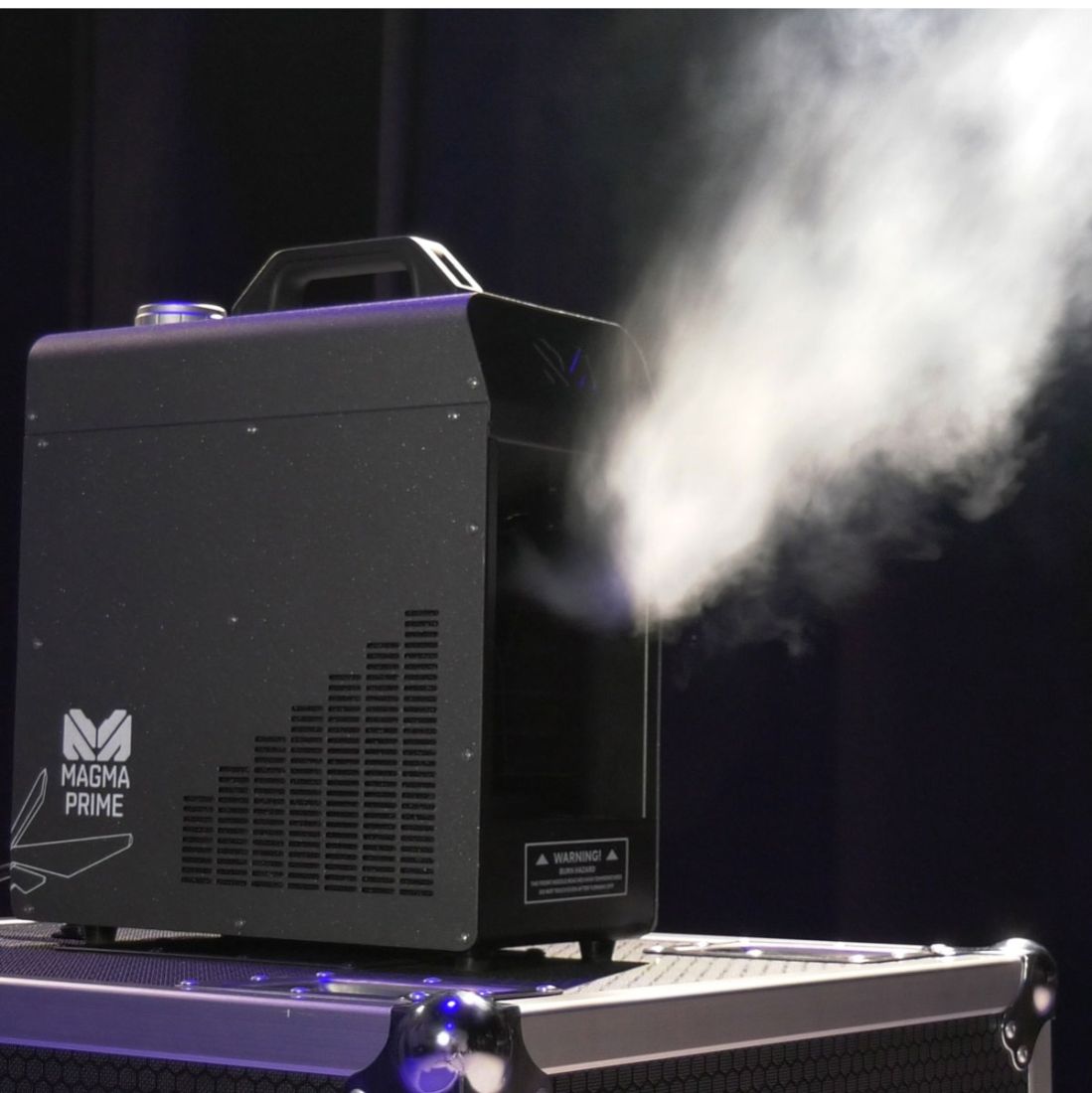

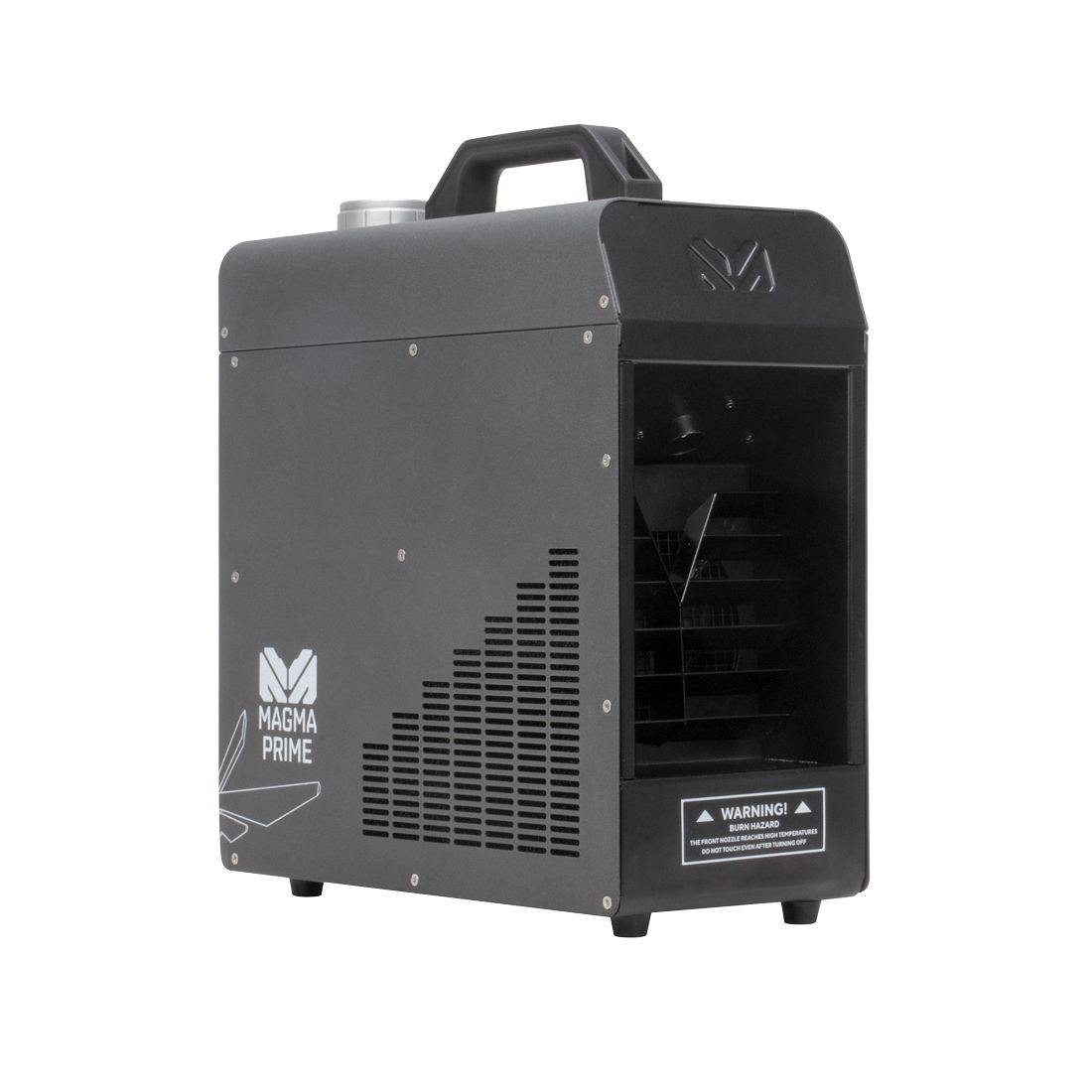

MAGMA PRIME™ is a water-based fazer with advanced technology providing a high volume dry faze effect with low fluid consumption. The new HPA (high pressure air) pump technology reduces the risk of heater clogging. Features includes an easy to use onboard LCD touch screen control panel, intuitive DMX-512 and RDM control, a durable aluminum housing, and optional wired and wireless remote control options.

FEATURES

700W Water-Based Fazer
4,000 CFM* (cu ft/min.) (113 m3/min*) Output
Advanced HPA (high pressure air) Pump Technology
Compact Light Weight Robust Design
Onboard LCD Touch Control Panel
Optional MAGFLY Wireless DMX Transceiver
Optional MAGRF Wireless and Wired Remotes
*approximate

SPECIFICATIONS

PERFORMANCE
Rated Power: 700W
Max Output: 4,000 CFM* (cu ft/min.) (113 m3/min*)
Ready Time: Initial = 6 Minutes*
Fluid Capacity: 0.345 gallons (1.3 liters)
Fluid Consumption: 0.115 oz/min (3.4 ml/min)
*approximate

COMPATIBLE FLUID

Atmosity Extreme Filtered Fog Fluid (AEF), available in 2, 4 or 20 litre containers

CONSTRUCTION

Thermally Protected Heat Exchanger
Advanced HPA (high pressure air) Pump Technology
Sealed Fluid Reservoir
External Visual Fluid Level Detection
Compact Light Weight Mobile Design

CONTROL

3 DMX Channel Modes (1 / 3 / 5)

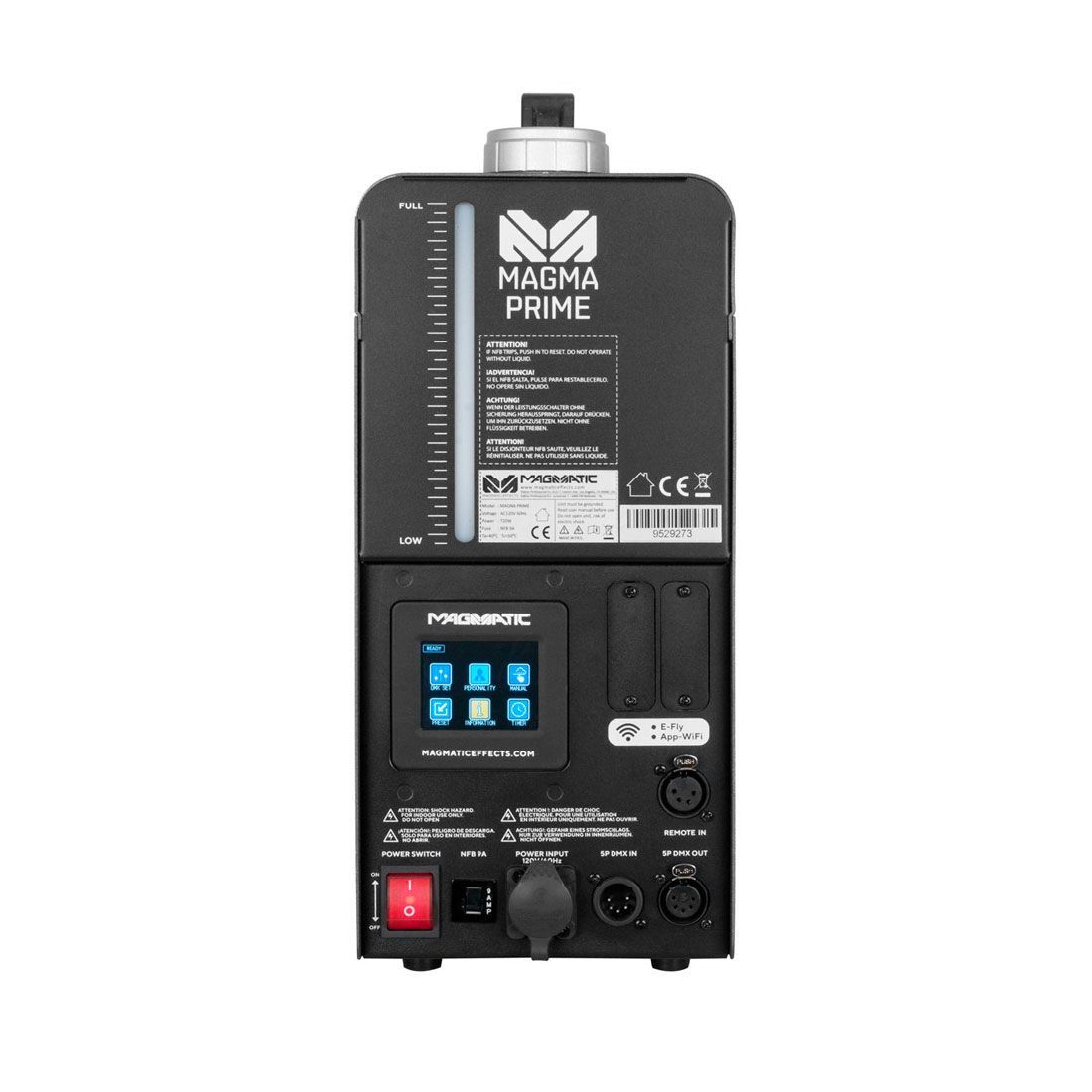

Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional MAGFLY Wireless DMX Transceiver
Optional MAGRF Wireless and Wired Remotes

CONNECTIONS

Locking 5pin XLR Connector In/Out
Locking Power Connector In
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 338mm (13.3 in.)
Width: 160mm (6.30 in.)
Height: 400mm (15.70 in.)
Weight: 10.2kg (22.48 lbs.)

ELECTRICAL

AC 230V 50Hz
5A (NFB)
Max Power Consumption: 720W

THERMAL

Maximum Ambient Temperature (Ta max): 40°C (104°F)
Exterior Surface Temperature, Steady State: 50°C (122°F)
