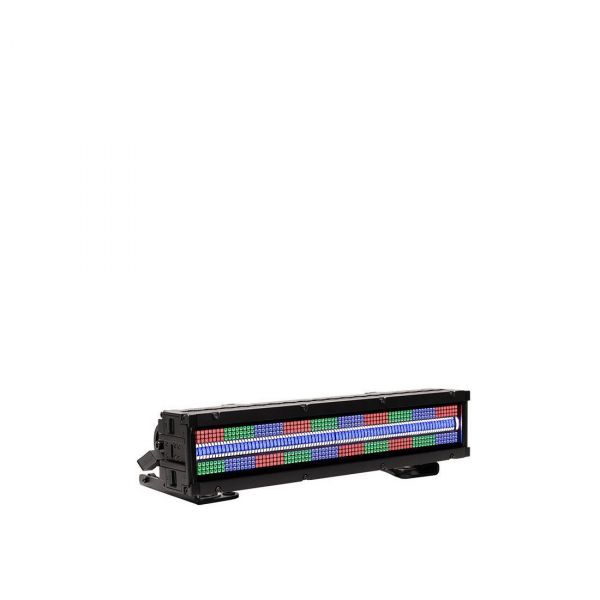

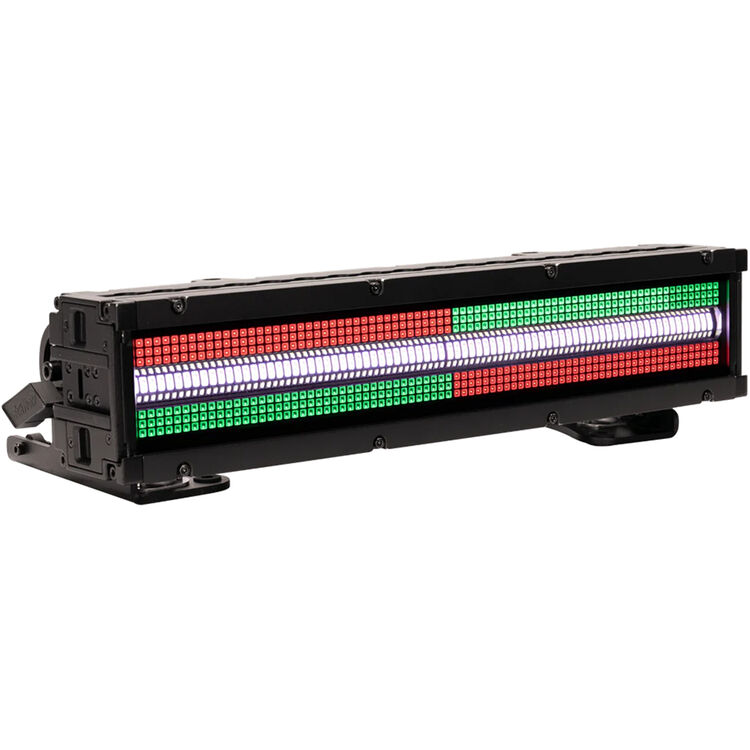

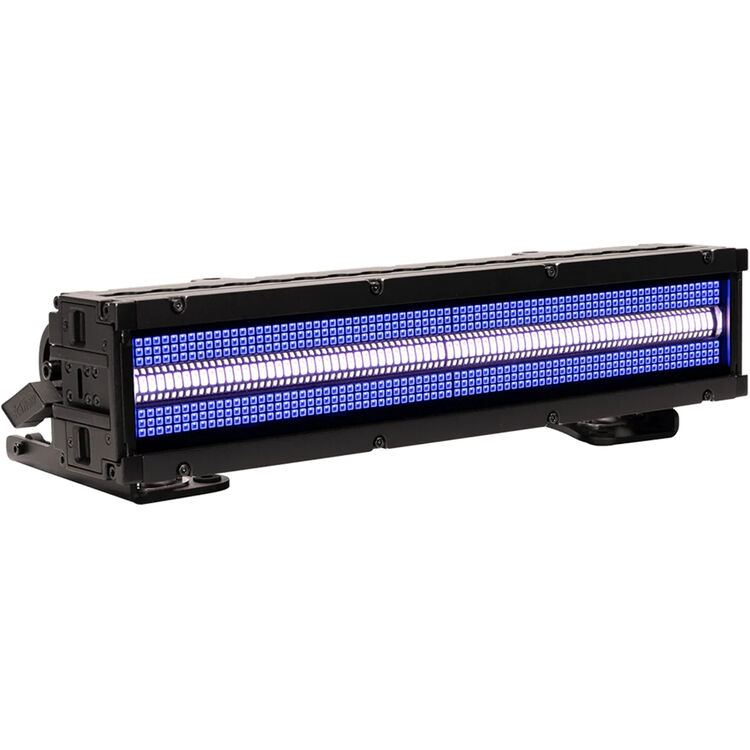

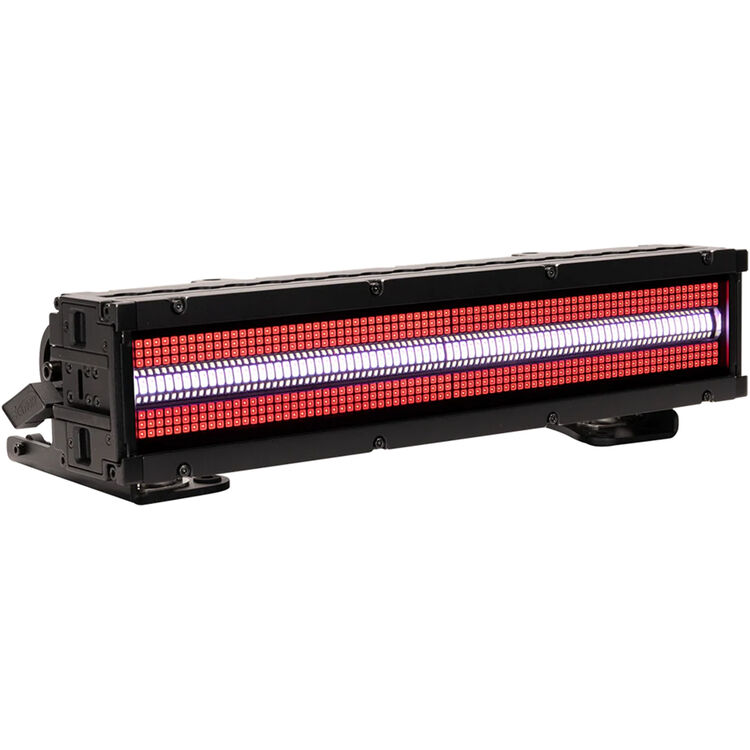

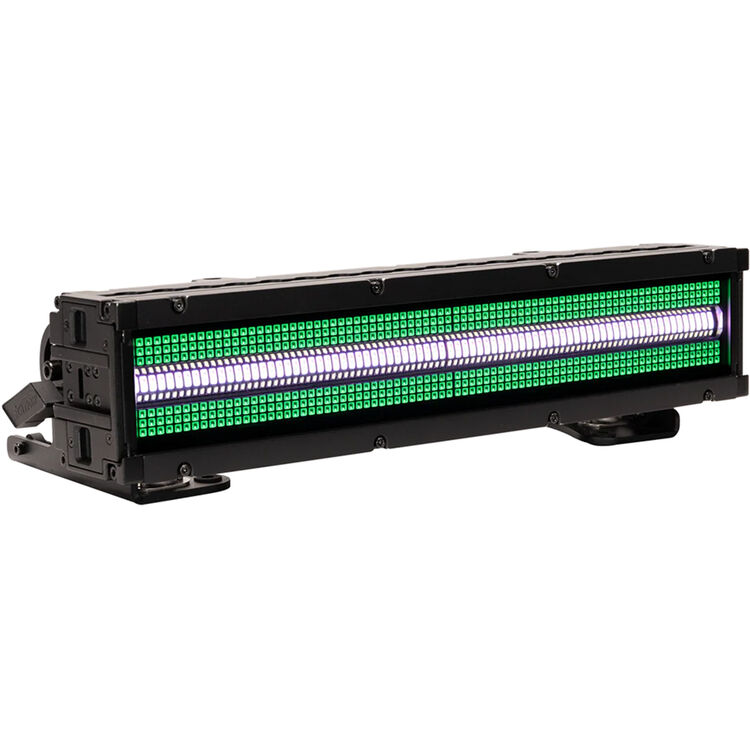

IP65 Strobe Bar, 1/2 meter
FEATURES
(480) 1.5W RGB LED's in 40 Zones
(200) 5W CW Strobe LED's in 40 Zones
(80) 1.5W RGB StrobeLine LED's in 20 Zones
Completely Fanless Cooling

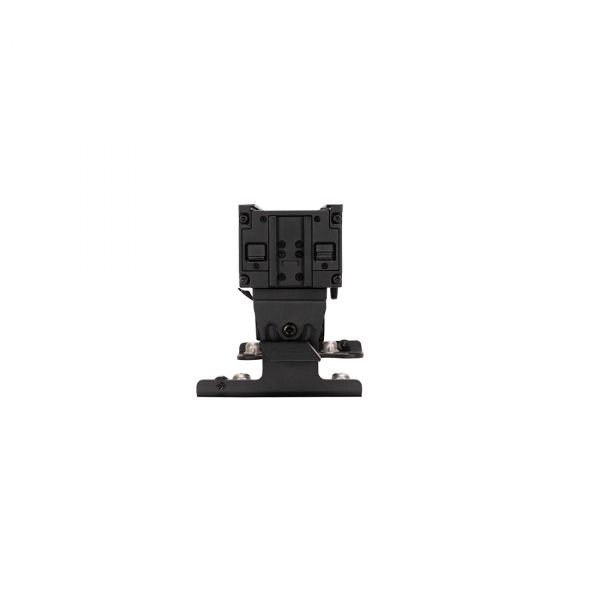

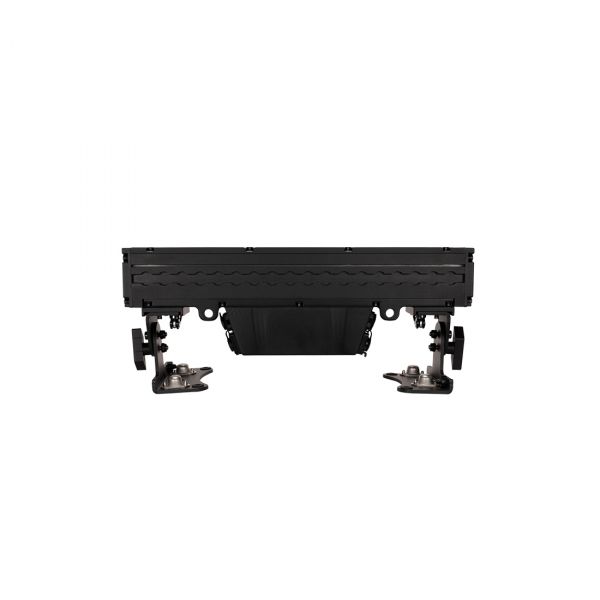

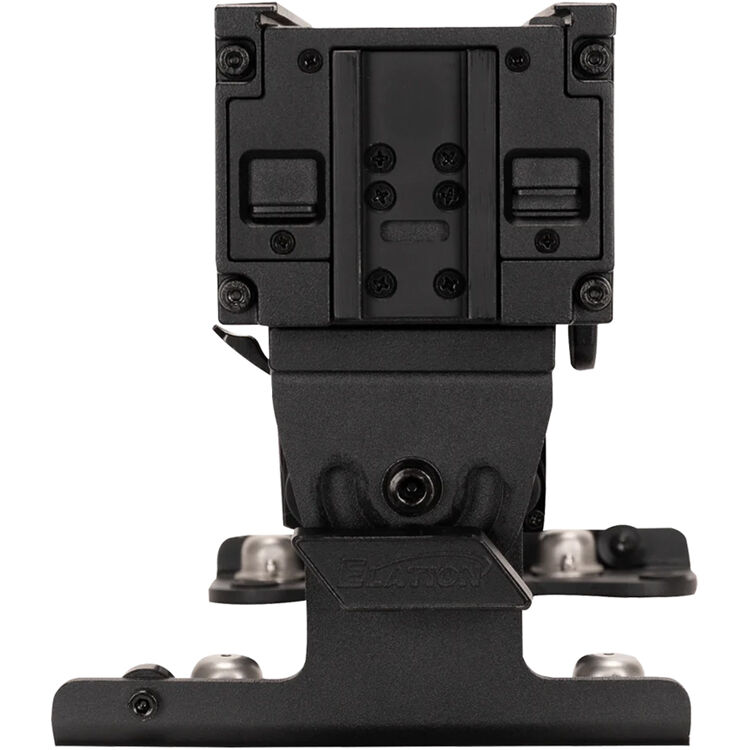

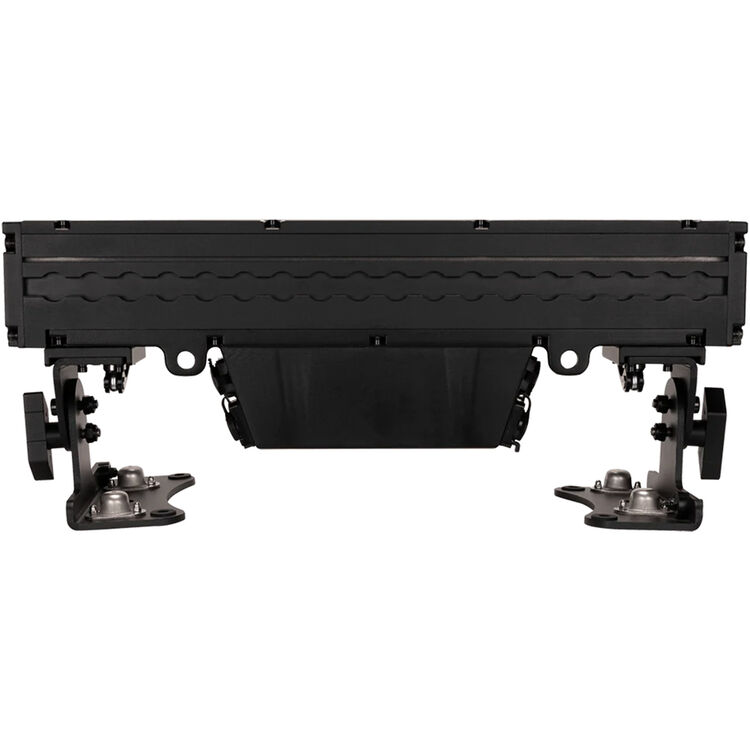

Integrated L Track for Flexible Mounting
Unique End-to-End Interconnection System
Art-Net, sACN and KlingNet Support
IP65 Rated
SOURCE
(560) 1.5W RGB LEDs
(200) 5W CW Strobe LEDs
50,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
Total Lumen Output:
Integrating Sphere
All LED: 10,400 Lumens
CW LED: 13,327 Lumens
RGB LED: 5,034 Lumens
CRI: TBD
Beam Angle: TBD
Field Angle: TBD
EFFECTS

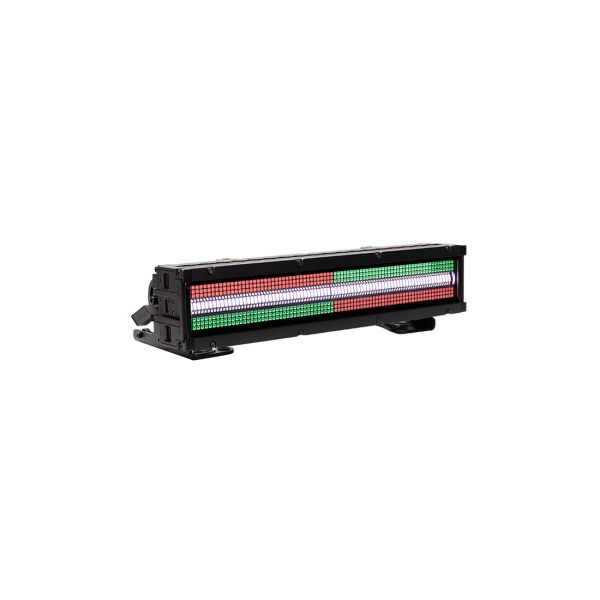

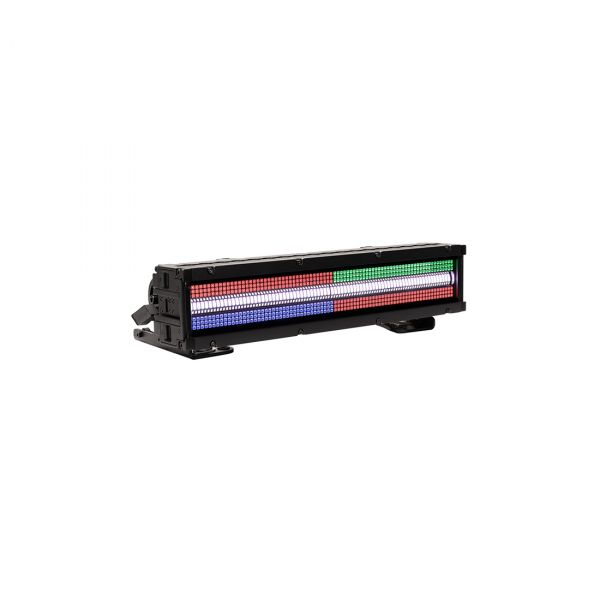

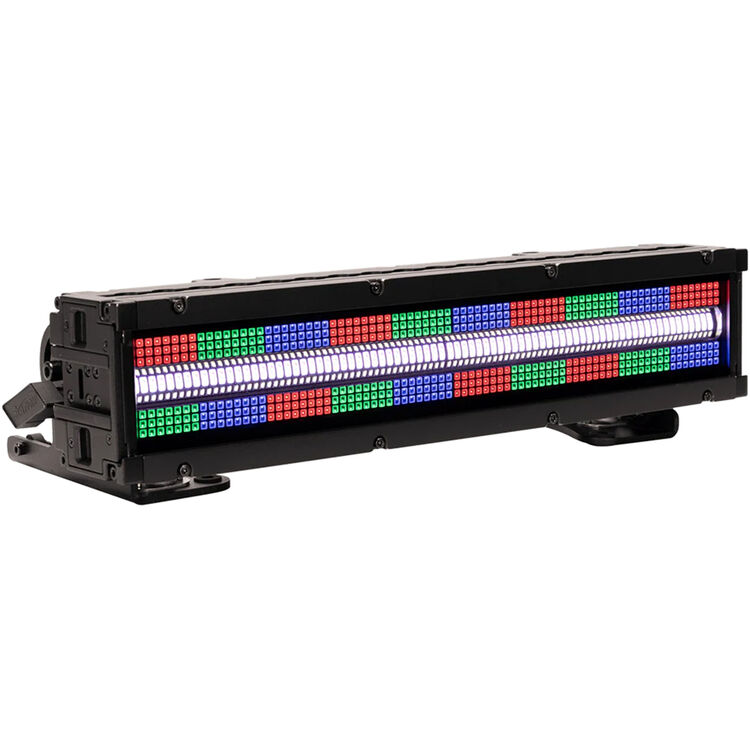

20 Zones of RGB Plate LEDs (10 x 2)
20 Zones of CW Strobe LEDs (10 x 2)
10 Zones of RGB StrobeLine LED's (10 x 1)
1- 20Hz Strobe Rate
Library of Customizable RGB and CW Strobe Effects
Variable Dimming Modes and Curves
COLOR
RGB Color Array

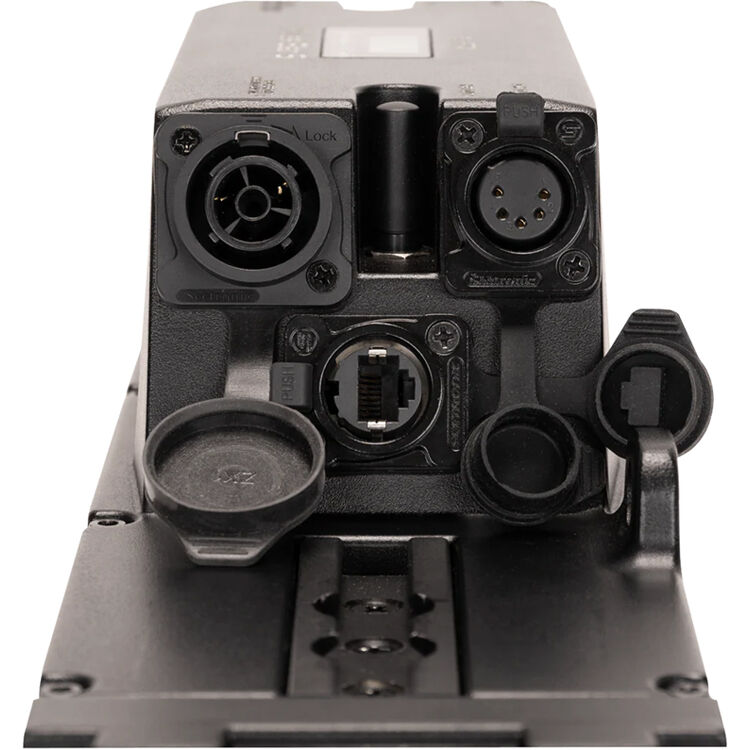

CONTROL / CONNECTIONS
9 DMX Channel Modes (3ch, 11ch, 22ch, 34ch, 52ch, 124ch, 77ch, 132ch, 110ch)

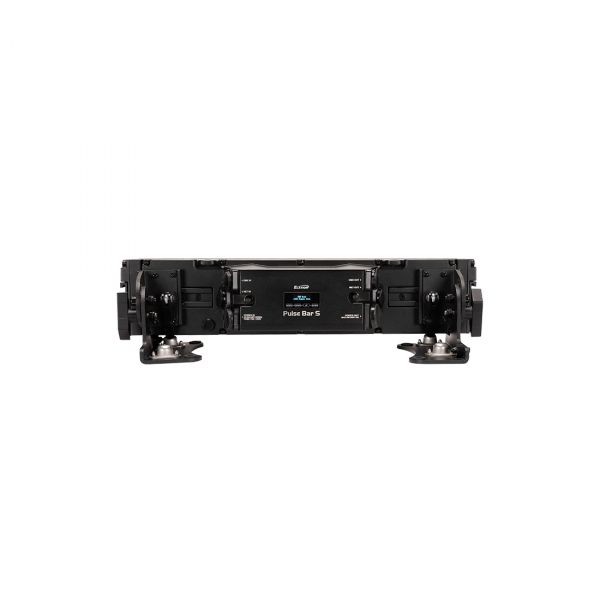

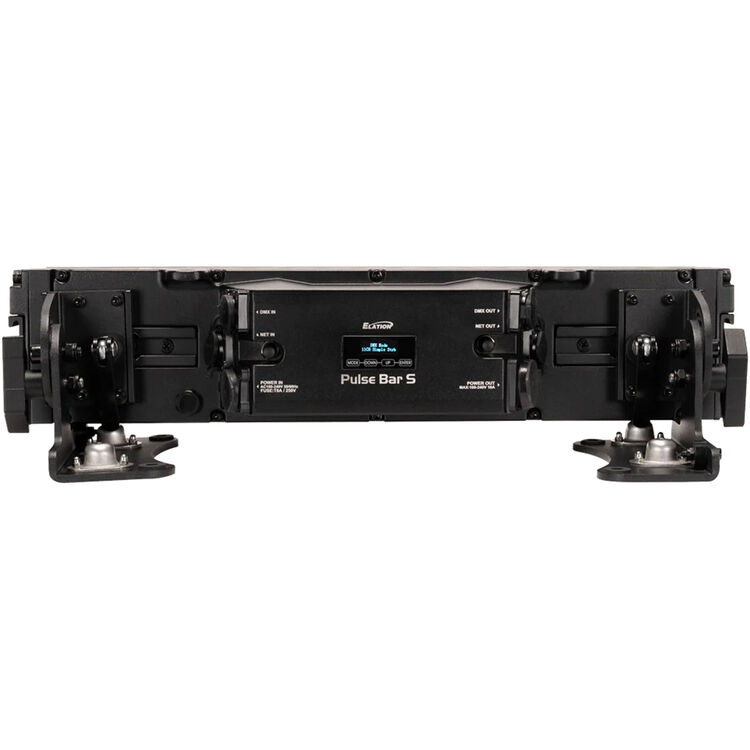

4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)

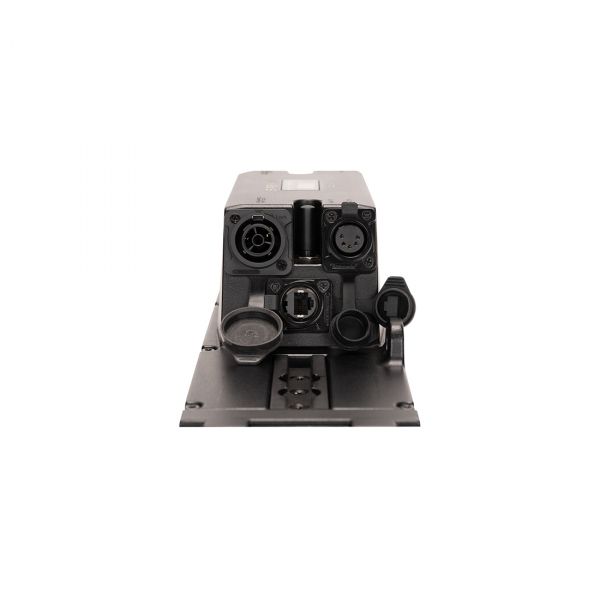

IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net, sACN, KlingNet)

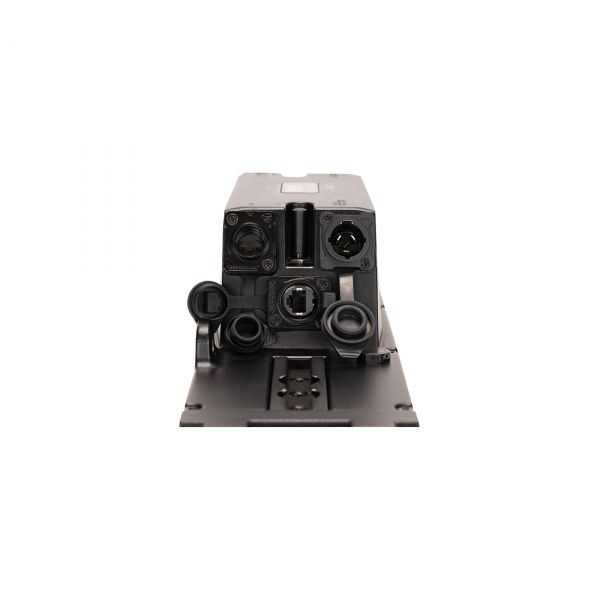

IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length: 500 mm (19.7”)
Width: 200 mm (7.9”)
Horizontal Height: 206 mm (8.11”)
Weight: 9,75kg (21.5lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption 750W
Power Thru Capacity: @110V: 2 units; @240V: 5 units
-15°C to 45°C (5°F to 113°F)
BTU/hr (+/- 10%) 2557.5
INCLUDED ITEMS
IP65 Locking Power Cable
Fixture Interconnect Key
OPTIONAL ITEMS
1223200117 BAR S NSP Lens
1223200108 BAR S WFL Lens
1223200116 BAR S XFL Lens
1223200115 BAR S L140 Lens
1223200114 BAR S L1060 Lens
1236300110 Fixture Interconnect Splice Package (FISP06)
1744000028 L-Track to M10 Adapter,70mm (LTR001)
1744000029 L-Track to M10 Adapter, 44.5mm (LTR008)
1744000030 L Track C-Clamp & Adapter Assembly, 70mm (LTR100)
1744000031 L Track C-Clamp & Adapter Assembly, 44.5mm (LTR112)
