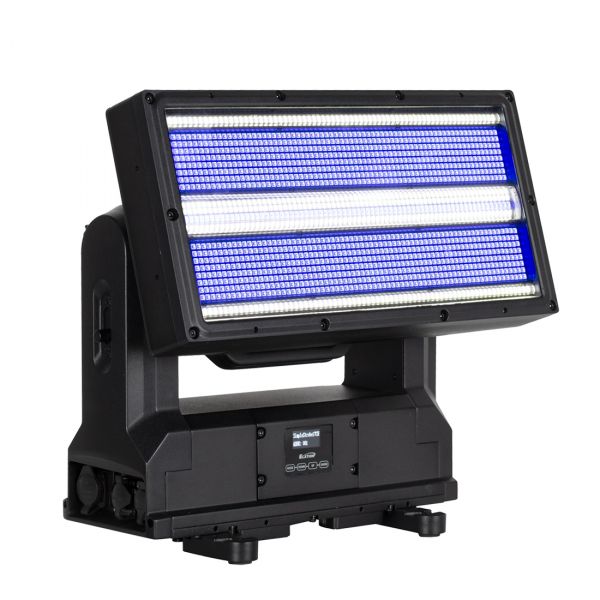

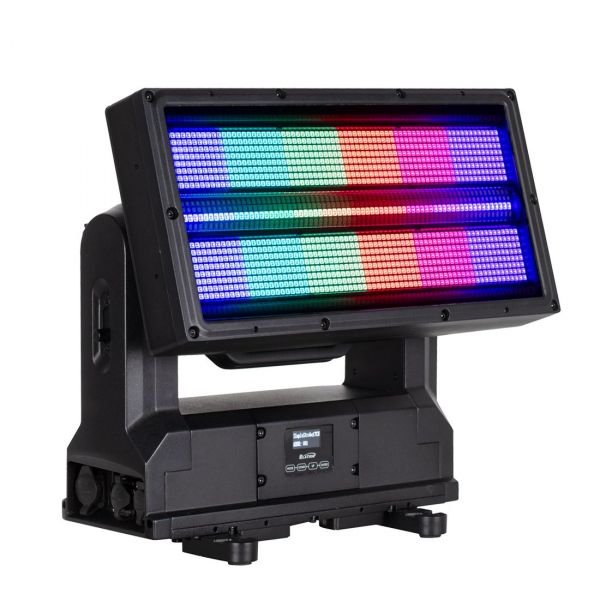

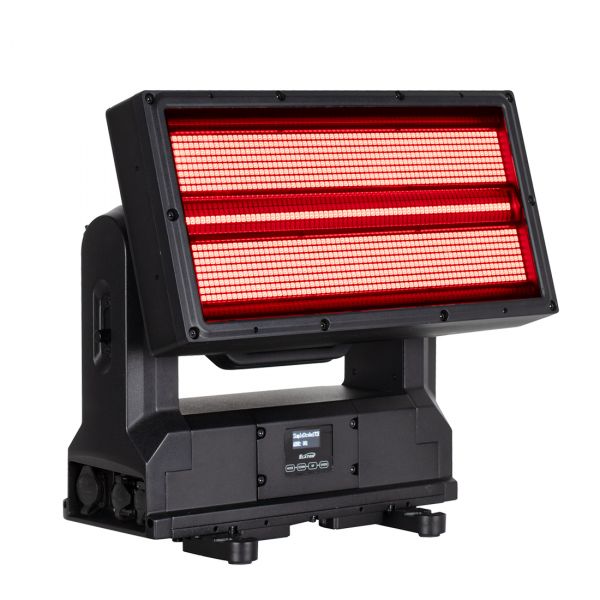

IP65 Strobe Panel with Tilt and Endless Pan/Spin
FEATURES
(1152) 1.5W RGB LED's in 24 Zones
(432) 5W CW Strobe LED's in 48 Zones
(96) 1.5W RGB StrobeLine LED's in 12 Zones

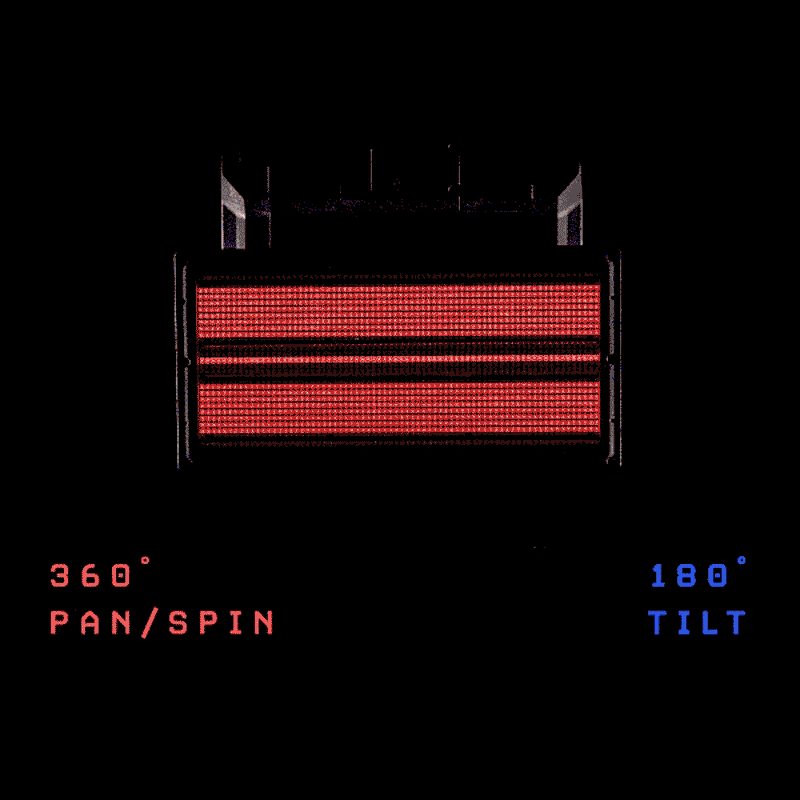

Fast and Continuous 360° Pan/Spin and 180° Tilt
Art-Net, sACN and KlingNet Support
IP65 Rated
SOURCE
(1248) 1.5W RGB LEDs
(432) 5W CW Strobe LEDs
50,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
Total Lumen Output:
All LED: >78,265 Lumens
CW LED: >108,574 Lumens
RGB LED: >40,090 Lumens
CRI: >70
Beam Angle: 68°
Field Angle: 112°
EFFECTS

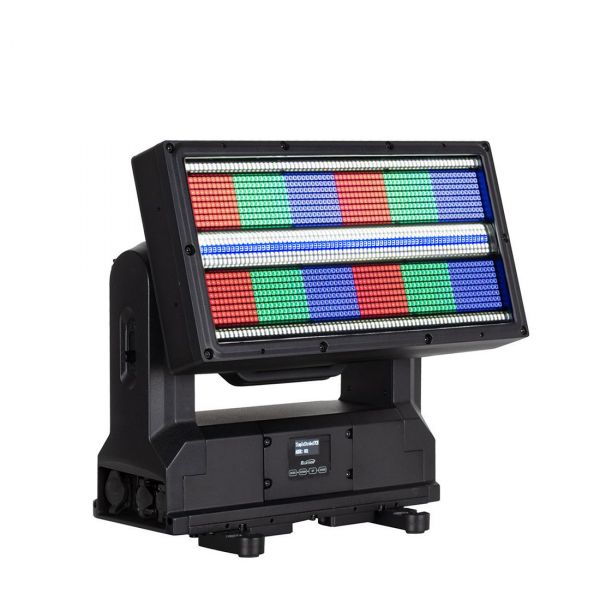

24 Zones of RGB Plate LEDs (6 x 4)
48 Zones of CW Strobe LEDs (12 x 4)
12 Zones of RGB StrobeLine LED's (12 x 1)
1- 20Hz Strobe Rate
Library of Customizable RGB and CW Strobe Effects
Variable Dimming Modes and Curves
Pan/Spin Angle: 540°/360°
360° Continuous Pan/Spin Movement
Tilt Angle: 180°
Setting to Lock Pan/Spin Movement
COLOR
RGB Color Array
CONTROL / CONNECTIONS
12 DMX Channel Modes (8ch, 16ch, 27ch, 50ch, 62ch, 65ch, 175ch, 90ch, 93ch, 183ch, 161ch, 156ch)
Ability to Address Fixture Control and LED Control to Separate Universes
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)

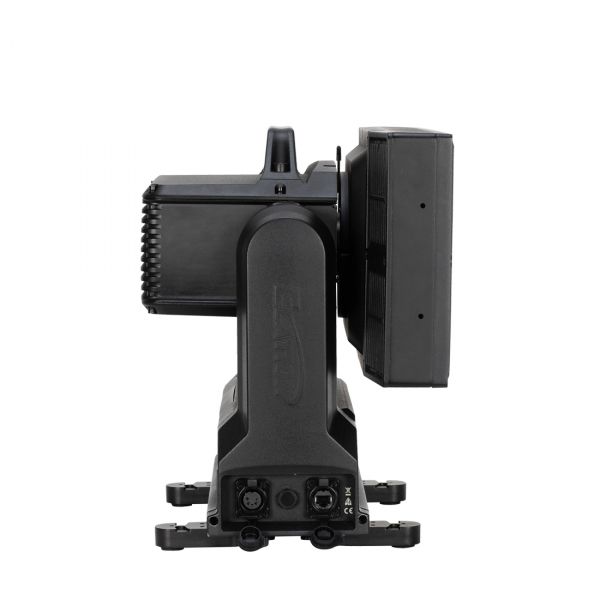

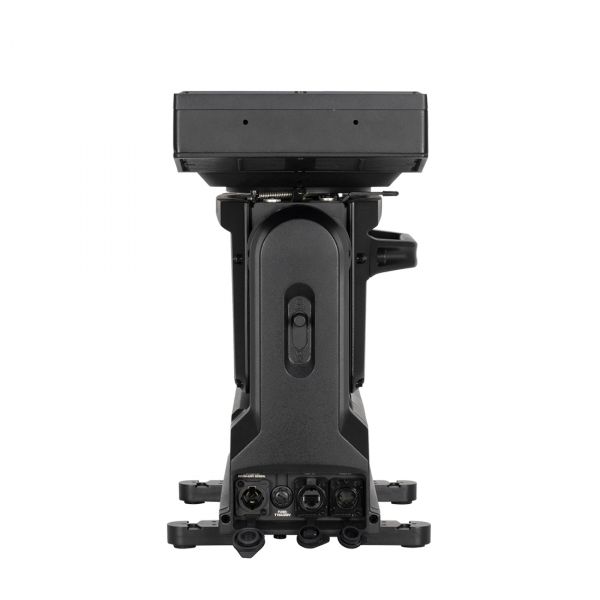

IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net, sACN, KlingNet)

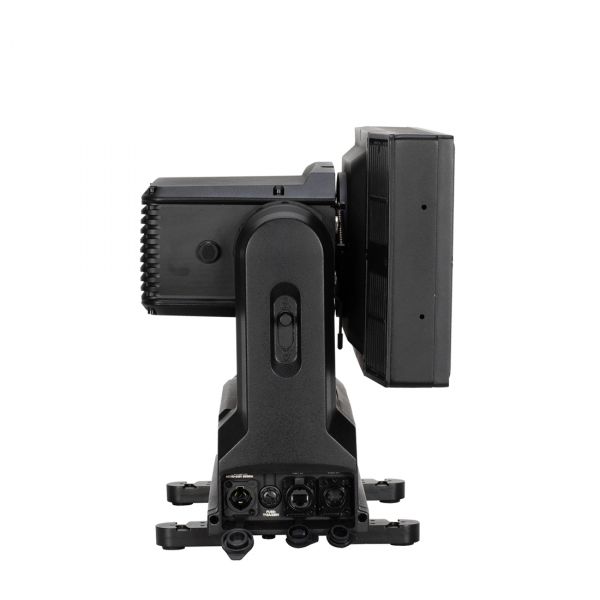

IP65 Locking Power Cable In
SIZE / WEIGHT
Length:210 mm (8.28”)
Width: 420 mm (16.54”)
Vertical Height: 396mm (15.59”)
Center-to-Center: 520mm (20.47”)
Weight: 17.5kg (38.58 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption 1750W
-20°C to 45°C (-4°F to 113°F)
BTU/hr (+/- 10%) 5967,5
INCLUDED ITEMS
IP65 Locking Power Cable
FIRMWARE UPDATES
Current firmware can be found here (login required)
