FEATURES
IP65 Certified 3-in-1 Beam, Spot, Wash Hybrid Fixture
Flex Lamp Technology from 190W to 280W and Lamp Hibernation with up to 6,000 Hour Lamp Life
Full CMY Color Mixing System
Rotating and Static Gobos, Dual Prism, Frost
Zoom from 1° Beam to 33° Wash and Auto Focus option
SOURCE
Philips™ MSD Platinum 200 Flex 280W Lamp
Up To 6,000 Hour Lamp Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
11,000 Total Output Lumen
128,426 LUX 11,931 FC @ 15m (49.2’) (Min Zoom Beam)
135,108 LUX 12,552 FC @ 5m (16.4’) (Min Zoom Spot)
Zoom Range 1° - 18°
Beam Angle 1.1° - 7°
Field Angle 2.6° - 17.8°
Zoom Range 3° - 27°
Beam Angle 1.8° - 18.7°
Field Angle 2.8° - 28.8°
Zoom Range 5° - 33°
Beam Angle 2.6° - 24.9°
Field Angle 4.6° - 40.7°
128,426 LUX 11,931 FC @ 15m (49.2’) (Min Zoom Beam)
135,108 LUX 12,552 FC @ 5m (16.4’) (Min Zoom Spot)
Beam
Zoom Range 1° - 18°
Beam Angle 1.1° - 7°
Field Angle 2.6° - 17.8°
Spot
Zoom Range 3° - 27°
Beam Angle 1.8° - 18.7°
Field Angle 2.8° - 28.8°
Wash
Zoom Range 5° - 33°
Beam Angle 2.6° - 24.9°
Field Angle 4.6° - 40.7°
EFFECTS
Beam, Spot, Wash Modes
Motorized Zoom
Full Frost Filter for Wash Effects
16-Facet and 4-Facet Linear Prisms
CMY Color, Gobo, Prism Macros
Motorized Focus with Auto-Focus Feature
High Speed Shutter and Strobe
Pan Angle: 540°/630°
Tilt Angle: 262°
Tilt Angle: 262°
COLOR
Full CMY Color Mixing System
13 Colors including Quad Color, CTO, CTB, and UV
GOBOS
2 Gobo Wheels
8 Rotating / Indexing Interchangeable Glass Gobos
12 Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
2 DMX Channel Modes (20 / 34)
DMX, RDM, Art-NET, sACN Protocol Support
(6) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display

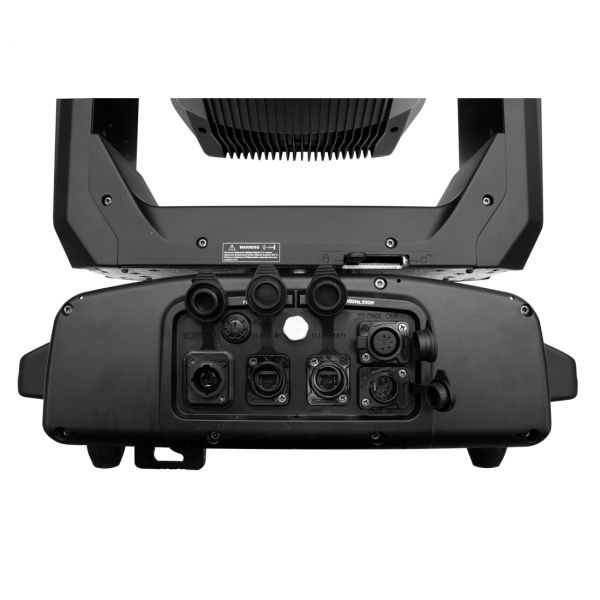

IP65 5pin XLR DMX In/Out
IP65 RJ45 ethernet In/Out
IP65 locking Power Cable In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 444.71mm (17.51 in)
Width: 459mm (18.86 in)
Height: 685mm (26.97 in)
Center Spacing: 551mm (26.69 in)
Weight: 35.5kg (78.26 lbs.)
Weight: 35.5kg (78.26 lbs.)
ELECTRICAL / THERMAL
AC 100-240V 50/60Hz
Max Power Consumption 500W
BTU/hr (+/- 10%) 1705
BTU/hr (+/- 10%) 1705
