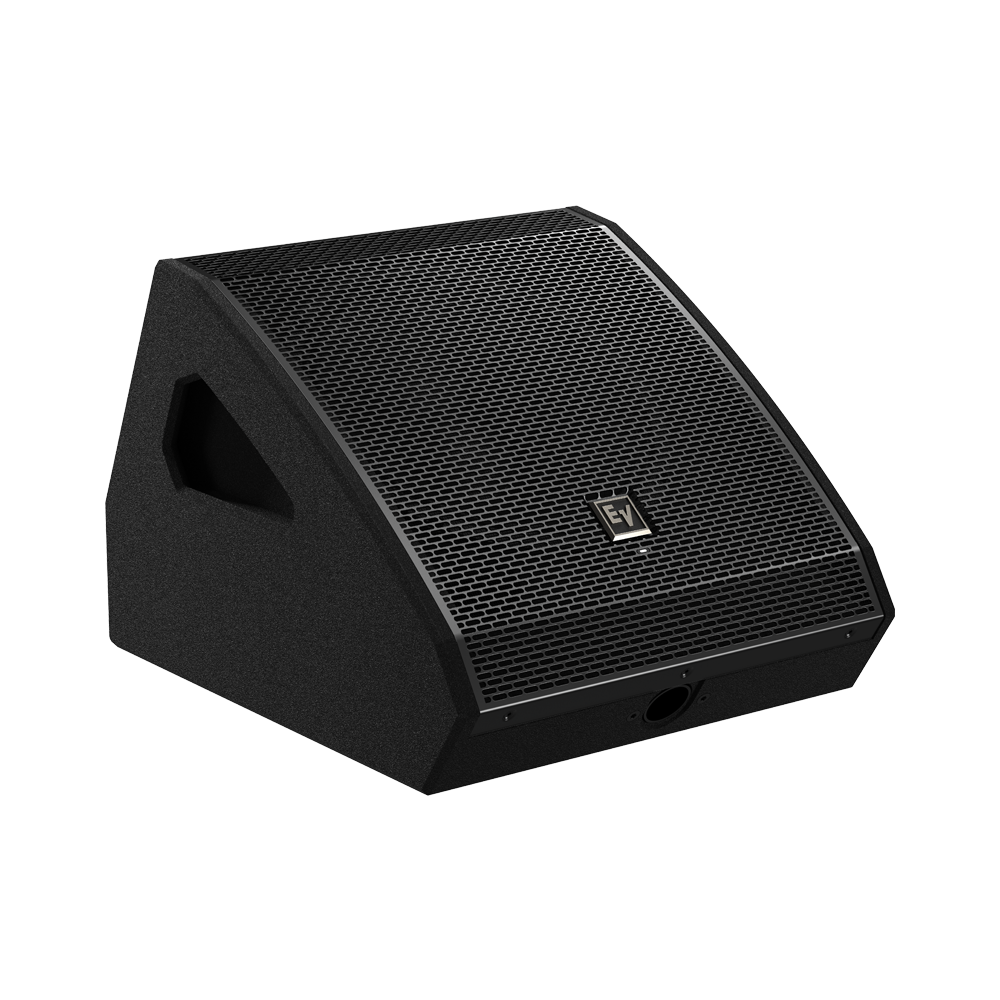

12'' coaxial multi-functional stage monitor, QuickSmartDSP with 3-band EQ, feedback and settings, 700 W class Computer powered by Dynacord, black.

Physical data

• Width: 414 mm
• Deep: 484 mm
• Height: 339 mm
• Enclosure material: 15 mm birch plywood, Heavy duty structured lacquer
• Color: Black
• Weight: 14.9 Kg

Audio data

• Coverage (Hort. x Vert.): 90° x 90°
• Maximum SPL: 128 dB
• Frequency Range: 50-20,000 Hz (-10dB)
• Power Rating: Low amplifier power 360 W IHF-A/260 W RMS, Mid-high amplifier power 160 W IHF-A/75 W RMS
• Crossover frequency: 1.6 kHz

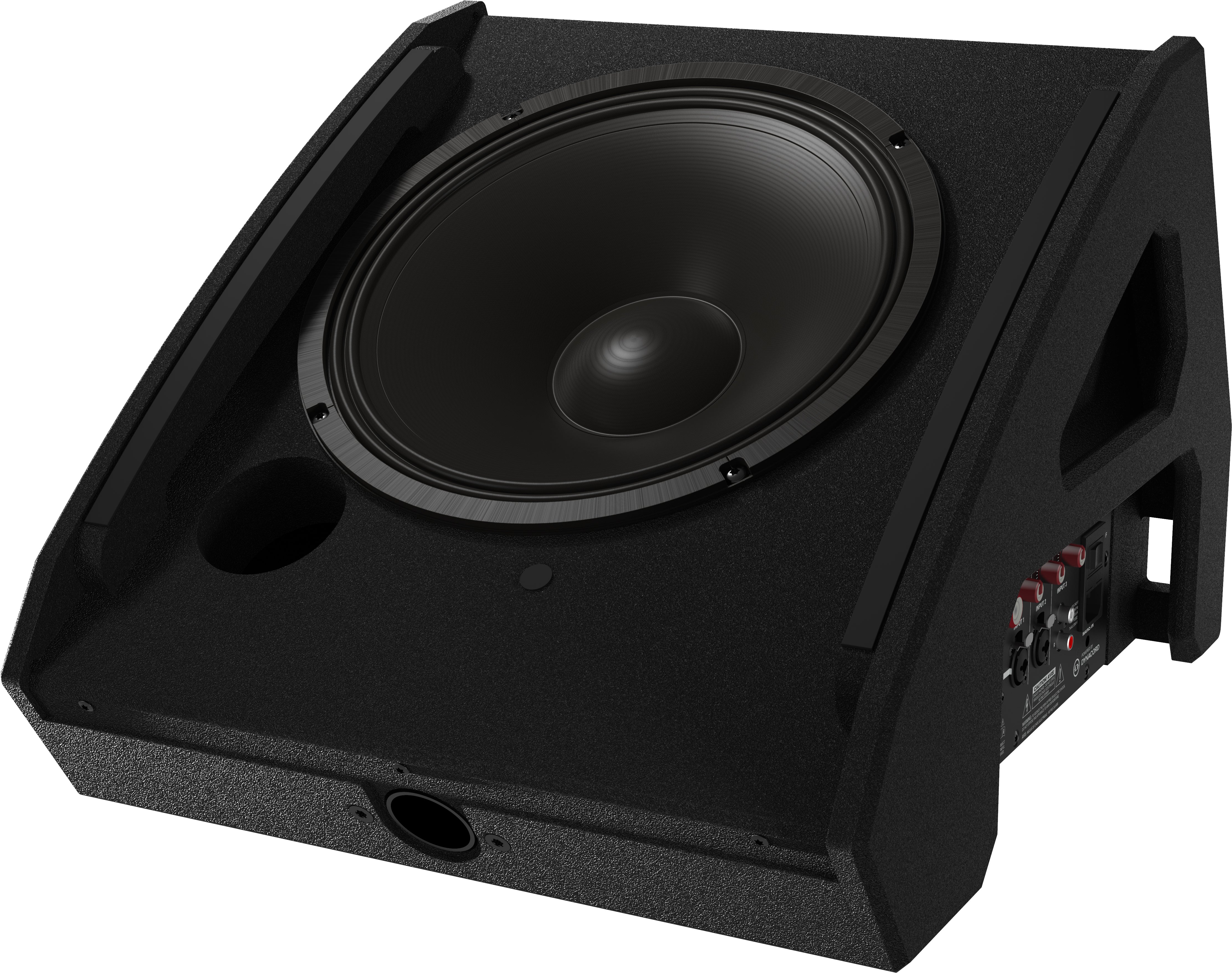

• Speakers: DCX 12300, 12-inch/1.75-inch 2-way coaxial transducer with lightweight neodymium compression driver

Connectors

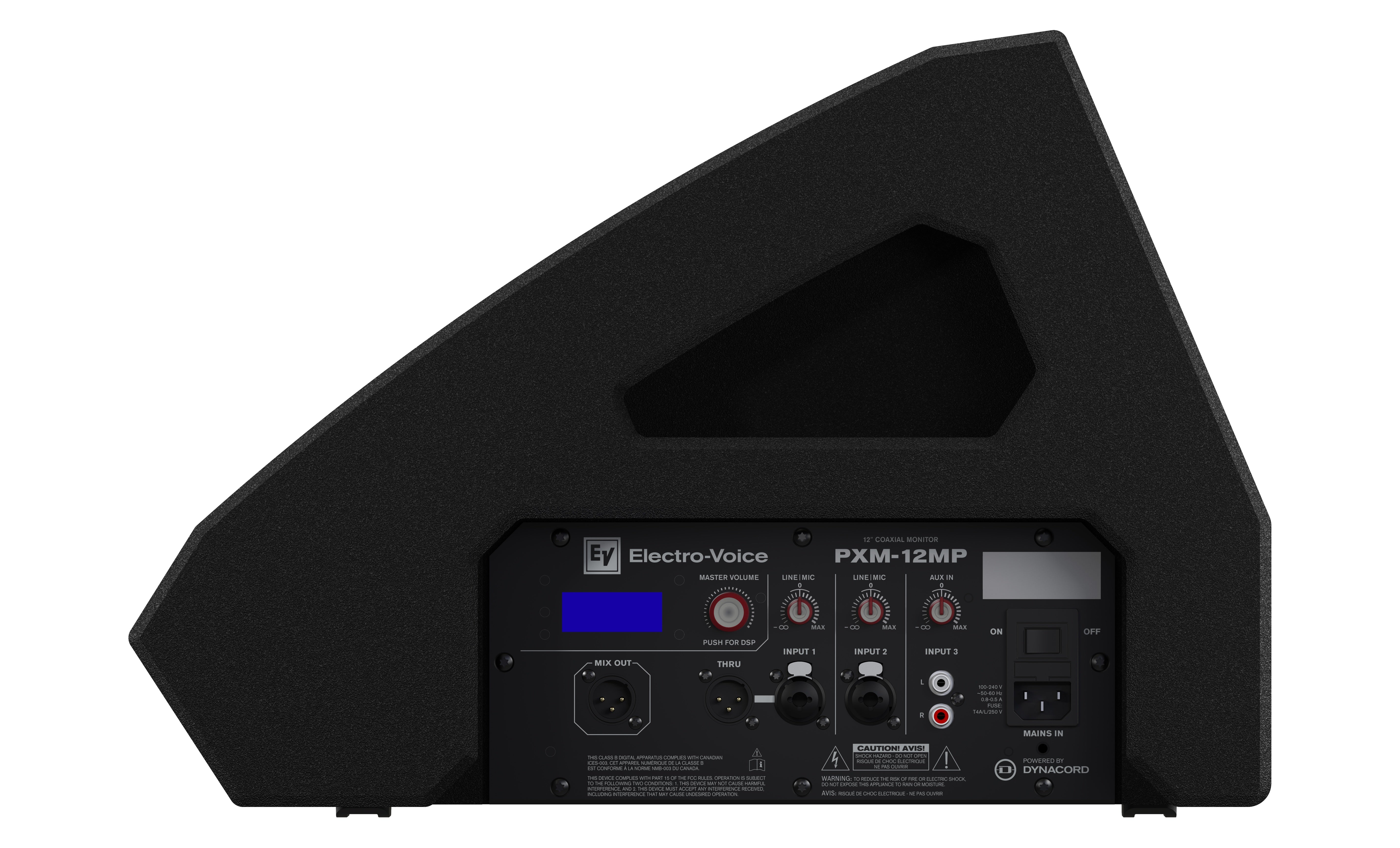

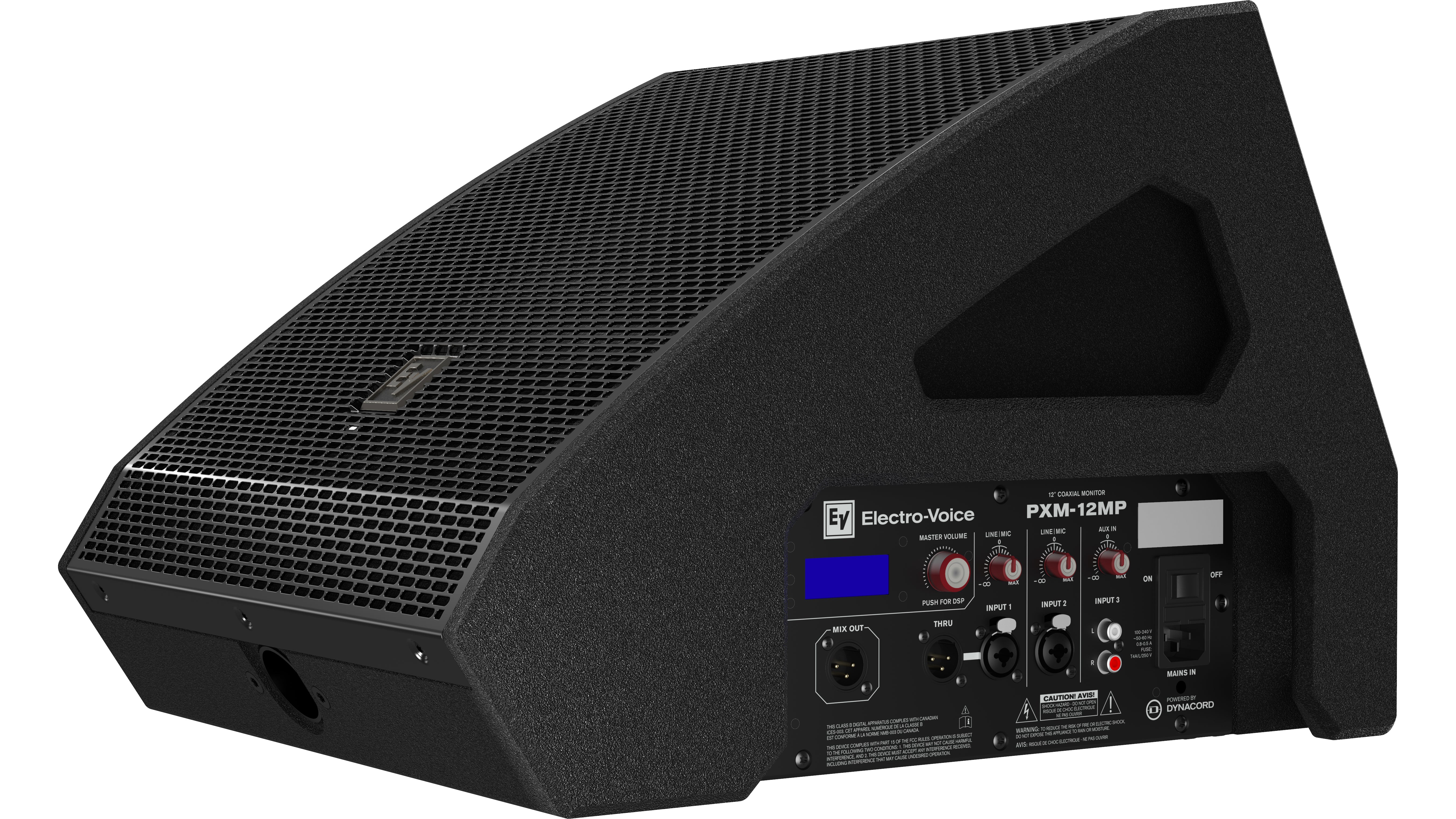

• Inputs: 2 x Mono XLR/Jack socket (MIC/LINE), switchable phantom power (+15 V), 1 x Stereo RCA (AUX IN).
• Outputs: 1 x XLR THRU (parallel to MIC/LINE 1), 1 x XLR MIX OUT
• Electrical Connectors: IEC
