Specifications in detail
Overview
- Number of Microphone Preamps2
- Phantom PowerYes
- Instrument Inputs2
- Line Inputs4
- Air ModeYes
- Auto GainYes
- Clip SafeYes
- Line Outputs4
- Headphone Outputs1
- LoopbackYes
- MIDIYes
- ConnectivityUSB Type-C
- ProtocolUSB 2.0
- Form FactorDesktop
- Simultaneous I/O6 x 6 (including Loopback inputs)
- A/D Resolution24-bit/192 kHz
- Bus PoweredYes (1.5A)
Dimensions
- Height60mm
- Width180mm
- Depth130mm
- Weight0.798kg
Supported sample rates
- 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Microphone inputs
- Frequency Response20-20kHz ± 0.06dB
- Dynamic Range116dB (A-Weighted)
- THD+N-100dB @ 8dB gain
- Noise EIN-127dBu (A-Weighted)
- Maximum Input Level16dBu
- Gain Range69dB
- Impedance3kΩ
Variable Line inputs
- Frequency Response20-20kHz ± 0.05dB
- Dynamic Range115.5dB (A-Weighted)
- THD+N-100dB @ 8dB gain
- Maximum Input Level22dBu
- Gain Range69dB
- Impedance60kΩ
Fixed Line inputs
- Frequency Response20-20kHz ± 0.02dB
- Dynamic Range115.5dB (A-Weighted)
- THD+N-105dB
- Maximum Input Level22dBu
- Impedance60kΩ
Instrument inputs
- Frequency Response20-20kHz ± 0.15dB
- Dynamic Range113dB (A-Weighted)
- THD+N-80dB @ minimum gain
- Maximum Input Level12dBu
- Gain Range62dB
- Impedance1MΩ
Line outputs (Balanced)
- Frequency Response20-20kHz ± 0.02dB
- Dynamic Range120dB
- THD+N-112dB
- Maximum Output Level16dBu
- Impedance100Ω
Headphone outputs
- Frequency Response20-20kHz ± 0.1dB @ 33Ω / 300Ω
- Dynamic Range112dB @ 33Ω
115dB @ 300Ω - THD+N-99dB @ 33Ω
-108dB @ 300Ω - Maximum Output Level5dBu into 33Ω
11dBu into 300Ω - Maximum Output Power57mW into 33Ω
27mW into 300Ω - Impedance11Ω
Analogue to Digital Converter
- THD+N-110dB
- Dynamic Range120dB
Digital to Analogue Converter
- THD+N-115dB
- Dynamic Range130dB (A-Weighted)
Power
- USB1.5A
- External (Optional)7.5W
What's in the box

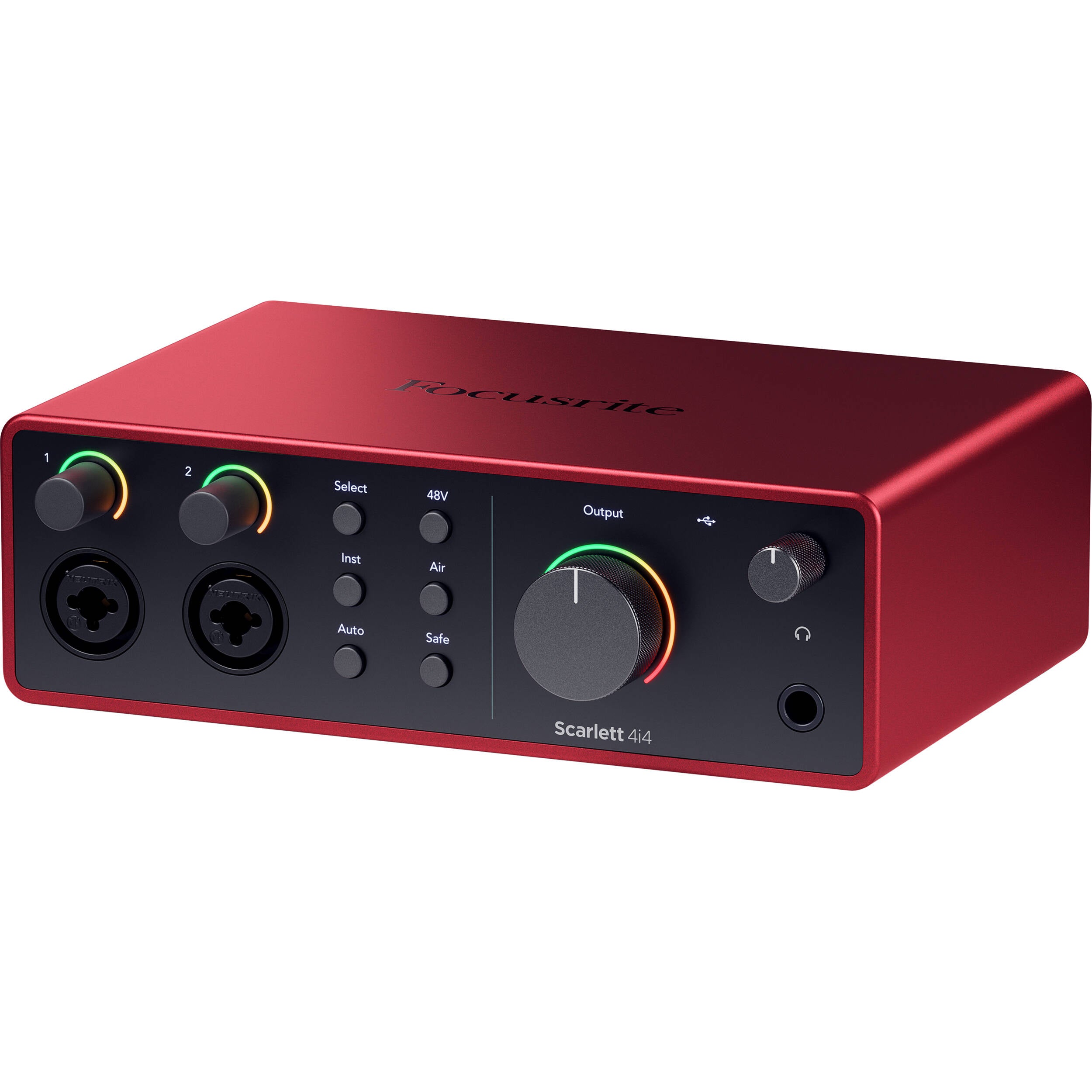

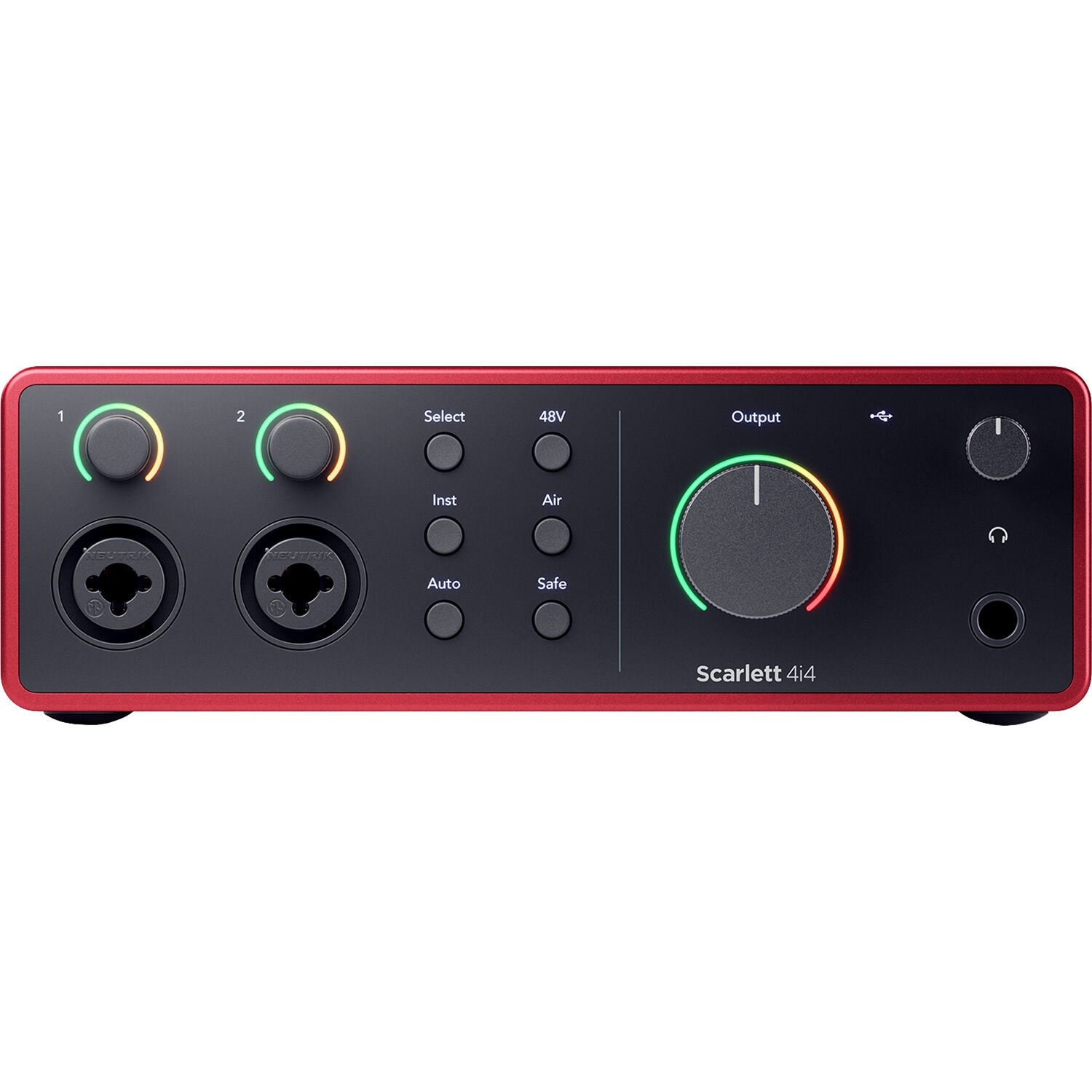

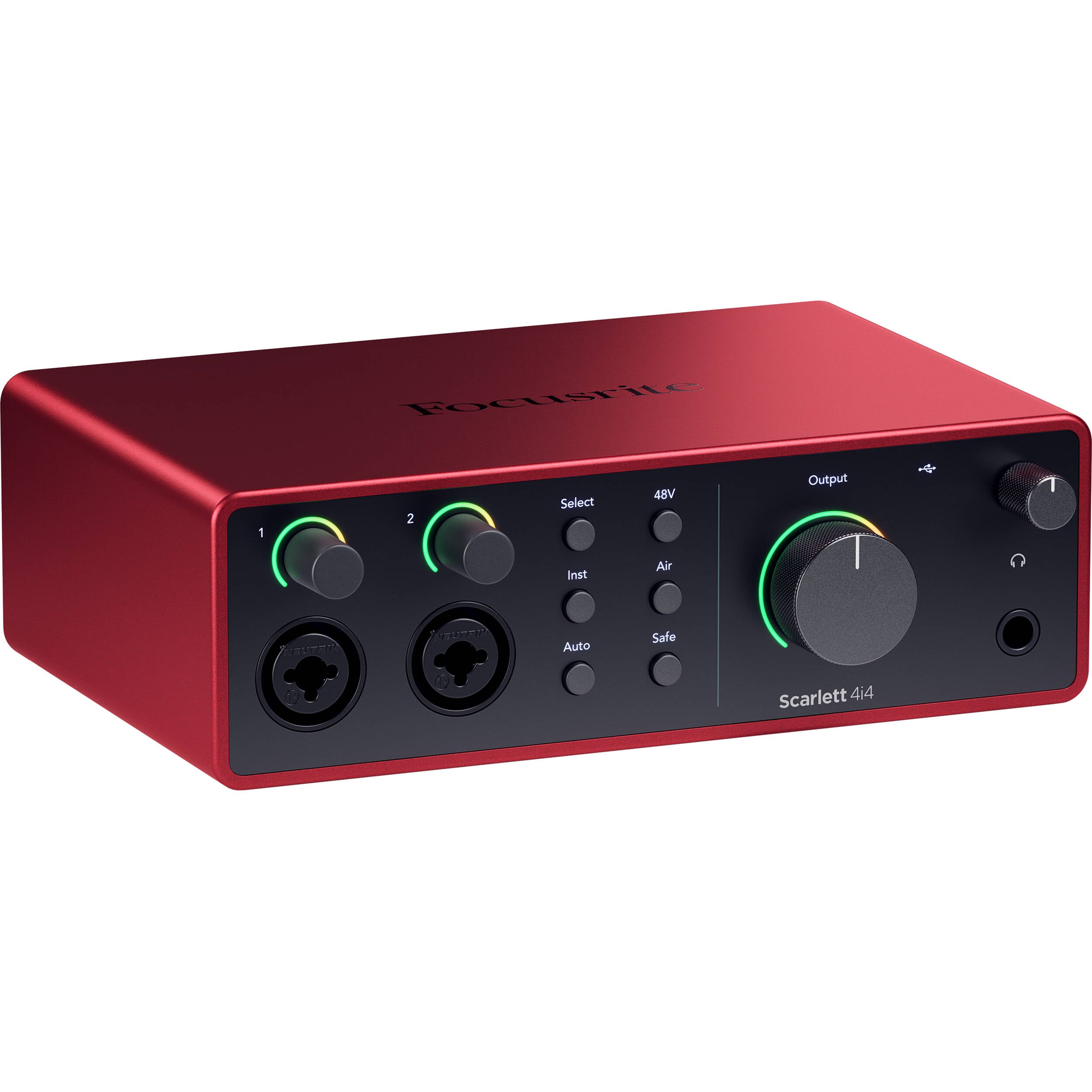

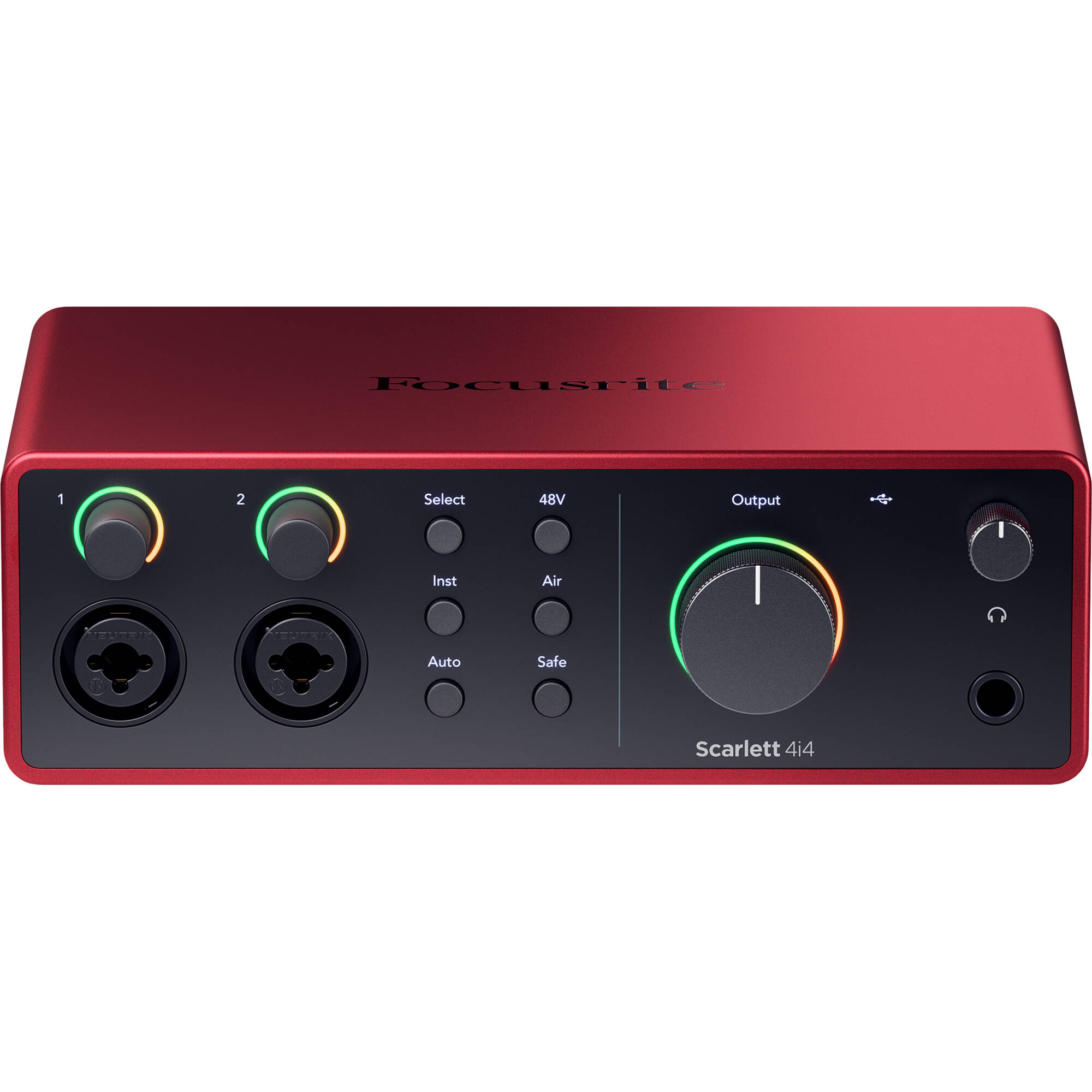

- Scarlett 4i4 audio interface
- 1m USB-C to USB-C cable
- USB-C to USB-A adaptor
- External power supply
