Length: 22 cm; Pipe diameter: 50 mm; Wall thickness: 2 mm; Conical connectors included

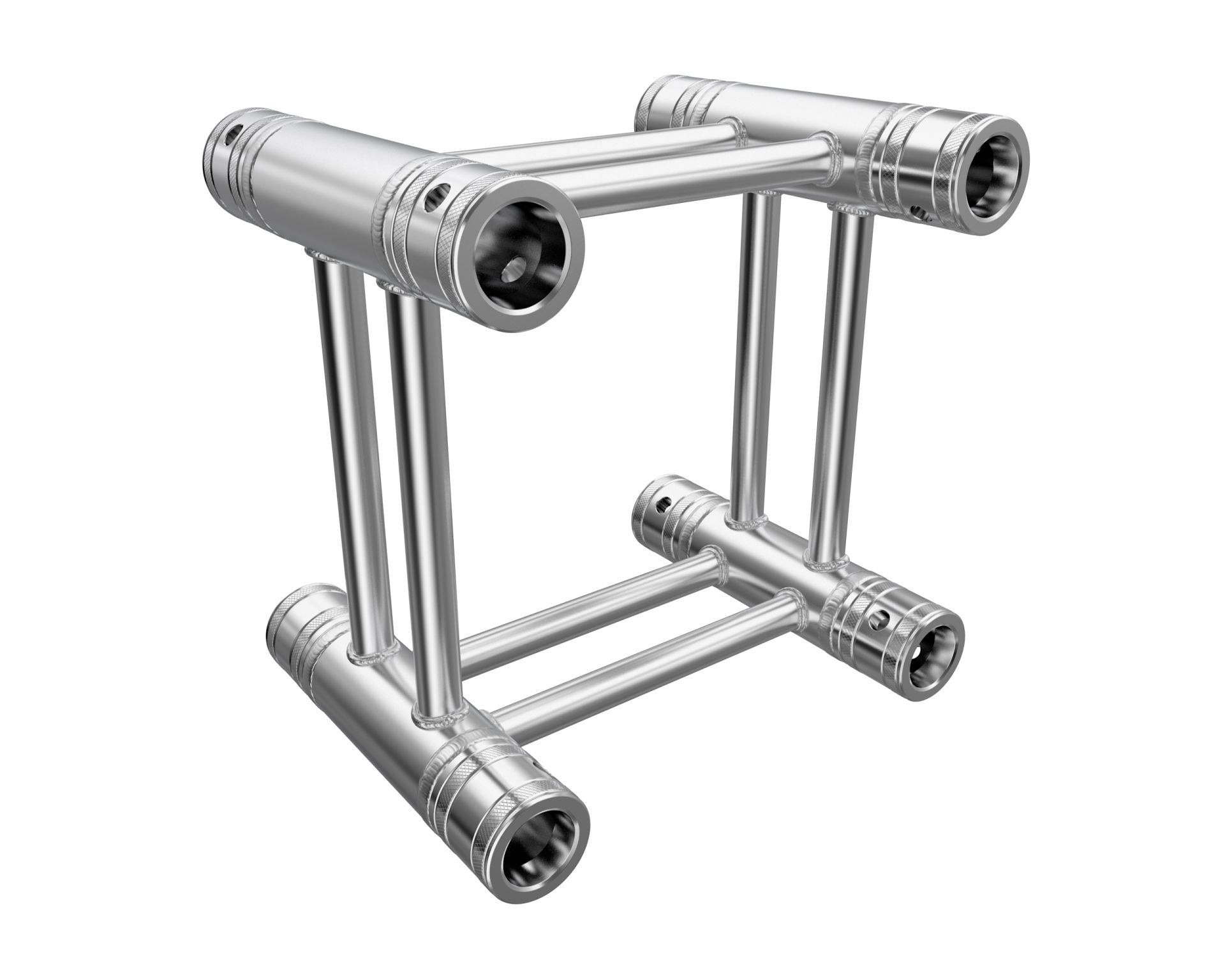

The F34 truss series by Global Truss is a TÜV approved 4-point system with an external dimension of 29cm. Due to its perfect load capacity in relation to its weight and dimensions this system is one of the most commonly used. Exhibition stands and shop fittings as well as stage roofs and other outdoor applications can be built with the trusses of the F34 system. The system off ers a maximum span of up to 18 meters.

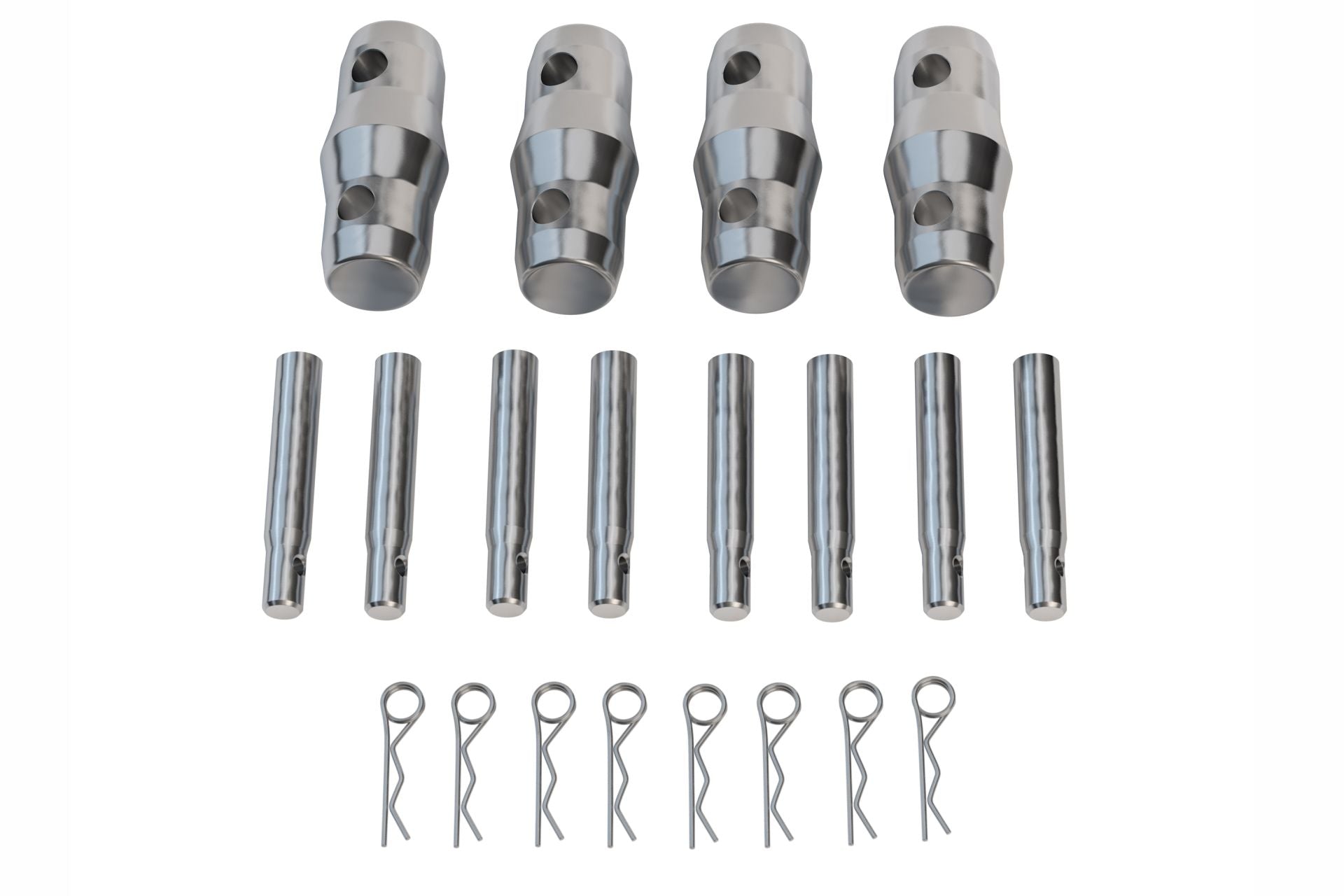

The F34 truss is built with 50 x 2mm main tubes and 20 x 2mm diagonal braces of aluminium. The truss pieces are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.
General
Colour: Aluminum
TÜV certificate: No
Material: Al EN AW-6082 T6
Colour: Aluminum
TÜV certificate: No
Material: Al EN AW-6082 T6
Technical Data
Number of points: 4-point
Edge dimension: 29 cm
System: F34
Type: straight
Truss length: 22 cm
Main pipe
Diameter main pipe: 50 mm
Wall thickness main pipe: 2 mm
Brace
Diameter Brace: 20 mm
Wall thickness Brace: 2 mm
Hardware
Weight: 2,60 kg
Dimensions (L/W/H): 220 x 290 x 290 mm
Shipping Data
Length: 220 mm
Width: 300 mm
Height: 300 mm
Weight: 4,15 kg
PU: 1
