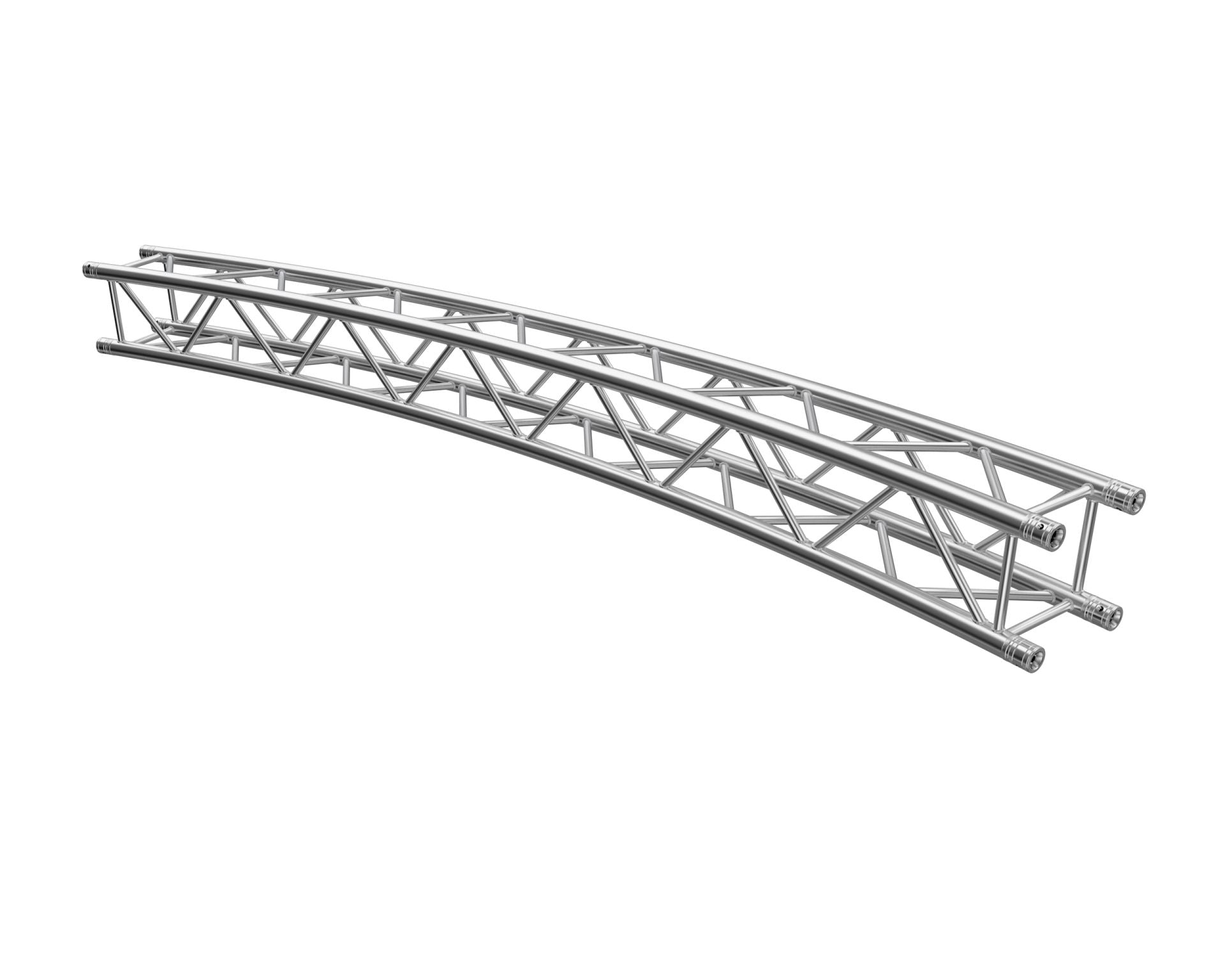

(outer-) diameter: 1200 cm; Circle piece: 30°; Pipe diameter: 50 mm; Wall thickness: 2 mm
The F34 truss series by Global Truss is a TÜV approved 4-point system with an external dimension of 29cm. Due to its perfect load capacity in relation to its weight and dimensions this system is one of the most commonly used. Exhibition stands and shop fittings as well as stage roofs and other outdoor applications can be built with the trusses of the F34 system. The system off ers a maximum span of up to 18 meters.
The F34 truss is built with 50 x 2mm main tubes and 20 x 2mm diagonal braces of aluminium. This truss and all other Global Truss series can be powder coated in every RAL colour.
General
Colour: Aluminum
TÜV certificate: No
Material: Al EN AW-6082 T6
Technical Data
Number of points: 4-point
Edge dimension: 29 cm
System: F34
Type: circle
Circle
Diameter circle: 12000 mm
Excerpt: 30°
Main pipe
Diameter main pipe: 50 mm
Wall thickness main pipe: 2 mm
Brace
Diameter Brace: 20 mm
Wall thickness Brace: 2 mm
Hardware
Weight: 19,50 kg
Shipping Data
Length: 3105 mm
Width: 484 mm
Height: 290 mm
Weight: 19,50 kg
PU: 0
