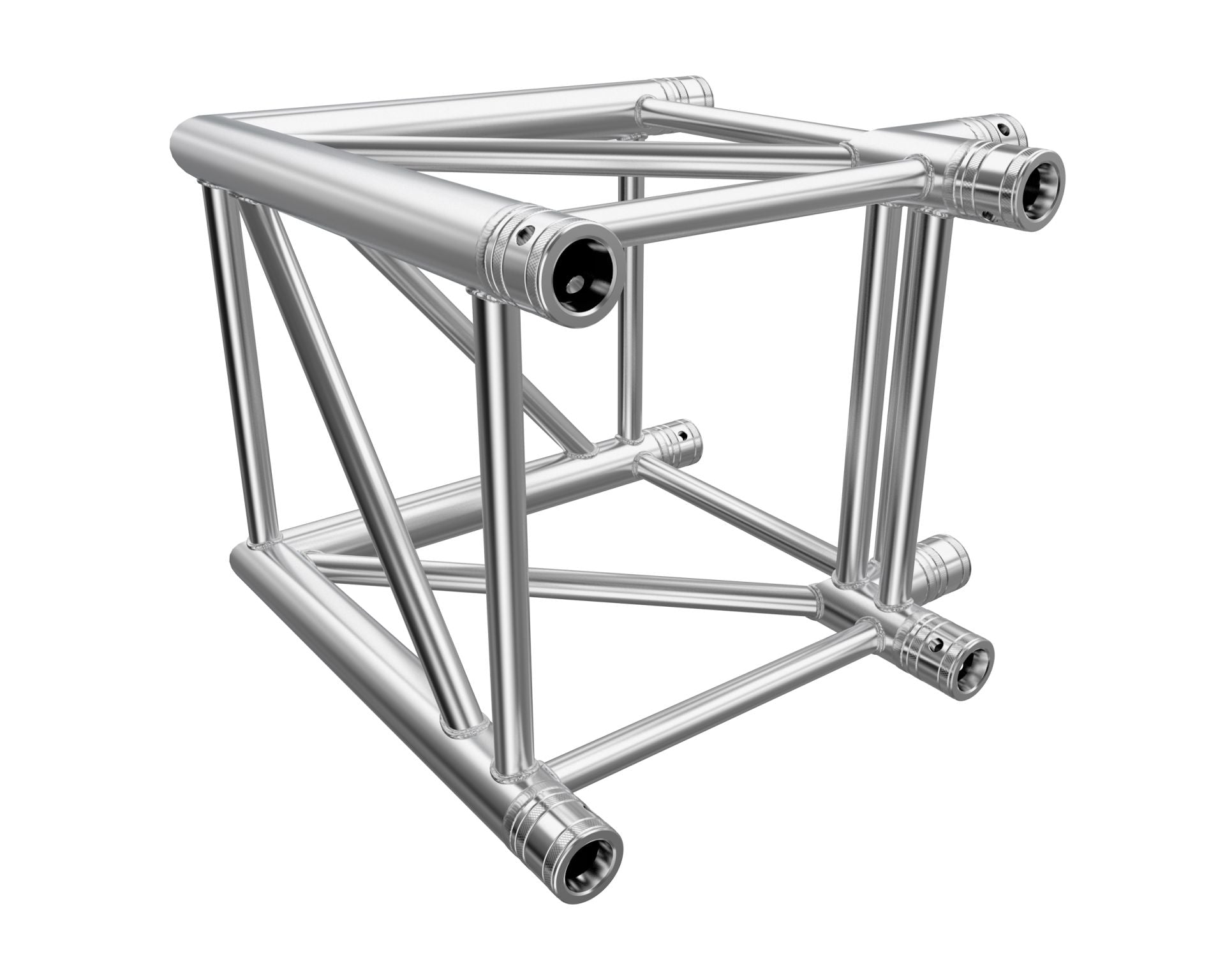

2-way corner; 90° angle; Pipe diameter: 50 mm; Wall thickness: 3 mm
The F44P truss series by Global Truss is a TÜV approved 4-point system with an external dimension of 40cm. The system offers an outstanding load capacity and low deflection, ideal for complex constructions with high loads, along with stage systems and permanent installations. The characteristics of this truss is perfect for heavy duty tower applications. Due to the higher main tube wall thickness even greater loads can be supported than with the F44 are possible. Nevertheless both systems are compatible with each other. A maximum span of up to 20 meters can be created with this system.
The F44P truss is built with 50 x 3mm main tubes and 25 x 3mm diagonal braces of aluminium. The truss pieces are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.
General
Colour: Aluminum
TÜV certificate: No
Material: Al EN AW-6082 T6
Technical Data
Number of points: 4-point
Edge dimension: 40 cm
System: F44P
Type: corner
Circle
Excerpt: 90°
Main pipe
Diameter main pipe: 50 mm
Wall thickness main pipe: 3 mm
Brace
Diameter Brace: 25 mm
Wall thickness Brace: 3 mm
Hardware
Weight: 6,90 kg
Dimensions (L/W/H): 500 x 500 x 400 mm
Shipping Data
Length: 550 mm
Width: 550 mm
Height: 400 mm
Weight: 6,90 kg
PU: 1
