Module interior width: 100 cm; modular System for suspended lights; point load of max. 93 kg; functional security fasteners on both sides; incl. 2 connectors and pin

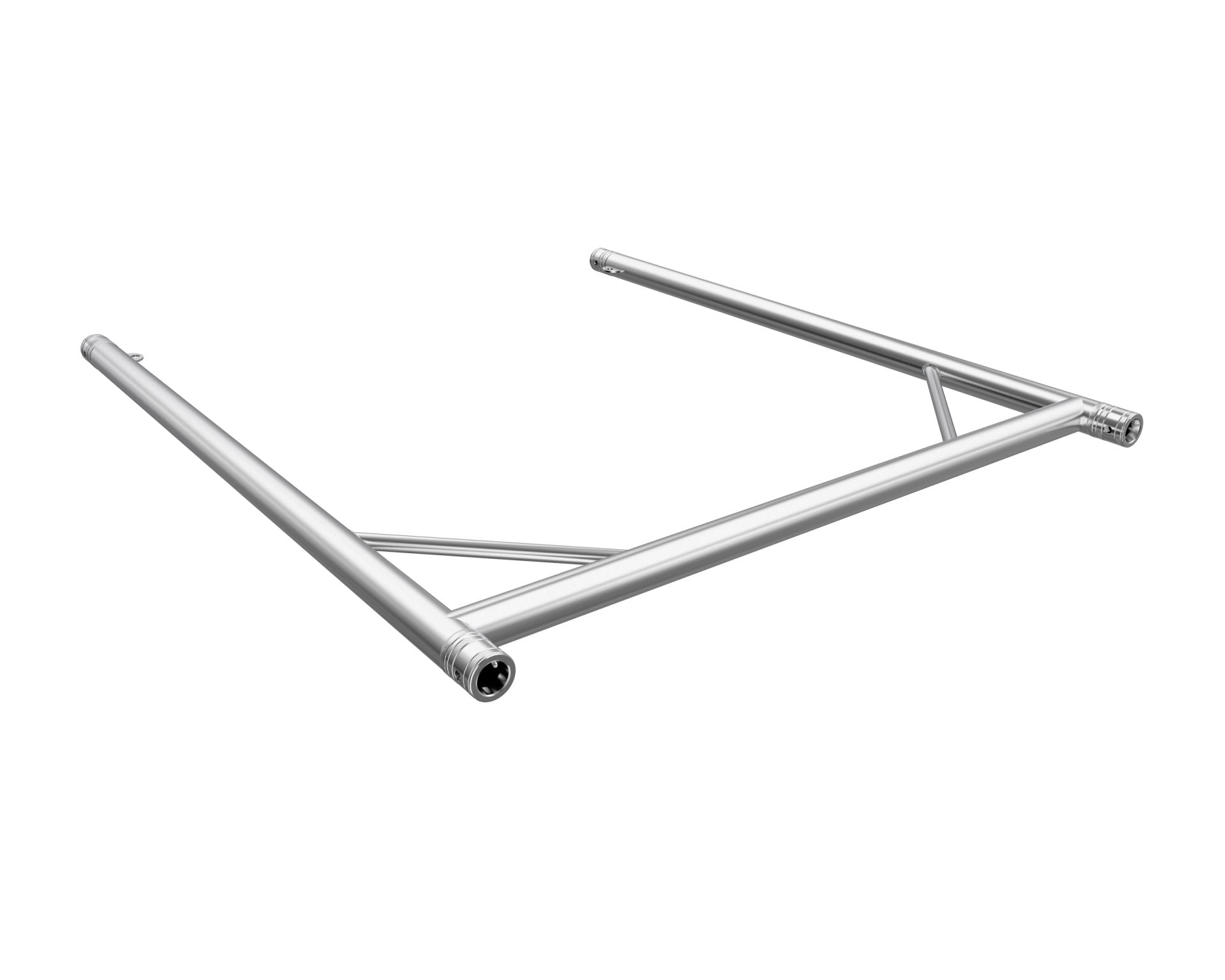

With U-Frame 100 and U-Top 100 Global Truss offers now a highly flexible and completely modular solution for suspended lights. The lightweight system enables a theoretically infinite configuration of single and double suspension as well as ladder systems for various lights - both suspended and upright mounted.

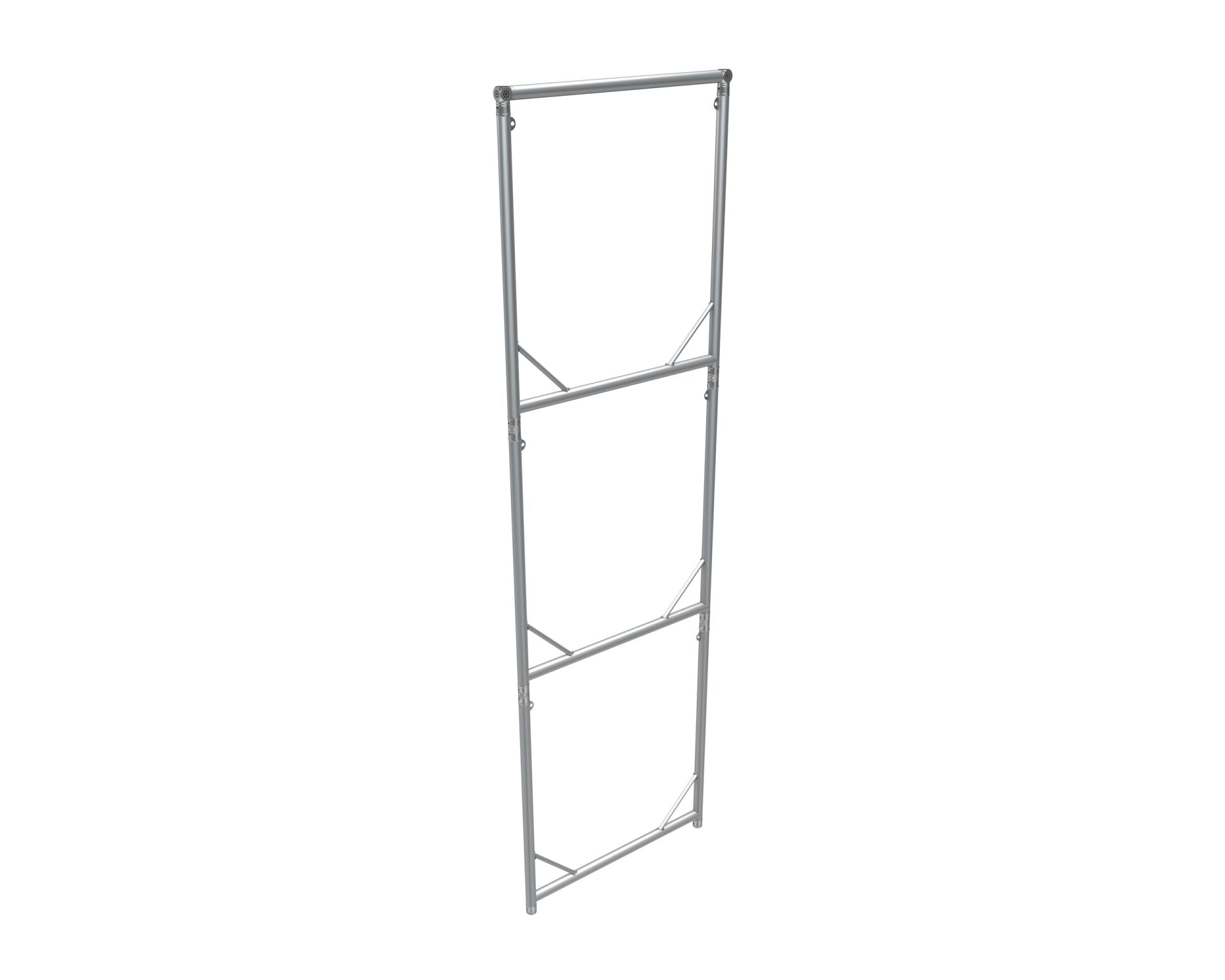

A combination of the two modules can carry a point load of max. 93 kg. By the functional security fasteners of each side of the U-Frame diverse types of lights can be mounted. For ladder configurations up to 10 U-Frame-100 / U-Top-100 combinations can be mounted one below the other, without further rigging actions.
The suspension can be made by the supplied ring eyes or with swivel couplers.
U-Frame 100 and U-Top 100 were developed by Global Truss for quick and easyto- use application in a variety of event environments.
U-Frame 100 and U-Top 100 are available as standard in silver and black. Other colors on request.
General
Colour: Aluminum
Material: Al EN AW-6082 T6
Main pipe
Diameter main pipe: 50 mm
Wall thickness main pipe: 3 mm
Hardware

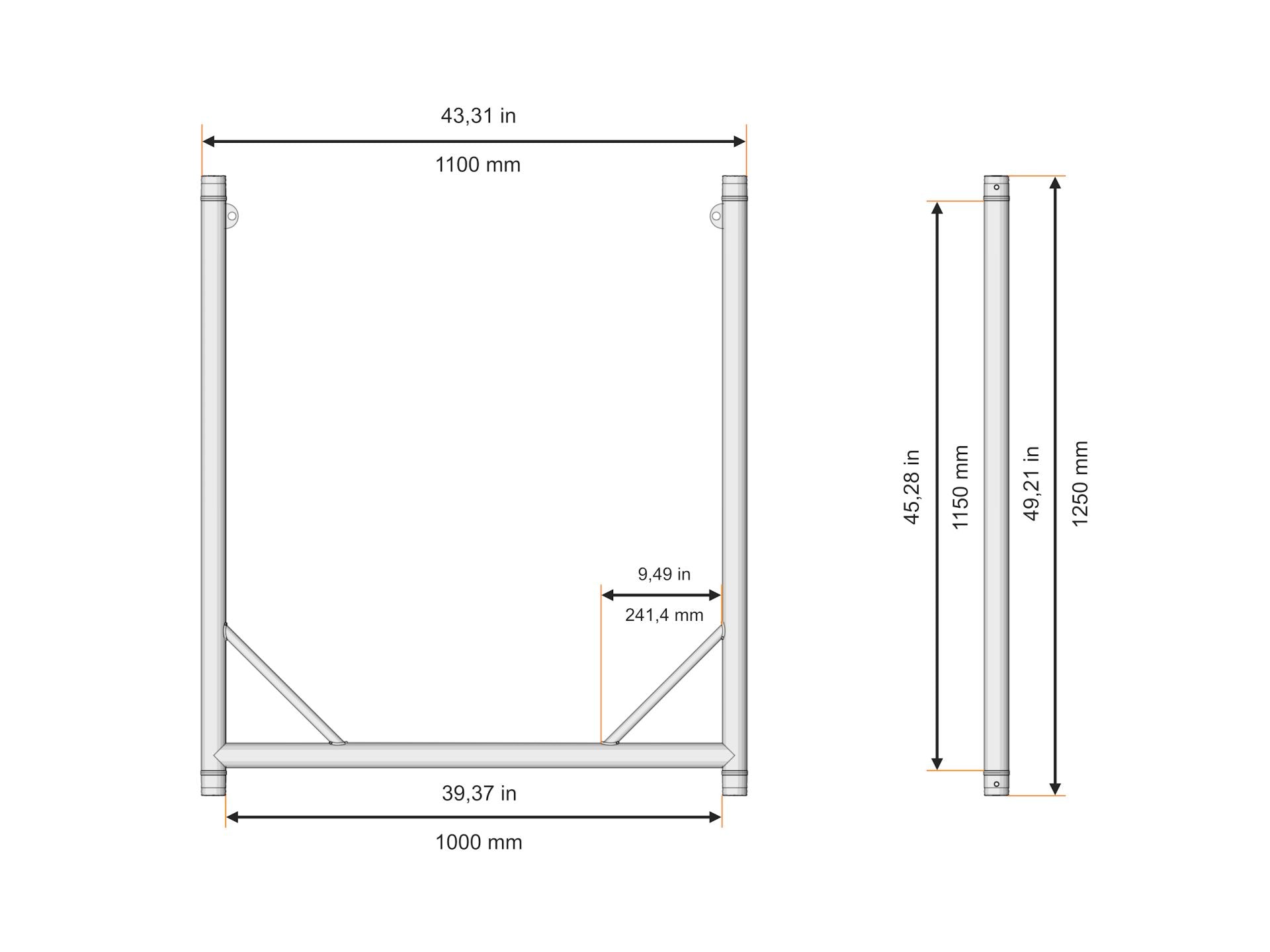

Dimensions (L/W/H): 1100 x 1250 x 50 mm
Shipping Data
Length: 1100 mm
Width: 1250 mm
Height: 50 mm
Weight: 7,30 kg
PU: 1
