Module interior width: 50 cm; modular System for suspended lights; point load of max. 95 kg; functional security fasteners on both sides; incl. 2 connectors and pin

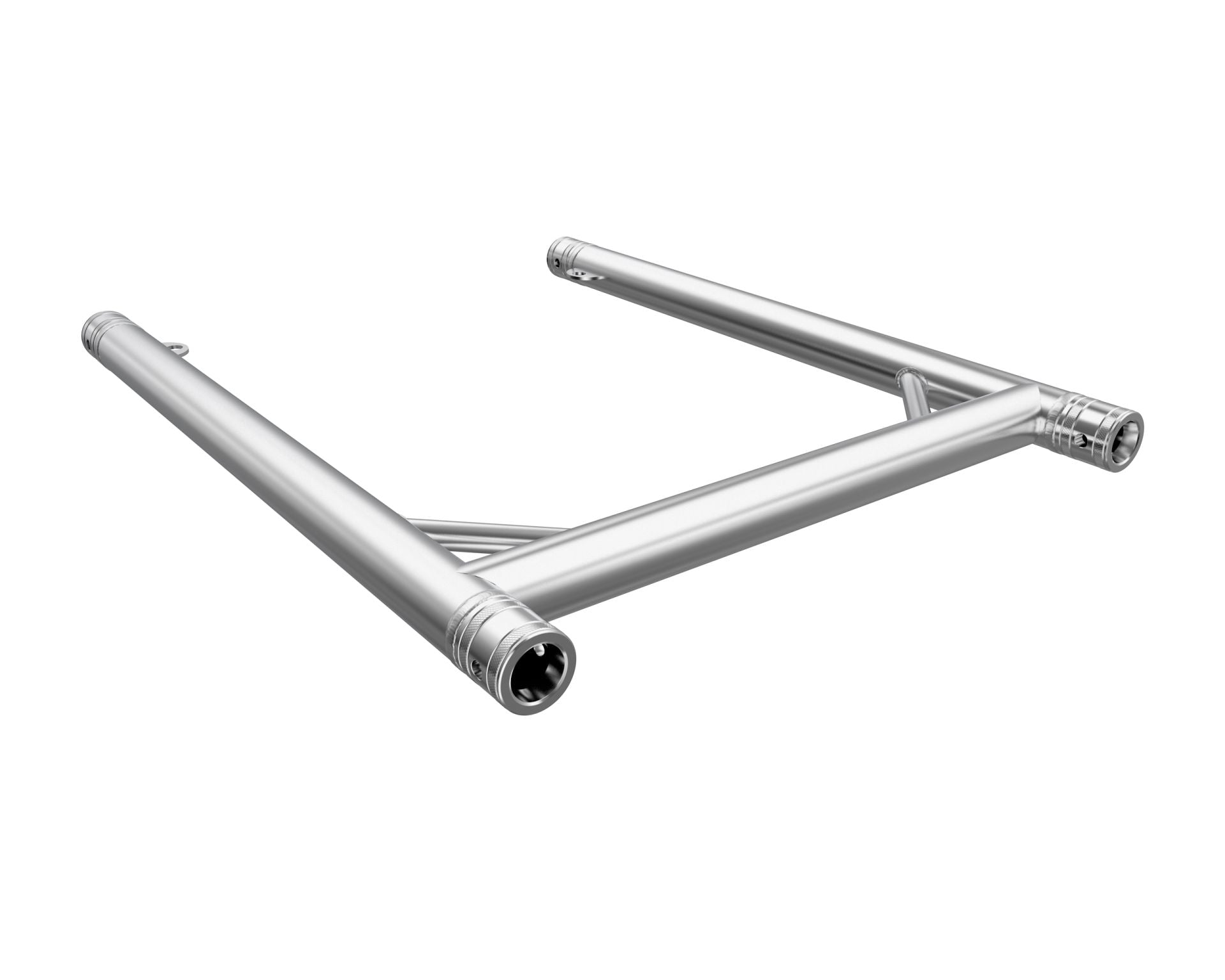

With U-Frame 50 and U-Top 50 Global Truss offers now a highly flexible and completely modular solution for suspended lights. The lightweight system enables a theoretically infinite configuration of single and double suspension as well as ladder systems for various lights - both suspended and upright mounted.
A combination of the two modules can carry a point load of max. 95 kg. By the functional security fasteners of each side of the U-Frame diverse types of lights can be mounted. For ladder configurations up to 10 U-Frame-50 / U-Top-50 combinations can be mounted one below the other, without further rigging actions.
The suspension can be made by the supplied ring eyes or with swivel couplers.
U-Frame and U-Top were developed by Global Truss for quick and easyto- use application in a variety of event environments.
U-Frame 50 and U-Top 50 are available as standard in silver and black. Other colors on request.
A combination of the two modules can carry a point load of max. 95 kg. By the functional security fasteners of each side of the U-Frame diverse types of lights can be mounted. For ladder configurations up to 10 U-Frame-50 / U-Top-50 combinations can be mounted one below the other, without further rigging actions.
The suspension can be made by the supplied ring eyes or with swivel couplers.
U-Frame and U-Top were developed by Global Truss for quick and easyto- use application in a variety of event environments.
U-Frame 50 and U-Top 50 are available as standard in silver and black. Other colors on request.
General
Colour: Aluminum
Material: Al EN AW-6082 T6
Main pipe
Diameter main pipe: 50 mm
Wall thickness main pipe: 3 mm
Hardware
Weight: 3,95 kg

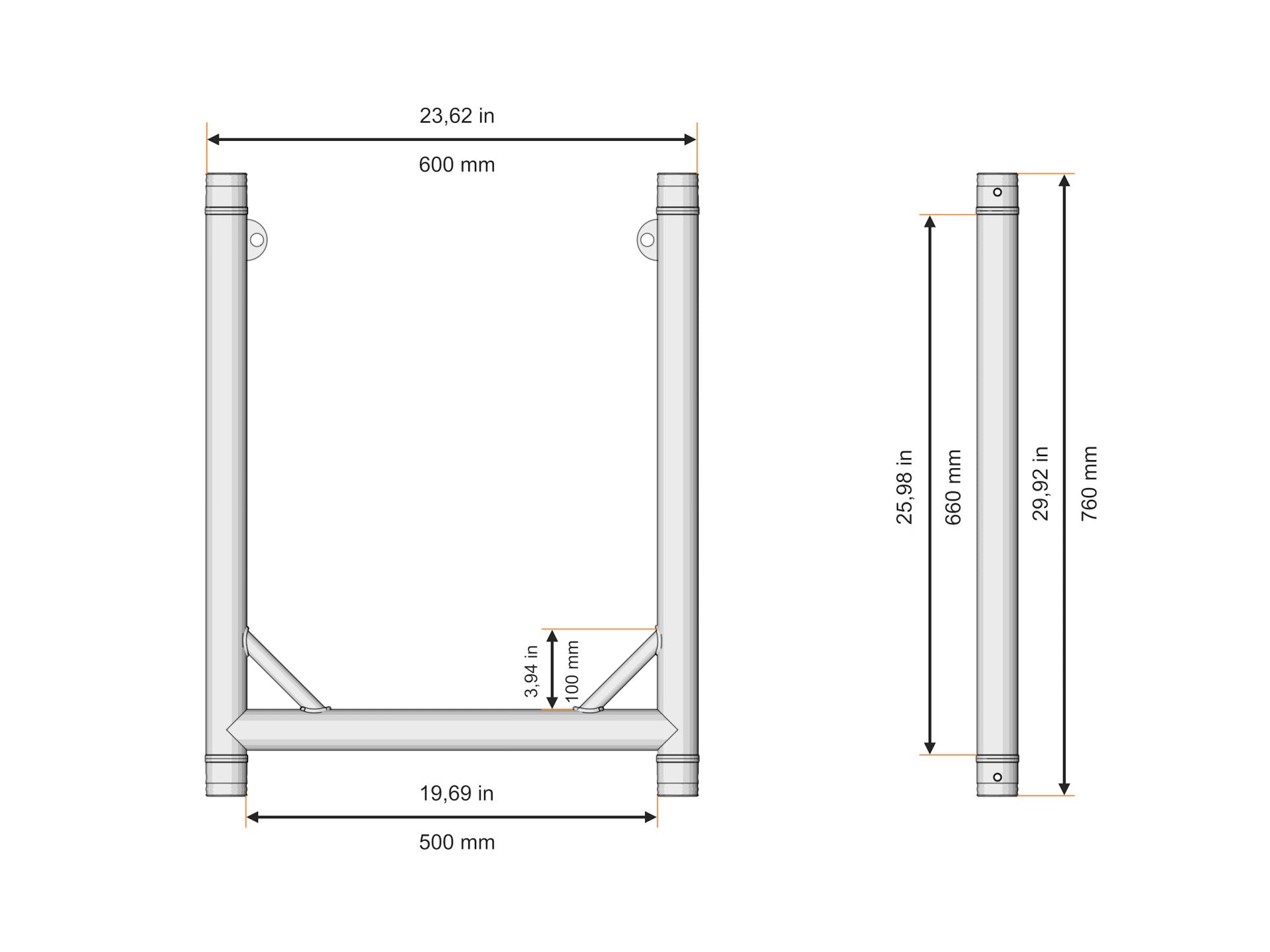

Dimensions (L/W/H): 800 x 615 x 110 mm
Shipping Data
Length: 800 mm
Width: 615 mm
Height: 110 mm
Weight: 4,40 kg
PU: 1
