Inner width: 70 cm; modular F31 system; point load up to max. 94 kg; safety mounting on both sides; incl. 2 connectors and pin

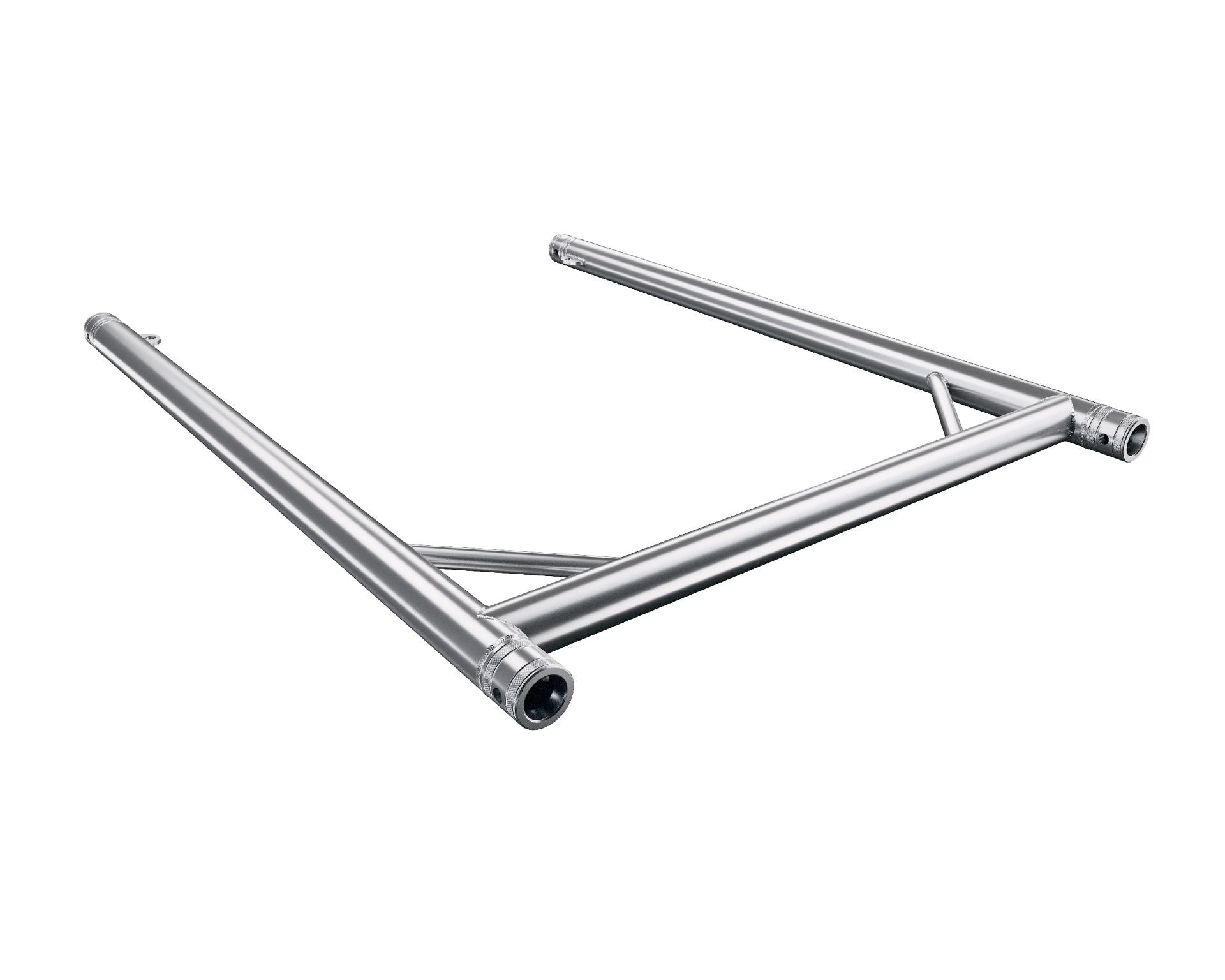

With the U-Frame 70 and the matching U-Top 70, Global Truss offers a highly flexible and modular solution for creative stage design. The system allows countless configurations – both in suspended and standing setups.

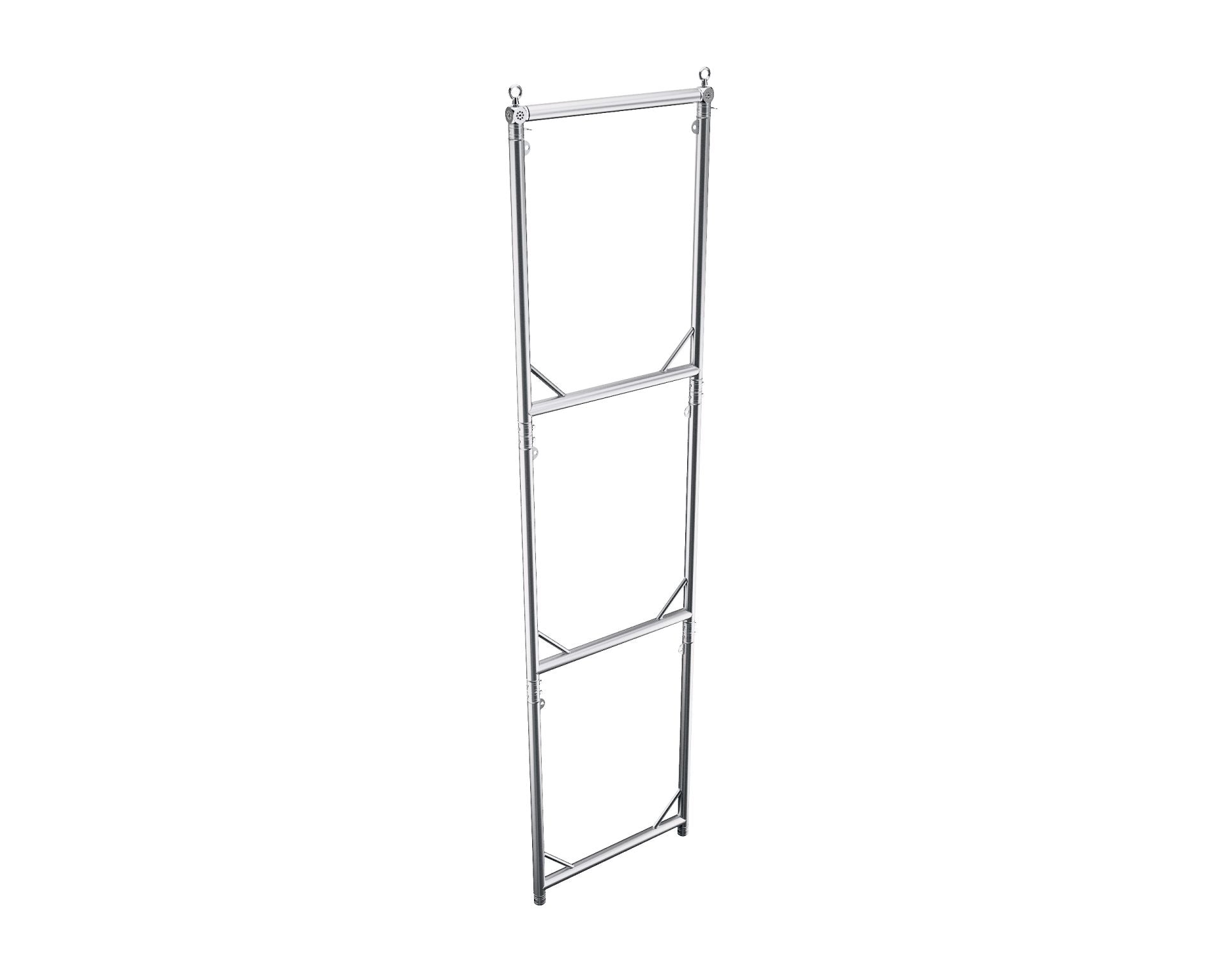

In combination, the U-Frame 70 and U-Top 70 can support a point load of up to 94 kg. The practical safety mounts on all sides of the U-Frame allow the installation of a wide variety of spotlight types. For ladder configurations, up to ten modules can be connected vertically.
Suspension can be carried out either using the supplied ring eyelets (on the U-Top 70) or with optional swivel couplers, ensuring maximum flexibility during installation. The system has been designed for quick and straightforward use, making it suitable for a wide range of event environments – from touring to permanent installations.
The U-Frame 70 and U-Top 70 are available as standard in silver and black, with custom colors available on request.
General
Colour: Aluminum
Material: Al EN AW-6082 T6
Main pipe
Diameter main pipe: 50 mm
Wall thickness main pipe: 3 mm
Hardware
Weight: 4,60 kg
Dimensions (L/W/H): 1090 x 820 x 65 mm
Shipping Data
Length: 1090 mm
Width: 820 mm
Height: 65 mm
Weight: 6,15 kg
PU: 1
