Price indicated per 1 meter.

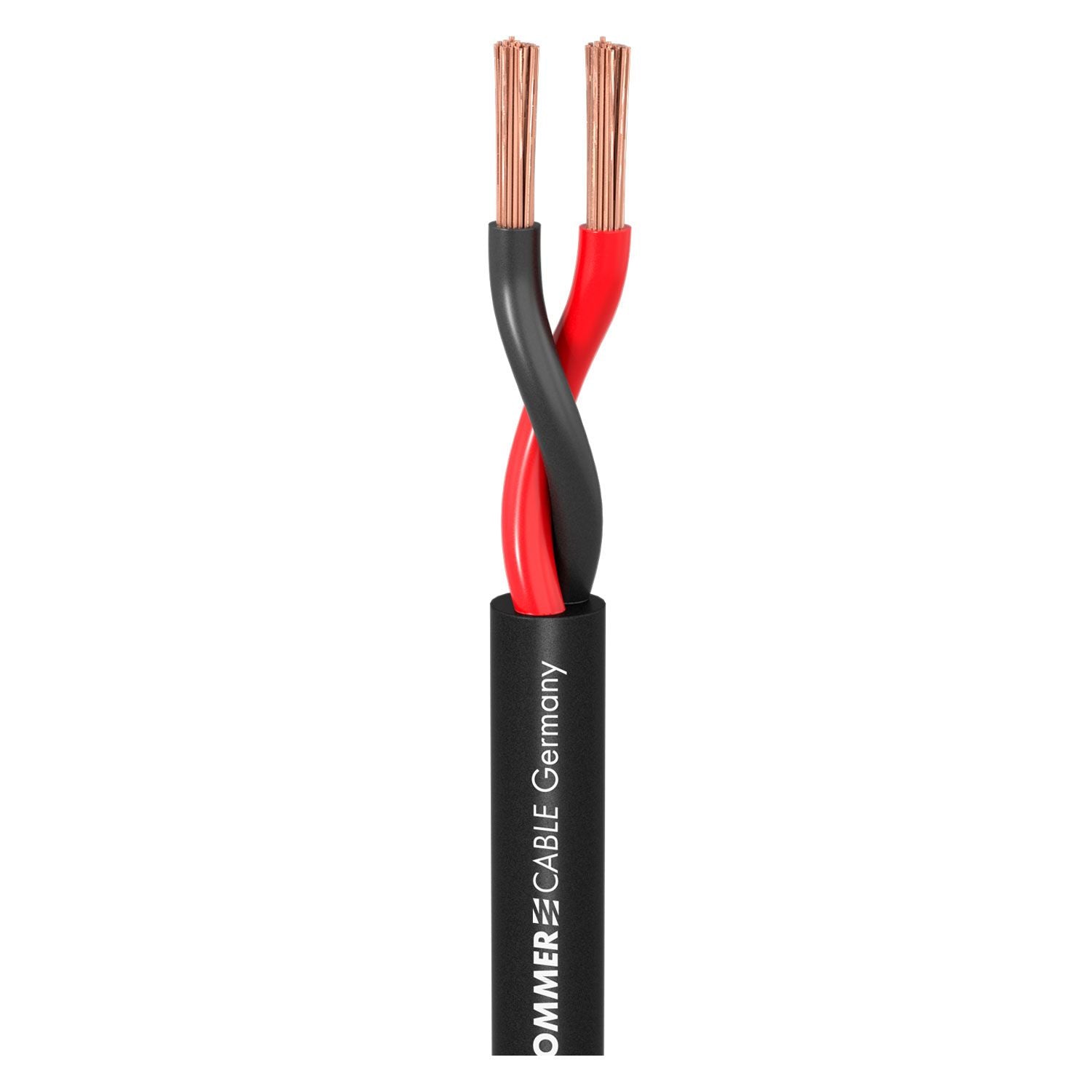

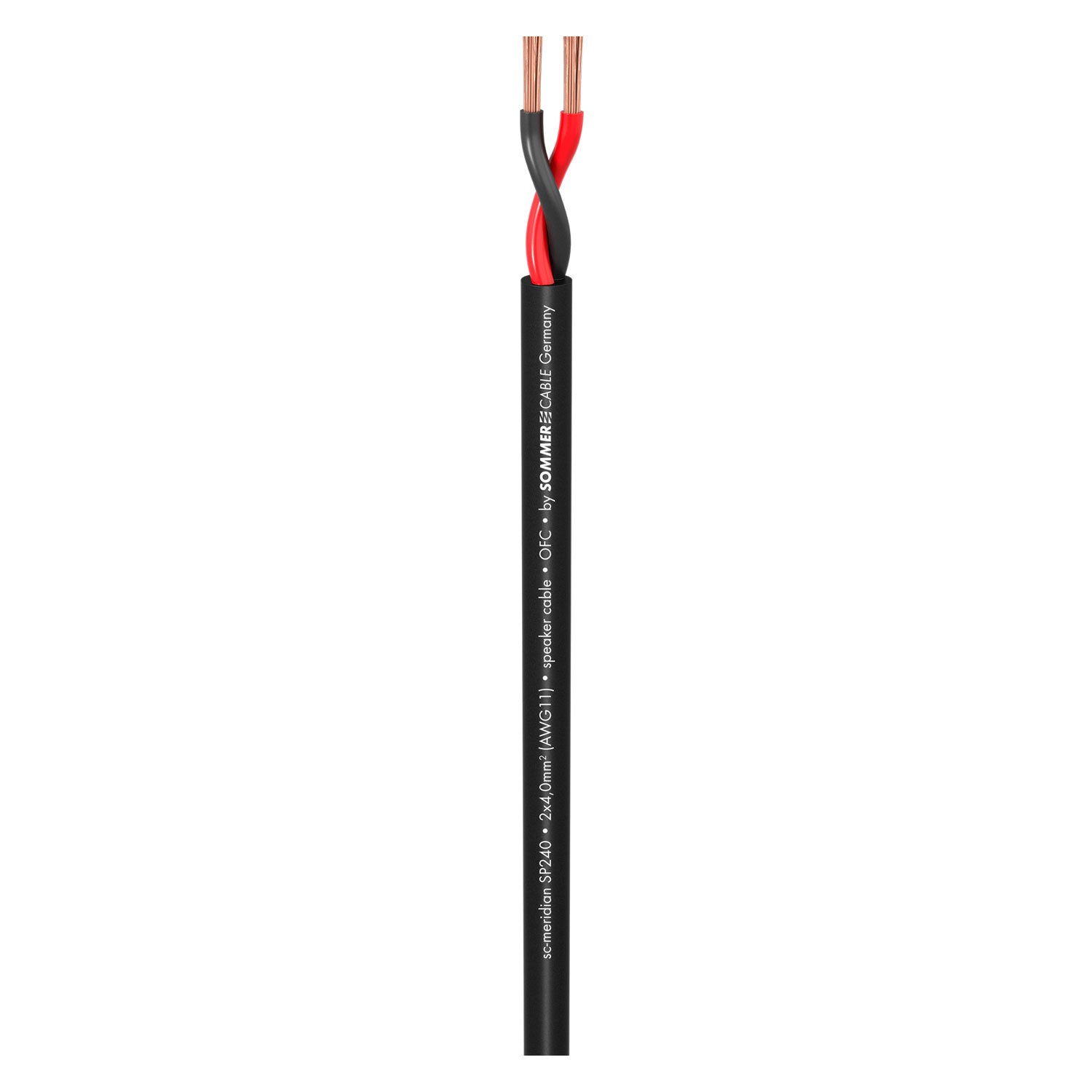

Speaker Cable

Advantages:

- flexible and easy to rollable for cable reel

- Small in diameter

- Very durable due to the use of special coating mixtures

- Affordable price



Application:

- PA sound systems of all kinds

- For ELA technology

- Cabling of HiFi systems



Technical Data:

- Article number: 440-0051

- Name: Meridian Mobile SP240

- EAN: 4049371206419

- Properties: Analog

- Properties: OFC oxygen free copper

- Application area: Stage / live

- Application area: Mobile outdoor / indoor

- Application area: Studio / Broadcast

- Application area: ELA 100 V

- Application: Speaker Cable

- Colour: black

- Construction: (2LIY4,0mm²)Y

- Jacket material: PVC

- Jacket Ø: 9,50 mm

- Jacket Ø: 0.374 "

- Number of Channels (audio): 1

- Inner conductor (audio): 2

- Inner conductor (audio): 4,00 mm²

- Inner conductor (audio): 0.0062 sqin

- Inner conductor Ø (audio): 2,76 mm

- Inner conductor Ø (audio): 0.1087 "

- AWG (audio): 11

- Copper strands (audio): 56

- Copper strand Ø (audio): 0,30 mm

- Copper strand Ø (audio): 0.0118 "

- Conductor insulation Ø: 4,20 mm

- Conductor insulation Ø: 0.1654 "

- Weight per 1 m: 150 g

- Weight at 1000 ft.: 100.9374 lbs

- UV-resistant: yes

- Fire load per m: 0,46 kWh

- Style variant: round

- Packing: 100 m spool

- Packing: 500 m spool

- Temperature min.: -30 °C

- Temperature max.: 70 °C

- Width: 9,5 mm

- Width: 0.374 "

- Height: 9,5 mm

- Height: 0.374 "

- Capac. cond./cond. per 1 m (audio): 125 pF

- Capacity wire/wire at 1 ft. (audio): 38.1 pF

- Insulation resist. per 1 km: 0,005 GΩ

- Insulation resist. per 1000 feet: 0.0015 GΩ

- Insulation resist. per 1 km (audio): 0,005 GΩ

- Insulation resist. per 1000 feet (audio): 0.0015 GΩ

- Conductor resistance per 1 km: 4,5 Ω

- Conductor resistance per 1000 ft.: 1.3716 Ω

- BPVo-Euroclass: Fca
