Price indicated per 1 meter.
DMX
Advantages:
- Perfect shielding by a dense helical copper mesh screen + AL/PT foil or AL fleece
- Compact and hence space-saving
Application:
- Professional studio and microphone technology
- Connection of effects and control units which require a return signal
- Industrial technology and medical engineering
- Professional MIDI-technology, transfer cable
- High-end connection of hifi components
- Control of lighting and scanner systems and displays
Technical Data:
- Article number: 520-0140

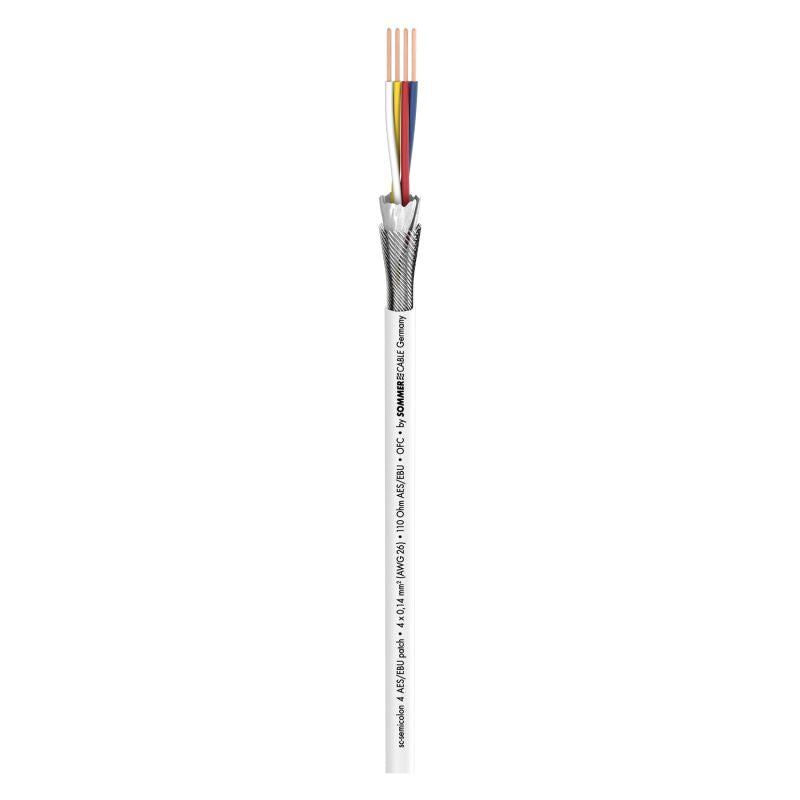

- Name: SC-Semicolon 4 AES/EBU
- EAN: 4049371287258
- Properties: Analog
- Properties: OFC oxygen free copper
- Properties: Digital 110 Ω AES / EBU
- Application area: Installation
- Application area: Studio / Broadcast
- Application: DMX
- Colour: white
- Signal transmission: symmetrical

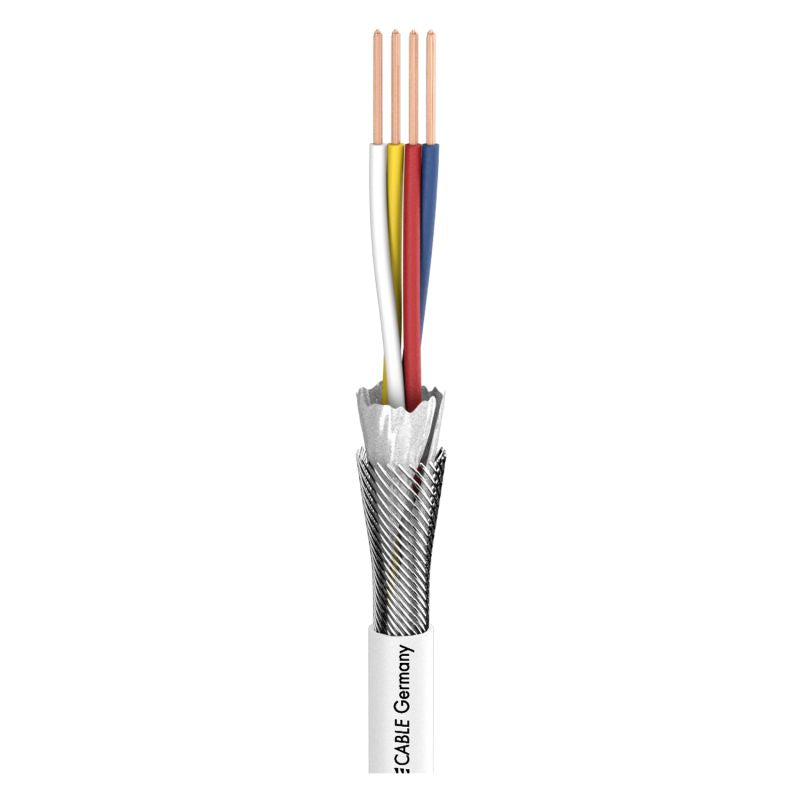

- Construction: (4LI2Y0,14mm²)(ST)DY
- Jacket material: PVC
- Jacket Ø: 5,20 mm
- Jacket Ø: 0.2047 "
- Number of Channels (AES/EBU, DMX): 1
- Inner conductor (AES/EBU, DMX): 4
- Inner conductor (AES/EBU, DMX): 0,14 mm²
- Inner conductor (AES/EBU, DMX): 0.0002 sqin
- Inner conductor Ø (AES/EBU, DMX): 0,42 mm
- Inner conductor Ø (AES/EBU, DMX): 0.0165 "
- AWG (AES/EBU, DMX): 26
- Shielding: Copper spiral sleeve + AL-fleece
- Shielding factor: 100 %
- Copper strands (AES/EBU, DMX): 18
- Copper strand Ø (AES/EBU, DMX): 0,10 mm
- Copper strand Ø (AES/EBU, DMX): 0.0039 "
- Conductor insulation material: Foam / Skin-PE
- UV-resistant: yes
- Fire load per m: 0,18 kWh
- Style variant: round
- Packing: 500 m spool
- Packing: 100 m spool
- Temperature min.: -25 °C
- Temperature max.: 70 °C
- Width: 5,2 mm
- Width: 0.2047 "
- Height: 5,2 mm
- Height: 0.2047 "
- Capac. cond./cond. per 1 m (AES/EBU, DMX): 40 pF
- Capacity wire/wire at 1 ft. (AES/EBU, DMX): 12.192 pF
- Capac. cond./shield. per 1 m (AES/EBU, DMX): 80 pF
- Capacity wire/electic screen at 1 ft. (AES/EBU, DMX): 24.384 pF
- Impedance: 110 Ω
- Insulation resist. per 1 km: 1 GΩ
- Insulation resist. per 1000 feet: 0.3048 GΩ
- Insulation resist. per 1 km (AES/EBU, DMX): 1 GΩ
- Insulation resist. per 1000 feet (AES/EBU, DMX): 0.3048 GΩ
- Conductor resistance per 1 km: 140 Ω
- Conductor resistance per 1000 ft.: 42.672 Ω
- BPVo-Euroclass: Fca
