The FT34 truss line is our best seller. Its loading charts are certified by TÜV SÜD. Impressive loading characteristics and relatively small dimensions of this product line means that this truss can be used for creating simple support beams, large grids, roof systems, tradeshow booths and much more.
Key features and benefits:
- 290 mm (11.42 in) square truss
- Certified 50 x 2 mm (1.97 in x 0.08 in) tube
- Available in various lengths up to 5 m / 16.40 ft
- Certified spans up to 12 m / 39.37 ft
- Interior & exterior applications
- Connection kit supplied with straights and corners
- Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
- Claw clamp 50 for in pipe welding on request
- Snap clamp compatible (8102-8105)
- Stack clamps for easy stacking (8106-8107)
- Quicklock connection system for quick and easy assembly
- Powder coat colour finish available on request
FT34 specifications
- TUBES: 50 x 2 mm (1.97 x 0.08 in)
- BRACES: 20 x 2 mm (0.8 x 0.08 in)
- ALLOY: EN AW-6082 T6

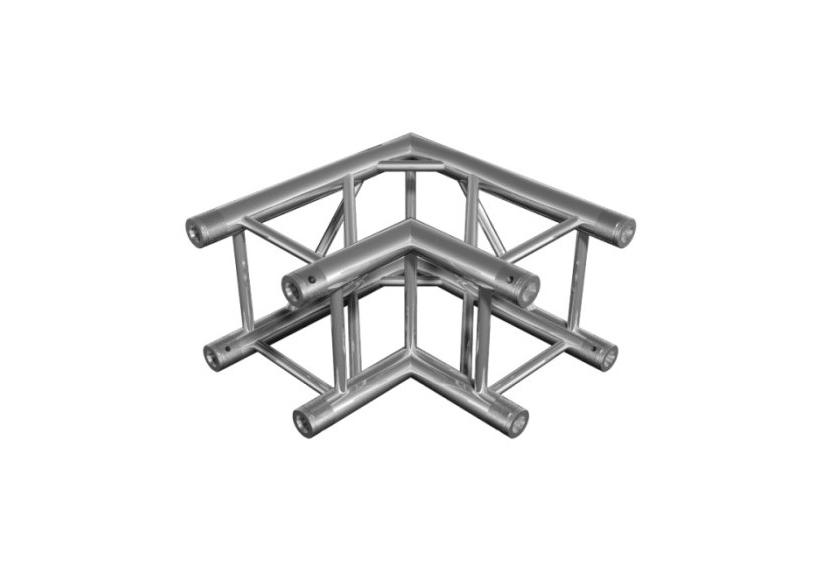

FT34-C21
Two way corner with 90° angle in box truss FT34. Size 0,5 x 0,5 m. One connection kit included with the product.
Specifications
- 4.5 kg
- 2-way 90° corner
- 0.5 m
- 1 connection kit included
