HT34
The HT34 truss line is the heavy duty version of our standard 290 mm (11.42 in) truss. Good loading characteristics and relatively small dimensions of this product line mean it can be used for creating simple support beams, large grids, roof systems, trade booths and much more. Tested and certified by TÜV SÜD.
Key features and benefits:
- 290 mm (11.42 in) square truss
- Certified 50 x 3 mm (1.97 in x 0.12 in) tube
- Available in various lengths up to 5 m / 16.40 ft
- Certified spans up to 12 m / 39.37 ft
- Interior & exterior applications
- Connection kit supplied with straights and corners
- Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
- Snap clamp compatible (8102-8105)
- Stack clamps for easy stacking (8106-8107)
- Quicklock connection system for quick and easy assembly
- Powder coat colour finish available on request
Specifications
- TUBES: 50 x 3 mm (1.97 x 0.12 in)
- BRACES: 20 x 2 mm (0.79 x 0.08 in)
- ALLOY: EN AW-6082 T6

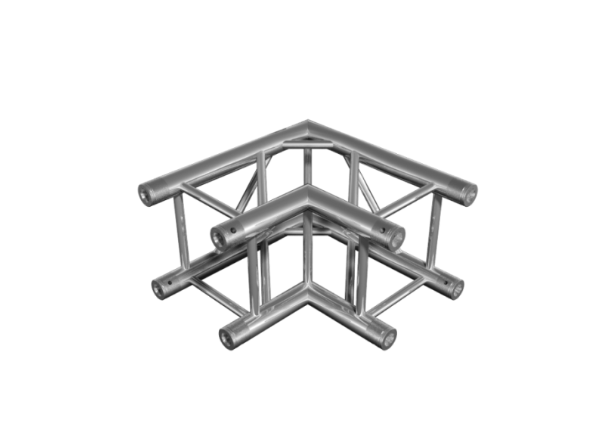

HT34-C21
Two way corner with 90° angle in box truss HT34. Size 0,5 x 0,5 m. One connection kit included with the product.
Specifications
- 5.6 kg
- 2-way 90° corner
- 0.5 m
- 1 connection kit included
