HT44
The HT44 is a heavy duty version of larger and wider box truss segments and is usually used for bigger structures and setups. Its loading charts are certified by TÜV SÜD and the maximum span of a truss beam is certified up to 16 m. This truss is the right solution for roof systems and larger show grids where longer beam spans and higher loading capacities are required.
Key features and benefits:
- 400 mm (15.75 in) square truss
- Certified 50 x 3 mm (0.97 x 0.12 in) tube
- Available in various lengths up to 5 m / 16.40 ft
- Certified spans up to 16 m / 52.49 ft
- Interior & exterior applications
- Connection kit supplied with straights and corners
- Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
- Claw clamp 50 for in pipe welding on request
- Snap clamp compatible (8102-8105)
- Stack clamps for easy stacking (8106-8107)
- Quicklock connection system for quick and easy assembly
- Powder coat colour finish available on request
Specifications
- TUBES: 50 x 3 mm (1.97 x 0.12 in)
- BRACES: 25 x 3 mm 0.98 x 0.12 in)
- ALLOY: EN AW-6082 T6

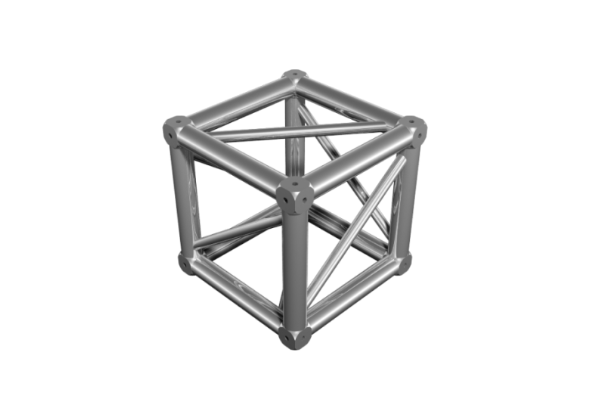

HT44-MCB
The multi junction block is delivered with 2 connection sets for creating a two way corner. Additional sets available on request. Corner block offers up to six ways for connection. No other corners needed.
Specifications
- 8 kg
- Multi connection box
- 0.4 m
