A new domotic ceiling solution for VicBooth Office, using a light-integrated and ventilation system that activates when in use.

VicBooth Office can be improved with a new ceiling equipped with an automated solution, using light-integrated lamps and a ventilation device.

The system activates the light and ventilation when the user enters the booth. After use, the ventilation system increases to the maximum power to clean the air.

	Standard Ceiling	Ceiling with Integrated Light and Ventilation
Light	None	2 × 8W LED (Natural White - 4000K)
Ventilation	Passive ventilation, upgradable with an external Ventilation Unit	2 High-performance fans with S-FLOW blades supply 30% more air flow, with an adjustable auto speed control (600-1600 RPM) to keep fan noise to a minimum
Automation	None	Integrated motion detector: activates the lights and ventilation when in use

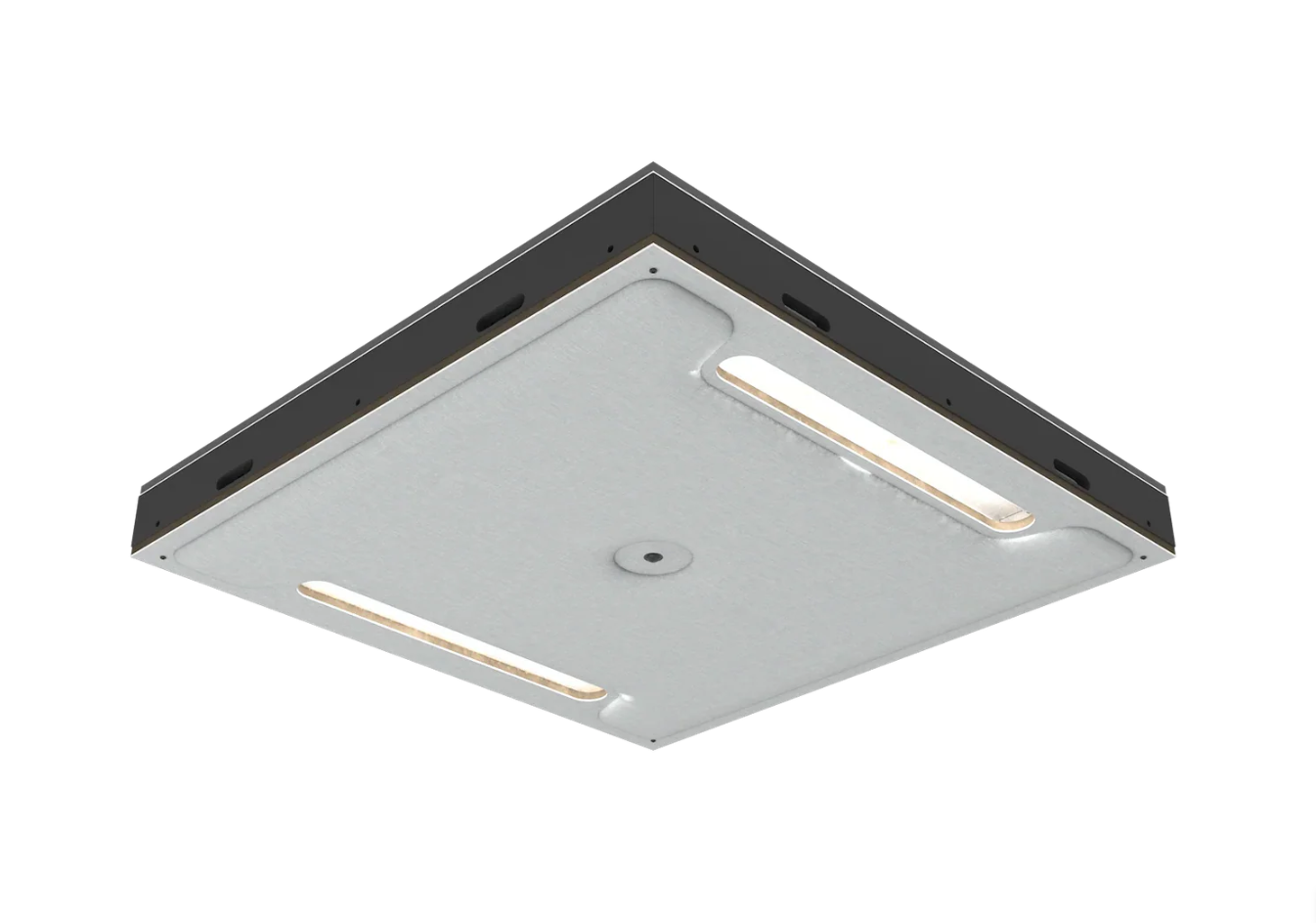

The VicBooth Office Light and Ventilation Ceiling is a kit that can be implemented in existing booths of the VicBooth Office line, by replacing the legacy ceiling.

Product Info

• Dimensions: 965×965×121mm / 38"×38"x4.8" (LxHxW, unit)
• Weight: 23.65kg / 52.14lb (unit)
• Raw Materials: High-Pressure Laminate (HPL), MDF, VicPET Wool, ViCycle
• Fire Rating: Not available
• Functions: Accessories, Sound Insulation

Technical Details

• Lightning and Ventilation activated by motion detector
• Lighting: 2x 12W LED, 4000°K (Natural White)
• Ventilation: 2x Ø14cm fans (109.55 CFM)
• Ventilation Fan Noise Levels
  / 100% speed: 49 dB(A)
  / 50% speed: 33 dB(A)
  / 20% speed: <30 dB(A)
• Notes: Ventilation noise values are based on measurements conducted on a VicBooth 1×1 configuration equipped with one integrated light and ventilation unit. Measurements were performed in a controlled environment following standard acoustic procedures. Results are provided as reference values and may vary depending on booth size, configuration and number of ventilation units.

Packaging Information

• Box Dimensions: 1050x1040x135mm / 41.3"x40.9"x5.3"
• Gross Weight: 27.95kg / 61.62lb
